Description

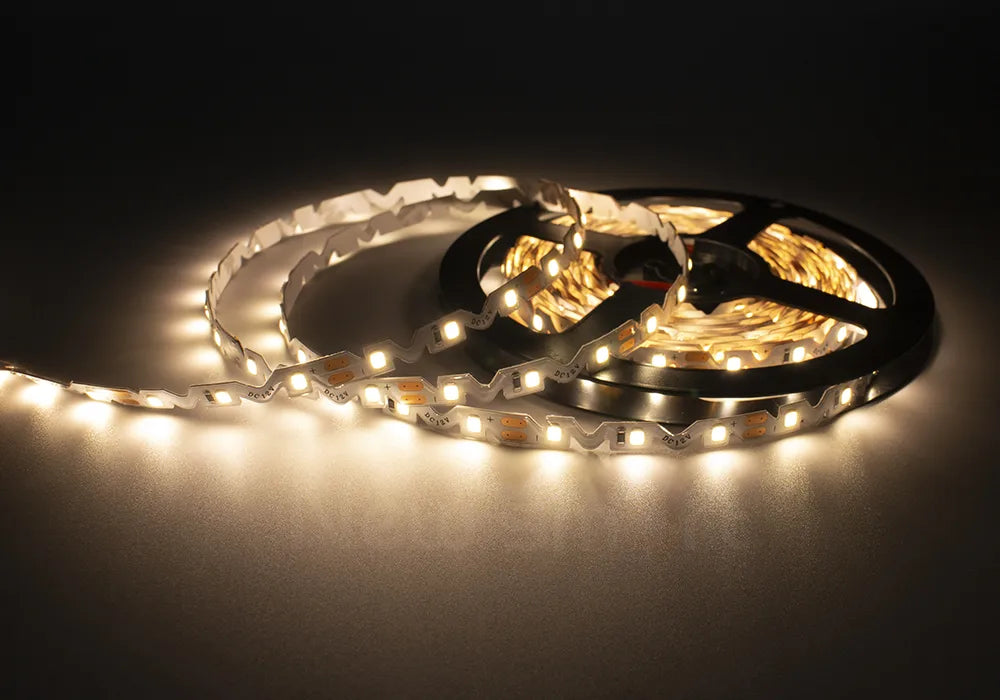

This 12V DC LED strip light is built with a Z-bend flexible circuit, allowing it to curve along both the horizontal and vertical plane for tight-radius runs and multi-directional layouts. At 6.6mm wide, it fits into narrow channels and slim aluminum profiles where standard-width strips won't sit. Each roll measures 5 meters, runs at 6 watts per meter, and carries a density of 60 LEDs per meter for a continuous, low-shadow light line rated at 600 lumens per meter. It is available in 3000K, 4000K, and 6500K color temperatures, is IP65 rated for damp and protected outdoor locations, and is UL Listed.
6W/m
Power
3000/4000
6500K
IP65
Water Resist.
UL
Listed
Specifications +
| General | |
|---|---|
| Product Type | Flexible LED Strip Light, Z-Bend |
| Certifications | UL Listed |
| Electrical | |
| Input Voltage | 12V DC |
| Power Consumption | 6W/m (30W per 5m roll) |
| IP Rating | IP65 |
| Optical | |
| LED Density | 60 LEDs/m |
| Luminous Flux | 600 lm/m |
| CCT | 3000K / 4000K / 6500K |
| CRI | 80+ |
| Physical | |
| Strip Width | 6.6mm (0.26") |
| Roll Length | 5m (16.4 ft) |
| Cut Interval | Every 3 LEDs (~50mm / 1.97") |
Features +
- The Z-bend flexible circuit board bends along both the horizontal and vertical axis, allowing the strip to follow tight curves, corners, and multi-directional letterforms without kinking.
- A narrow 6.6mm width lets the strip fit into slim channel letter returns and compact aluminum profiles where wider strips do not fit.
- The strip runs on 12V DC input for compatibility with standard low-voltage LED drivers and power supplies.
- A density of 60 LEDs per meter delivers a continuous line of light with reduced visible hot-spotting compared to lower-density strips.
- Rated output of 600 lumens per meter provides consistent brightness across the full 5-meter roll length.
- The strip draws 6 watts per meter, for a total of approximately 30 watts across the full 5-meter roll.
- It is available in 3000K, 4000K, and 6500K color temperature options to match warm, neutral, or cool white lighting schemes.
- An IP65 ingress rating protects the strip against dust and low-pressure water jets, allowing use in damp and protected outdoor locations as well as dry indoor spaces.
- The strip is UL Listed.

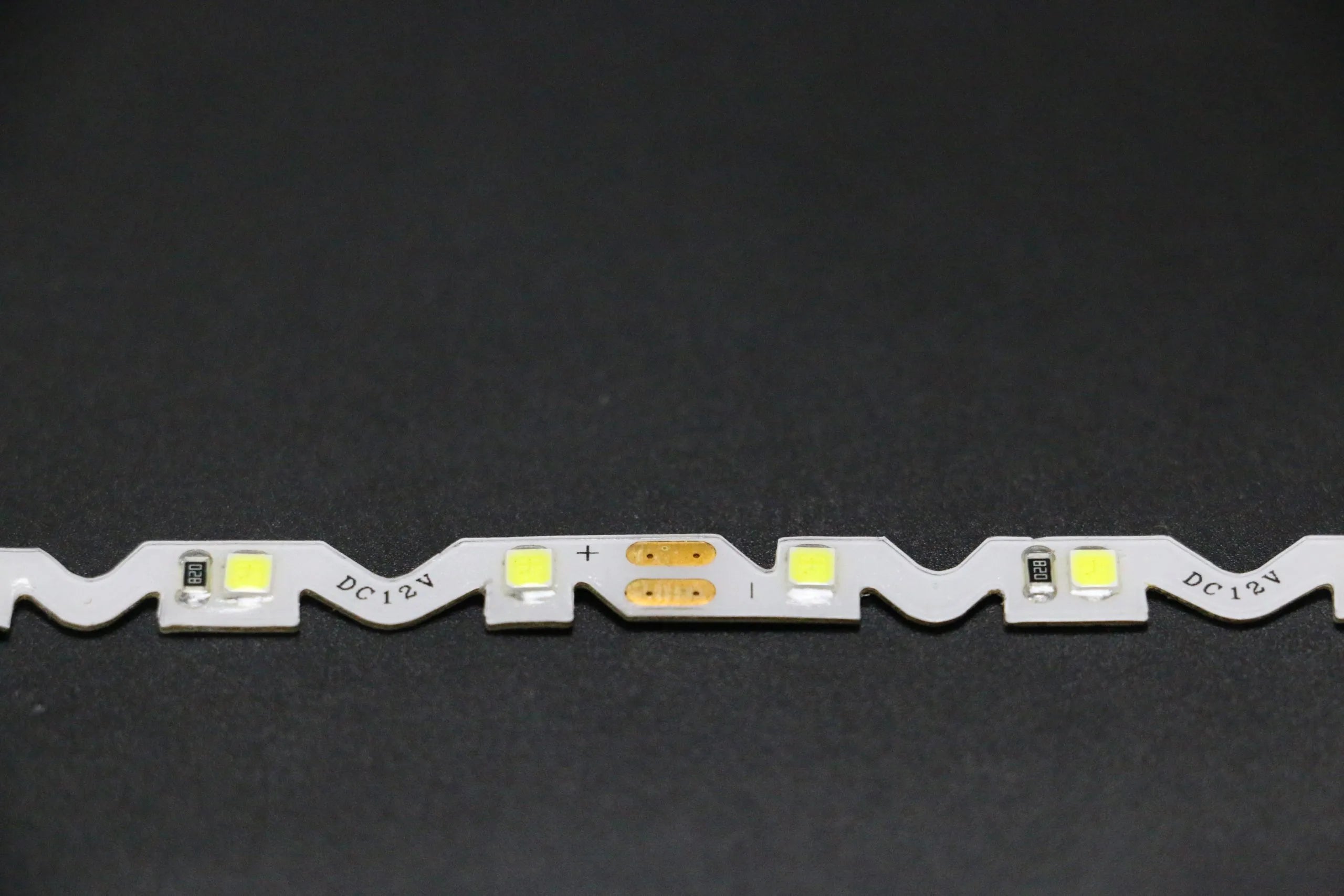

- Cut lines are marked every 3 LEDs, approximately every 1.97 inches, allowing the strip to be trimmed to custom lengths.
Applications +
- Channel letter and sign cabinet illumination
- Storefront and monument sign backlighting
- Cove and contour lighting around curved architectural features
- Display case and showcase accent lighting
- Cabinetry and millwork edge lighting where tight bends are required
- Protected outdoor signage and architectural accents where occasional moisture exposure is expected
Connection Guidelines +
Do not exceed the manufacturer-rated maximum run length per power feed point; excessive daisy-chained runs cause voltage drop and dimming toward the far end of the strip.
Connect the strip to a 12V DC constant-voltage power supply sized to the total connected load, leaving headroom for driver derating. For runs longer than a single roll, feed power in from multiple points along the run rather than daisy-chaining multiple rolls end-to-end from a single feed. Cut only at the marked cut lines, spaced every 3 LEDs (approximately 1.97"), and confirm polarity at each connection point before powering on.
