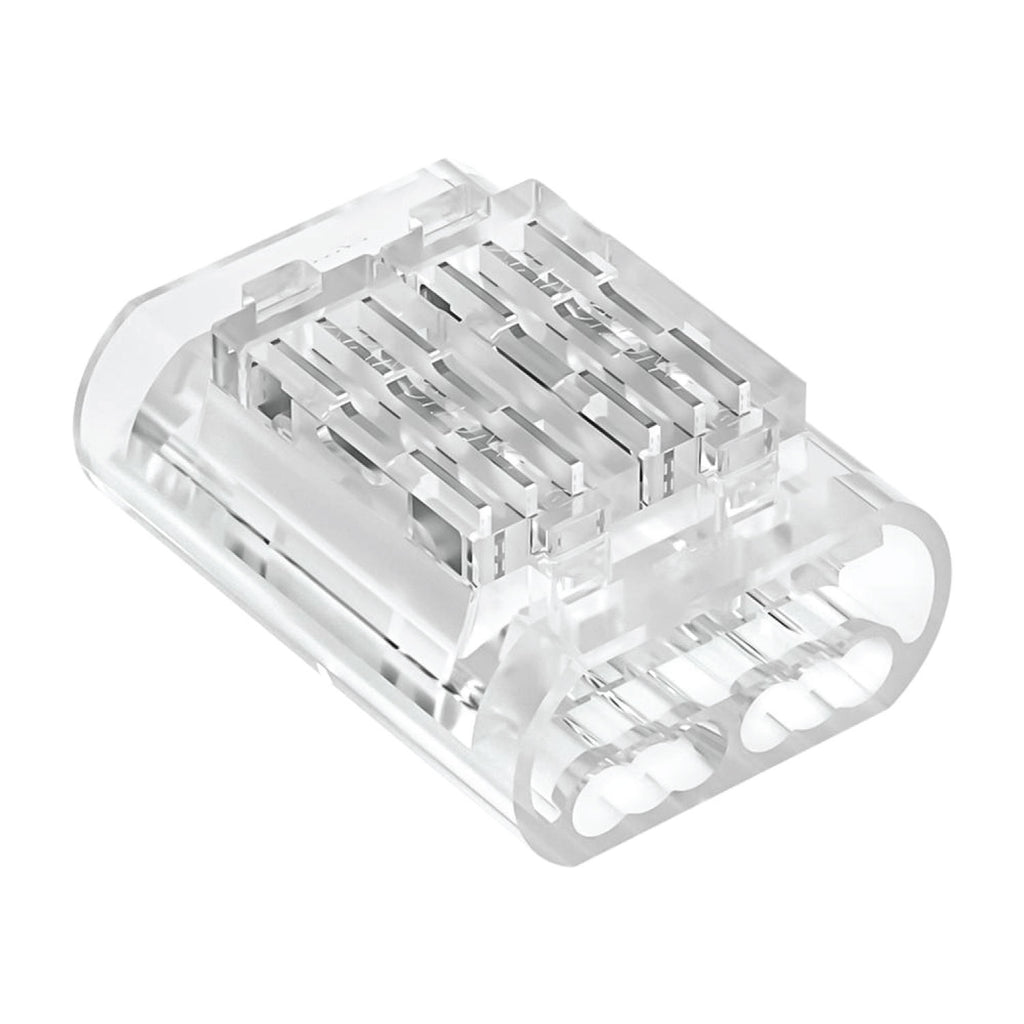

Wire Joint X Connector | 6-Pin, I-Shape, Transparent Housing, 22–20AWG Wire to Wire Connector
Roll over image to zoom in Click on image to zoom
Wire Joint X Connector | 6-Pin, I-Shape, Transparent Housing, 22–20AWG Wire to Wire Connector

Wire Joint X Connector | 6-Pin, I-Shape, Transparent Housing, 22–20AWG Wire to Wire Connector

SKU: STL-WJX-CC6-1820
Price:
$0.99
Motion Sensor Specsheet
Spec Sheet

Description

  • Compact I-Shape: Designed in a straight I-shape profile with 6 pins, this connector ensures reliable in-line connections for LED strips and low-voltage wiring.
  • Durable Housing: Transparent polycarbonate housing combined with phosphor bronze contacts and nickel plating provides mechanical strength, corrosion resistance, and stable electrical performance.
  • High Current Capacity: Rated at 300V and up to 5A per pin, with actual working current limited by PCB thickness, wire gauge, and ambient conditions.
  • Versatile Wire Support: Compatible with 22–20AWG wires, 0.35–0.52mm² cross section, and OD 1.8–2.0mm, suitable for multiple stranded, flat, and jacket cables.
  • Reliable Performance: Withstands deformation temperature up to 80℃, works in -10℃ to 45℃ indoor environments, ensuring long-term stability and consistent connections.
Product Series Wire Joint X Item No. WJX-CC6-2022
Shape I-Shape, Straight Connection Pin Quantity 6 Pins
Size L23 × W17.5 × H8.3 mm Housing Color Transparent
Material Polycarbonate (PC), Phosphor Bronze Surface Treatment Nickel Plating
Deformation Temperature 80℃ Voltage Rating 300V
Max Current per Pin 5A (limited by wire/PCB/ambient) Applicable Wire Gauge 22–20 AWG
Cross Section 0.35–0.52 mm² Outer Diameter 1.8–2.0 mm
Wire Type Multiple Stranded, Flat & Jacket Environment Temperature -10℃ ~ 45℃
Environment Indoor Tolerances ≤3mm: ±0.10, ＞3–10mm: ±0.15, ＞10–20mm: ±0.20, ＞20mm: ±0.25
