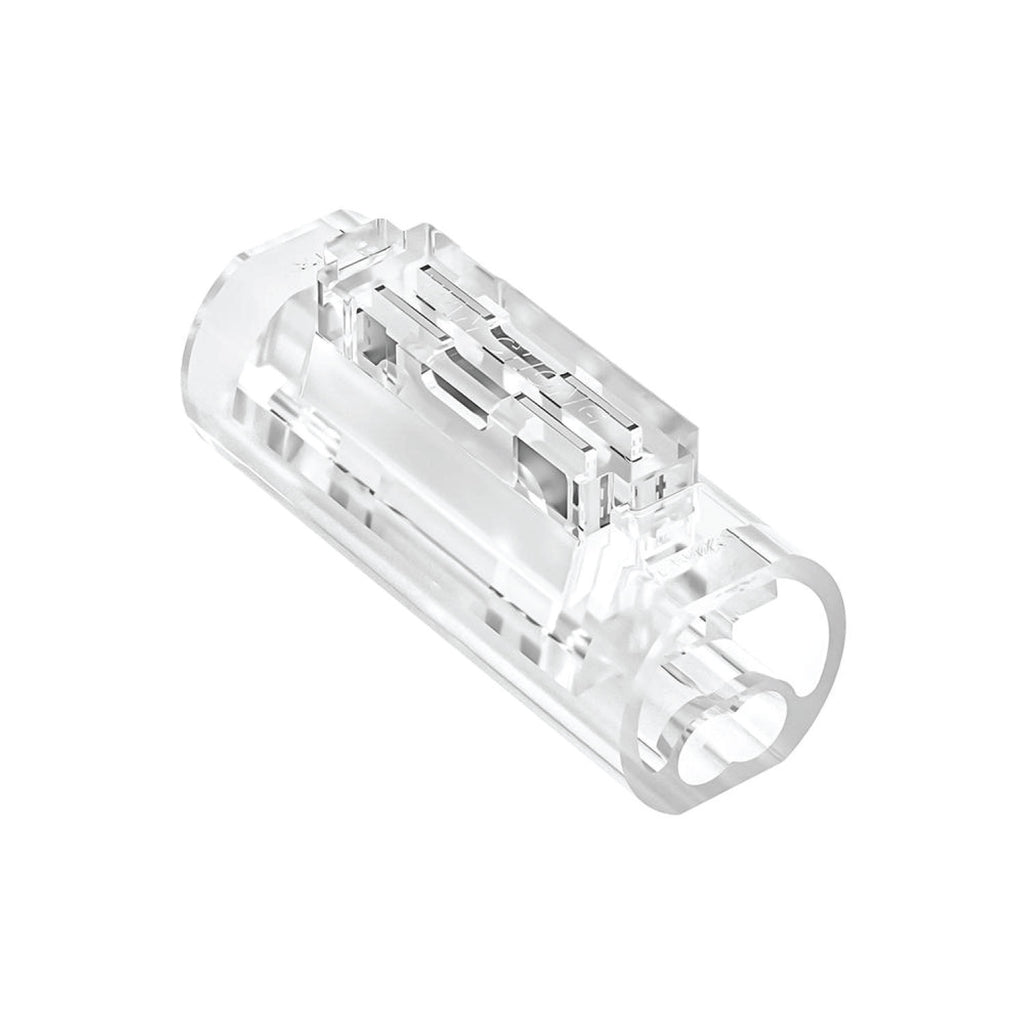

Wire Joint X Connector | 2-Pin, I-Shape, Transparent Housing, 20–18AWG Wire to Wire Connector
Roll over image to zoom in Click on image to zoom
Wire Joint X Connector | 2-Pin, I-Shape, Transparent Housing, 20–18AWG Wire to Wire Connector

Wire Joint X Connector | 2-Pin, I-Shape, Transparent Housing, 20–18AWG Wire to Wire Connector

SKU: STL-WJX-CC2-1820
Price:
$0.99
Motion Sensor Specsheet
Spec Sheet

Description

  • Compact Design: I-shape straight connector with 2 pins provides a simple and efficient solution for inline LED strip and low-voltage wiring applications.
  • Strong Housing: Transparent polycarbonate housing with phosphor bronze contacts and nickel plating ensures durability, conductivity, and reliable performance in long-term installations.
  • High Current Support: Rated at 300V with 8A maximum per pin, though actual working current depends on PCB thickness, wire gauge, and environment.
  • Wire Compatibility: Works with 20–18AWG wires, supporting 0.52–0.82mm² cross section and outer diameters 2.0–2.2mm for multiple stranded and jacketed types.
  • Stable Performance: Designed for indoor environments, operating between -10℃ and 45℃ with deformation resistance up to 80℃ for dependable daily use.
Product Series Wire Joint X Item No. WJX-CC2-1820
Shape I-Shape, Straight Connection Pin Quantity 2 Pins
Size L23 × W9 × H8.3 mm Housing Color Transparent
Material Polycarbonate (PC), Phosphor Bronze Surface Treatment Nickel Plating
Deformation Temperature 80℃ Voltage Rating 300V
Max Current per Pin 8A (limited by wire/PCB/ambient) Applicable Wire Gauge 20–18 AWG
Cross Section 0.52–0.82 mm² Outer Diameter 2.0–2.2 mm
Wire Type Multiple Stranded, Flat & Jacket Environment Temperature -10℃ ~ 45℃
Environment Indoor Manufacturer Shenzhen Onlumi Technology Limited
Version V1.0.20240927 Tolerances ≤3mm: ±0.10, ＞3–10mm: ±0.15, ＞10–20mm: ±0.20, ＞20mm: ±0.25
