Description

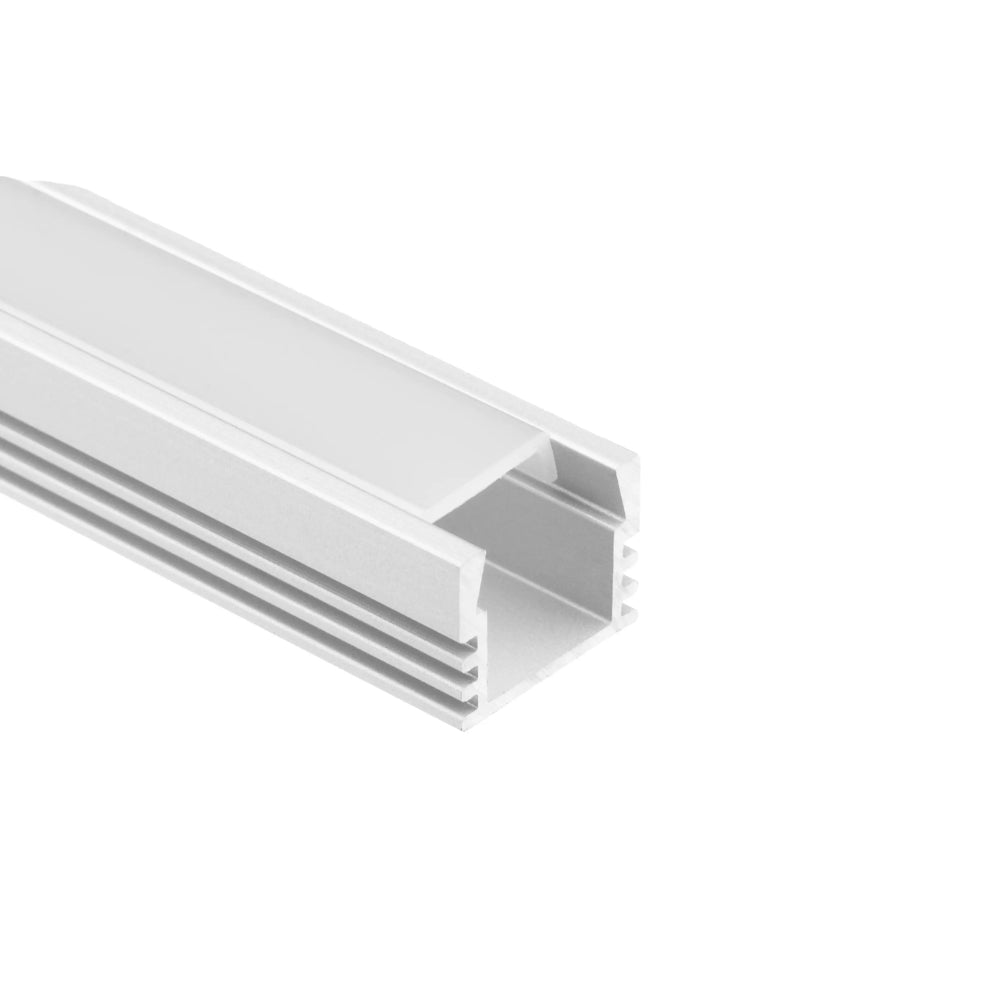

This aluminum LED channel is a U-shape surface-mount profile designed for clean, professional LED strip light installations, sold in a 5-pack. Constructed from 6063-T5 aluminum and available in silver or black finish, each 39-inch channel includes the same milky frosted diffuser that softens LED hot spots into a smooth, continuous line of light, along with end caps and mounting clips for a finished, fast installation. The low-profile 0.63" x 0.47" cross-section suits under-cabinet, shelving, and other tight-space applications.
Specifications +
| General | |
|---|---|
| Model | 1103 |
| Sold As | 5-Pack |
| Profile Type | U-Shape Surface Mount |
| Finish Options | Silver / Black |
| Material | 6063-T5 Aluminum |
| Physical | |

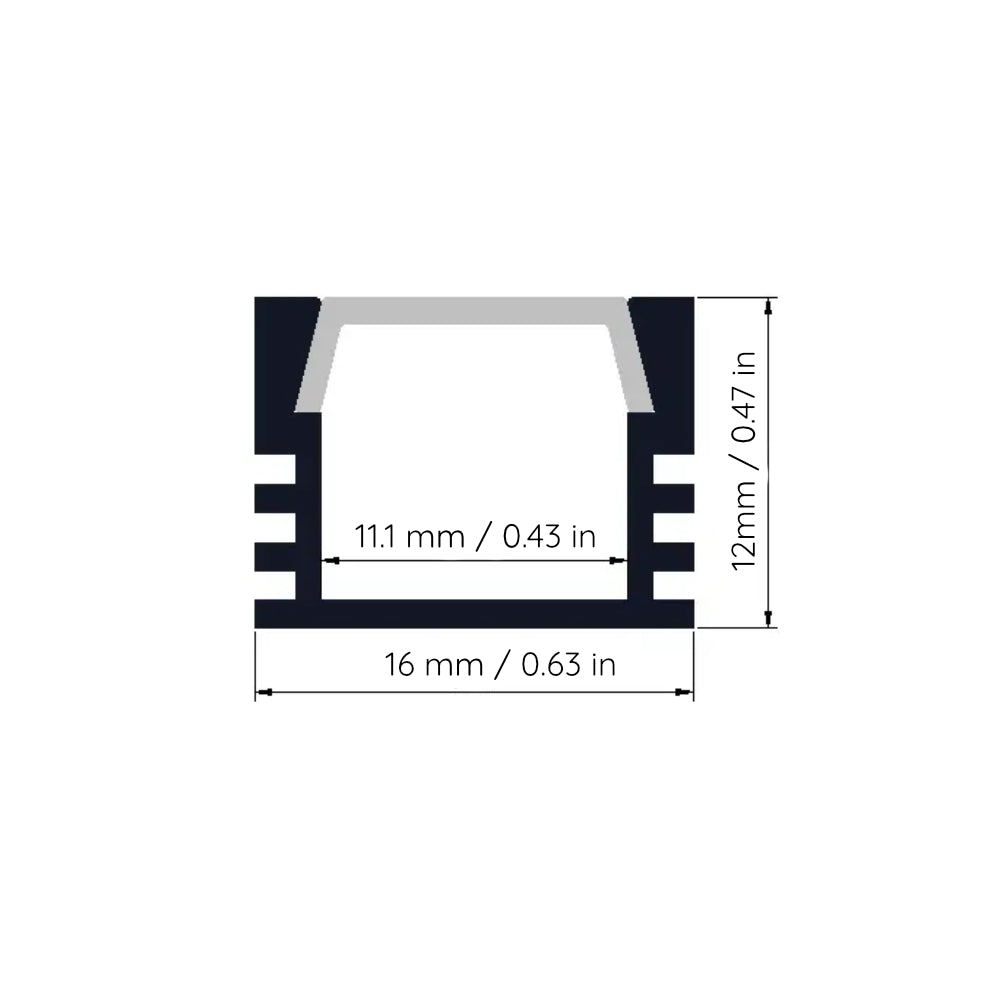

| Length | 39" (1m) |
| Outer Width | 0.63" (16mm) |
| Height | 0.47" (12mm) |
| Inner Channel Width | 0.43" (11.1mm) |
| Cuttable | Yes — cut to length with a fine-tooth saw |
| Optical | |
| Diffuser Type | Milky Frosted (Translucent) |
| Diffuser Material | Polycarbonate* |
| Max LED Strip Width | ~11mm* |
| Installation | |

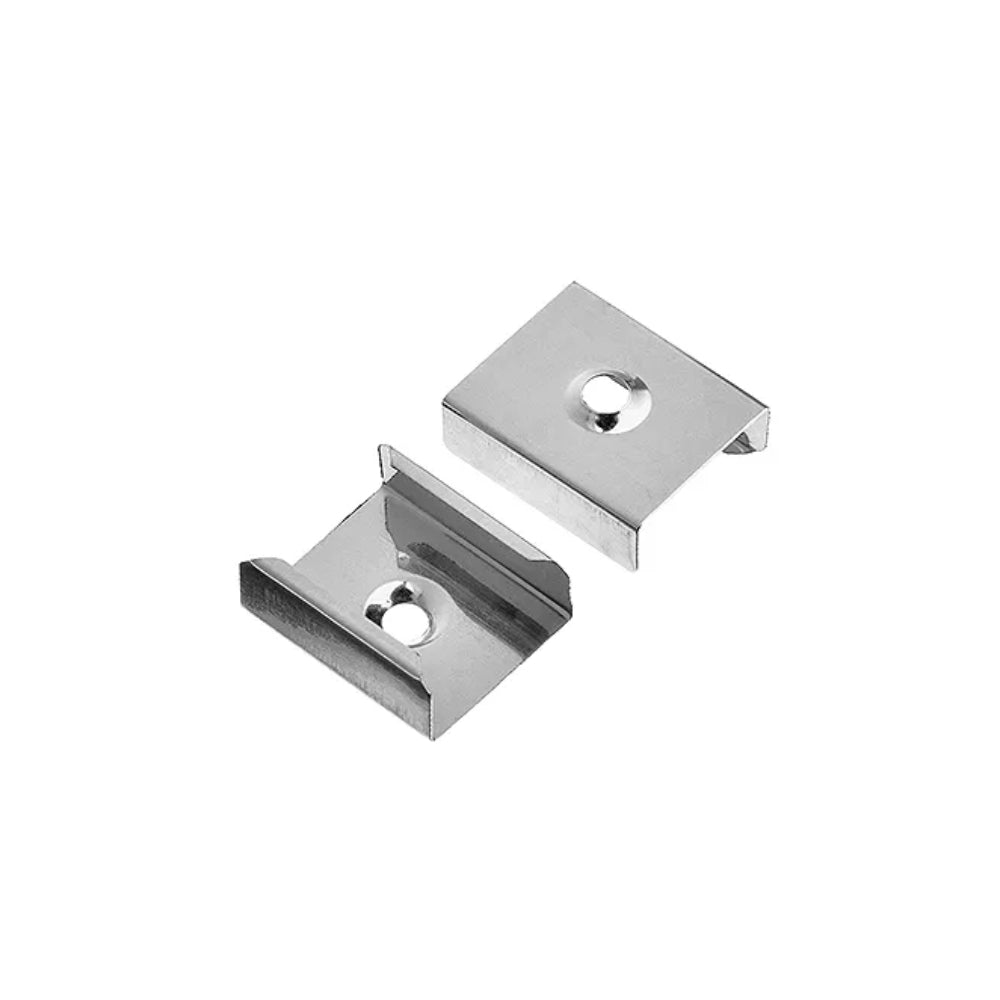

| Mounting Method | Surface mount with included clips |
| IP Rating | IP20* |
| Environment | Dry / Indoor* |
| Includes | Per channel: diffuser, end caps, mounting clips |
Features +
- The U-shape profile sits flat on any surface and accepts LED strip tape up to approximately 11mm wide.
- Extruded from 6063-T5 aluminum, the channel dissipates heat away from the LED strip to help extend strip lifespan while shielding it from dust and physical contact.
- The included milky frosted diffuser snaps into the channel and softens LED hot spots into a smooth, continuous line of light.
- Available in silver or black finish to coordinate with a wide range of interior surfaces, cabinetry, and architectural trim.
- Each channel can be cut to custom lengths using a standard fine-tooth hacksaw or miter saw, and multiple channels can be run end-to-end for longer continuous runs.
- Every channel ships with a diffuser, end caps, and mounting clips for a finished, fast installation.
- The low-profile 0.63" wide by 0.47" tall cross-section allows discreet installation under cabinets, inside shelving, and in other tight spaces.
- Sold in a 5-pack for outfitting multiple runs or larger installations from a single purchase.
Applications +
- Under-cabinet lighting in kitchens and prep areas
- Display case and retail shelving lighting
- Closet and wardrobe interior lighting
- Toe-kick lighting in kitchens and bathrooms
- Bookshelf and built-in cabinetry edge lighting
- Cove and indirect ambient lighting in living spaces and hospitality settings
