Description

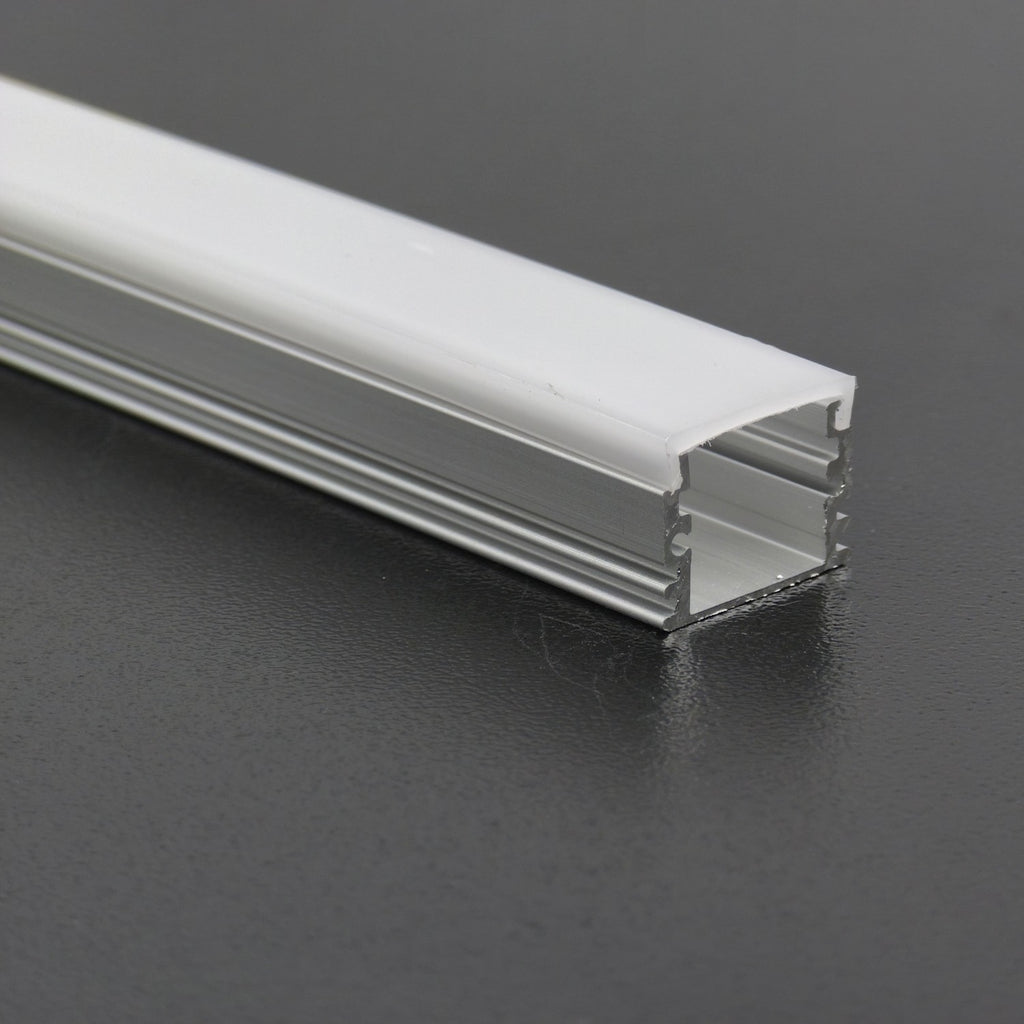

This standard U-shape aluminum channel houses and protects LED strip lighting while diffusing individual LED points into a smooth, continuous line of light. Constructed from 6063-T5 aluminum with an anodized silver finish, each channel includes a milky polycarbonate diffuser lens that snaps into the profile's arched top. The internal 0.49" track accommodates standard LED tape widths, and the channel is sold in a 5-pack of 1-meter lengths for multi-run installations.
Specifications +
| General | |
|---|---|
| Model | 162 |
| Product Type | Standard U-Channel, Aluminum LED Strip Channel |
| Channel Shape | Standard U-Shape |
| Mounting Type | Surface Mount |
| Pack Quantity | 5-Pack |
| Length per Piece | 1m (39.4") |
| Optical | |
| Diffuser Type | Milky (Frosted) PC Lens |
| Max Compatible Strip Width | 0.49" (12.4mm) |
| Physical | |
| Material | 6063-T5 Aluminum |
| Finish | Anodized Silver |
| Internal Channel Width | 0.49" (12.4mm) |

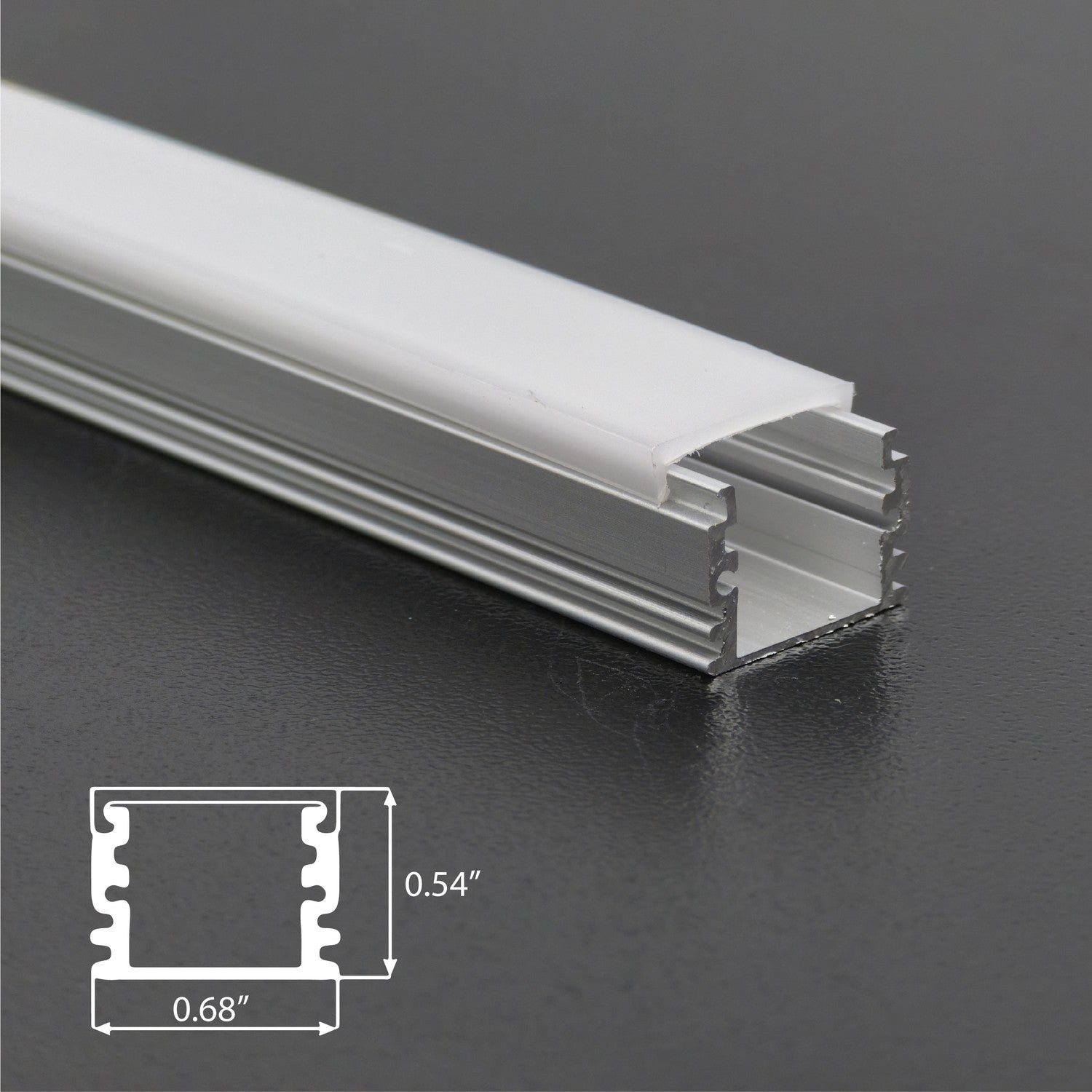

| Overall Width | 0.68" (17.3mm) |
| Overall Height | 0.54" (13.7mm) |
| Weight per Piece | N/A |
| End Caps Included | Yes – 1 with wire hole, 1 without, per piece |
| Mounting Clips Included | Yes – 2 per piece |
Features +
- The 6063-T5 aluminum body draws heat away from the LED strip, helping extend LED lifespan compared to running tape lighting unmounted.
- The anodized silver finish resists corrosion and maintains its appearance in both interior and covered exterior applications.
- The milky polycarbonate diffuser lens softens individual LED points into a continuous, even line of light and snaps into the channel without additional hardware.
- An internal track 0.49 inches wide accommodates standard LED tape widths for a secure, aligned fit.
- The surface-mount design measures 0.68 inches wide by 0.54 inches tall, balancing a low profile with room for higher-density LED strips.
- Each 1-meter section can be field-cut to length or joined end-to-end for continuous runs.
- Each piece ships with one end cap pre-drilled for wire pass-through and one solid end cap for the opposite end of the run.
- Two mounting clips per piece secure the channel to the mounting surface without visible fasteners on the finished face.
Applications +
- Under-cabinet lighting in residential and commercial kitchens
- Cove and cabinet toe-kick lighting
- Display case and retail shelving accent lighting
- Staircase and handrail lighting
- Signage and architectural cove trim
- Bar and countertop edge lighting
