SKU: STL-SPIW5
Price:
$29.99
Motion Sensor Specsheet
Spec Sheet

Description

  • Dual Communication Protocol: Features integrated SPI and DMX output, supporting multiple pixel formats and enabling advanced control of digital LED strips for commercial, residential, and architectural lighting installations.

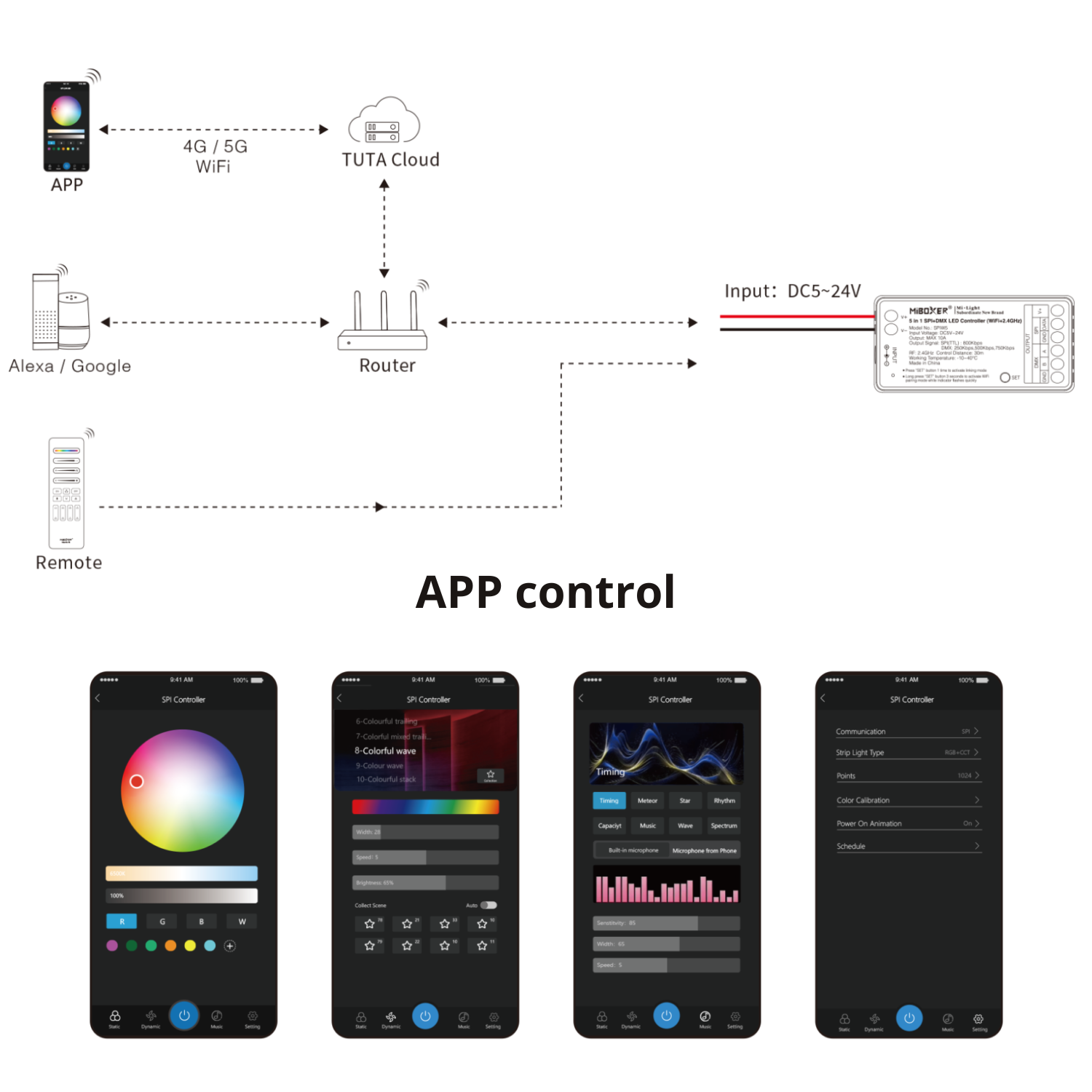

  • Smart Wireless Connectivity: Equipped with WiFi and 2.4G RF technology, enabling long-range wireless control through Tuya Smart App, C9 remote, or B9 remote with stable communication performance.

  • Advanced Multi-Mode Control: Offers single color, CCT, RGB, RGBW, and RGBCCT options with customizable speed, brightness, color, and 108 dynamic modes including 80 RGB patterns and 28 white selections.

  • Music Sync Capability: Includes eight music modes using the built-in microphone or smartphone microphone, allowing smooth audio-reactive lighting effects ideal for entertainment and ambient lighting.

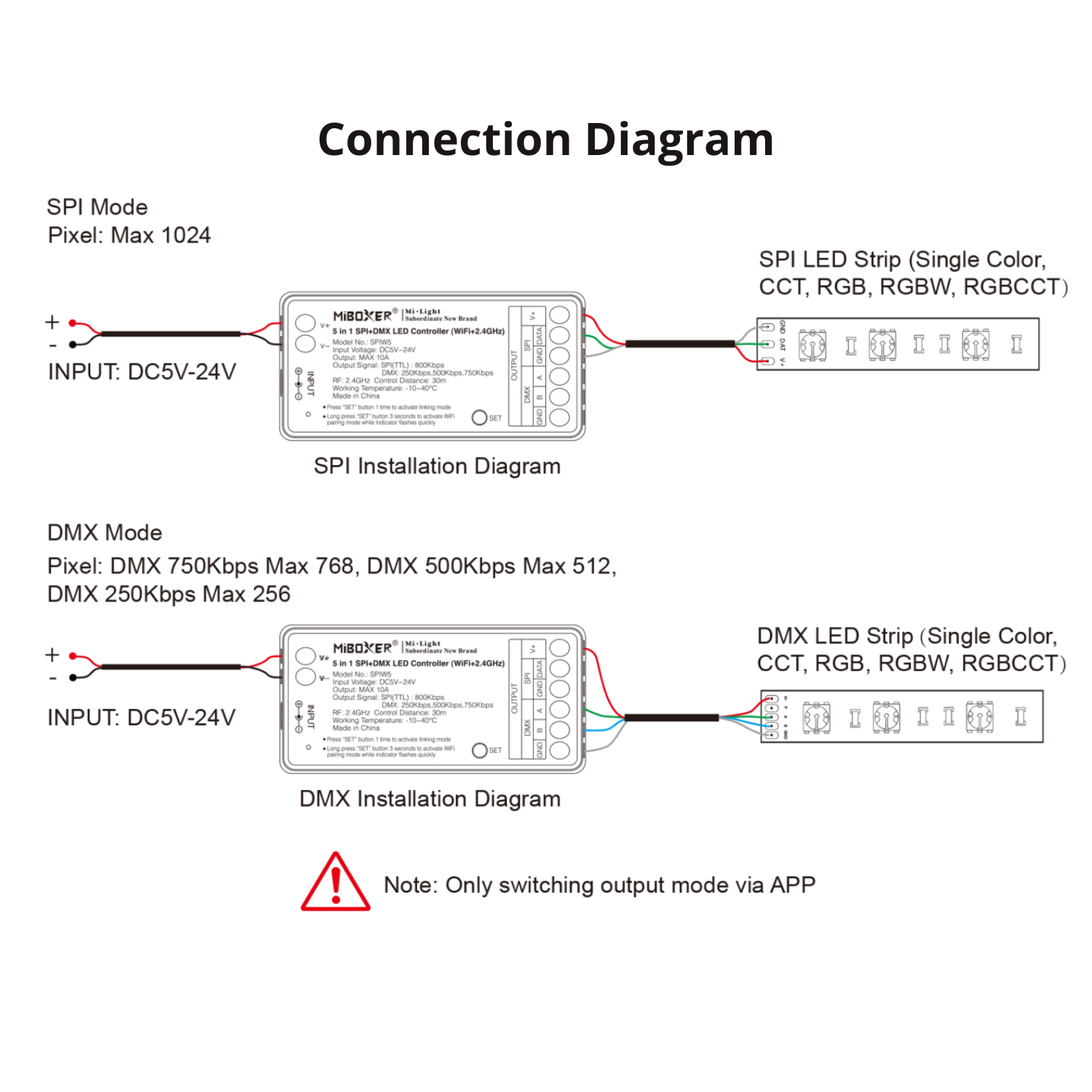

  • High Pixel Output: Supports up to 1024 SPI pixels and up to 768 DMX pixels across multiple DMX speeds, providing flexible configuration for large-scale LED display and strip installations.

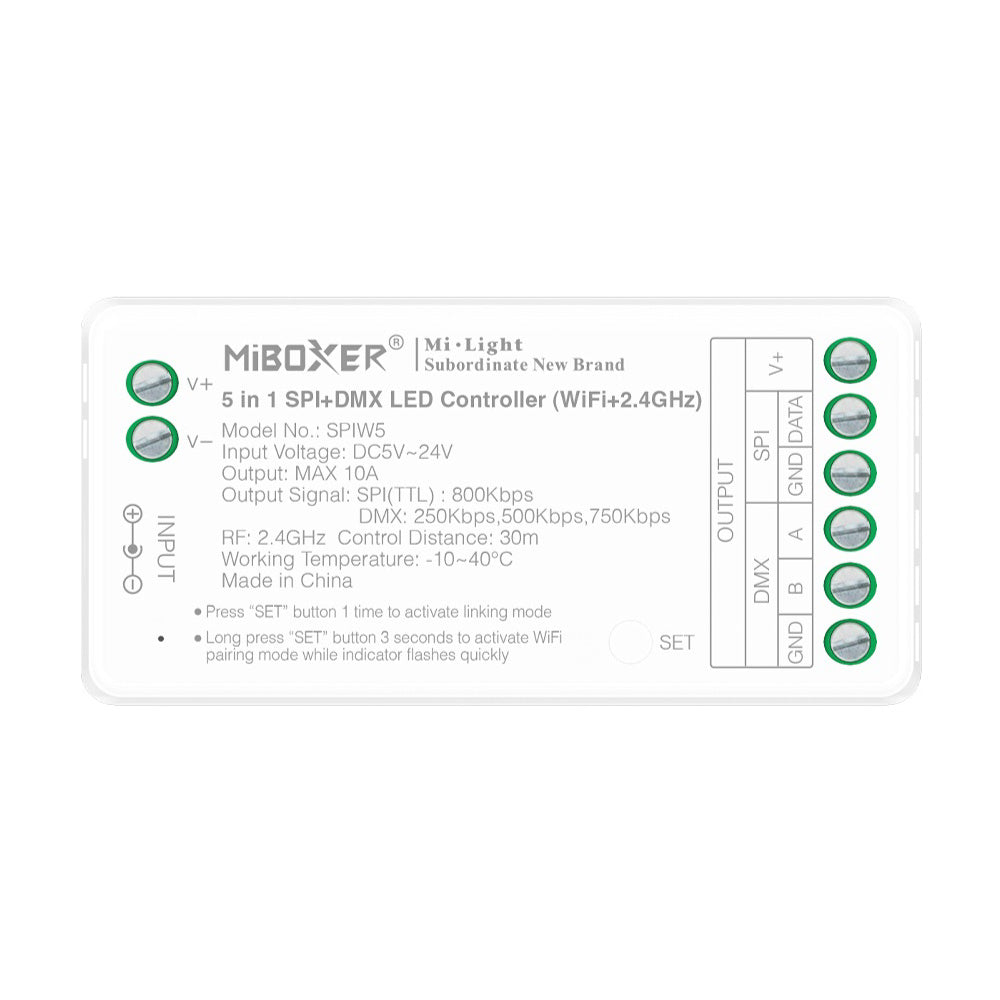

Product 5-in-1 SPI+DMX LED Controller Model SPIW5
Input Voltage DC 5V–24V Output Current Max 10A
Output Signal SPI (TTL) 800Kbps SPI Pixels Max 1024 Pixels
DMX 250Kbps Max 256 Pixels DMX 500Kbps Max 512 Pixels
DMX 750Kbps Max 768 Pixels Standby Current 20mA
Wireless Protocol WiFi + 2.4GHz RF Control Distance 30m RF
IP Rating IP20 Working Temp -10°C ~ 40°C

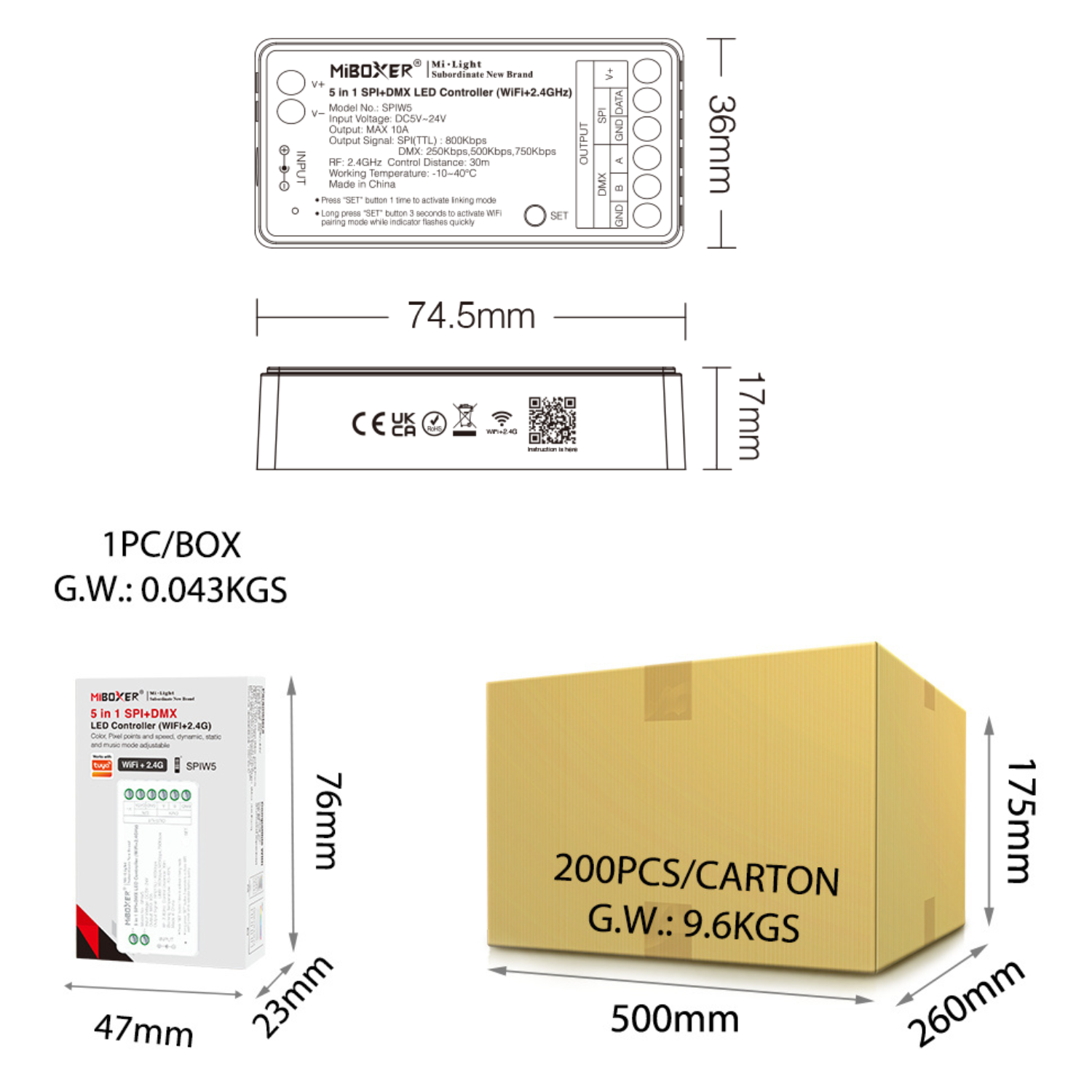

Dimensions 74.5 × 36 × 17 mm Modes Supported SC/CCT/RGB/RGBW/RGBCCT
Music Modes 8 Types Dynamic Modes 108 Total
Certifications CE, EMC, LVD, RED EMC Standard EN 301 489-1 / 489-17
Safety Standard EN 62368-1 Radio Standard EN 300 440
Warranty 5 Years DND Mode Yes
