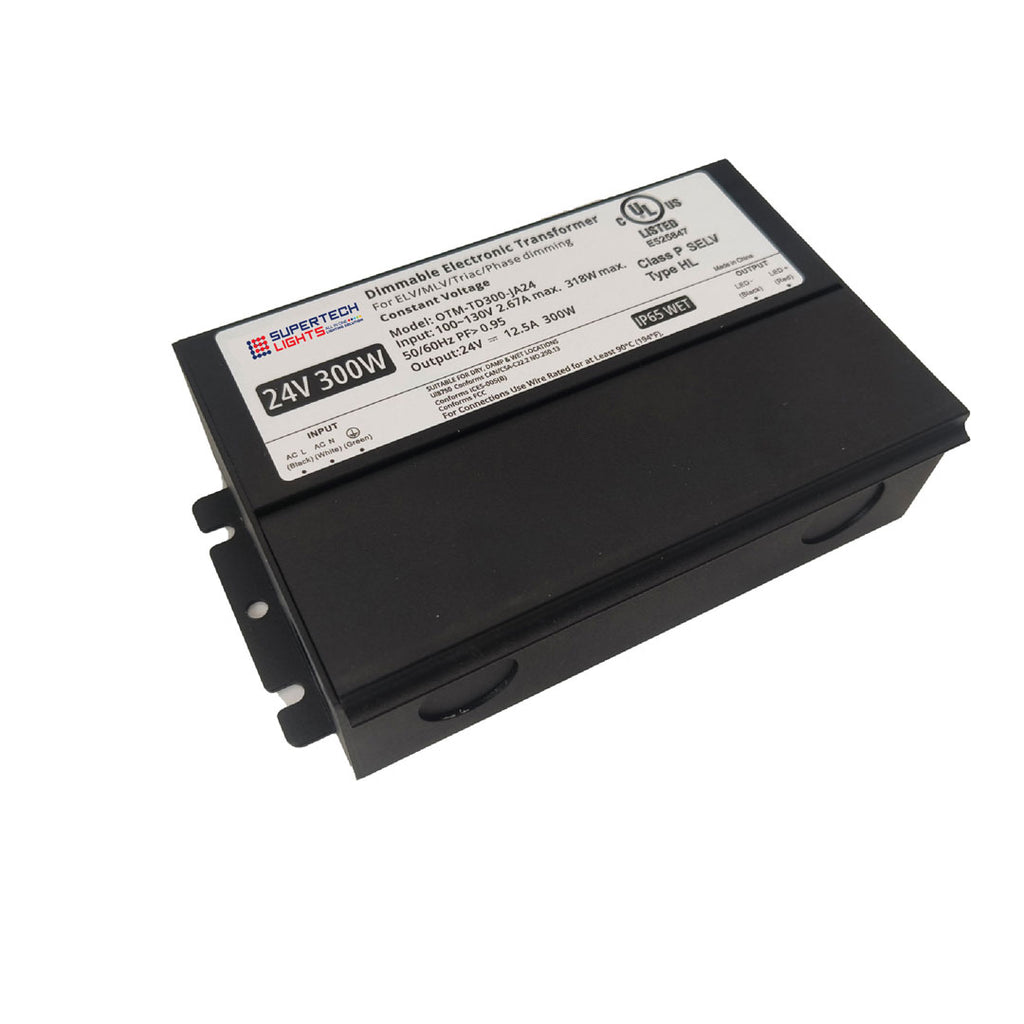

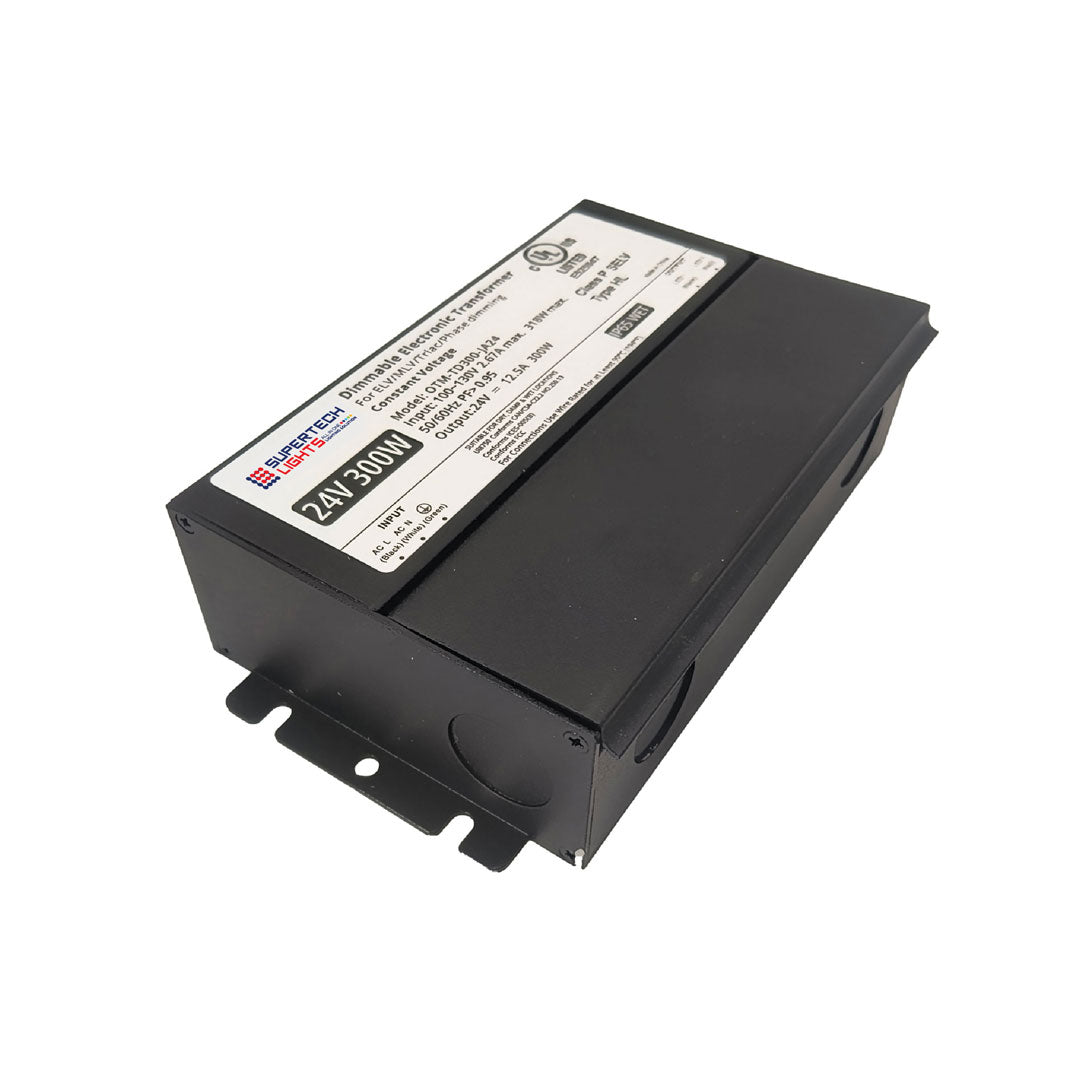

300W 24V Dimmable Electronic Transformer Triac/ELV/MLV 12.5A UL Listed | 120V AC OTM-TD300-JA24
300W 24V Dimmable Electronic Transformer Triac/ELV/MLV 12.5A UL Listed | 120V AC OTM-TD300-JA24
Roll over image to zoom in Click on image to zoom
300W 24V Dimmable Electronic Transformer Triac/ELV/MLV 12.5A UL Listed | 120V AC OTM-TD300-JA24300W 24V Dimmable Electronic Transformer Triac/ELV/MLV 12.5A UL Listed | 120V AC OTM-TD300-JA24

300W 24V Dimmable Electronic Transformer Triac/ELV/MLV 12.5A UL Listed | 120V AC OTM-TD300-JA24

SKU: STL-OTM-TD300-JA24
Price:
$149.99
Motion Sensor Specsheet
Spec Sheet

Description

  • High-Performance Transformer: 300W power capacity, engineered for demanding LED installations.
  • Smooth & Stable Dimming: Works with Triac, ELV, and MLV dimming, ensuring flicker-free operation.
  • Built for Industrial Use: Certified for damp, dry, and wet locations, suitable for commercial projects.
  • Advanced Safety Measures: Equipped with short-circuit, overload protections, and auto-reset functionality.
  • Top Industry Certifications: UL, Class P, SELV, RoHS compliance, backed by a 5-year manufacturer warranty.
Product Attributes
Model Number OTM-TD300-JA24 Rated Power 300W
Rated Voltage 24V Rated Current 12.5A
Voltage Tolerance ±1.5V Input Voltage 120V AC
Frequency Range 47-63Hz Power Factor 0.94@120V AC
Efficiency 88% @ 120V AC Total Harmonic Distortion (THD) <20% @ Max Load
AC Current 0.9A Leakage Current <0.5mA @ 120V AC
Operating Temperature -40°C to 60°C Storage Temperature -40°C to 90°C
Certification UL Listed, Class 2, Class P, Type HL, SELV, RoHS
Dimensions 127 × 82 × 41.8 mm (5 × 3.22 × 1.64 inches)
Application LED Strips, LED Tape, LED Modules, Residential & Commercial Lighting
Protection Short-circuit & Overload Protection (Auto Recovery)
Warranty 5 Years
