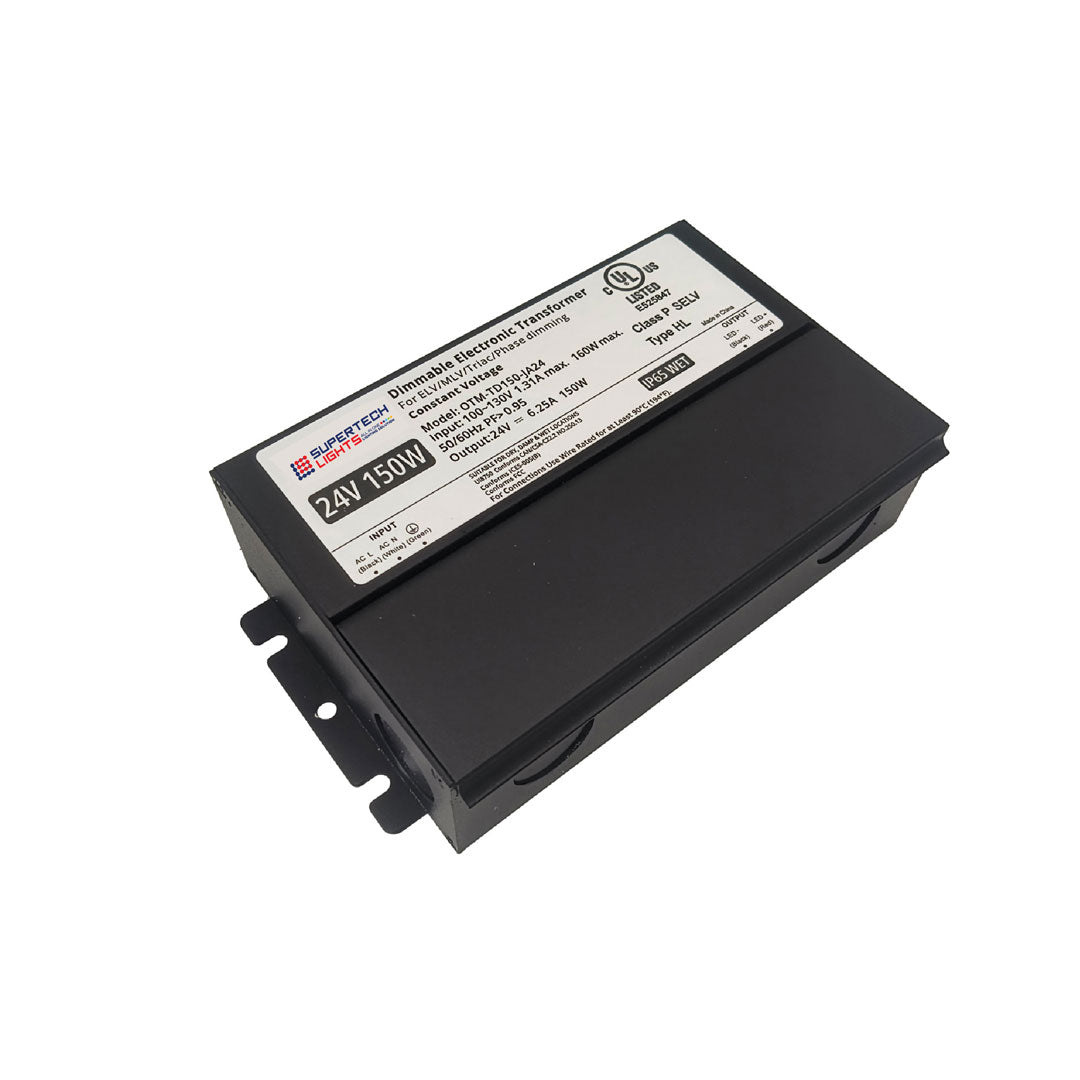

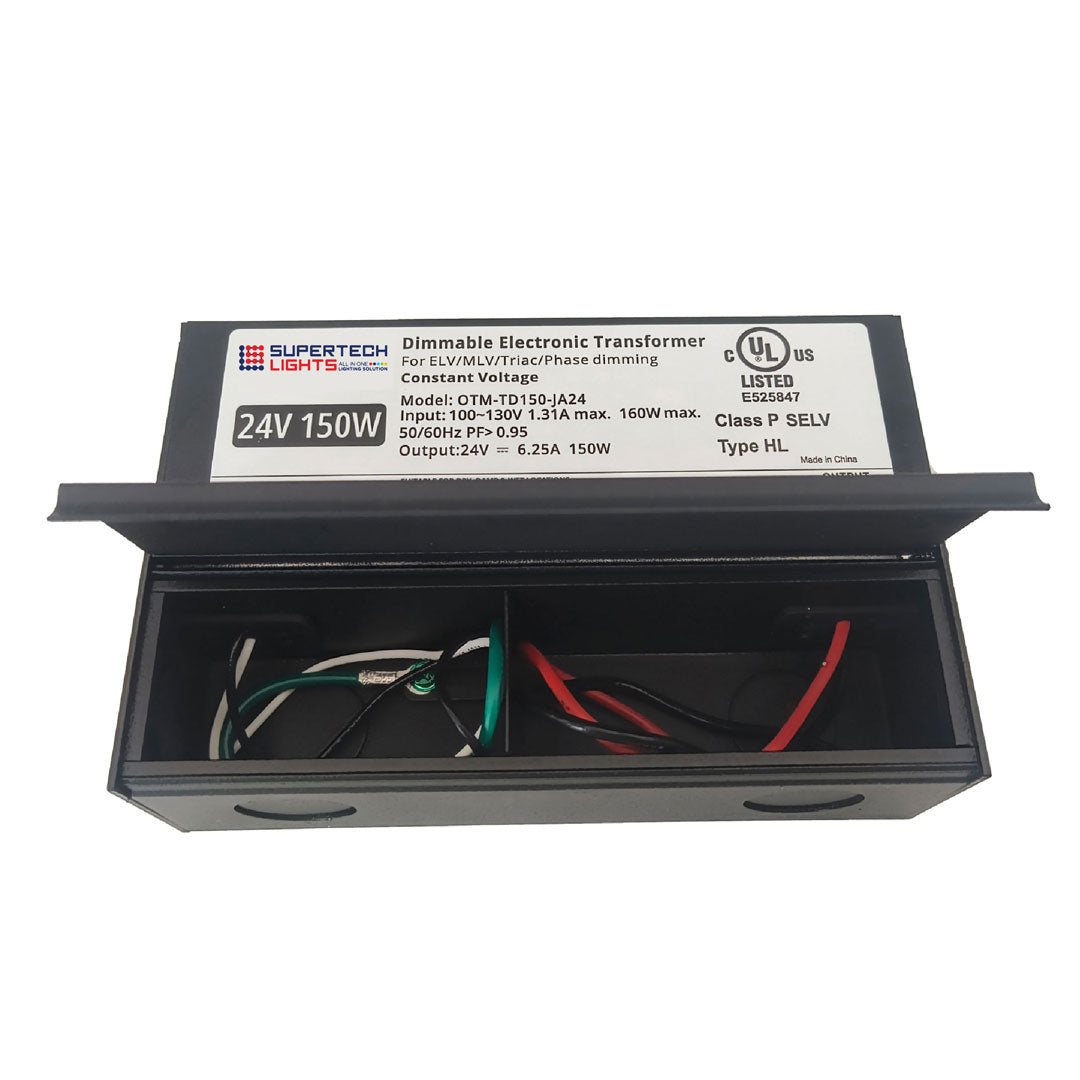

150W 24V Dimmable Electronic Transformer – Triac/ELV/MLV – UL Listed | 120V AC OTM-TD150-JA24
150W 24V Dimmable Electronic Transformer – Triac/ELV/MLV – UL Listed | 120V AC OTM-TD150-JA24
Roll over image to zoom in Click on image to zoom
150W 24V Dimmable Electronic Transformer – Triac/ELV/MLV – UL Listed | 120V AC OTM-TD150-JA24150W 24V Dimmable Electronic Transformer – Triac/ELV/MLV – UL Listed | 120V AC OTM-TD150-JA24

150W 24V Dimmable Electronic Transformer – Triac/ELV/MLV – UL Listed | 120V AC OTM-TD150-JA24

SKU: STL-OTM-TD150-JA24
Price:
$94.99
Motion Sensor Specsheet
Spec Sheet

Description

  • Full-Range Dimming Compatibility: 100% smooth dimming support for Triac, ELV, and MLV dimmers.
  • High Load Efficiency: Operates at 90% efficiency, ensuring optimized energy consumption.
  • Ideal for Large Installations: Designed for residential and commercial LED lighting with wide 20-100% load compatibility.
  • Enhanced Protection System: Short-circuit, overload safeguards, and automatic power recovery.
  • Certified for Safety & Longevity: UL, Class P, Type HL, RoHS compliant, with a 5-year guarantee.
Product Attributes
Model Number OTM-TD150-JA24 Rated Power 150W
Rated Voltage 24V Rated Current 6.25A
Voltage Tolerance ±1.5V Input Voltage 120V AC
Frequency Range 47-63Hz Power Factor 0.94@120V AC
Efficiency 88% @ 120V AC Total Harmonic Distortion (THD) <20% @ Max Load
AC Current 0.9A Leakage Current <0.5mA @ 120V AC
Operating Temperature -40°C to 60°C Storage Temperature -40°C to 90°C
Certification UL Listed, Class 2, Class P, Type HL, SELV, RoHS
Dimensions 127 × 82 × 41.8 mm (5 × 3.22 × 1.64 inches)
Application LED Strips, LED Tape, LED Modules, Residential & Commercial Lighting
Protection Short-circuit & Overload Protection (Auto Recovery)
Warranty 5 Years
