Description

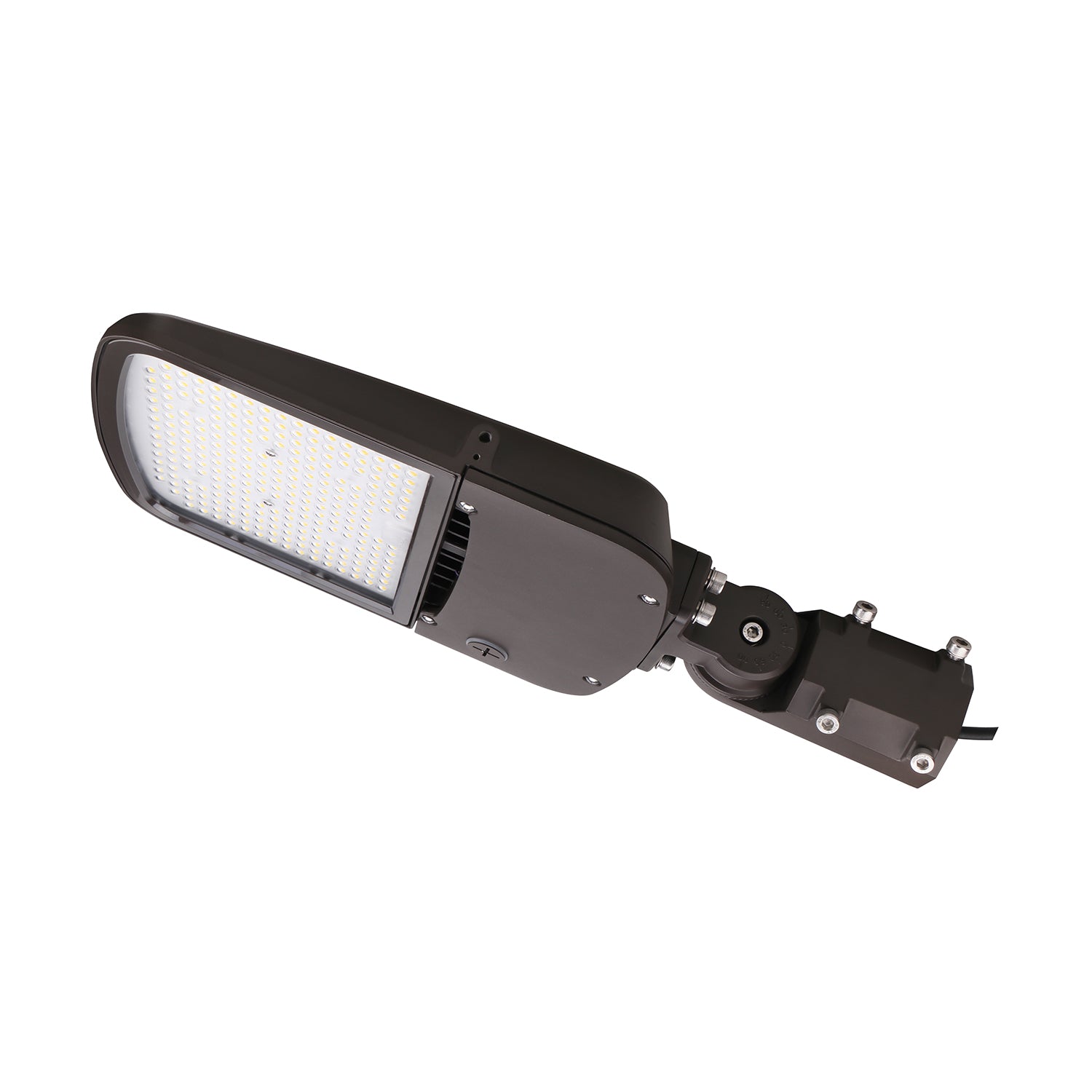

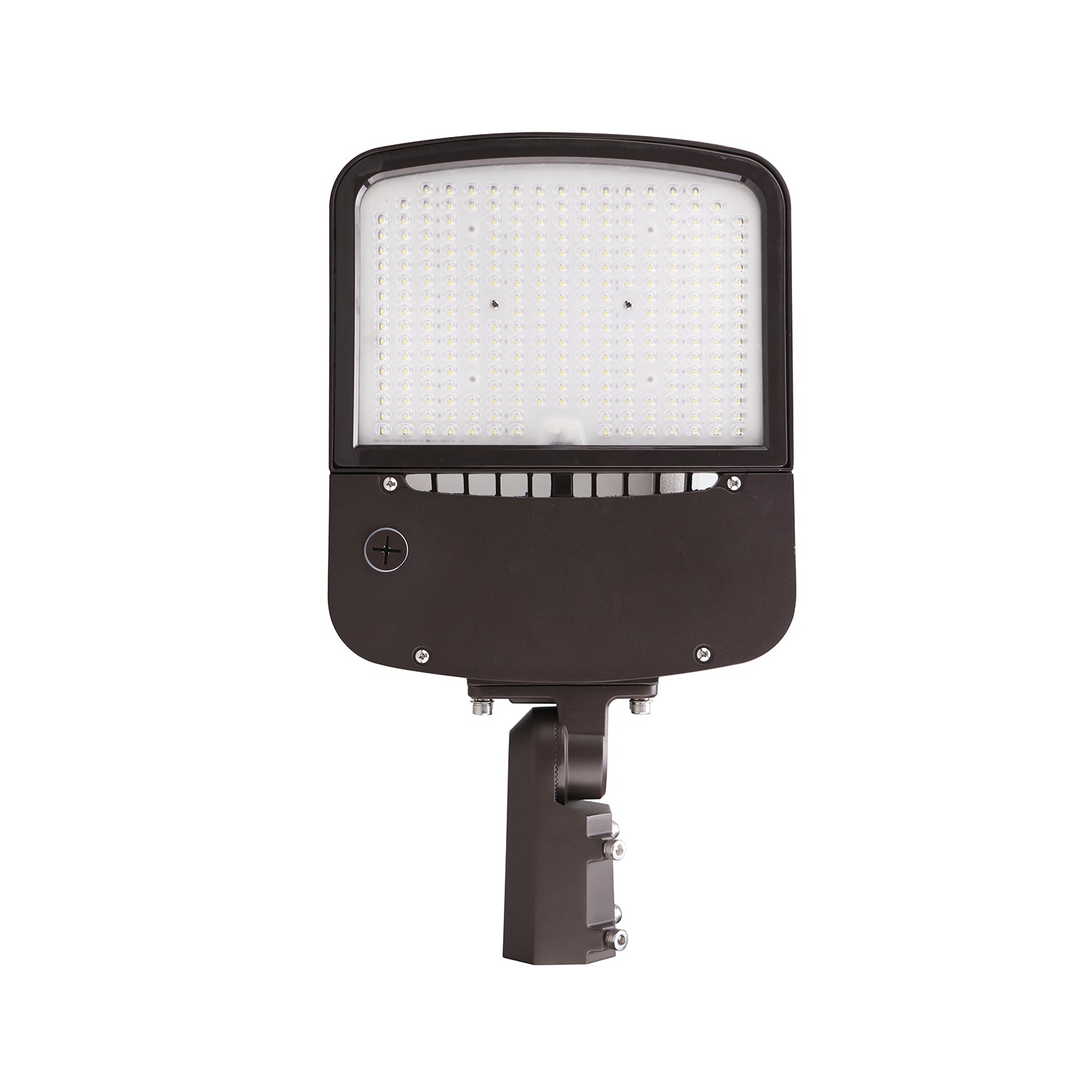

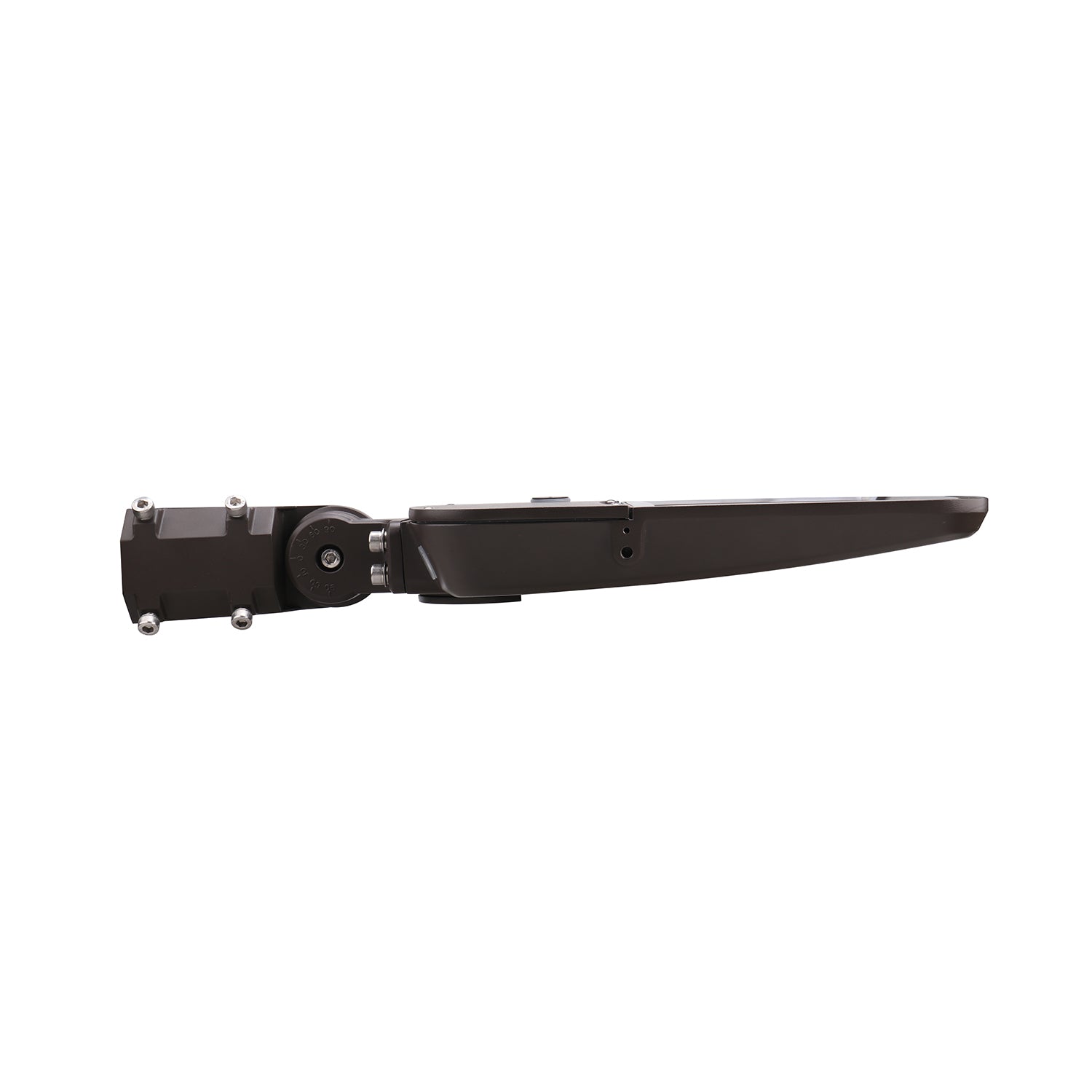

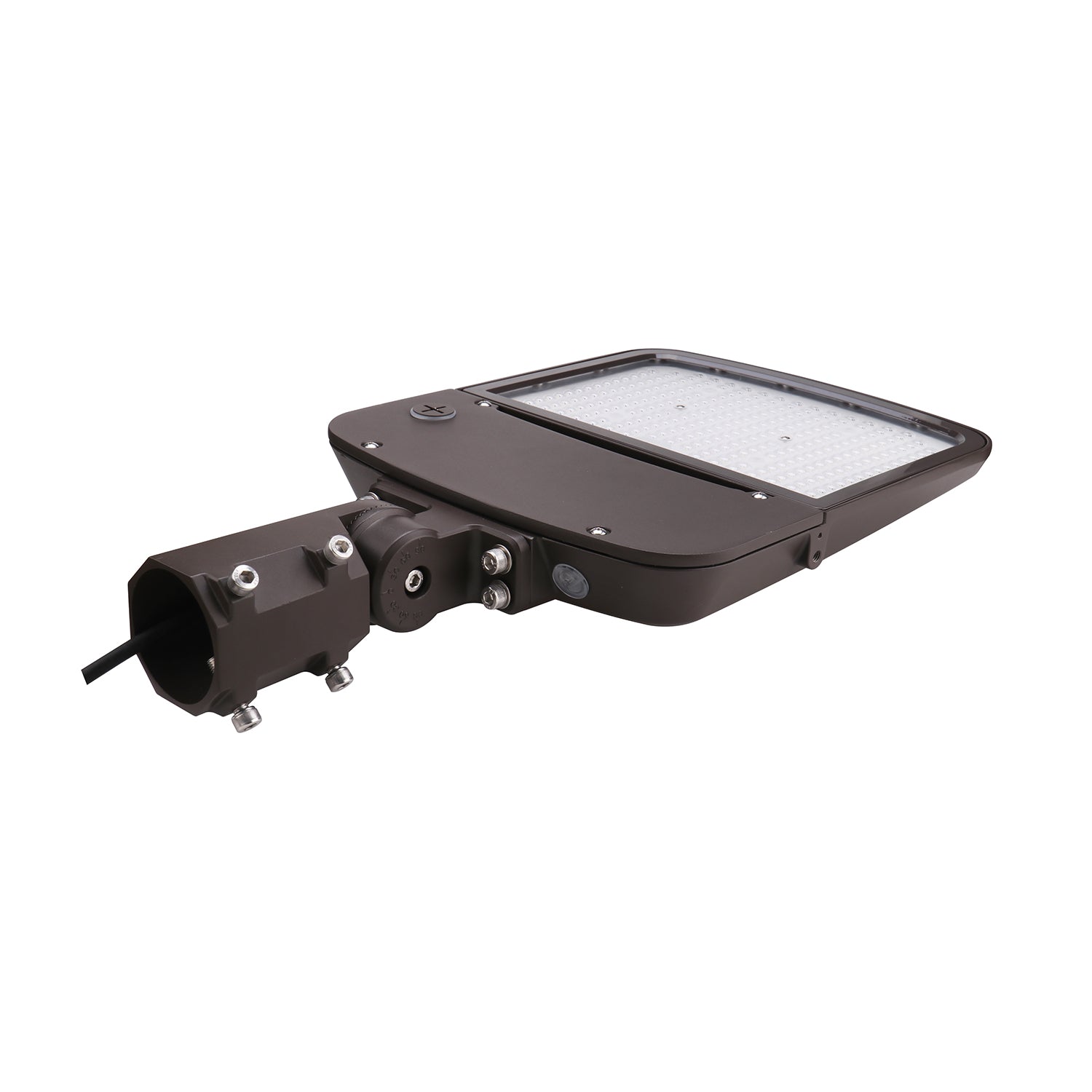

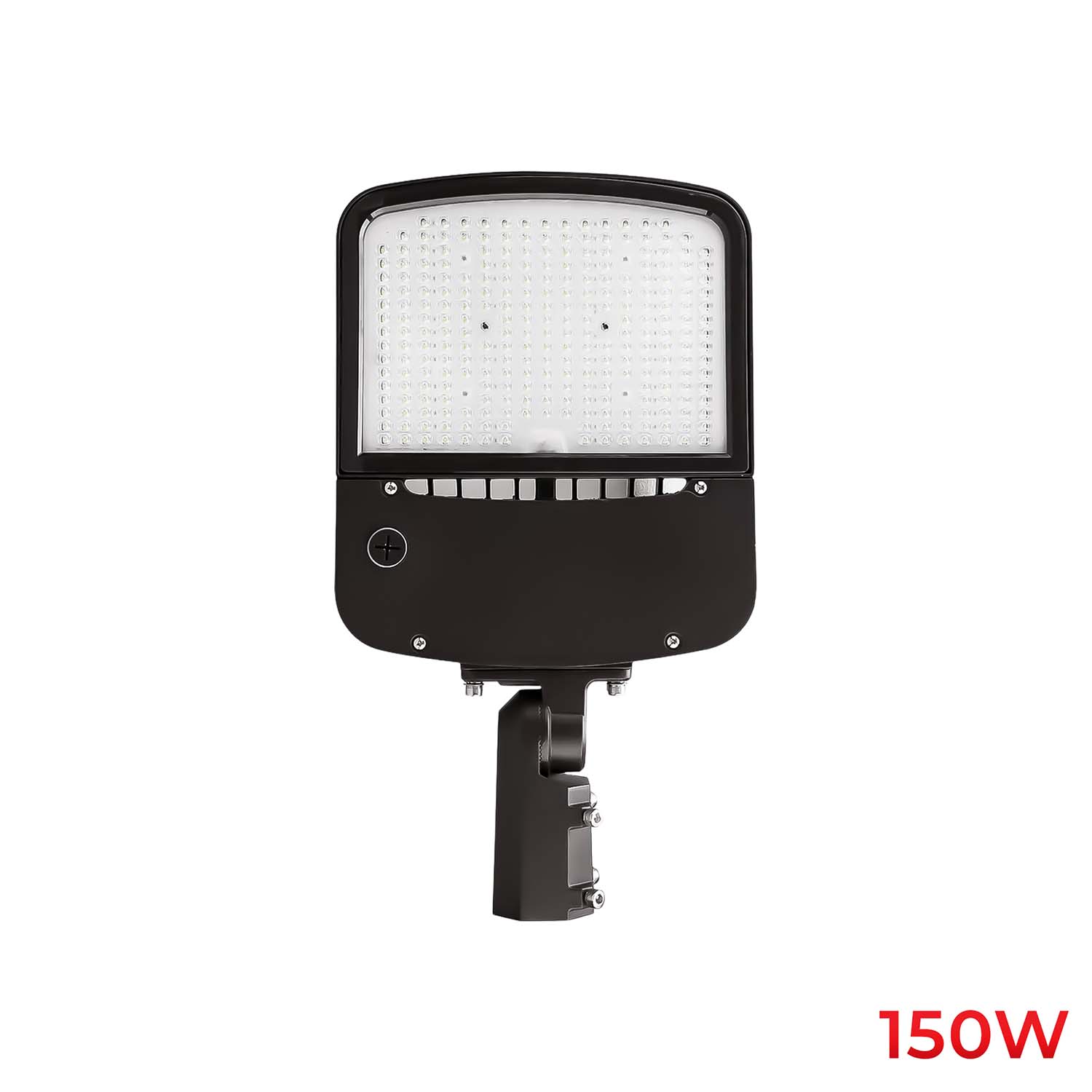

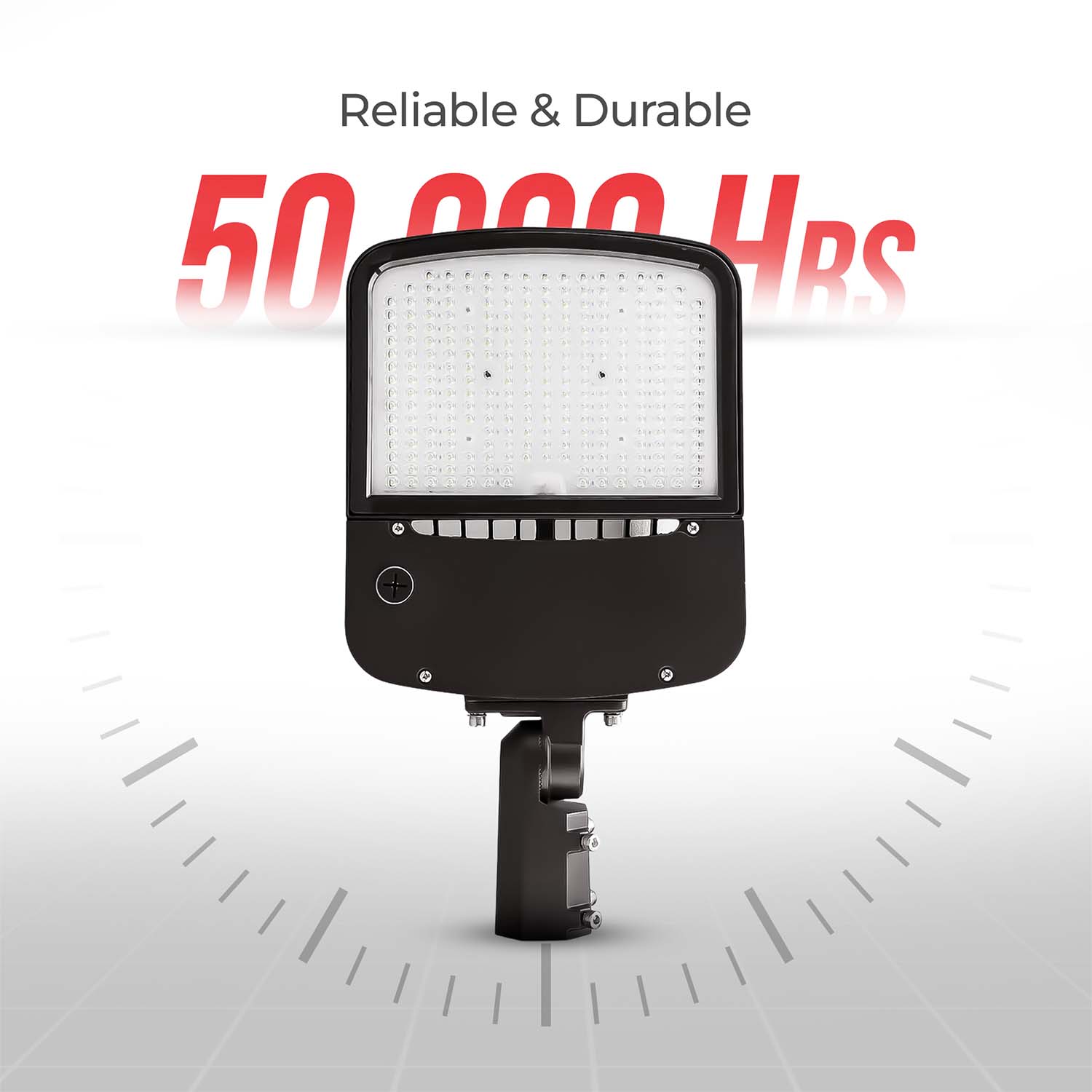

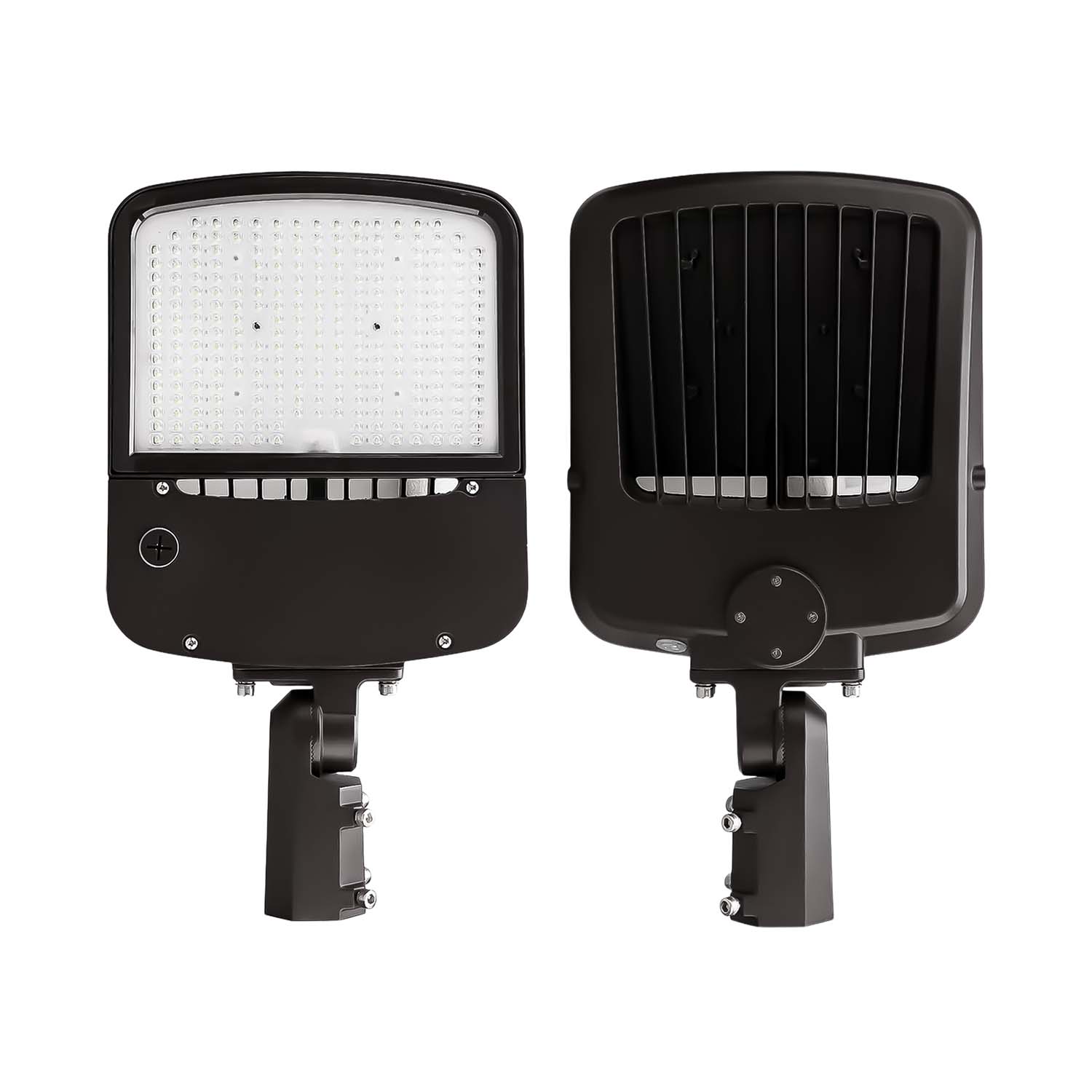

This LED Shoebox Area Light offers field-selectable wattage (100W/120W/150W) and CCT (3000K/4000K/5700K) to cover a broad range of roadway and area lighting applications from a single SKU. An integrated dusk-to-dawn photocell automates operation without external control devices, and the Type III optical distribution delivers a 160°×96° beam pattern suited to wide roadways and large parking areas. The die-cast aluminum housing carries an IP65 rating and is cULus and DLC Listed for wet-location commercial and municipal installations.
Key Features +
Selectable
Wattage
Selectable
CCT
Built-In
Photocell
cULus & DLC
Listed
Specifications +
| General | |
|---|---|
| Housing | Die-cast aluminum, bronze powder coat |
| Ingress Protection | IP65 |
| Certifications | cULus Listed, DLC Listed* |
| L70 Lifetime | 50,000 hours |
| Warranty | 5 years |
| Operating Temperature | −40°F to 122°F (−40°C to 50°C) |
| Electrical | |
| Selectable Wattage | 100W / 120W / 150W |
| Input Voltage | 100–277V AC, 50/60Hz |
| Dimmable | Yes |
| Power Factor | ≥0.9 |
| Optical | |
| Selectable CCT | 3000K / 4000K / 5700K |
| Lumens (at 150W) | Up to 21,000 lm |
| Efficacy | 130–140 lm/W |
| CRI | 70+ |
| Beam Angle / Distribution | 160°×96° — Type III |
| Photocell | Integrated dusk-to-dawn |
Features +
- Field-selectable wattage of 100W, 120W, or 150W lets a single fixture serve multiple output requirements without stocking separate SKUs.
- Selectable CCT of 3000K, 4000K, or 5700K allows color temperature to be matched to site requirements or municipal specifications at the time of installation.
- Integrated dusk-to-dawn photocell automates on/off operation based on ambient light levels, eliminating the need for external photocell receptacles or timers.
- Delivers up to 21,000 lumens at 150W, with an efficacy of 130–140 lm/W — equivalent output to 250–300W HPS fixtures at a fraction of the energy draw.
- Type III optical distribution with a 160°×96° beam pattern is optimized for wide roadway and large-area coverage with minimal over-spill to adjacent properties.
- Dimmable driver supports flexible integration with lighting control systems for additional energy savings.
- Wide voltage input of 100–277V AC (50/60Hz) is compatible with standard commercial and municipal electrical supply without modification.

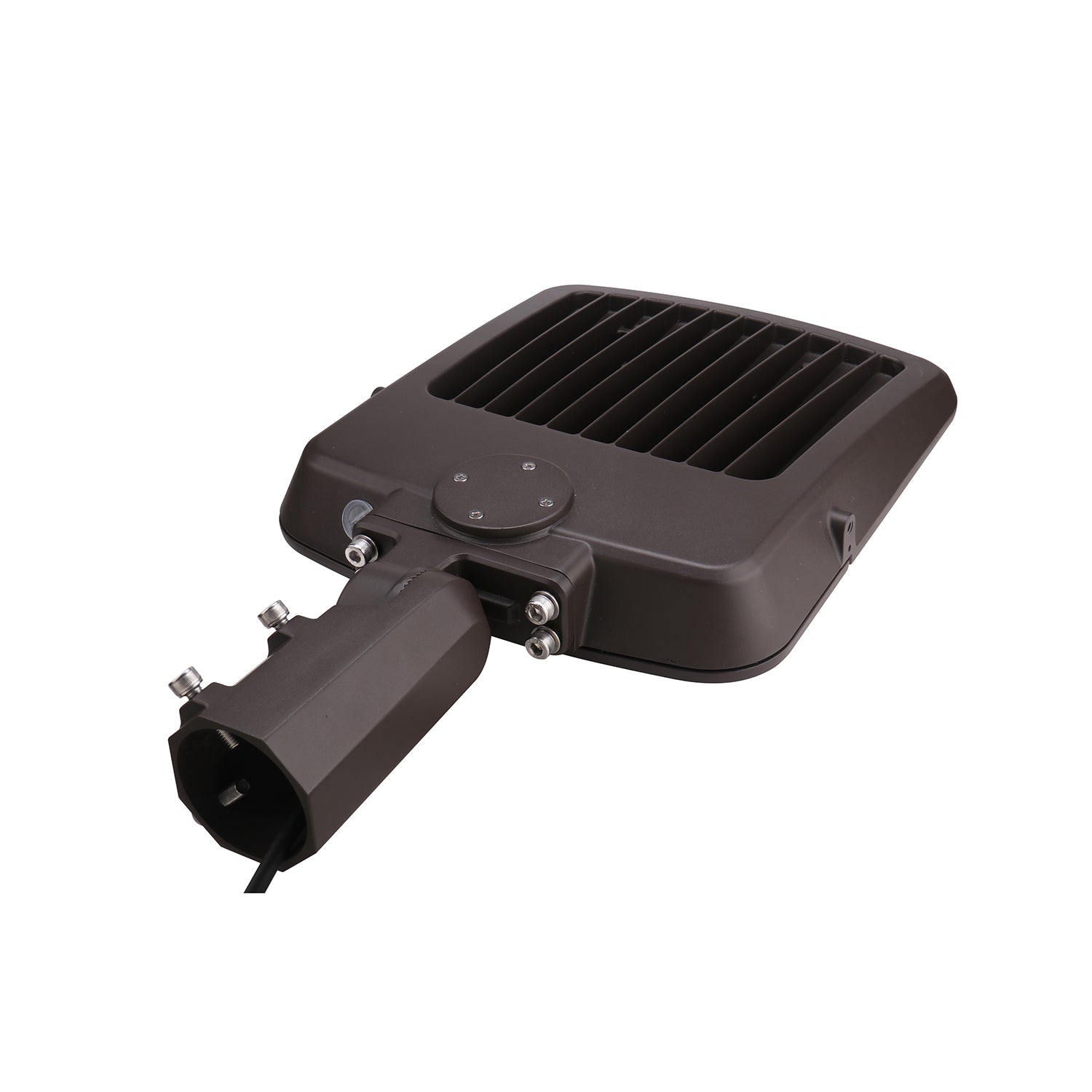

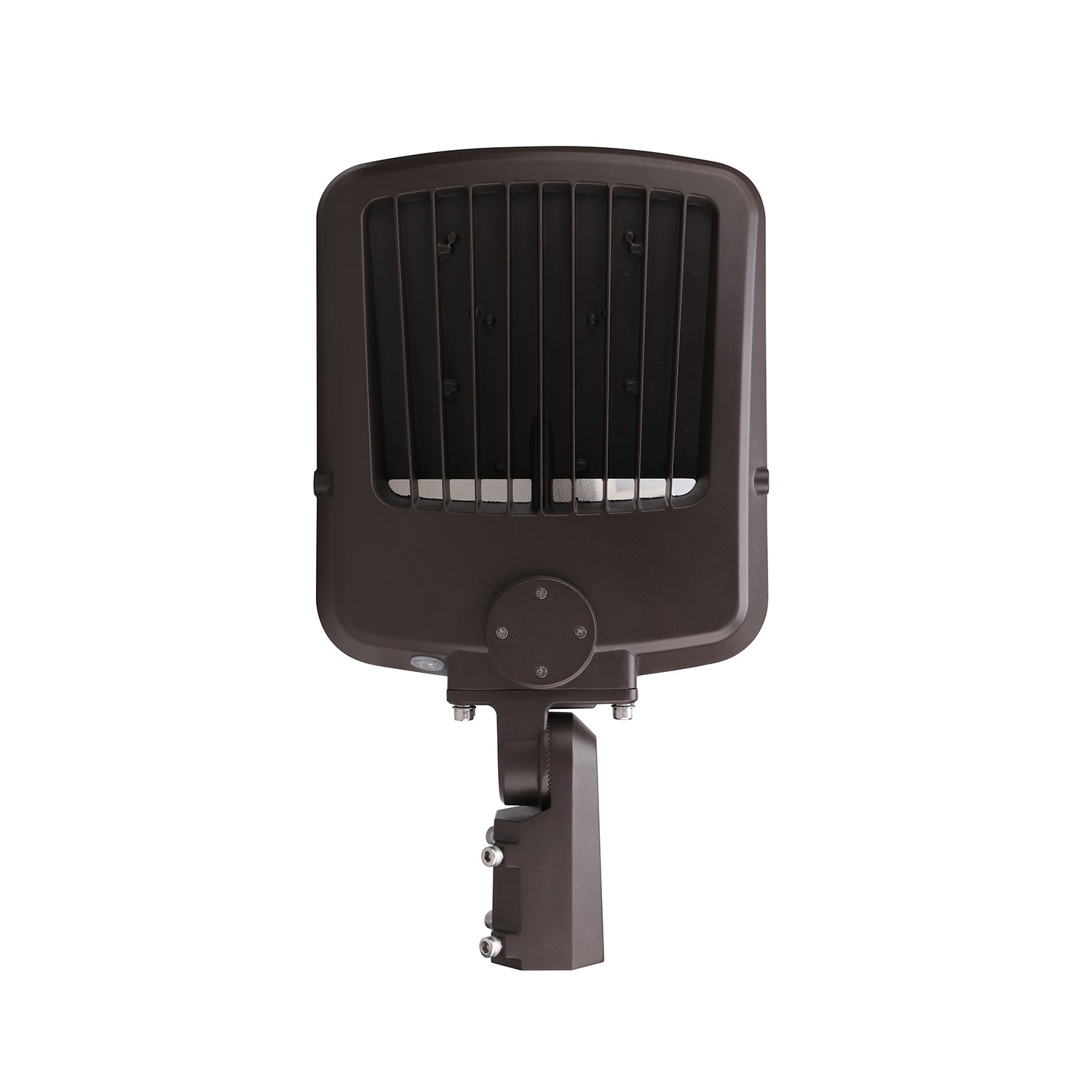

- Die-cast aluminum housing with bronze powder coat finish provides structural durability and corrosion resistance for exposed outdoor installations.
- IP65-rated enclosure protects against dust ingress and direct water jets, rated for year-round exterior use.
- cULus Listed and DLC Listed, supporting utility rebate eligibility on qualifying projects.

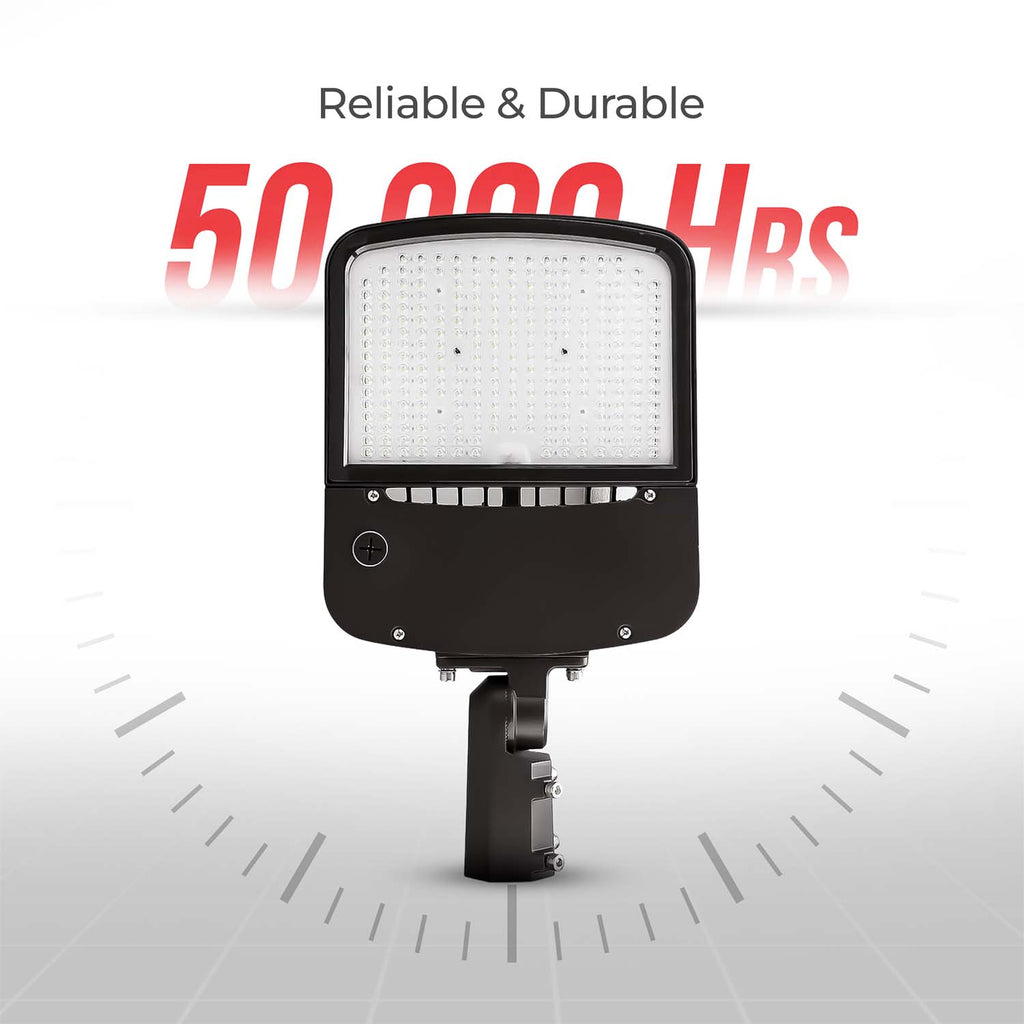

- Rated for over 50,000 hours L70 lifetime, backed by a 5-year manufacturer warranty.
Applications +
- Municipal street and roadway lighting
- Commercial and retail surface parking lots
- Parking structures and garage entrances
- Industrial yard and perimeter security lighting
- Shopping center and big-box retail site lighting
- Athletic fields, recreational courts, and stadium access roads
- Campus walkways, transit hubs, and freight yards
