ESP32-Powered WLED Platform: Built on the industry-standard ESP32 chip running WLED firmware — delivering a powerful, open-source lighting control experience with hundreds of built-in effects, palettes, and real-time customization.
-
4 Independent Output Channels: Controls 4 separate zones of SPI addressable LED strips independently — each channel supports up to 1024 pixels for large-scale installations.
-
WiFi + 2.4GHz Dual Wireless: Connects via WiFi for app and browser control and pairs with MiBoxer 2.4GHz SPI remotes for direct RF control — no hub required for local operation.
-
WLED Native App Control: Full control via the WLED Native app (iOS & Android) or any web browser using the device IP address — adjust colors, effects, brightness, speed, and music sync from anywhere on the network.
-
Music Reactive Mode: Built-in microphone with adjustable sensitivity enables real-time music-reactive lighting — perfect for entertainment, hospitality, and retail display environments.
-
Scene Recording & Recall: Save custom lighting scenes with a long press of the Scenes button and recall them instantly with a short press — ideal for setting up recurring moods or displays.
-
Wide IC Chip Compatibility: Supports a broad range of addressable LED driver ICs including WS281X, SK6812, WS2814 (RGBW), TM1814, TM1829, APA106, APA102, LPD8806, LPD6803, USC8903, USC8904 (RGBW), TM1914, SW2805 (RGBCW), SM16825 (RGBCW), SW2811, FW1906 (GRBCW), WS281X (WWA), PP9813, and more.
-
Wide Voltage Input: Compatible with DC 5V–24V power supplies — works with a wide variety of SPI LED strips and existing power infrastructure.
-
Firmware Updateable: Supports WLED official firmware updates via the Type-C port and OTA (over-the-air) — keeps the controller current with the latest WLED features and improvements.
-
PC Browser Control: Access the full WLED interface directly in any browser by entering the device IP address — no app required for advanced configuration and control.
-
Do Not Disturb Mode: Built-in DND function prevents unintended activation during power outages — ideal for installations in areas with frequent power interruptions.
-
Compact Form Factor: Space-saving IP20 rated design fits easily into enclosures and control boxes for clean, professional installations.

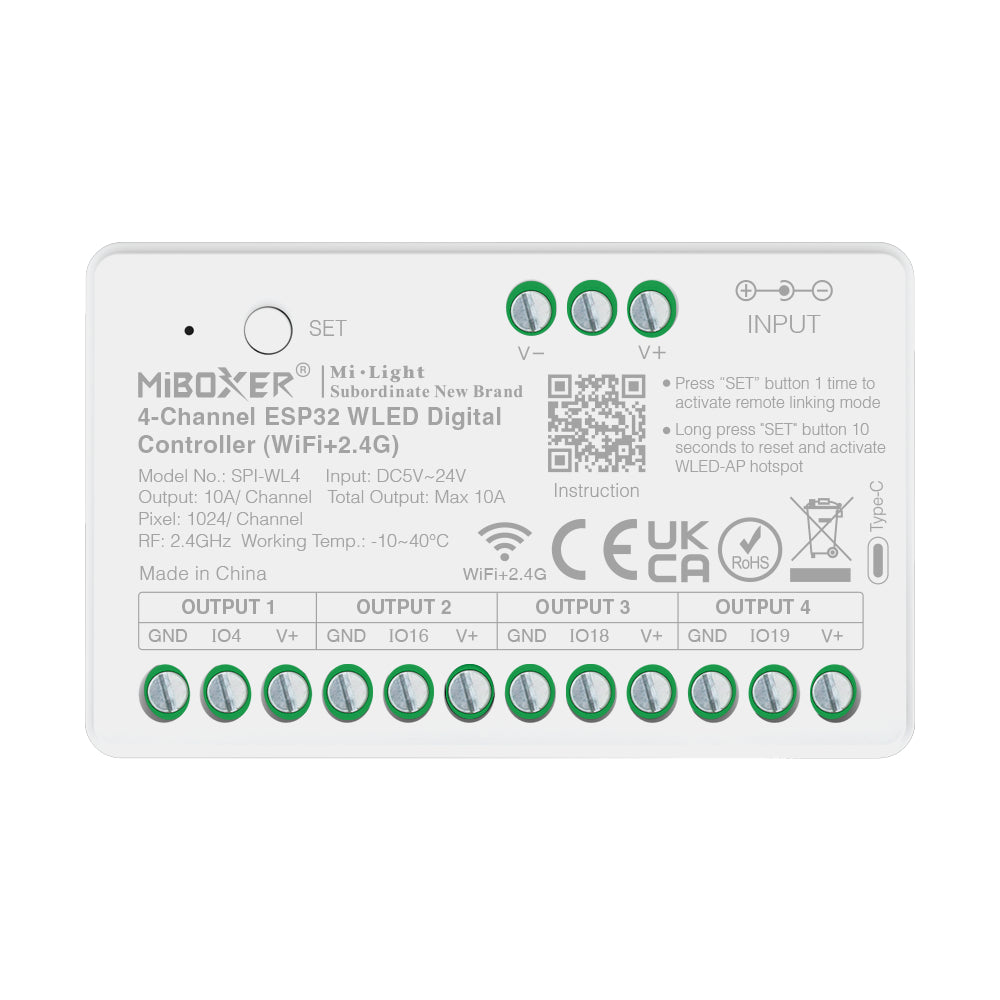

The MiBoxer SPI-WL4 4-Channel ESP32 WLED Digital Controller is the ultimate solution for professional addressable LED strip installations. Combining the proven flexibility of the open-source WLED platform with MiBoxer's reliable 2.4GHz RF ecosystem, it delivers four independently controlled pixel channels, music reactivity, scene memory, and seamless WiFi connectivity — all in one compact, versatile unit ideal for architectural, commercial, entertainment, and residential lighting projects.
