LRS-600 600W Single Output Switching Power Supply – Mean Well – UL/CE/RoHS Certified Accessories Included
LRS-600 600W Single Output Switching Power Supply – Mean Well – UL/CE/RoHS Certified Accessories Included
Roll over image to zoom in Click on image to zoom
LRS-600 600W Single Output Switching Power Supply – Mean Well – UL/CE/RoHS Certified Accessories IncludedLRS-600 600W Single Output Switching Power Supply – Mean Well – UL/CE/RoHS Certified Accessories Included

LRS-600 600W Single Output Switching Power Supply – Mean Well – UL/CE/RoHS Certified Accessories Included

SKU: STL-LRS-600-12
Output Voltage: 12V DC
Price:
$79.99
Motion Sensor Specsheet
Spec Sheet

Description

  • High Efficiency: This 600W single output power supply achieves up to 92% efficiency, ensuring consistent performance and reliable operation across demanding industrial automation and control applications.

  • Comprehensive Protection: Equipped with short circuit, overload, over-voltage, and over-temperature safeguards, it delivers enhanced safety, long-term stability, and reduced downtime for sensitive electrical and industrial systems.

  • Slim Design: With its compact 41mm low-profile build and forced air cooling featuring intelligent fan ON/OFF control, the LRS-600 maintains superior heat dissipation and stability.

  • Wide Input Range: Accepting 90–264VAC selectable input and tolerating 300VAC surge input for 5 seconds, this unit ensures durability and operational reliability in challenging electrical conditions.

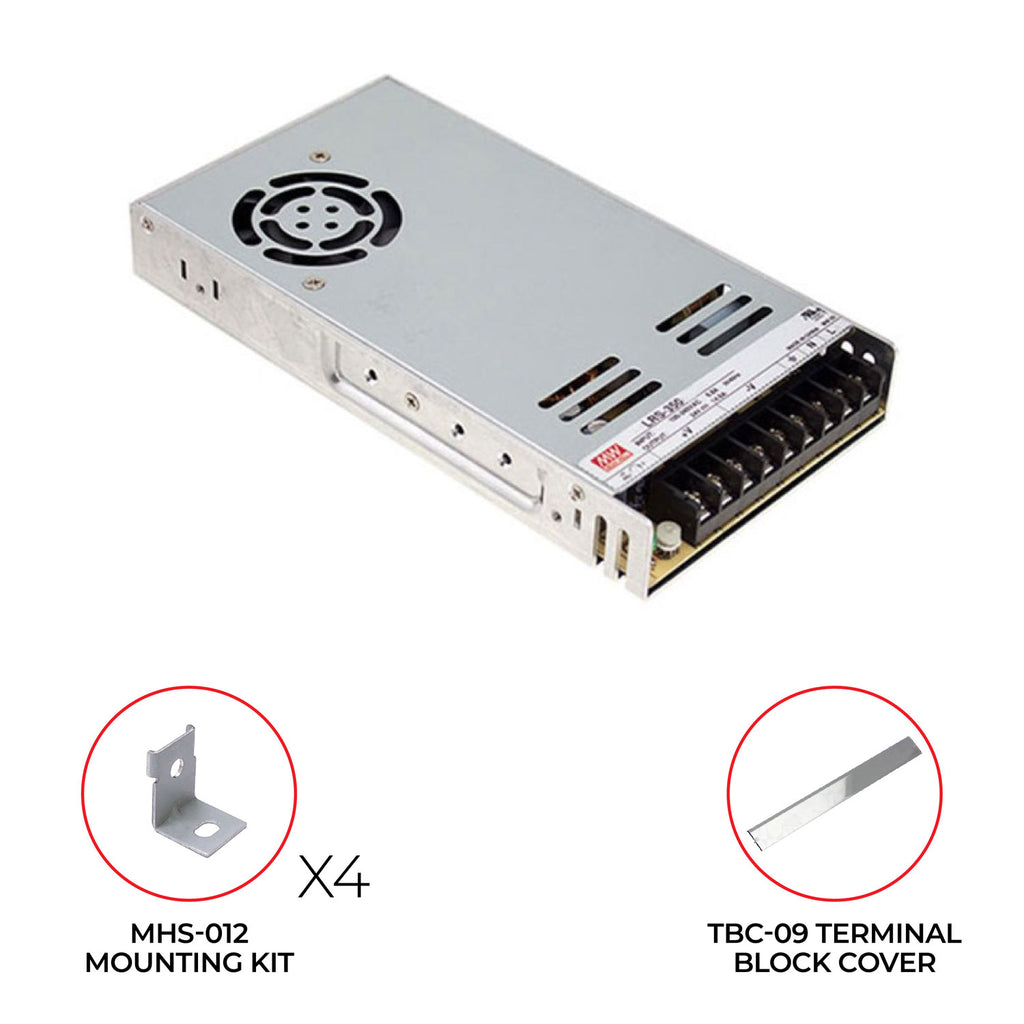

  • Included Accessories: The LRS-450 package comes with a TBC-09 terminal block cover and four MHS-012 mounting kits, ensuring convenient installation and enhanced safety protection.

  • Long-Term Reliability: Featuring MTBF exceeding 1.5 million hours and backed by a 3-year warranty, this unit provides unmatched dependability for industrial and electronic applications.

Model Series LRS-600 Rated Power 600W

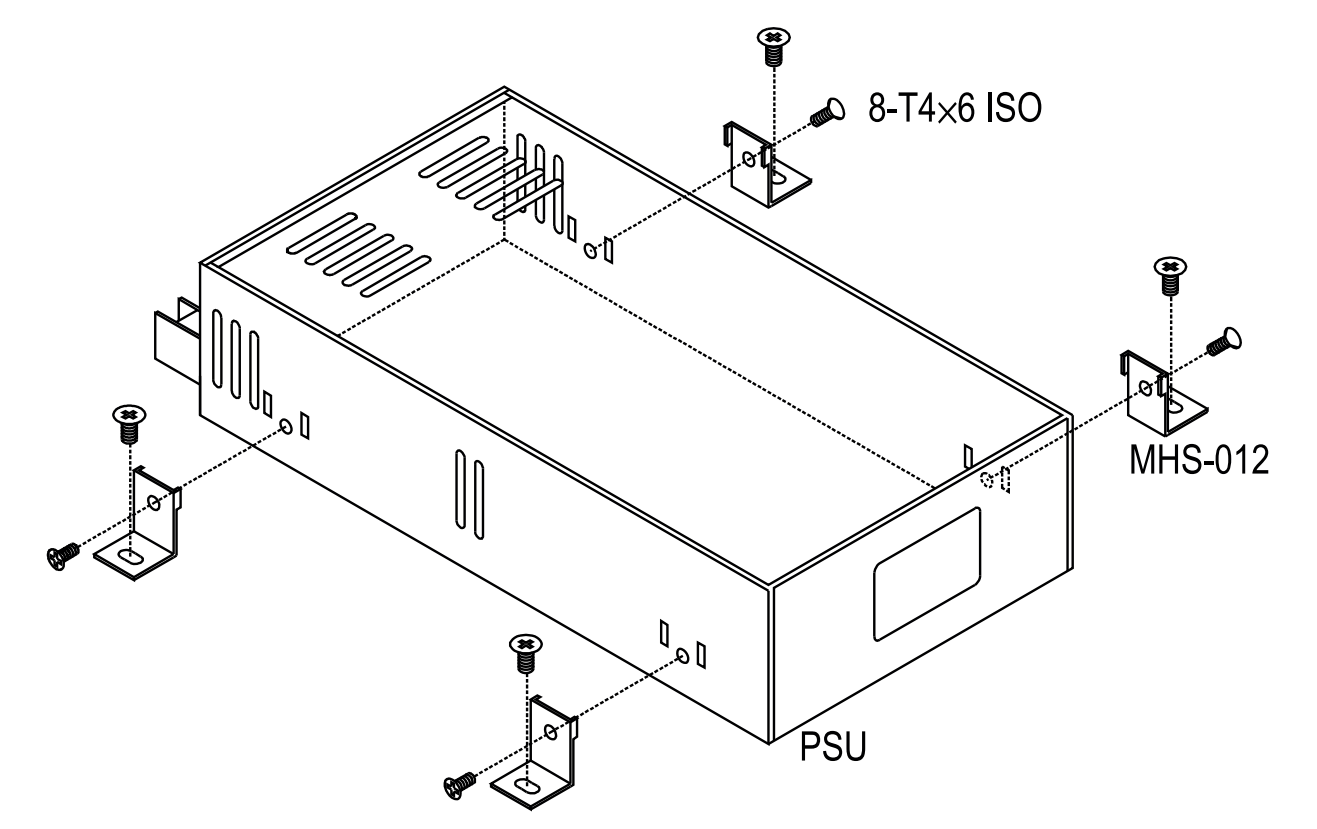

TBC-09 Block Cover Included MHS-012 mounting kits Included-4
Input Voltage 90 ~ 132VAC / 180 ~ 264VAC (switch selectable) Frequency Range 47 ~ 63Hz
Output Voltages 5V, 12V, 15V, 24V, 27V, 36V, 48V Efficiency (Typ.) 86% ~ 92%
Protections Short Circuit, Overload, Over Voltage, Over Temperature Cooling Forced Air with Fan ON/OFF Control
Operating Temp. -20℃ ~ +65℃ Operating Altitude Up to 5000m
Vibration Resistance 5G / 10~500Hz MTBF 1,533.4K hrs (Telcordia SR-332)
Dimensions 225 × 124 × 41 mm Weight 0.95 kg
Certifications UL62368-1, IEC62368-1, EN61558-1/2-16, IS13252, RoHS Warranty 3 Years
