LRS-450 450W – Mean Well Single Output Switching Power Supply – UL/CE/RoHS Certified Accessories Included
LRS-450 450W – Mean Well Single Output Switching Power Supply – UL/CE/RoHS Certified Accessories Included
Roll over image to zoom in Click on image to zoom
LRS-450 450W – Mean Well Single Output Switching Power Supply – UL/CE/RoHS Certified Accessories IncludedLRS-450 450W – Mean Well Single Output Switching Power Supply – UL/CE/RoHS Certified Accessories Included

LRS-450 450W – Mean Well Single Output Switching Power Supply – UL/CE/RoHS Certified Accessories Included

SKU: STL-LRS-450-12
Output Voltage: 12V DC
Price:
$59.99
Motion Sensor Specsheet
Spec Sheet

Description

  • High Efficiency – Up to 92% efficiency with forced air cooling and built-in long-life fan.

  • Multiple Protections – Short circuit, overload, over-voltage, and over-temperature protection.

  • Wide Input Range – AC 115/230V selectable by switch, withstands 300VAC surge input for 5 seconds.

  • Durable & Compact – Low-profile 1U design (35mm height) with anti-vibration resistance (5G).

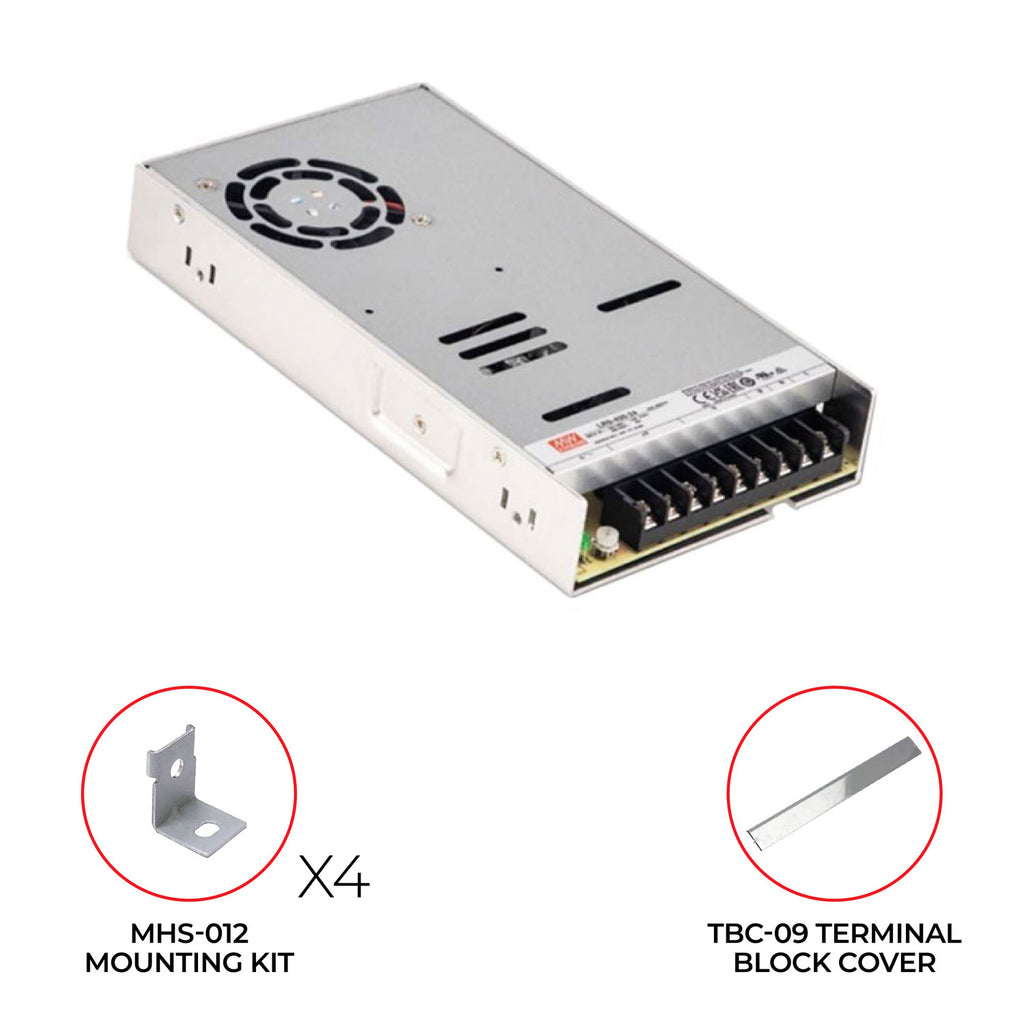

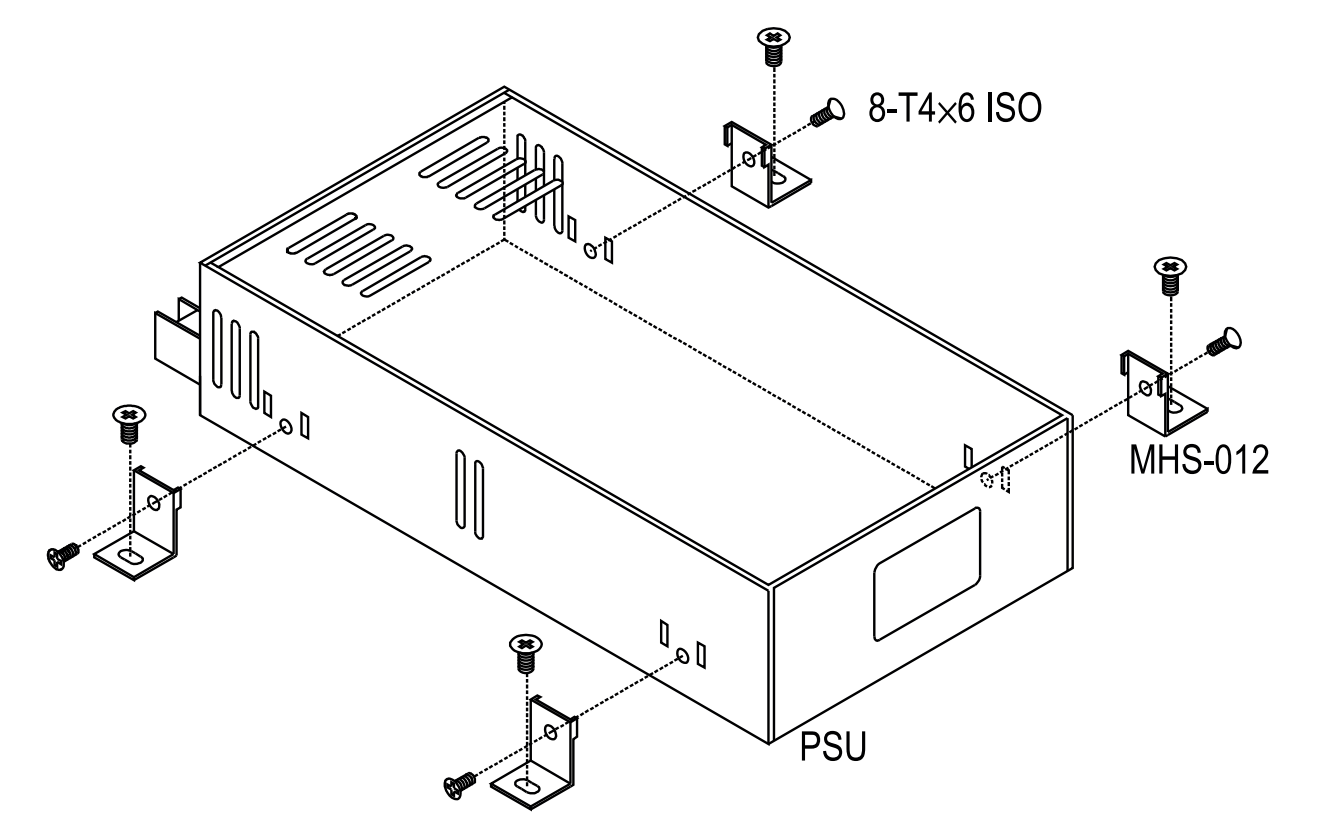

  • Included Accessories: The LRS-450 package comes with a TBC-09 terminal block cover and four MHS-012 mounting kits, ensuring convenient installation and enhanced safety protection.

  • Versatile Use – Ideal for industrial automation, control systems, mechanical equipment, and electronic instruments.

Model Series LRS-450 Rated Power 450W
TBC-09 Block Cover Included MHS-012 mounting kits Included-4
Input Voltage 90 ~ 132VAC / 180 ~ 264VAC (switch selectable) Frequency Range 47 ~ 63Hz
Output Voltages 12V, 24V Efficiency (Typ.) 87% ~ 92%
Protections Short Circuit, Overload, Over Voltage, Over Temperature Cooling Forced Air with Fan ON/OFF Control
Operating Temp. -20℃ ~ +70℃ Operating Altitude Up to 5000m
Vibration Resistance 5G / 10~500Hz MTBF 1,508.9K hrs (Telcordia SR-332)
Dimensions 225 × 124 × 35 mm Weight 0.85 kg
Certifications UL62368-1, IEC62368-1, EN61558-1/2-16, RoHS Warranty 3 Years
