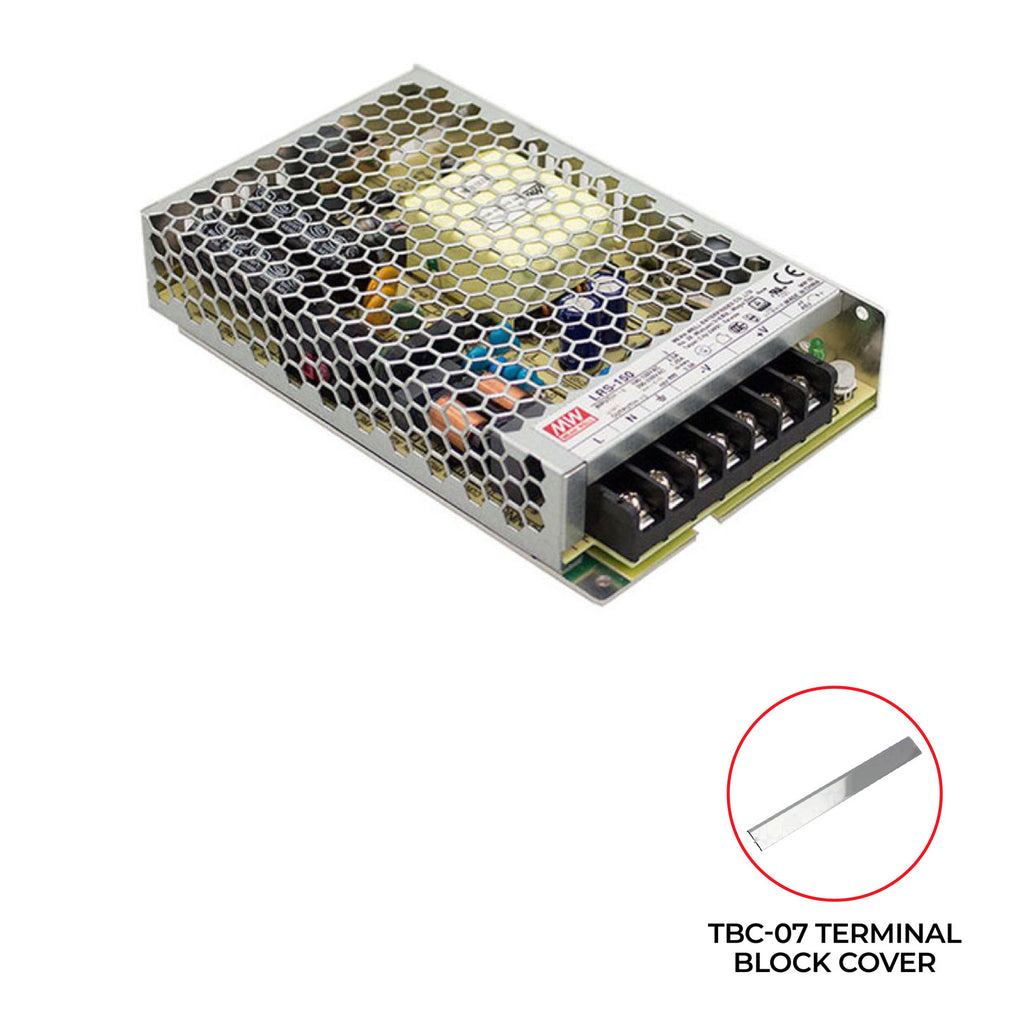

LRS-150 150W LED Mean Well Power Supply – Single Output Switching – High Efficiency & Reliability - Terminal Block Cover Included

SKU: STL-LRS-150-12

Output Voltage: 12V DC

Variant

Price:

$29.99

Quantity:

Share this product

Features

High Efficiency & Reliability – Up to 90% efficiency with long service life, designed for industrial-grade performance.
Multiple Protections – Built-in safeguards against short circuit, overload, over-voltage, and over-temperature.
Compact & Low Profile Design – Miniature size with only 30mm height, ideal for tight installation spaces.
Wide Input Range – AC 115V / 220V selectable via switch, withstands 300VAC surge for 5 seconds.
Versatile Applications – Perfect for LED lighting, automation, control systems, electronic instruments, and household appliances.
Included Accessory: The LRS-150 power supply comes with a TBC-07 terminal block cover, ensuring added safety, protection, and convenience during installation and operation.

Specifications

Model	LRS-150 Series	Rated Power	150W
TBC-07 Block Cover	Included	Frequency Range	47 ~ 63Hz
Input Voltage	85~132VAC / 170~264VAC	Voltage Range	12V / 24V
Efficiency	Up to 90%	Cooling	Free Air Convection
Protections	Short Circuit / Overload / Over Voltage / Over Temperature	MTBF	2707K hrs (Telcordia)
Operating Temp.	-30℃ to +70℃	Weight	0.42 Kg
Dimensions	159 × 97 × 30 mm

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model

LRS-150 Series

Rated Power

150W

TBC-07 Block Cover

Included

Frequency Range

47 ~ 63Hz

Input Voltage

85~132VAC / 170~264VAC

Voltage Range

12V / 24V

Efficiency

Up to 90%

Cooling

Free Air Convection

Protections

Short Circuit / Overload / Over Voltage / Over Temperature

MTBF

2707K hrs (Telcordia)

Operating Temp.

-30℃ to +70℃

Weight

0.42 Kg

Dimensions

159 × 97 × 30 mm
