Description
This LED post top garden light lets installers set output to 75W, 50W, or 34W and color temperature to 3000K, 4000K, or 5000K, delivering up to 10,350 lumens at full power. A photocell provides dusk-to-dawn operation, and the die-cast aluminum housing is rated IP65 for wet locations. The fixture accepts 120-277V input, dims with 0-10V controls, and is UL certified for the US and Canada.
Key Features
75/50/34W
Selectable
3CCT
3K/4K/5K
Dusk-to-Dawn
Photocell
UL Certified
DLC Premium
Specifications
| General | |
|---|---|
| Wattage Options | 75W / 50W / 34W (selectable) |
| CCT Options | 3000K / 4000K / 5000K (selectable) |
| Certifications | UL Certified (US/Canada), DLC Premium |
| Warranty | 5 years |
| Electrical | |
| Input Voltage | 120-277V AC, 50/60Hz |
| Power Factor / THD | ≥0.9 / ≤20% |
| Dimming | 0-10V |
| Surge Protection | 4kV L/N-PE, 2kV L-N (driver) |
| Flicker | <5% |
| Controls | Photocell with integral sensor receptacle |
| Optical | |
| Lumens at 75W (3000K / 4000K / 5000K) | 9,150 / 10,350 / 9,675 lm |
| Efficacy at 75W (3000K / 4000K / 5000K) | 122 / 138 / 129 lm/W |
| CRI | 80+ |
| Color Consistency | <7 SDCM |
| Beam Angle | 90° |
| Distribution | IES Type I, Very Short |
| BUG Rating | B3-U3-G1 |
| Lens | Polycarbonate (PC) |
| LED Type | SMD2835, 420 pcs |
| Physical | |
| Dimensions | 14.96" Dia x 23.35" H; fitter base 4.13" W |
| Mounting | Post top slip fitter |
| Weight | 9.9 lb |
| Housing | Die-cast aluminum, brown |
| Ingress Rating | IP65, wet location |
| Operating Temperature | -40°F to 122°F |
| Storage Temperature | -40°F to 185°F |
| Operating Humidity | 10-90% RH |
Features
- Wattage selects between 75W, 50W, and 34W, so one fixture can match the illuminance target for a busy plaza or a quieter residential path.
- Color temperature selects between 3000K, 4000K, and 5000K, producing 9,150, 10,350, and 9,675 lumens respectively at 75W, with efficacy of 122 to 138 lm/W.

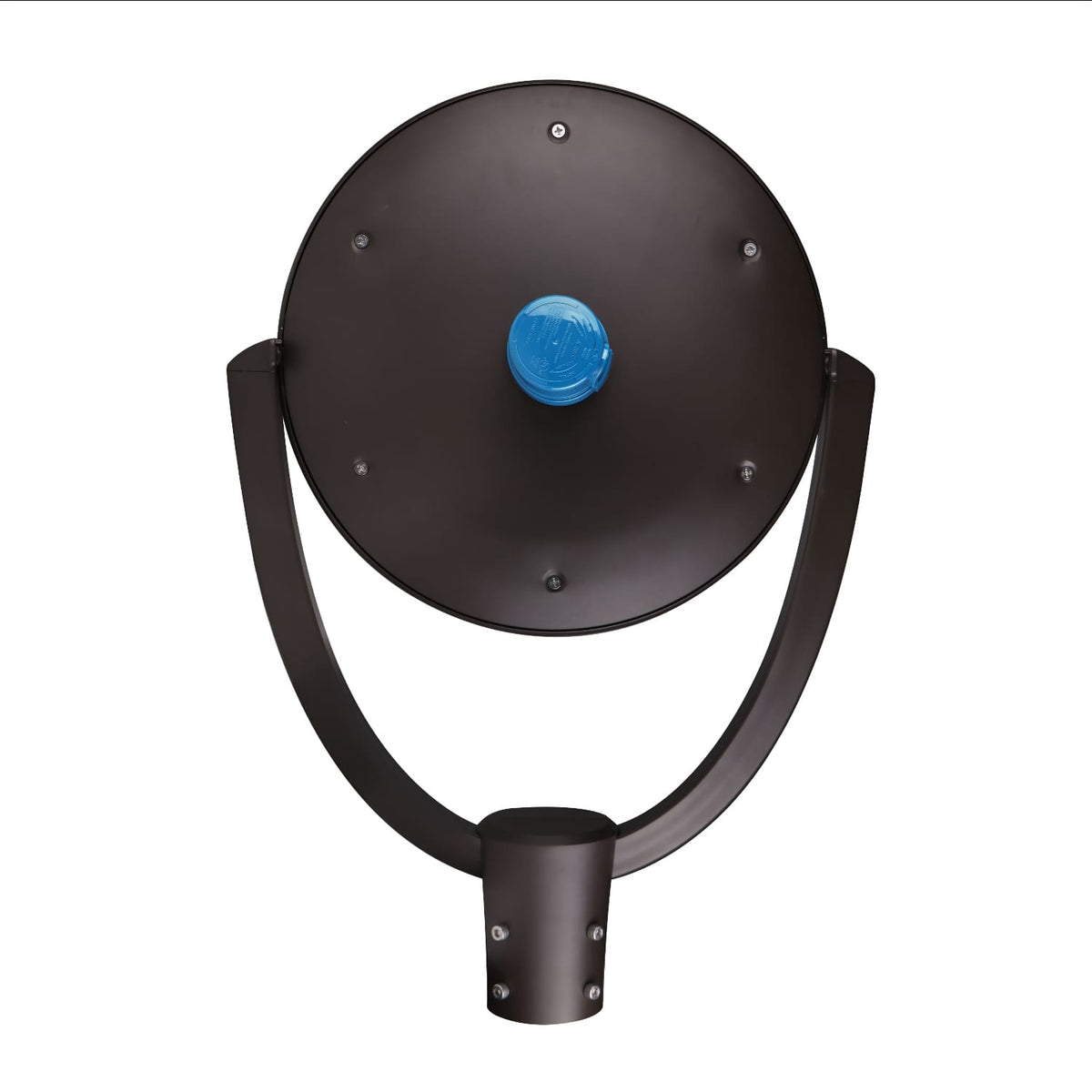

- A photocell mounted in the integral sensor receptacle on top of the housing switches the fixture on at dusk and off at dawn.
- The 90° optic produces an IES Type I, very short distribution with 99% of output directed downward and a B3-U3-G1 BUG rating, concentrating light on the path and plaza surface below the pole.
- In photometric testing at 75W and a 13 ft (4 m) mounting height, the fixture delivered an average of about 13 footcandles (140 lux) across a 25.6 ft diameter area.
- 420 SMD2835 LEDs behind a polycarbonate lens provide CRI 80+ with color consistency under 7 SDCM, keeping color uniform from pole to pole along a streetscape.
- The die-cast aluminum housing is rated IP65 for wet locations and operates from -40°F to 122°F.
- The driver accepts 120-277V input with power factor of 0.9 or higher, THD of 20% or less, and flicker under 5%, and supports 1-10V dimming for integration with lighting controls.
- Built-in driver surge protection is rated 4kV line/neutral to earth and 2kV line to neutral.
- A slip fitter at the base mounts the 14.96" diameter, 9.9 lb fixture directly on a pole top.
Applications
- Historic district streetscapes and village main streets
- Downtown pedestrian plazas and town squares
- Residential subdivision streets and HOA common areas
- Park walking paths and greenways
- University and school campus walkways
- Resort, hotel, and sightseeing area grounds
