Description

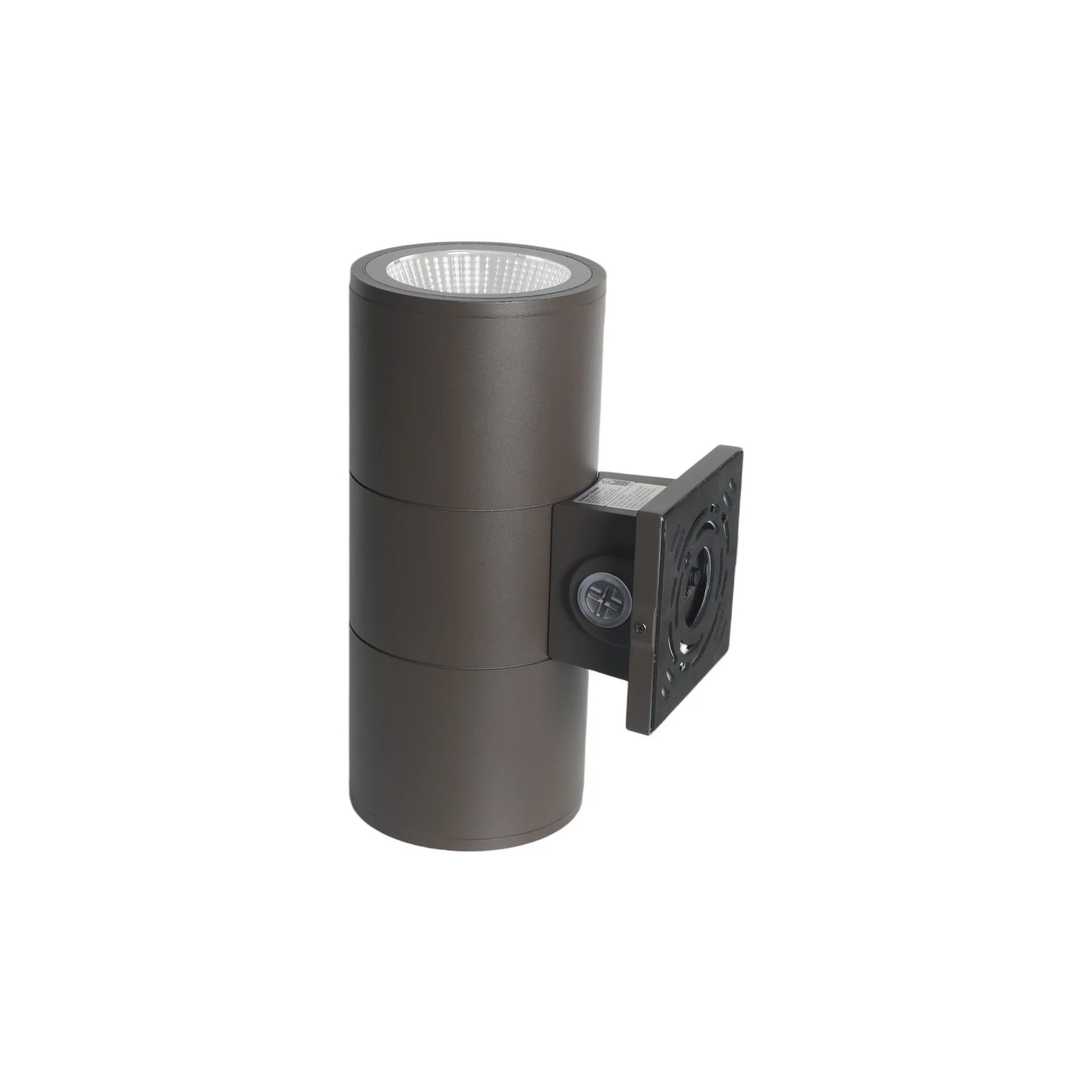

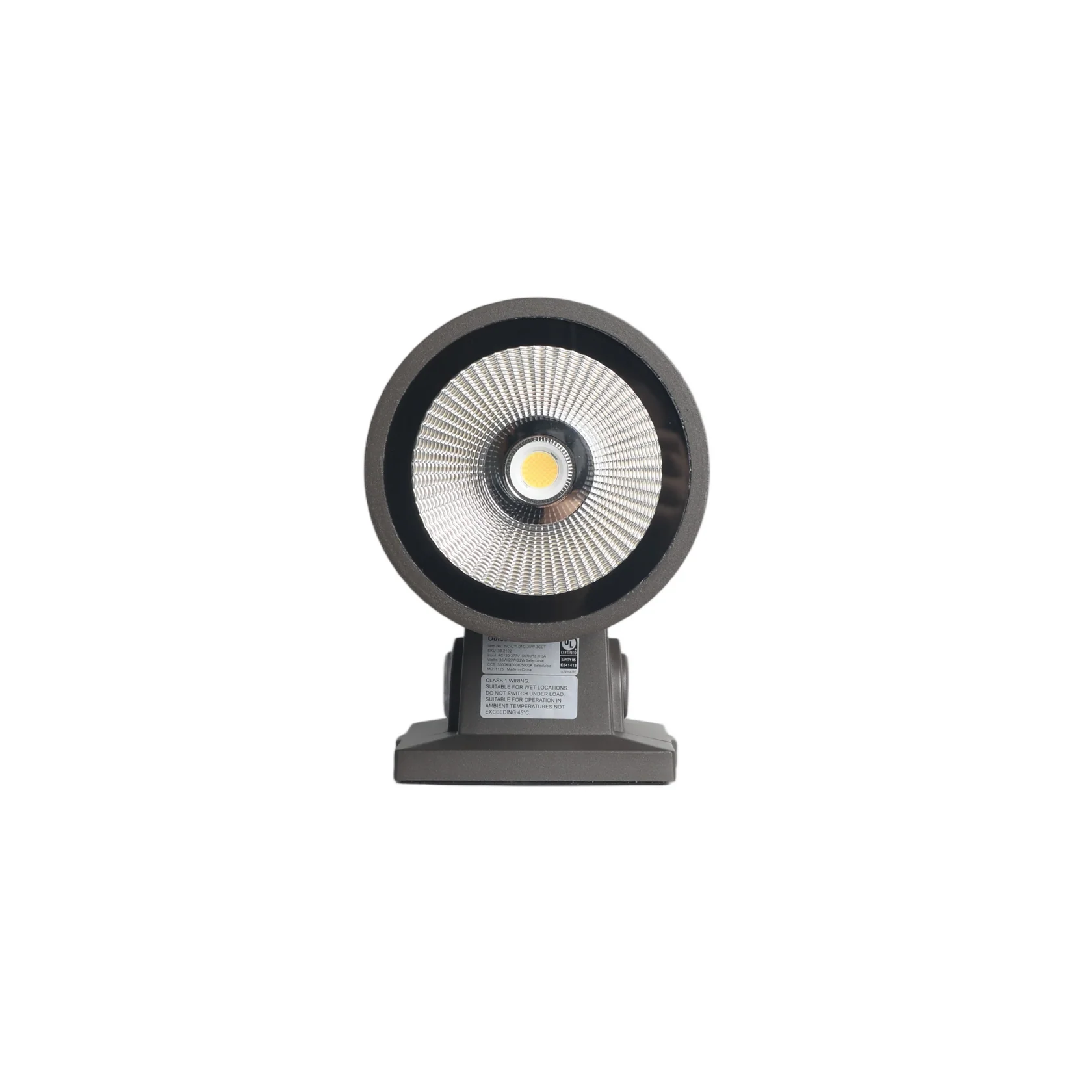

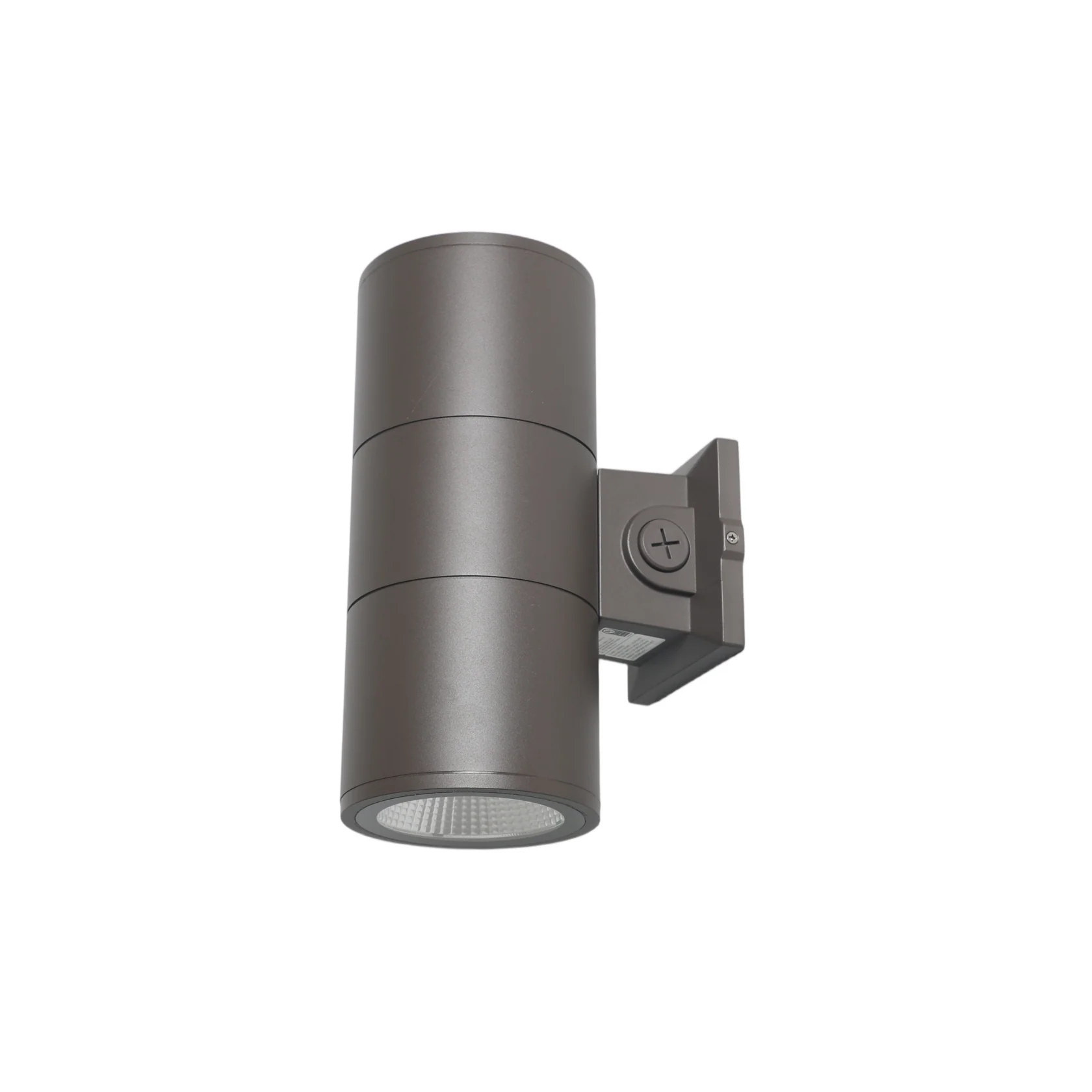

The LED Outdoor Cylinder Wall Fixture is a clean, architectural luminaire available as a 4-inch 20W model or a 6-inch 35W model. Both variants feature field-selectable wattage, CCT (3000K/4000K/5000K), and up/down/full light direction — all adjustable via onboard DIP switches without tools. An integrated dusk-to-dawn photocell and 0-10V dimming driver provide automatic and flexible light level control. Die-cast aluminum construction, IP65 ingress protection, and a UL wet-location listing make this fixture a dependable choice for exterior architectural and perimeter applications.
Key Features +
Up / Down /
Full Control
Selectable
Wattage & CCT
Integrated
Photocell
IP65 / UL
Wet Location
Specifications +
| General | |
|---|---|
| Available Sizes | 4-inch (20W) | 6-inch (35W) |
| Housing | Die-cast aluminum, bronze finish |
| Ingress Protection | IP65 |
| Certifications | UL Listed — Wet Locations |
| L70 Lifetime | >50,000 hours at 25°C ambient |
| Operating Temperature | −40°F to 113°F (−40°C to 45°C) |
| Electrical — 4" 20W Model | |
| Selectable Wattage | 20W / 16W / 12W |
| Lumens (at each wattage) | 1,040 lm / 832 lm / 624 lm |
| Efficacy | 52 lm/W |
| Current Draw | 0.20A |
| Electrical — 6" 35W Model | |
| Selectable Wattage | 35W / 29W / 22W |
| Lumens (at each wattage) | 2,030 lm / 1,682 lm / 1,276 lm |
| Efficacy | 58 lm/W |
| Current Draw | 0.35A |
| Electrical — Both Models | |
| Input Voltage | 120–277V AC |
| Dimming | 0-10V |
| Power Factor | ≥0.9 |
| THD | <20% |
| Optical | |
| Selectable CCT | 3000K / 4000K / 5000K |
| CRI | >80 |
| Beam Angle | 40° |
| Light Direction | Selectable: Up / Down / Full (Up+Down) |
| Physical | |
| 4" Model Dimensions | H: 11.02" | W: 4.53" | Ø 4.17" |
| 6" Model Dimensions | H: 13.00" | W: 5.71" | Ø 5.71" |
Features +
- Field-selectable light direction — Up, Down, or Full (Up+Down simultaneously) — set via onboard DIP switch without removing the fixture.
- Three selectable wattage levels per variant: 20W/16W/12W (4-inch model) or 35W/29W/22W (6-inch model), allowing output to be tuned to the application after installation.
- Selectable CCT of 3000K, 4000K, or 5000K adjustable via DIP switch, preset at the factory to 5000K.
- Integrated dusk-to-dawn photocell enables automatic on/off operation; photocell function can be disabled via DIP switch when manual or timer control is preferred.
- 0-10V dimming driver compatible with standard lighting control systems for smooth, continuous dimming performance.
- Wide voltage input (120–277V AC) supports straightforward installation across residential, commercial, and industrial wiring configurations.
- 40° beam angle delivers focused, controlled illumination suited to façade grazing and perimeter accent lighting.
- High-quality glass lens provides strong light transmittance and consistent output across the beam pattern.
- Die-cast aluminum housing with bronze finish provides structural rigidity and a refined architectural appearance.
- IP65-rated enclosure and UL wet-location listing confirm suitability for exposed exterior installations in rain and moisture-prone environments.
- Rated for over 50,000 hours L70 lifetime at 25°C ambient, minimizing long-term maintenance requirements.
Applications +
- Building façade and exterior wall accent lighting
- Commercial and retail storefront entrances
- Covered walkways, hallways, and stairwells
- Outdoor patios, decks, and courtyard perimeter lighting
- Residential exterior walls, garages, and entryways
- Office building and hospitality property perimeter lighting
- Landscape architectural accent and pathway lighting
