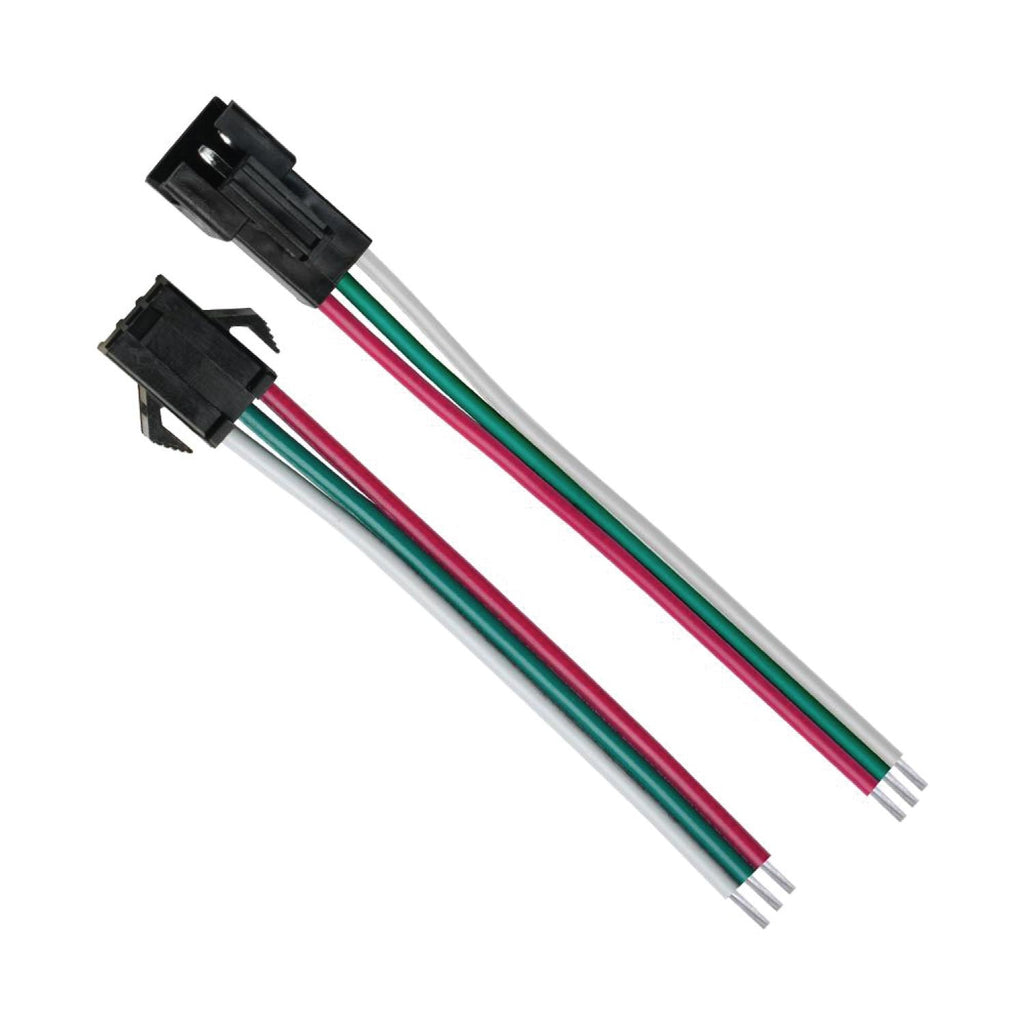

JST SM Series 3-Pin Connector Cable | 20AWG, 150mm, Red-Green-White, PVC Housing, DC5–36V, 3.5A, Set of Male/Female Type
Roll over image to zoom in Click on image to zoom
JST SM Series 3-Pin Connector Cable | 20AWG, 150mm, Red-Green-White, PVC Housing, DC5–36V, 3.5A, Set of Male/Female Type

JST SM Series 3-Pin Connector Cable | 20AWG, 150mm, Red-Green-White, PVC Housing, DC5–36V, 3.5A, Set of Male/Female Type

Price:
$1.99
Motion Sensor Specsheet
Spec Sheet

Description

  • Reliable Terminal Connection: No loose wires, no flickering lights the terminal connection type locks in a strong, stable electrical bond every time, giving your LED strips and electronic builds the consistent current flow they need to perform at their best.
  • Quality Materials That Hold Up: such quality copper conductors with PVC housing rated to 80℃ is able to deal with the heat, and still lock in insulation, performance without drop even after continuous use for 24 hours.
  • Flexible Wiring That Fits Your Project: Available in 20AWG ribbon cable and can be customised to fit any length and in all cable types, red, green and white. This wiring can be used in any size project, from a small DIY to a big installation.
  • Wide Voltage Range Works with Almost Everything: Handles DC 5–36V with up to 3.5A max current, so it plays nicely with a huge range of LED strips, drivers, and controllers. One cable solution for many different setups.
Product Series SM Series Model Numbers SM-3MH-20ARGW / SM-3FH-20ARGW
Connection Type Terminal Connection With Wire Yes
Connector Color Black Material Copper, PVC
Housing Temp Rating 80℃ Operating Voltage DC5–36V
Max Current 3.5A Connector Type SM-3 Pin
Wire Gauge 20AWG Conductor Cross-Section 0.52mm²
Cable Color Red-Green-White  Cable Type Ribbon Cable
Default Cable Length 150mm  Cable Printing 1007 AWM 80°C 300V VW-1 FT1
Ambient Temperature -10℃ ~ 45℃ Environment Indoor
