SKU: STL-PCL-423C
Price:
$17.99
Motion Sensor Specsheet
Spec Sheet

Description

  • Compact Design, Big Performance: Consistent and efficient in a coin-sized package.
  • Universal Voltage Compatibility: Input voltage range from 120-277VAC for wide applications.
  • Robust Loading Capacity: Capable of handling up to 1000W Tungsten, 1200VA Ballast, and 8A E-Ballast at 120VAC.
  • Precision Sensing with IR Filter: Accurate light controls with IR-Filtered Phototransistor.
  • Swift Response Time: Delays of just 5-10 seconds for timely lighting adjustments.
  • Built to Last: IP65 rating ensures resilience against dust and water.
  • Safety and Standards Compliant: UL Listed for top-notch safety and reliability.

Applications: Perfect for outdoor and security lighting systems.

Product Attributes
Model No. JL-423C Voltage 120-277VAC
Applicable Volt Range Nominal +/- 10% Rated Frequency 50/60Hz
Rated Loading 1000W Tungsten/1200VA Ballast, 8A E-Ballast @ 120VAC Power Consumption 0.4W
Operate Level 16 Lx On, 24 Lx Off Ambient Temperature -30C - +70C
IP Grade IP65 Certified UL Listed
Leads Length 180mm Fall Mode Fall-On
Sensor Type IR-Filtered Phototransistor Time Delay 5-10 Seconds
Typical Surge Protection 235 Joules/5000Amps

The photoelectric switch JL-423CM is applicable to control the street lighting, passage lighting and doorway lighting automatically in accordance with the ambient lighting level. This product is designed with electronic circuits with CU incorporated. Its quicker response with time delay of 5 seconds offers easy-to-test feature while avoiding mis-operation due to spotlight or lightening during night time.
Especially, model JL-423CM provides a wide voltage range for customer applications under almost power supplies.
Installation & Operational Instructions:
  • Disconnect power, remove junction box cover, place the SWITCH in knockout hole and fasten with locknut.

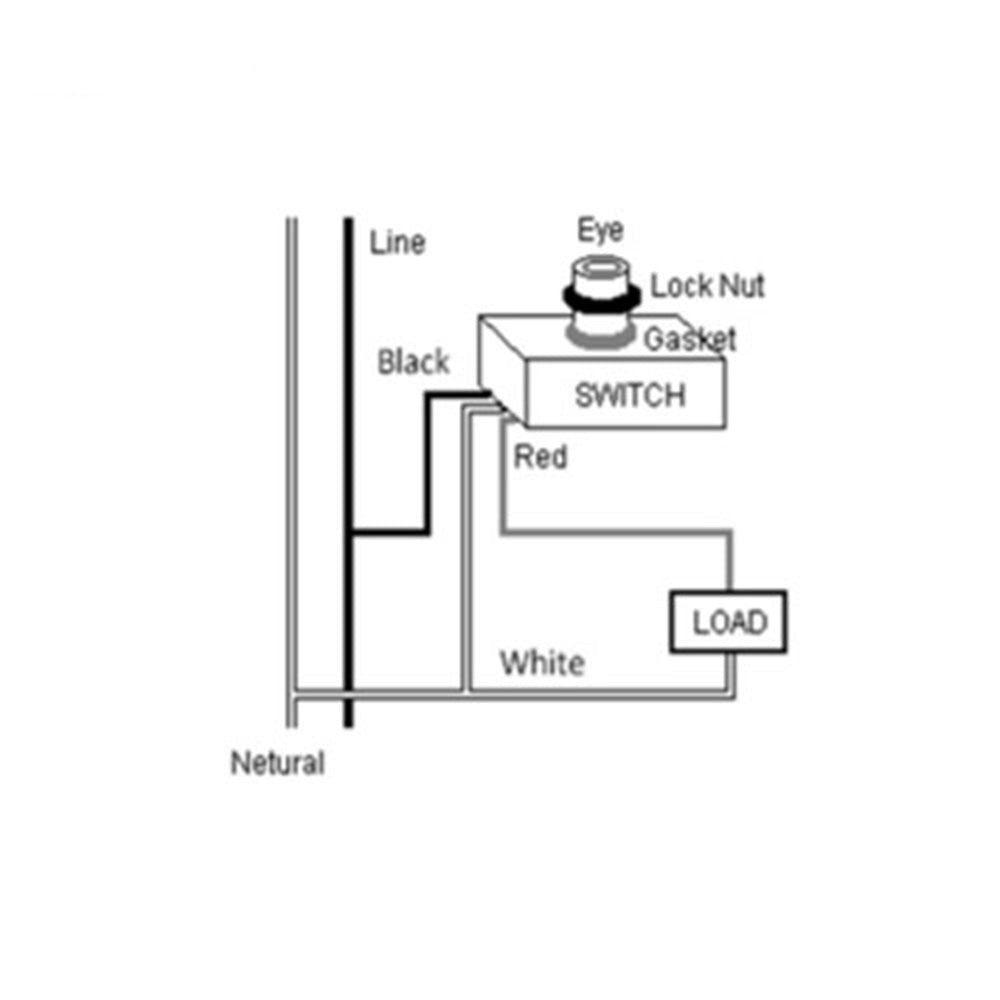

  • Wire according to the diagram in right hand.
  • Do not install the switch with the Photocell facing artificial or reflected light.
  • This will cause the unit to cycle on and off at night.
