JL-404C Seek Type Photocell - Turret Style - Electric Switch - IR-Filtered Sensor - UL Listed

SKU: STL-PCL-404C

Price:
Sale price$11.99

Description

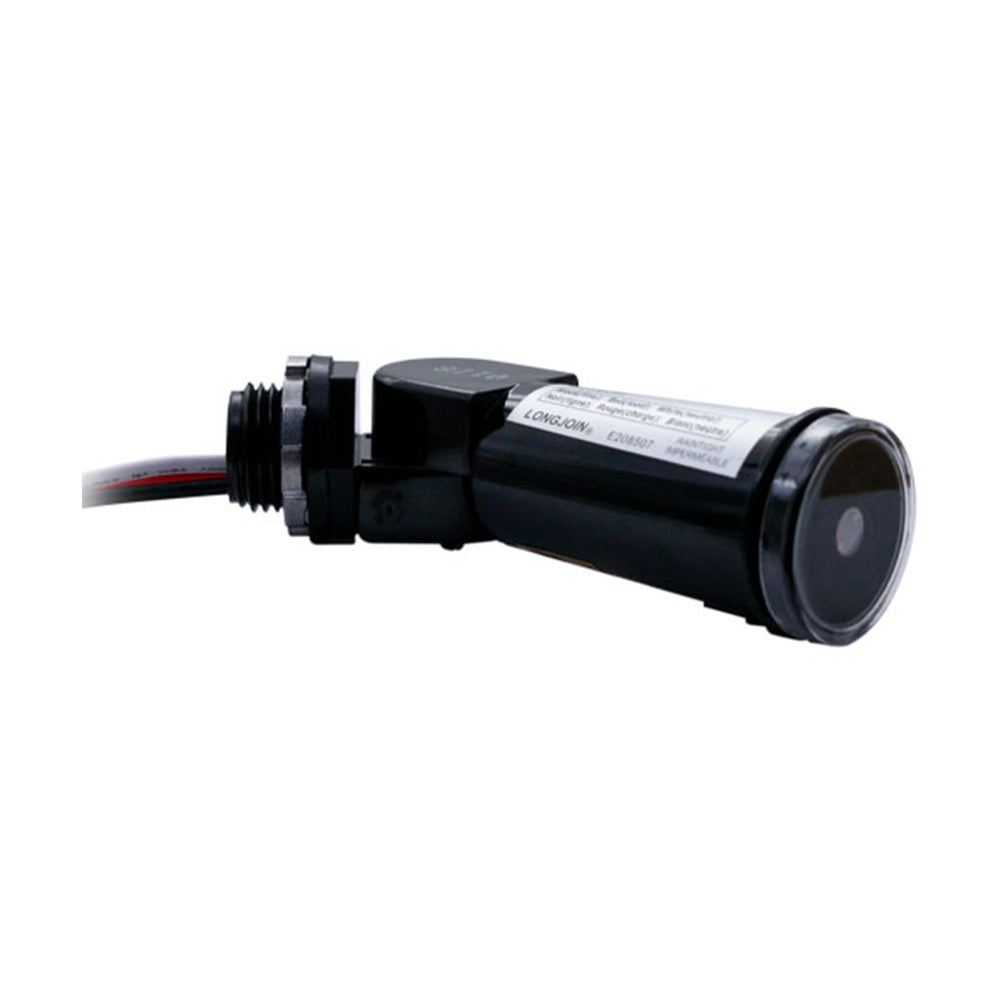

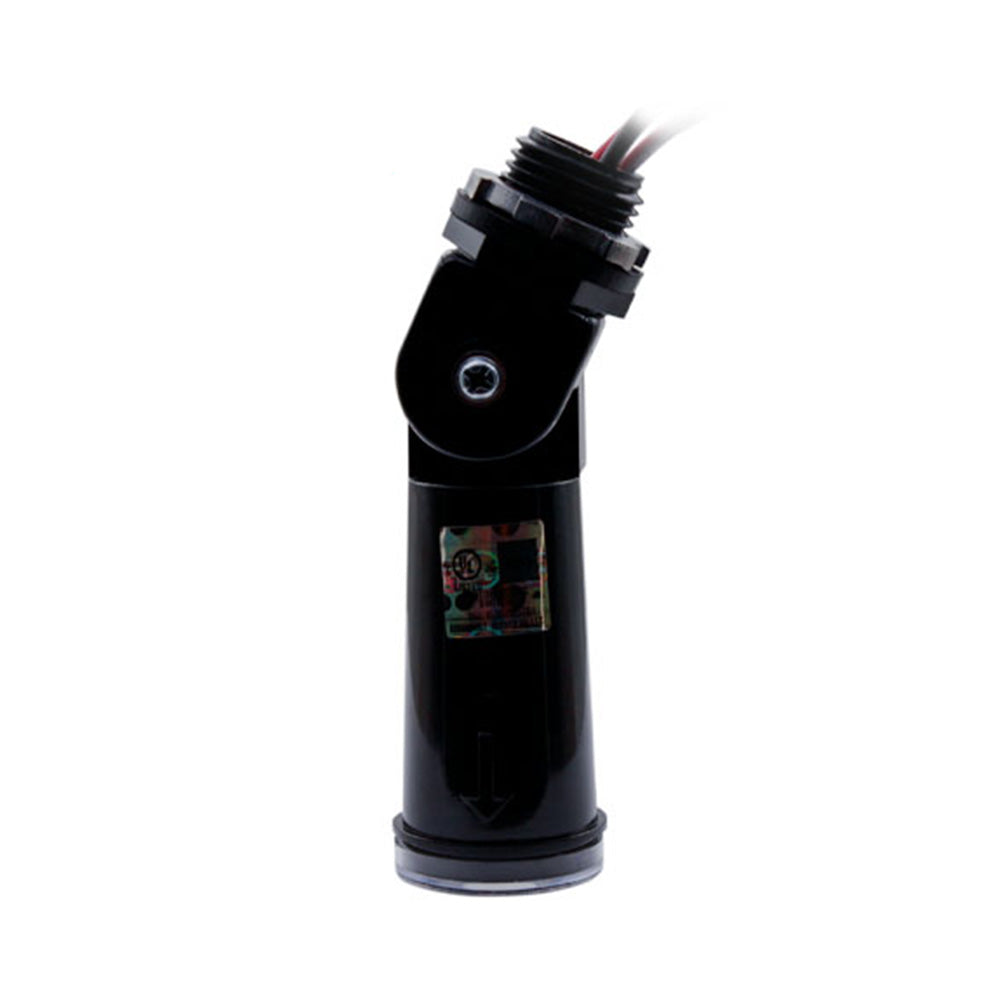

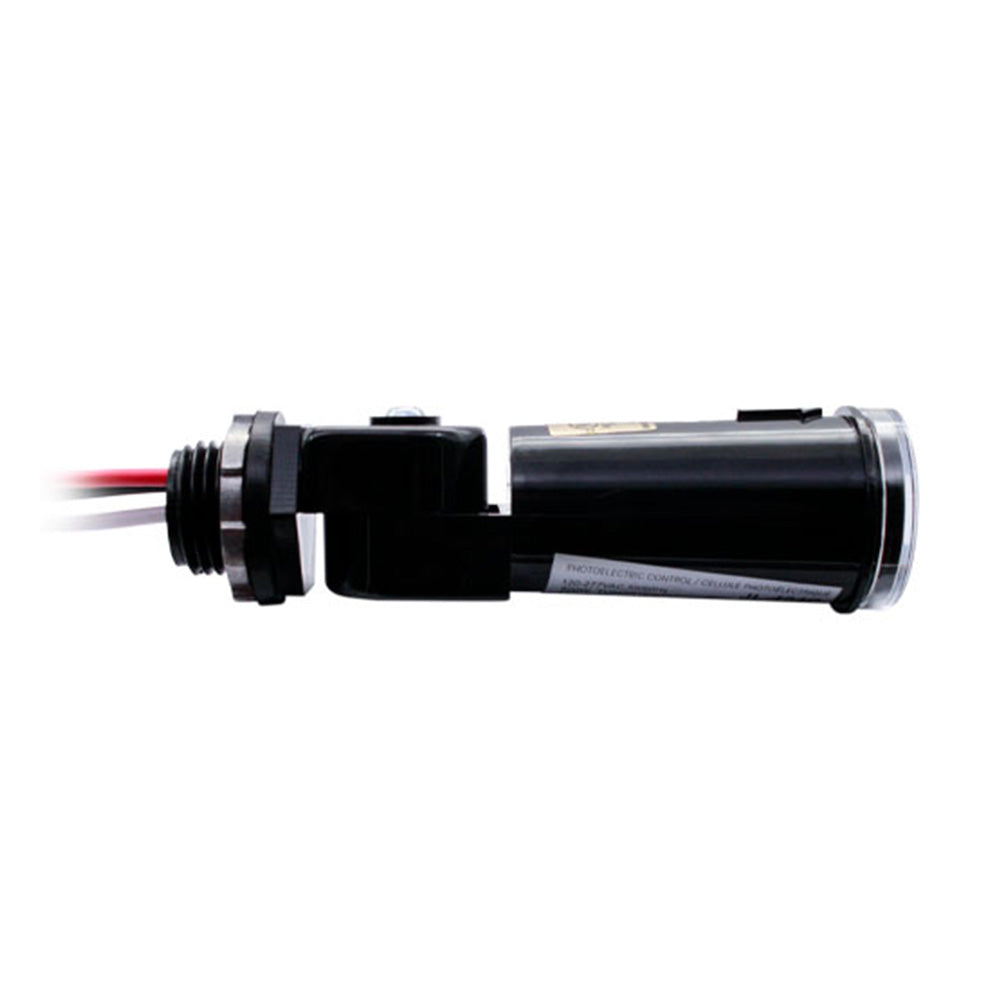

  • Tailored Illumination: Achieve the optimal angle with the unique turret style design.
  • Versatile Mounting Options: Mount directly with fixtures or externally on conduits.
  • Robust and Reliable: IP65 rated for resistance against dust and water jets.

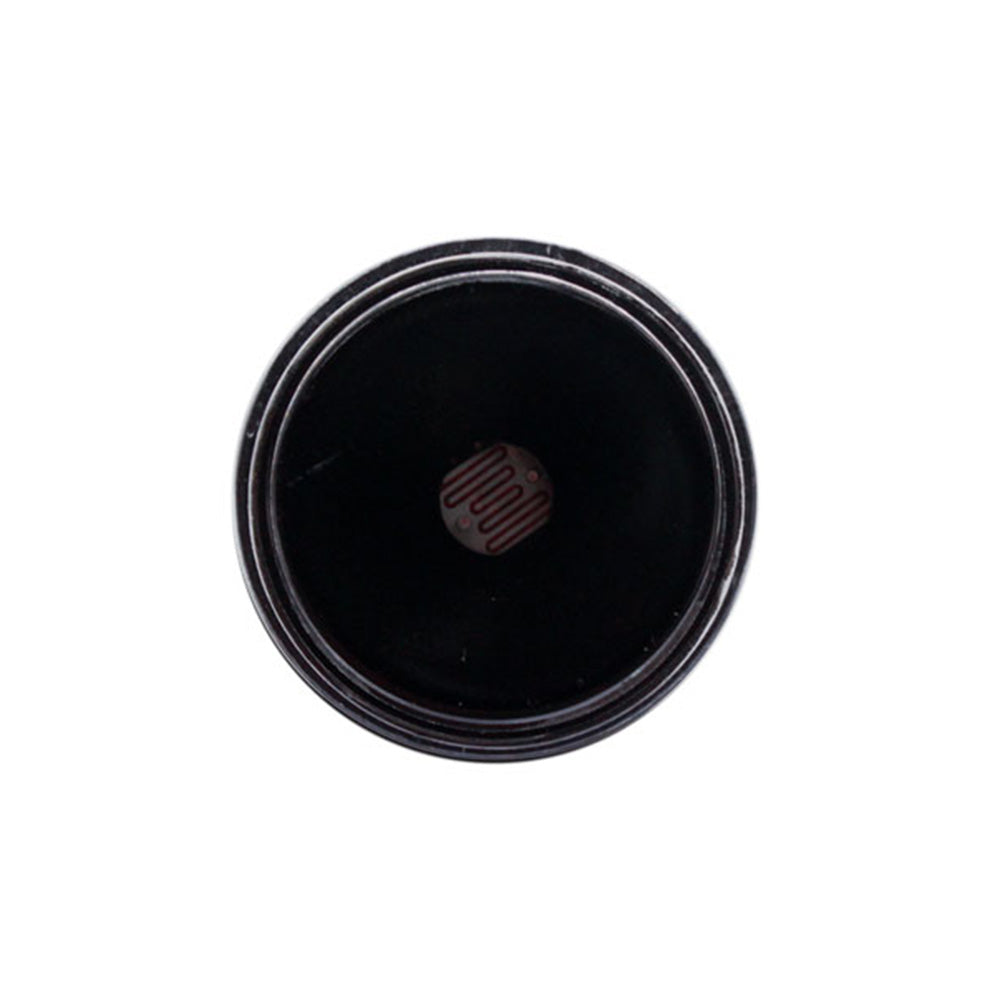

  • Cutting-Edge Sensor: Precise light sensing with the IR-Filtered Phototransistor.
  • Safety First: UL Listed for consistent and secure operation.
  • Efficient Power Consumption: Energy-saving with just 0.4W consumption.
  • Impressive Loading Ratings: Handles up to 500W Tungsten, 850VA Ballast, and 5A E-Ballast.

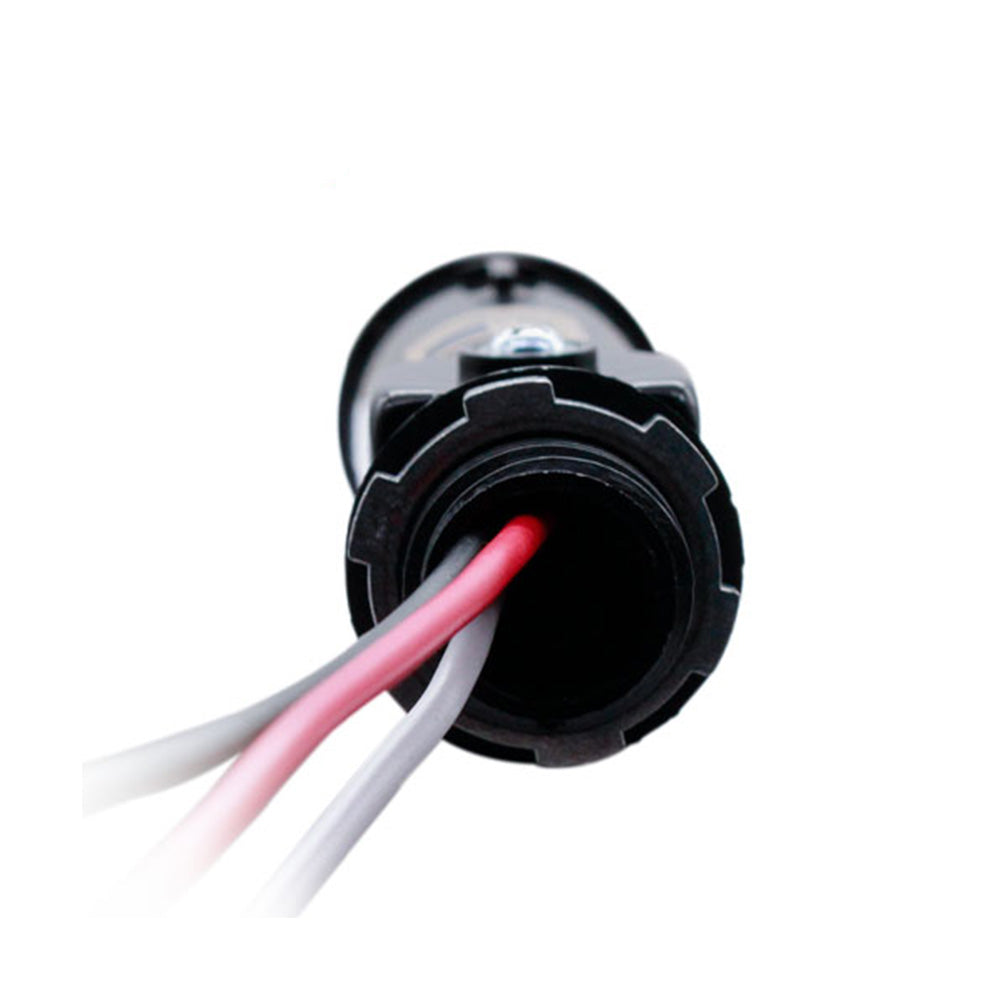

  • Extended Lead Lengths: 180mm leads for flexible wiring during installation.

Applications: Perfect for outdoor lighting, parking lots, street lights, and more.

Product Attributes
Model No. JL-404C Voltage 120-277VAC
Applicable Volt Range Nominal +/- 10% Rated Frequency 50/60Hz
Rated Loading 500W Tungsten/850VA Ballast, 5A E-Ballast @ 120VAC Power Consumption 0.4W
Operate Level 10-20 Lx On, 30-80 Lx Off Ambient Temperature -30C - +70C
IP Grade IP65 Certified UL Listed
Leads Length 180mm Fall Mode Fall-On
Sensor Type IR-Filtered Phototransistor Time Delay 3-10 Seconds
Typical Surge Protection 235 Joules/5000Amps

The photoelectric switch JL-404 is applicable to control the street lighting, passage lighting and doorway lighting automatically in accordance with the ambient lighting level. This product is designed with electronic circuits. Its quicker response with time delay of 3-10 seconds offers easy-to-test feature. Especially, model JL-404C provides a wide voltage range for customer applications under almost power supplies.
Further, a preset 3-10 seconds time-delay might avoid mis-operation due to spotlight or lightning during the night time. This product has been listed by UL Inc and is comply with the Standard for Non-industrial Photoelectric Switches for Lighting Control UL773A.
Installation & Operational Instructions:
  • Disconnect power, remove junction box cover, place the SWITCH in knockout hole and fasten with locknut.
  • Wire according to the diagram in right hand.
  • Do not install the switch with the Photocell facing artificial or reflected light.
  • This will cause the unit to cycle on and off at night.
