Description

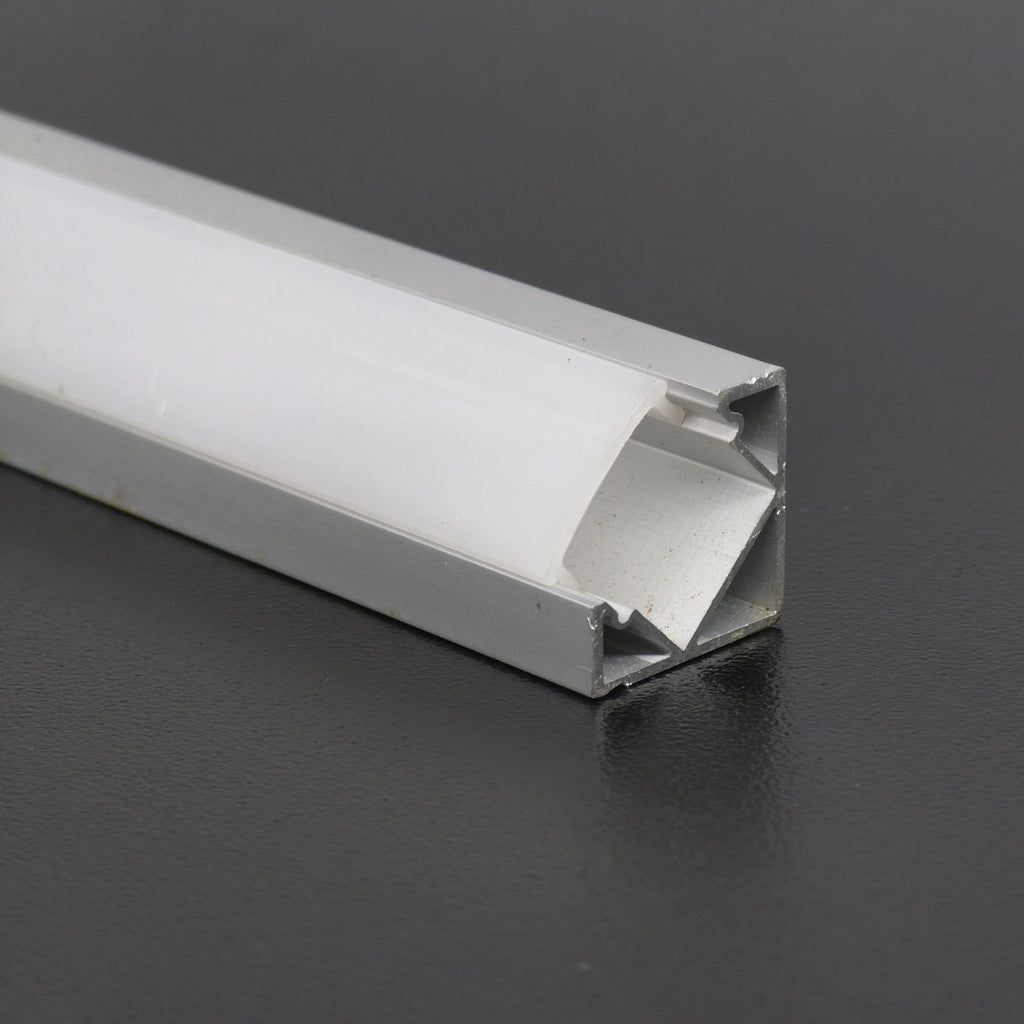

This inside corner aluminum channel mounts flush into 90-degree interior corners, housing LED strip lighting behind a curved trim diffuser that softens individual LED points into a smooth, continuous line of light. Constructed from 6063-T5 aluminum with an anodized silver finish, each piece ships with matched end caps and mounting clips for a complete installation. The internal 0.49" track accommodates standard LED tape widths, and the channel is sold in a 5-pack of 1-meter lengths for multi-run installations.
Specifications +
| General | |
|---|---|
| Model | 1203 |
| Product Type | Inside Corner Aluminum LED Channel with Trim |
| Channel Shape | Inside Corner (45°) |
| Mounting Type | Inside Corner Mount |
| Pack Quantity | 5-Pack |
| Length per Piece | 1m (39.4") |
| Optical | |
| Diffuser Type | Curved Frosted Trim Lens |
| Max Compatible Strip Width | 0.49" (12.4mm) |

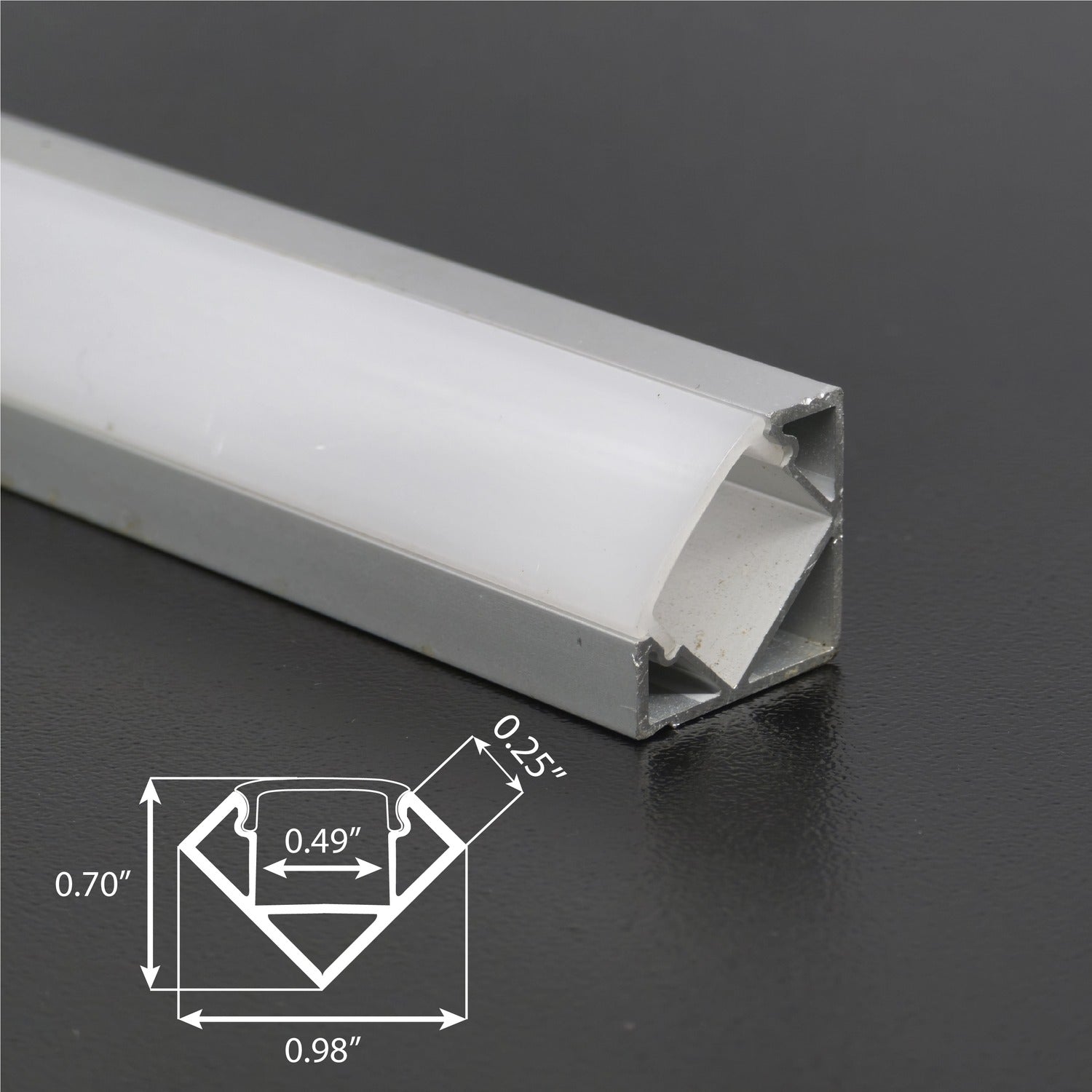

| Physical | |
| Material | 6063-T5 Aluminum |
| Finish | Anodized Silver |
| Internal Channel Width | 0.49" (12.4mm) |
| Overall Base Width | 0.98" (24.9mm) |
| Side Width (each face) | 0.70" (17.8mm) |
| Corner Flange Depth | 0.25" (6.4mm) |
| End Caps Included | Yes – 1 with wire hole, 1 without, per piece |
| Mounting Clips Included | Yes – 2 per piece |
Features +
- The 45-degree inside corner profile sits flush against interior corner joints, concealing the LED strip while directing light outward.
- The 6063-T5 aluminum body draws heat away from the LED strip, helping extend LED lifespan compared to running tape lighting unmounted.
- The anodized silver finish resists corrosion and maintains its appearance in both interior and covered exterior applications.
- The curved frosted trim lens softens individual LED points into a continuous, even line of light and snaps into the channel without additional hardware.
- An internal track 0.49 inches wide accommodates standard LED tape widths for a secure, aligned fit.
- Each piece ships with one end cap pre-drilled for wire pass-through and one solid end cap for the opposite end of the run.
- Two mounting clips per piece secure the channel to the corner substrate without visible fasteners on the finished face.
- Each 1-meter section can be field-cut to length or joined end-to-end for continuous runs.
Applications +
- Cabinet interior corner and shelf edge lighting
- Stair stringer and step-edge lighting
- Wall-to-ceiling cove corner trim
- Display case and museum case corner accents
- Closet and millwork corner lighting
- Countertop backsplash corner runs
