Hippo-M MINI Connector | 12mm PCB, 4-Pins for COB RGB Digital Pixel Strips
Roll over image to zoom in Click on image to zoom
Hippo-M MINI Connector | 12mm PCB, 4-Pins for COB RGB Digital Pixel Strips

Hippo-M MINI Connector | 12mm PCB, 4-Pins for COB RGB Digital Pixel Strips

SKU: STL-MN20-B12C-4P
Connector Type: Strip to Strip [No Wire]
Price:
$0.99
Motion Sensor Specsheet
Spec Sheet

Description

Features

  • Compact Straight Connector Design: Slim I-shape structure enables seamless COB strip-to-strip and strip-to-power connections without bulky joints, ensuring neat professional installations.

  • Durable & Transparent Housing: Built from polycarbonate with phosphor bronze pins and nickel plating, offering high reliability, long lifespan, and resistance to deformation at 80℃.

  • Stable Electrical Performance: Supports DC3–24V with 3.5A per pin (@22AWG, 30℃), ensuring consistent and efficient current flow for RGB COB strips.

  • Compatible with 12mm RGB COB Strips: Designed for IP20-rated indoor use, supports 0.25–0.35mm PCB thickness, and works with unlimited LED density for flexible lighting projects.

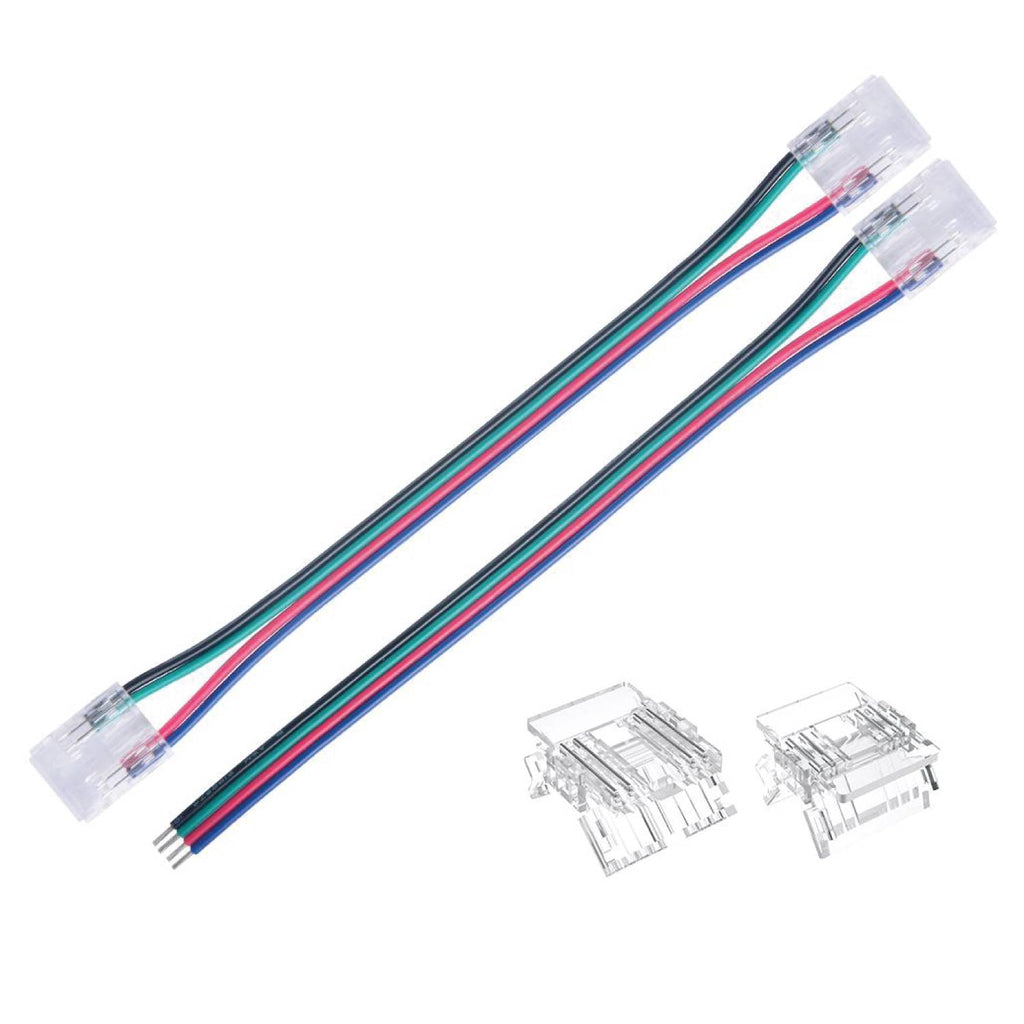

  • Optional Pre-Wired Versions Available: Comes in no-wire and 150mm wired options (22AWG flat cable), color-coded red-green-black-blue for easy RGB power connections.

Product Series Hippo-M MINI Item No. MN20-B12C-4P / MN20-X12C-4PW / MN20-BXB12C-4PW
Connection Type Strip-to-Strip / Strip-to-Power / Strip-to-Strip Bridge With Wire No Wire / 150mm Wire Options
Shape I-Shape, Straight Size 16.5 × 13.7 × 4.3 mm
Pin Quantity 4 Housing Color Transparent
Material Polycarbonate, Phosphor Bronze Surface Treatment Nickel Plating
Voltage DC 3–24V Max Current 3.5A per Pin
Workable Strip 12mm RGB COB PCB Thickness 0.25–0.35 mm
Wire Gauge 22 AWG Wire Type Multi-Stranded Flat Cable
Wire Color Red, Green, Black, Blue Length 150 mm (for wired models)
IP Rating IP20 Environment Indoor, -10 ~ 45℃
