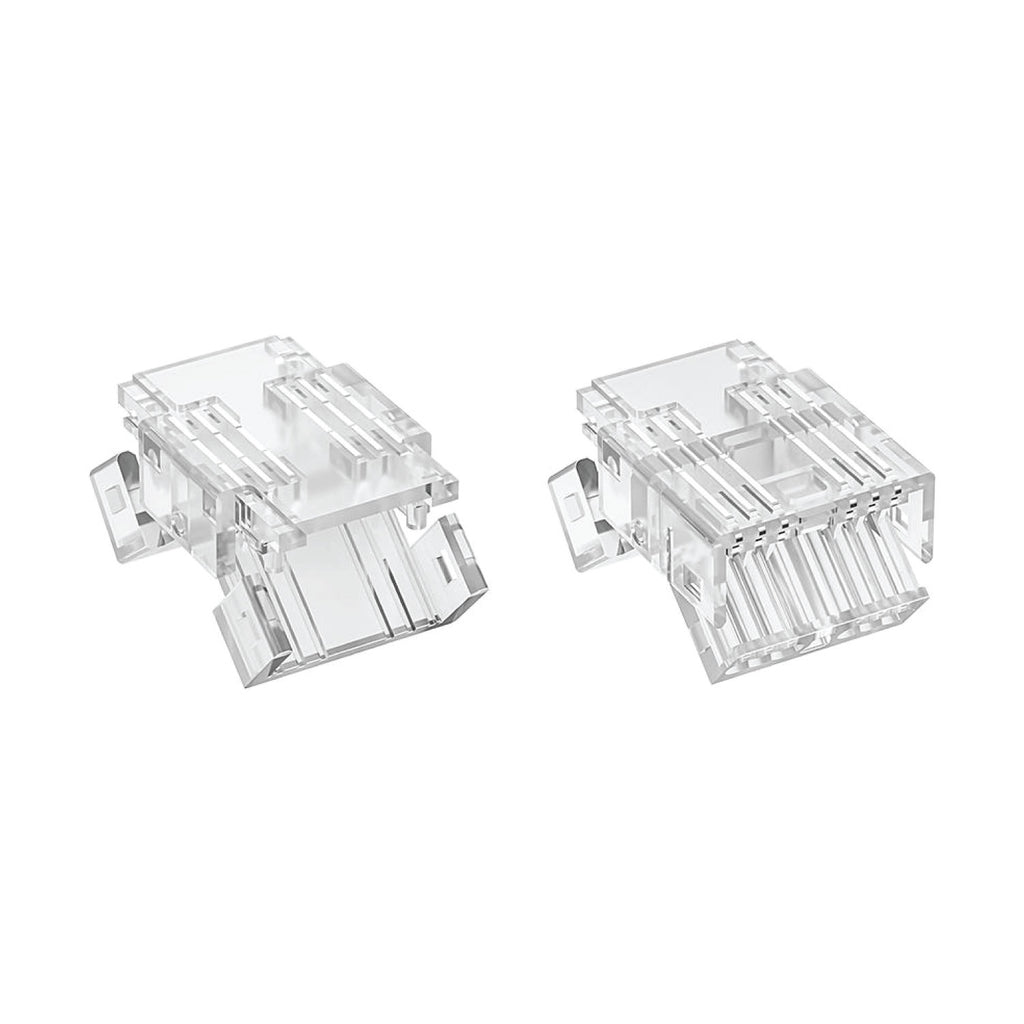

Hippo-M MAX Connector | 12mm PCB, 6Pins for COB Strip to Wire Connector
Roll over image to zoom in Click on image to zoom
Hippo-M MAX Connector | 12mm PCB, 6Pins for COB Strip to Wire Connector

Hippo-M MAX Connector | 12mm PCB, 6Pins for COB Strip to Wire Connector

SKU: STL-MX/2045-X12C-6P
Price:
$1.09
Motion Sensor Specsheet
Spec Sheet

Description

  • High-Performance MAX Series Connector: Built for 12mm COB LED strips, delivering reliable connectivity in demanding strip-to-wire or strip-to-strip applications.

  • Strong Electrical Reliability: Rated for DC 3–24V operation with up to 3.5A per pin, ensuring stable performance across extended indoor lighting projects.

  • Durable and Safe Construction: Transparent PC housing with phosphor bronze pins and nickel plating provides high durability, safety, and consistent conductivity over time.

  • Wide Strip and Wire Compatibility: Supports 12mm COB strips in RGBCCT, with PCB thickness 0.25–0.35mm and ≤22AWG wire for versatile installation flexibility.

  • Compact and Easy Installation: Straight I-shape design enables quick connections with no soldering required, simplifying indoor setups and reducing installation time significantly.

Product Series Hippo-M MAX Item No. MX/2045-X12C-6P / MX/2045-B12C-6P
Connection Type Strip to Wire / Strip to Strip Wire Option No Wire
Shape I Shape (Straight) Size 19×14.6×6.2mm / 19.8×14.6×6.2mm
Pin Quantity 6 Housing Color Transparent
Material PC, Phosphor Bronze Surface Treatment Nickel Plating
Deform Temperature 80℃ Voltage DC 3–24V
Max Pin Current 3.5A (@30℃, 3OZ, 22AWG) Workable Strip 12mm COB
Light Color RGBCCT IP Rating IP20
PCB Thickness 0.25–0.35mm LED Density No Limit
Wire Gauge ≤22AWG (0.32mm²) Outer Diameter ≤1.8mm
Environment Temp -10~45℃ Environment Indoor
