Description

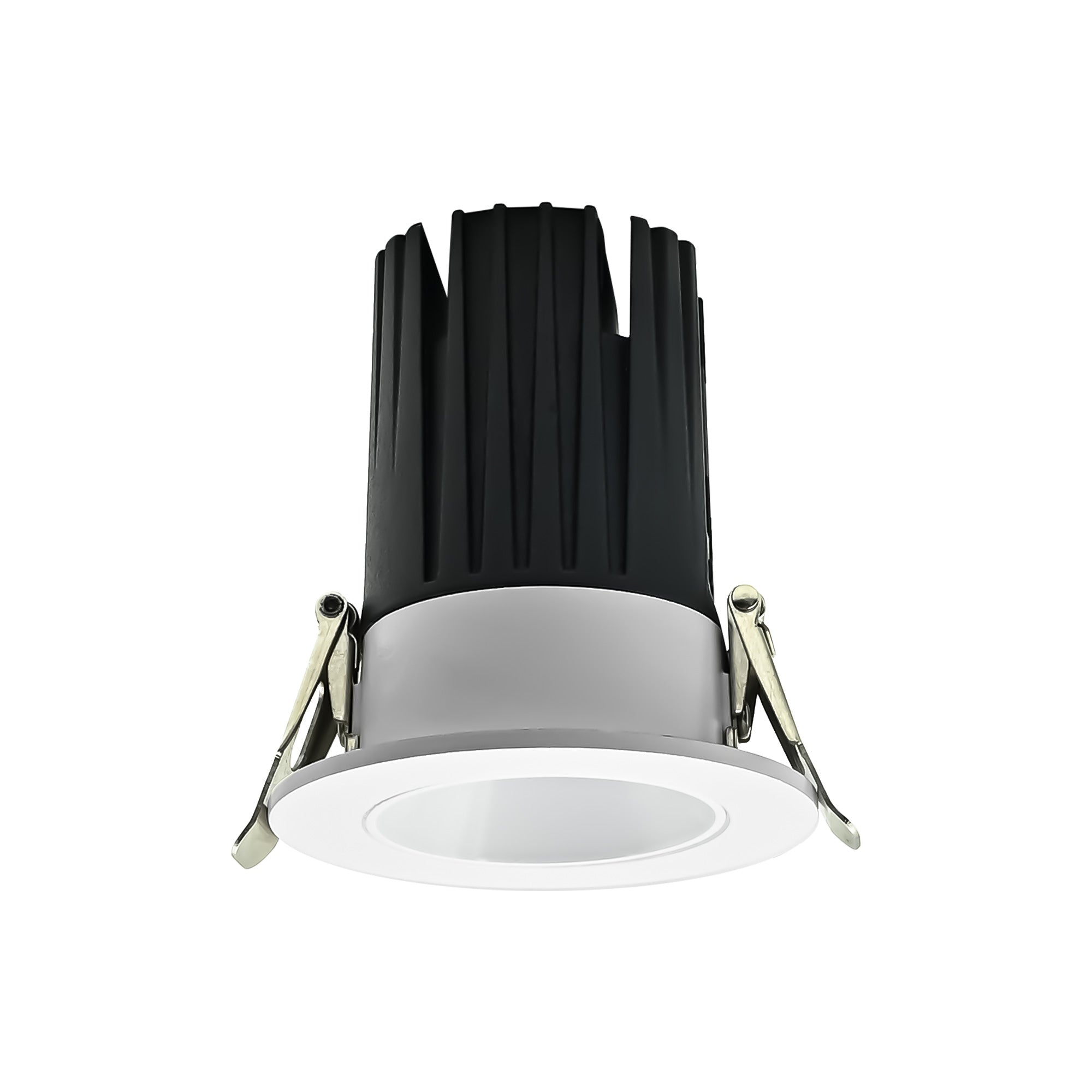

The 3" LED Recessed Module Downlight is a retrofit-style light engine built around a COB (chip-on-board) light source for compact, minimal-aperture installations. It offers selectable 2700K, 3000K, 3500K, 4000K, or 5000K color temperature from a single fixture and holds a fixed 36° beam angle for a focused, uniform spread. The fixture is available in round or square trims in white or black, with an optional white trim paired with a dark blue (Qiang) contrast reflector. Triac-dimmable to 10% and rated for wet locations, it is ETL Listed and suited to retail, restaurant, residential, and office installations.
2700K-5000K
Selectable CCT
COB
Light Source
Triac Dimmable
100%-10%
Wet Location
ETL Listed
Specifications +
| General | |
|---|---|
| Fixture Type | 3" LED Recessed Module Downlight |
| Light Source | COB (Chip-on-Board) |

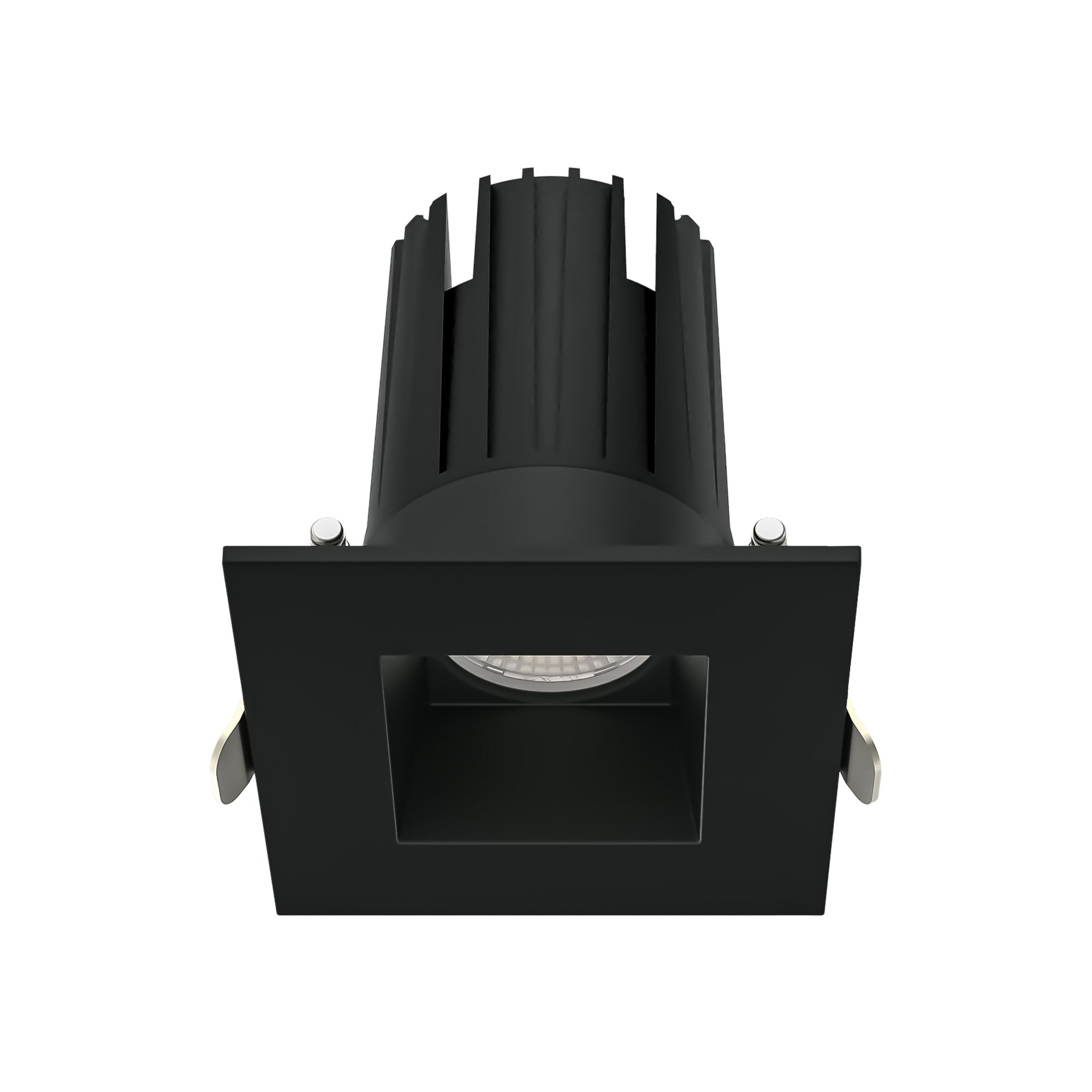

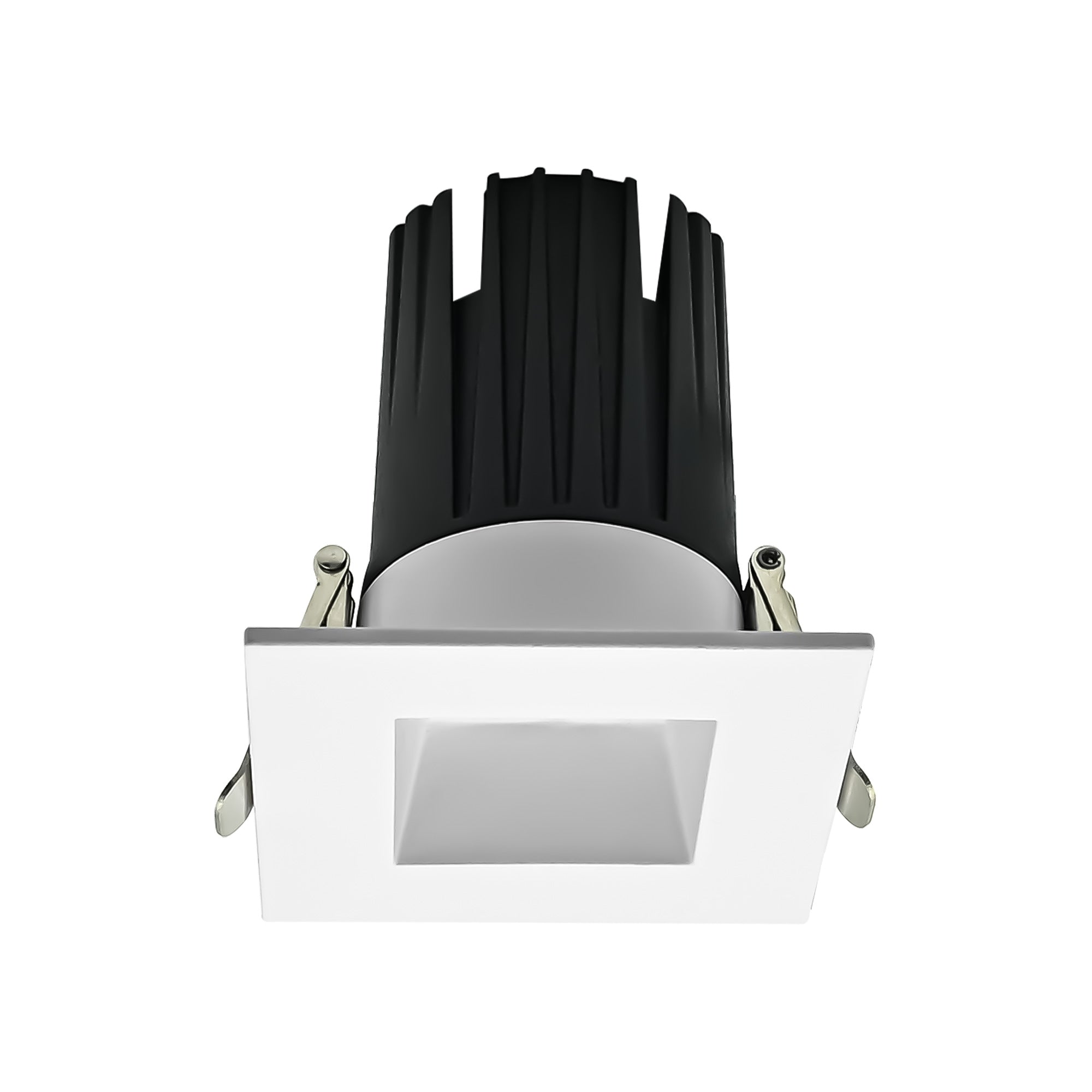

| Shape | Round or Square |

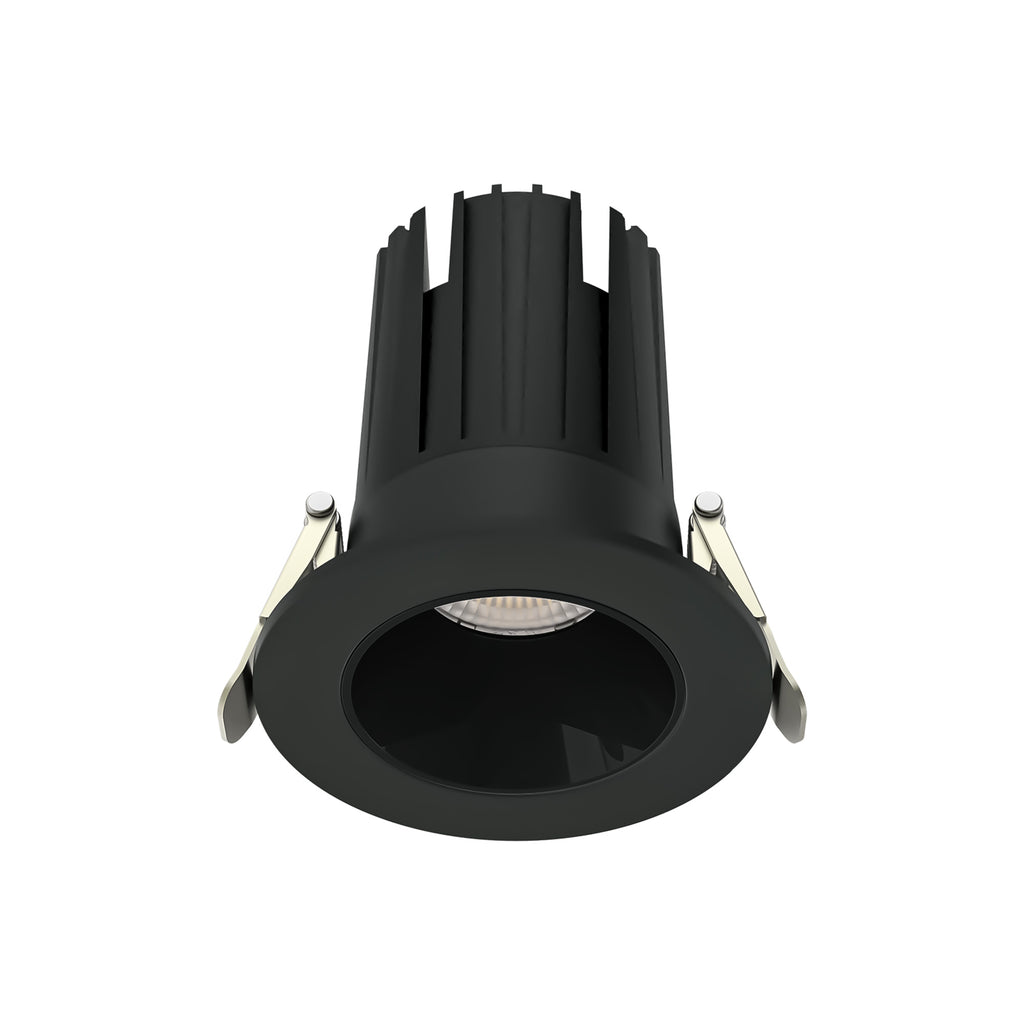

| Trim / Body Finish | White or Black |
| Reflector Finish | Color-matched gloss (White or Black); Dark Blue (Qiang) contrast option on White round trim. No Reflectors on Square Trims. |
| Certification | ETL Listed |
| Rating | Suitable for Wet Locations |
| Lifespan | ≥50,000 hours |
| Warranty | 5-Year Limited |
| Electrical | |
| Wattage | 12W |
| Input Voltage | 120V AC |
| Power Frequency | 60Hz |
| Power Factor | >0.9 |
| Dimming | Triac (leading-edge), 100%-10% |
| Operating Temperature | -4°F to 113°F (-20°C to 45°C) |
| Optical | |
| CCT (Selectable) | 2700K / 3000K / 3500K / 4000K / 5000K |
| CRI | 90 |
| Beam Angle | 36° (fixed on this model) |
| Lumen Output | ~990 lm @4000K (White reflector) |
| Physical | |
| Material | Aluminum housing and lens, die-cast heat sink |

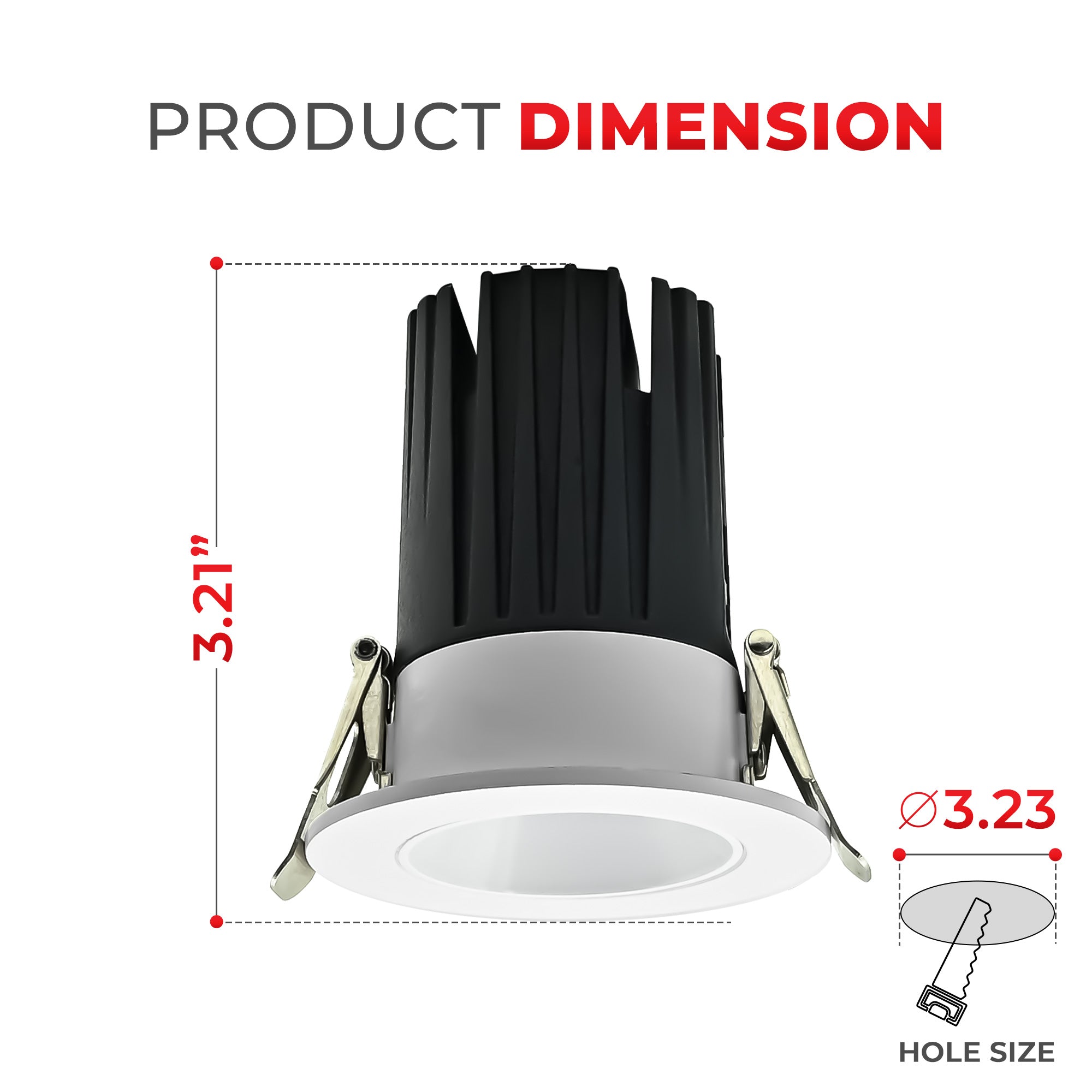

| Hole Cutout | 3-15/64" (82mm) |

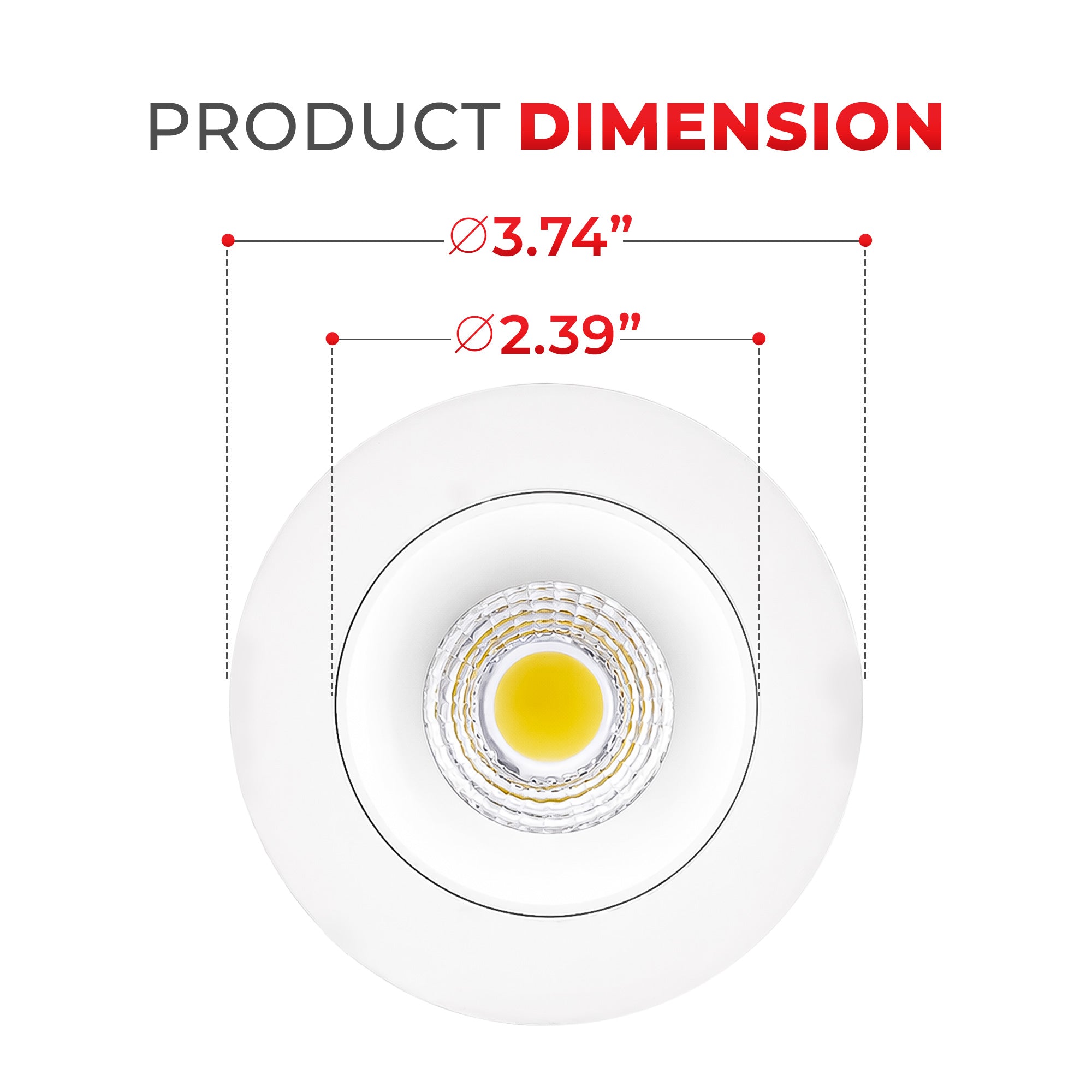

| Trim Diameter (Round) | 3.74" (95±2mm) |

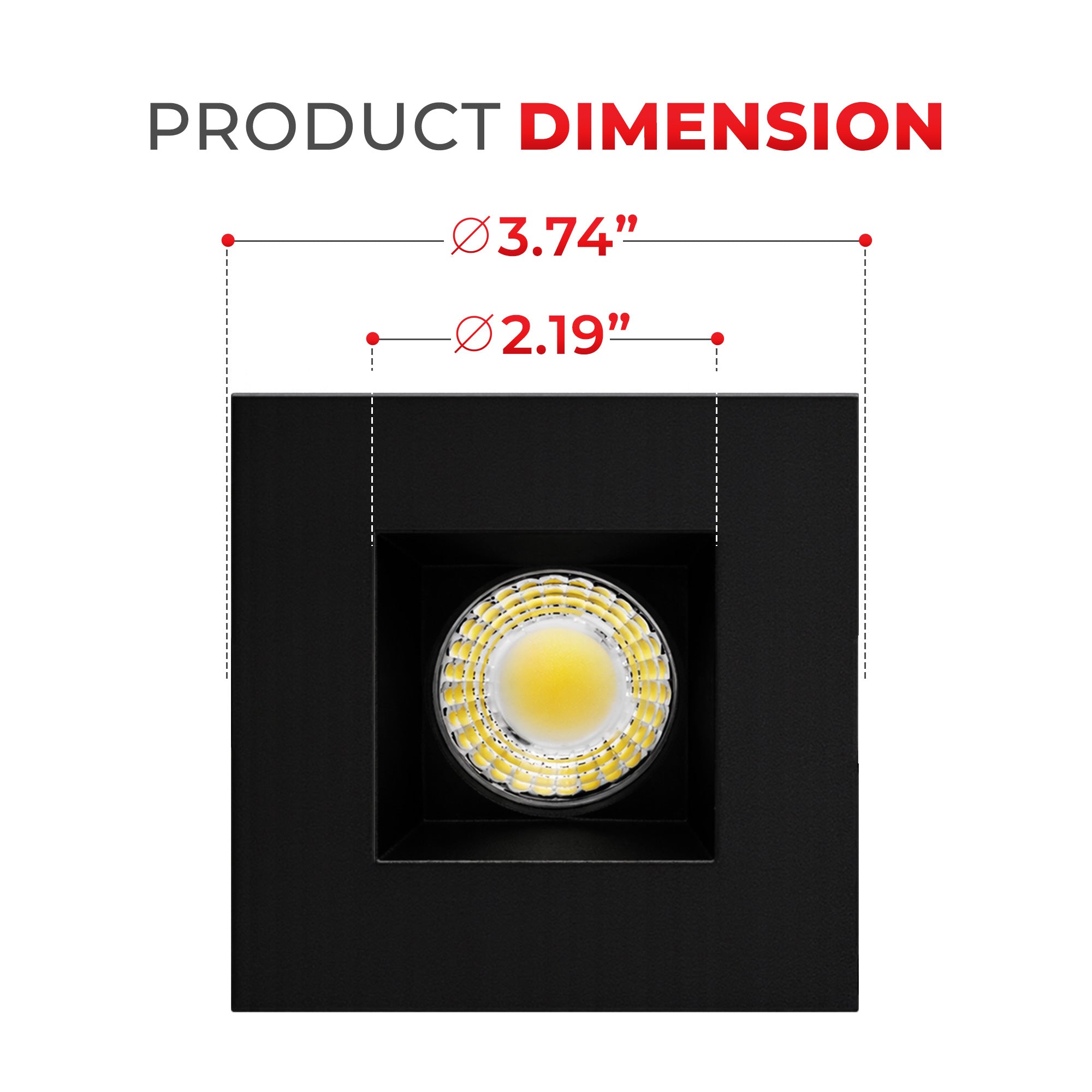

| Trim Width (Square) | 3.74" (95±2mm) |
| Inner Aperture (Round) | 2.39" (60.6±2mm) |
| Inner Aperture (Square) | 2.19" (55.6±2mm) |

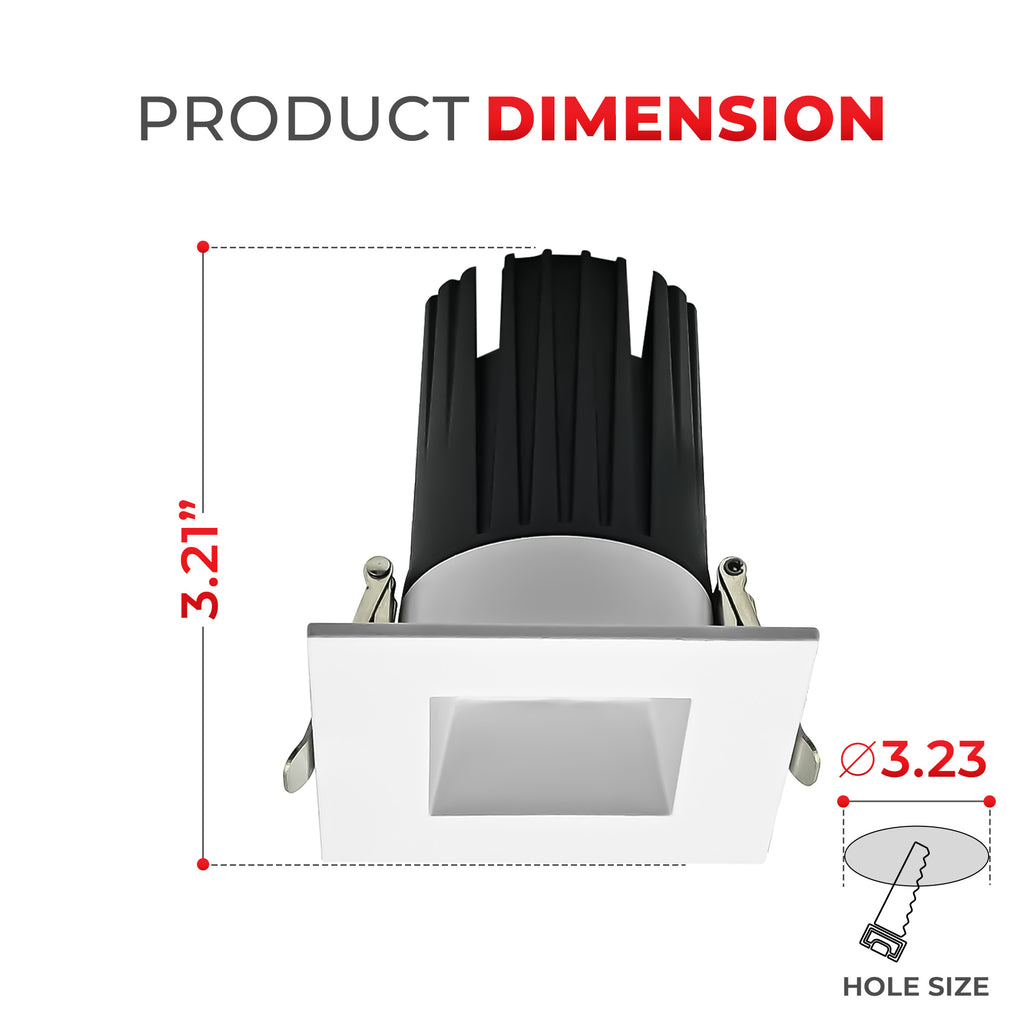

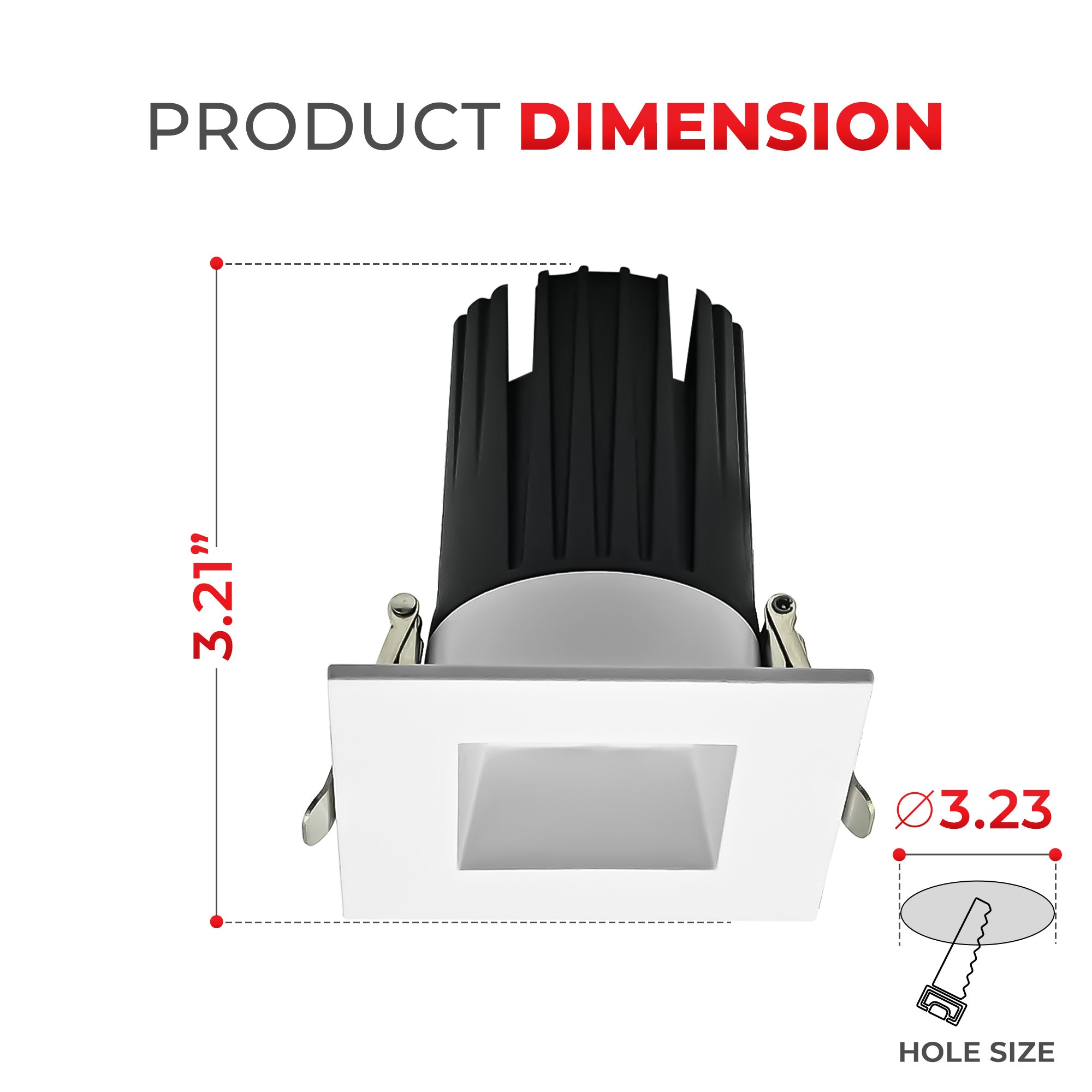

| Light Engine Height | 3.21" (81.6±2mm) |

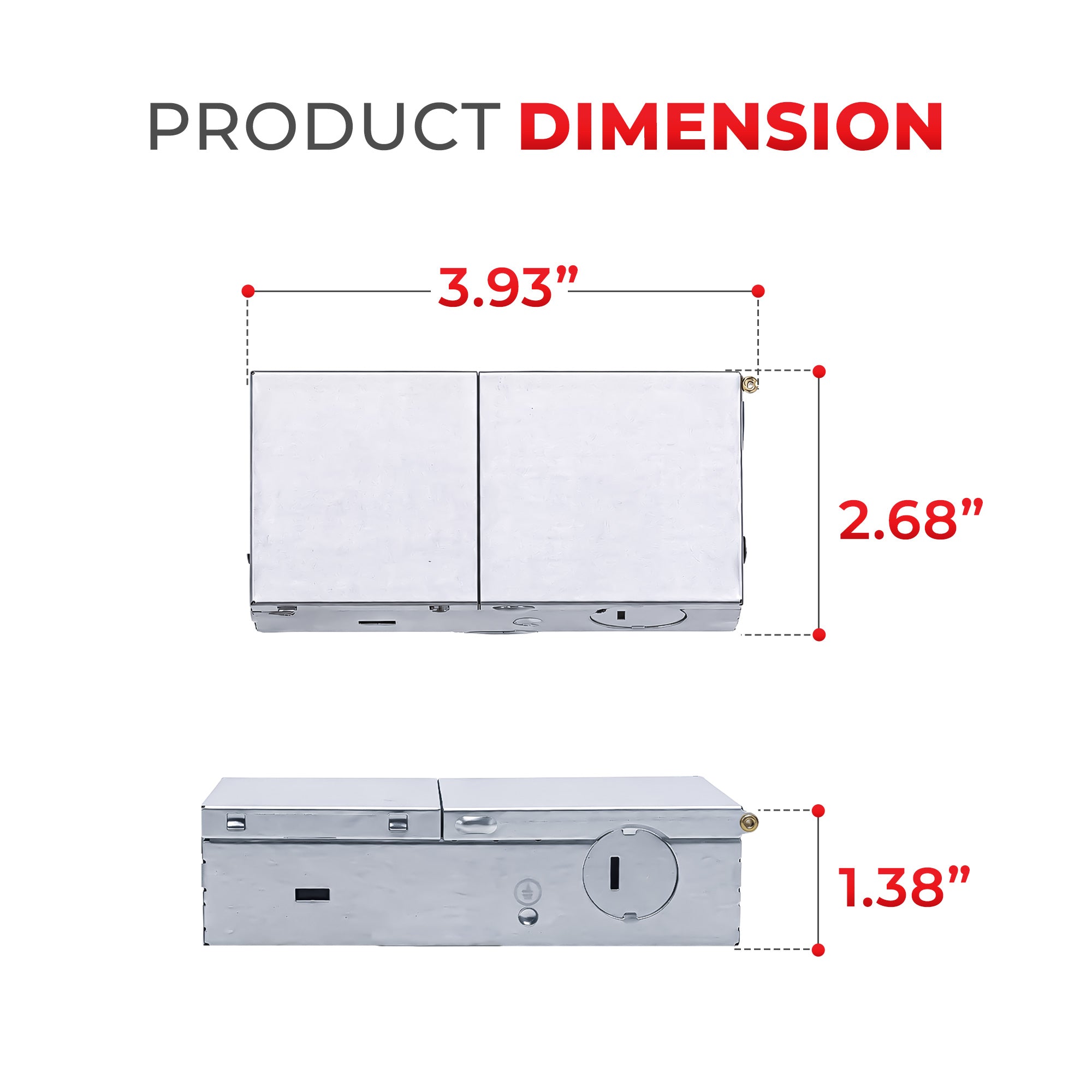

| Driver Enclosure Dimensions | 3.93"L x 2.68"W x 1.38"H (100 x 68 x 35mm) |
| Mounting | Recessed retrofit; connects to remote J-Box driver |
Features +

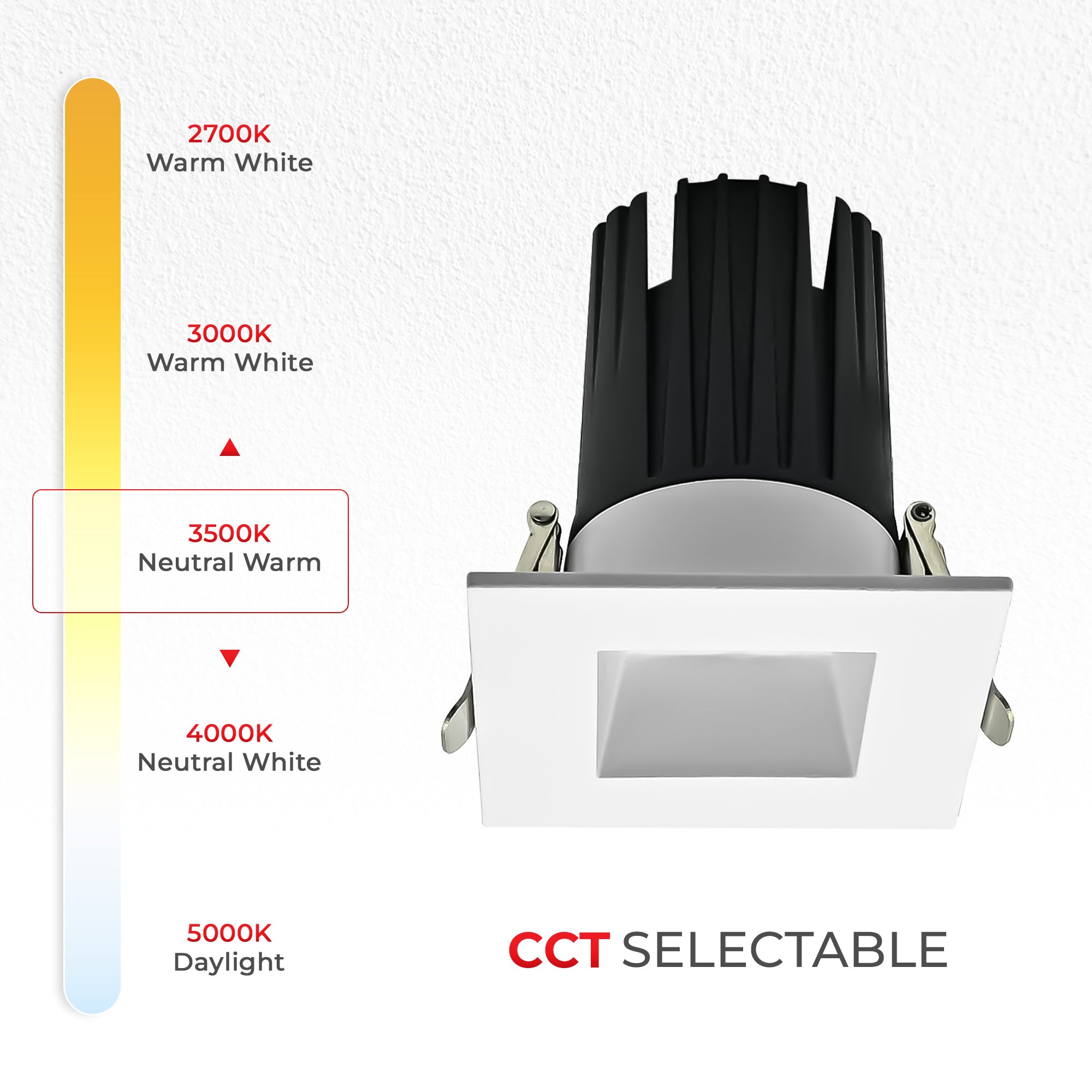

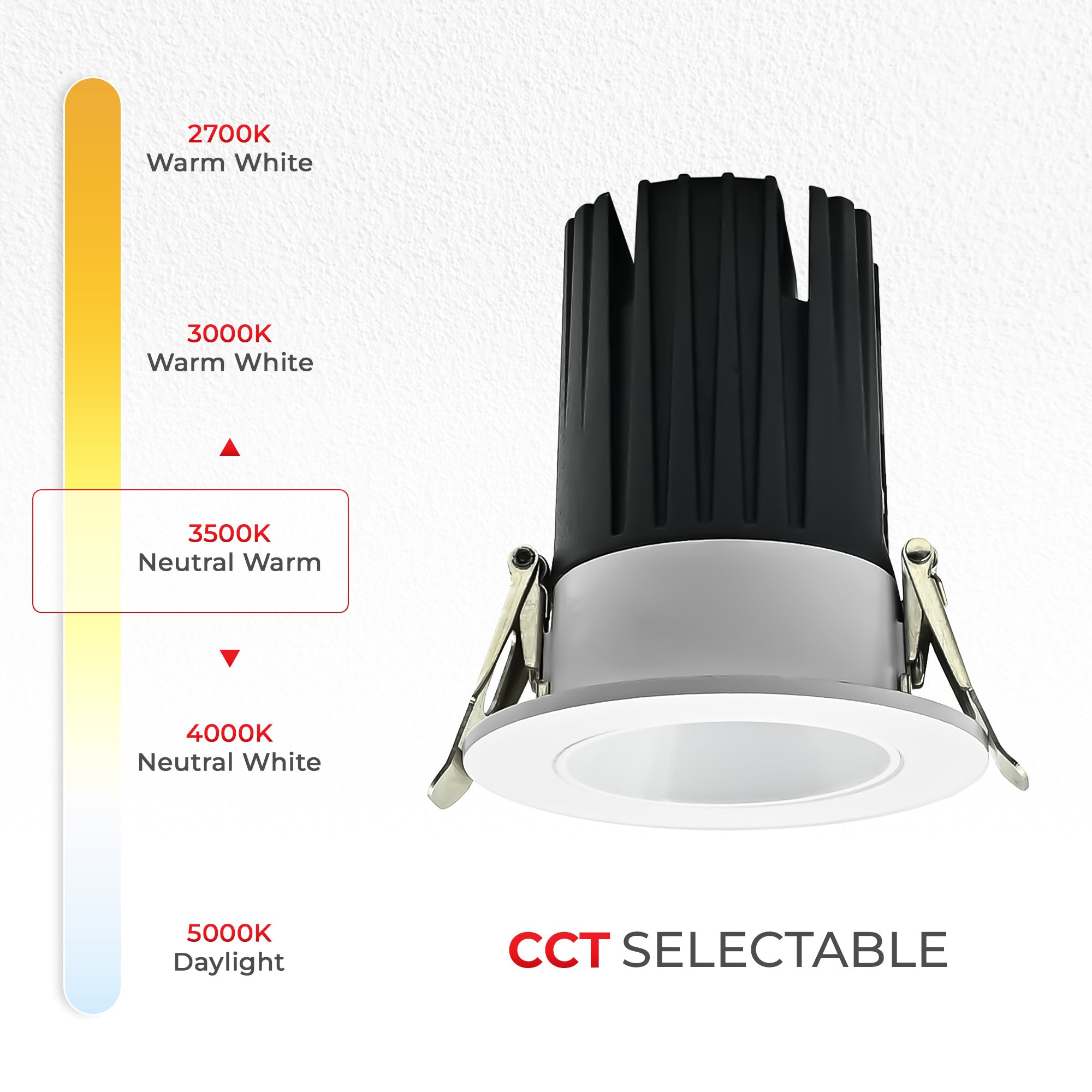

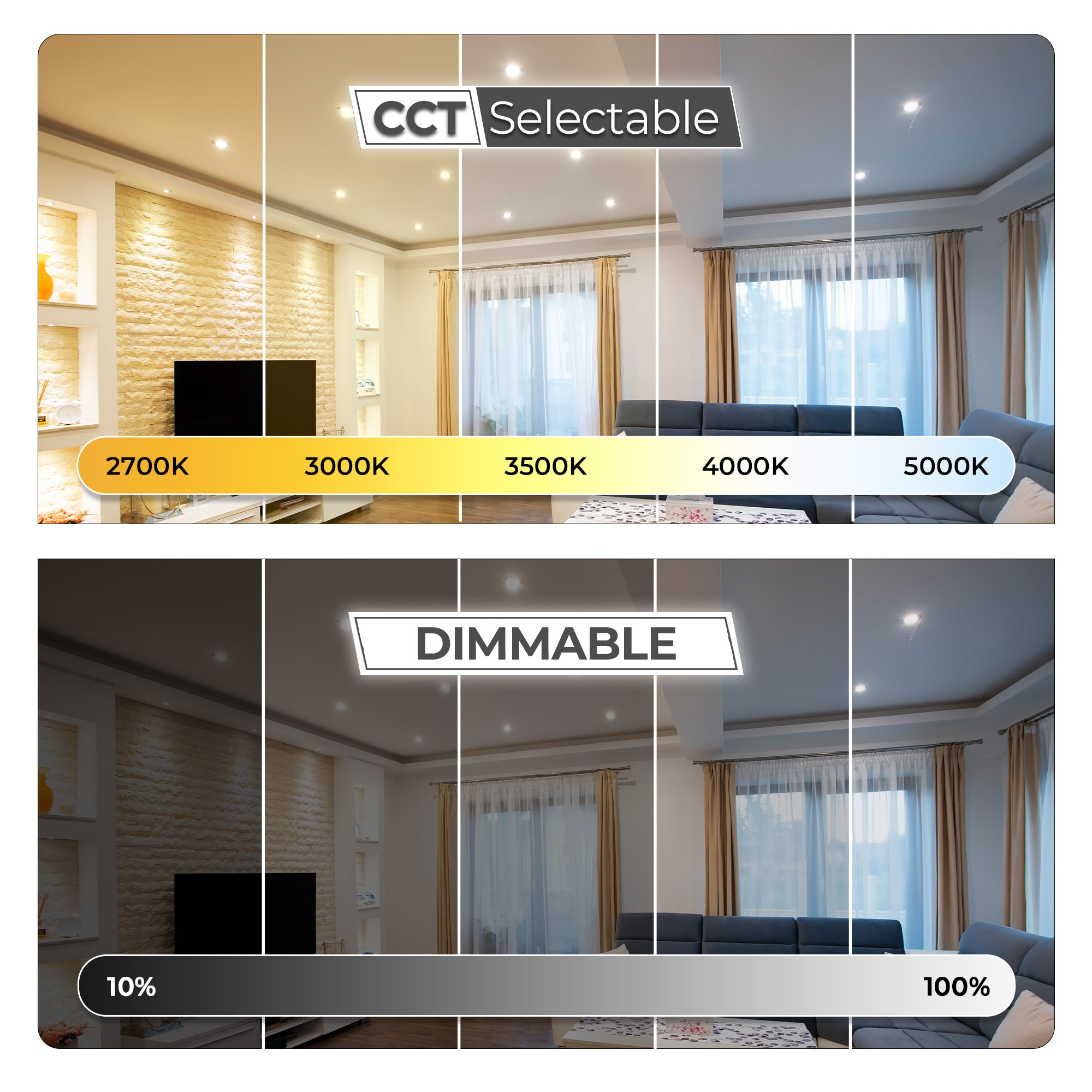

- Color temperature is field-selectable across 2700K, 3000K, 3500K, 4000K, and 5000K from a single fixture, eliminating the need to stock separate CCT-specific units.
- A COB light engine delivers a uniform, high-CRI (90) light output through a professional optical lens with minimal visible pixelation.
- The 36° beam angle produces a focused, minimalistic aperture suited to accent and general-purpose downlighting alike.
- A die-cast aluminum heat sink manages thermal load to help maintain LED lumen output over the fixture's rated life.
- The fixture is compatible with most triac dimmers, providing smooth dimming from 100% down to 10% output.
- Round and square trims are available in white or black, with color-matched gloss reflectors on each finish.
- A white round trim with a dark blue (Qiang) contrast reflector is available for a distinct visual accent within the aperture.

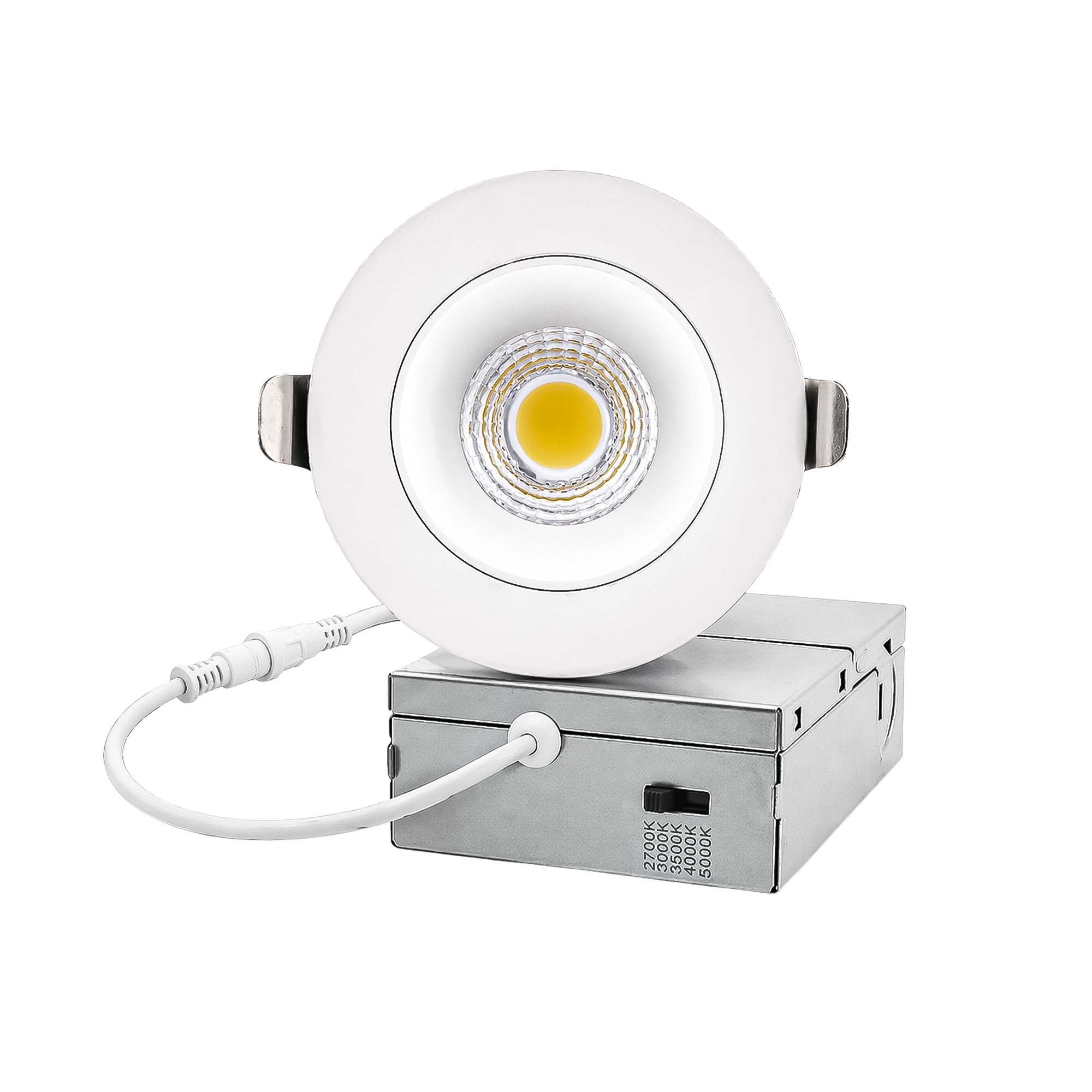

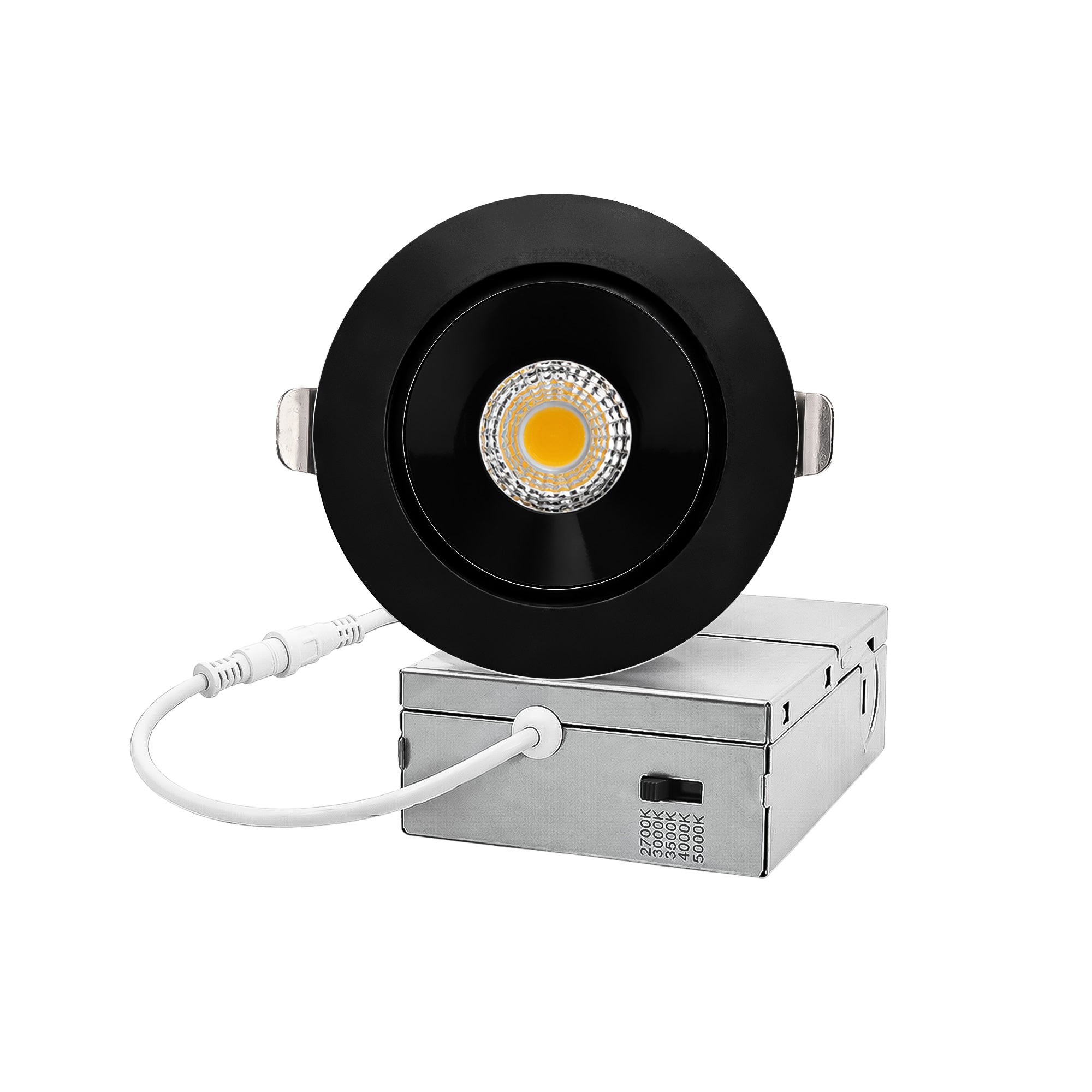

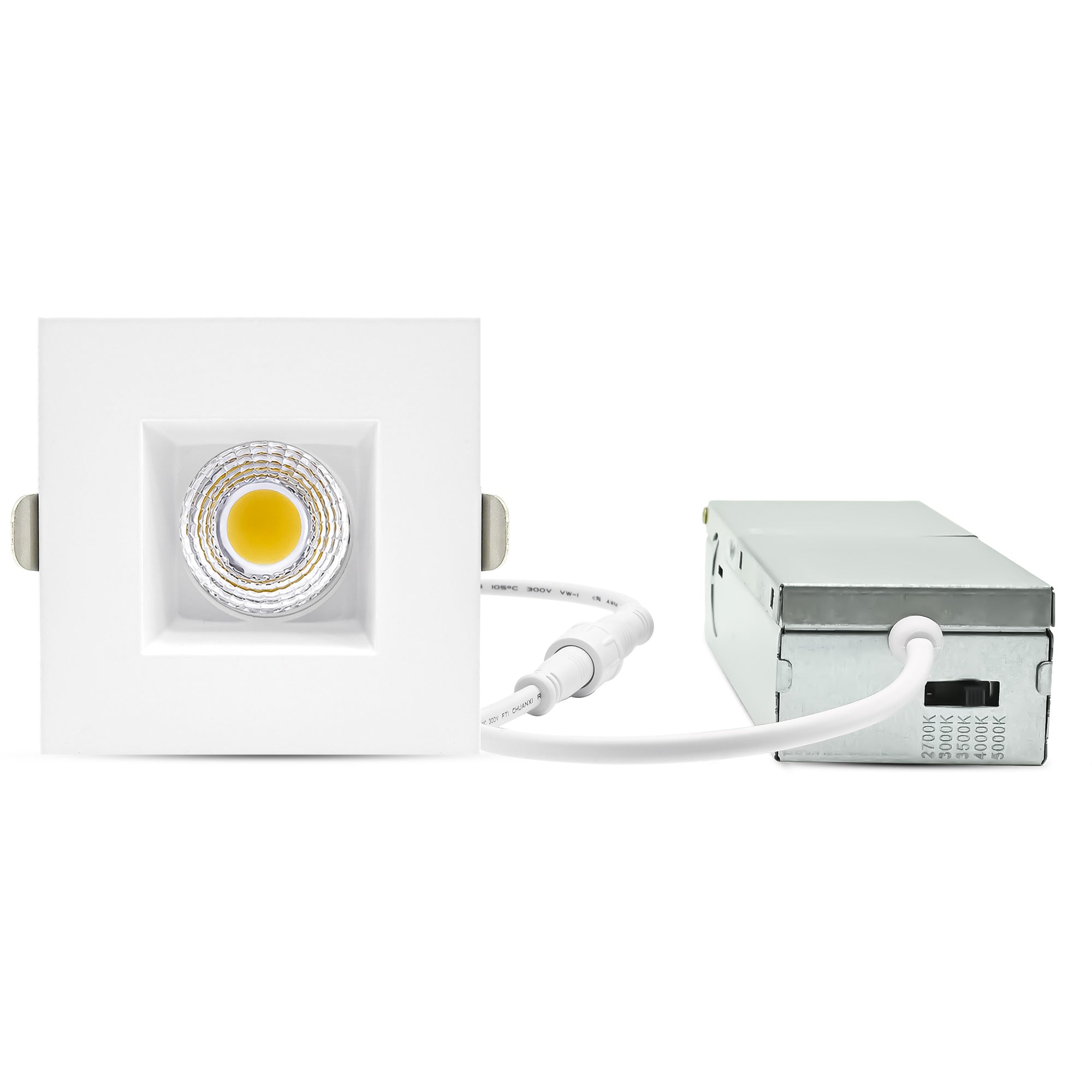

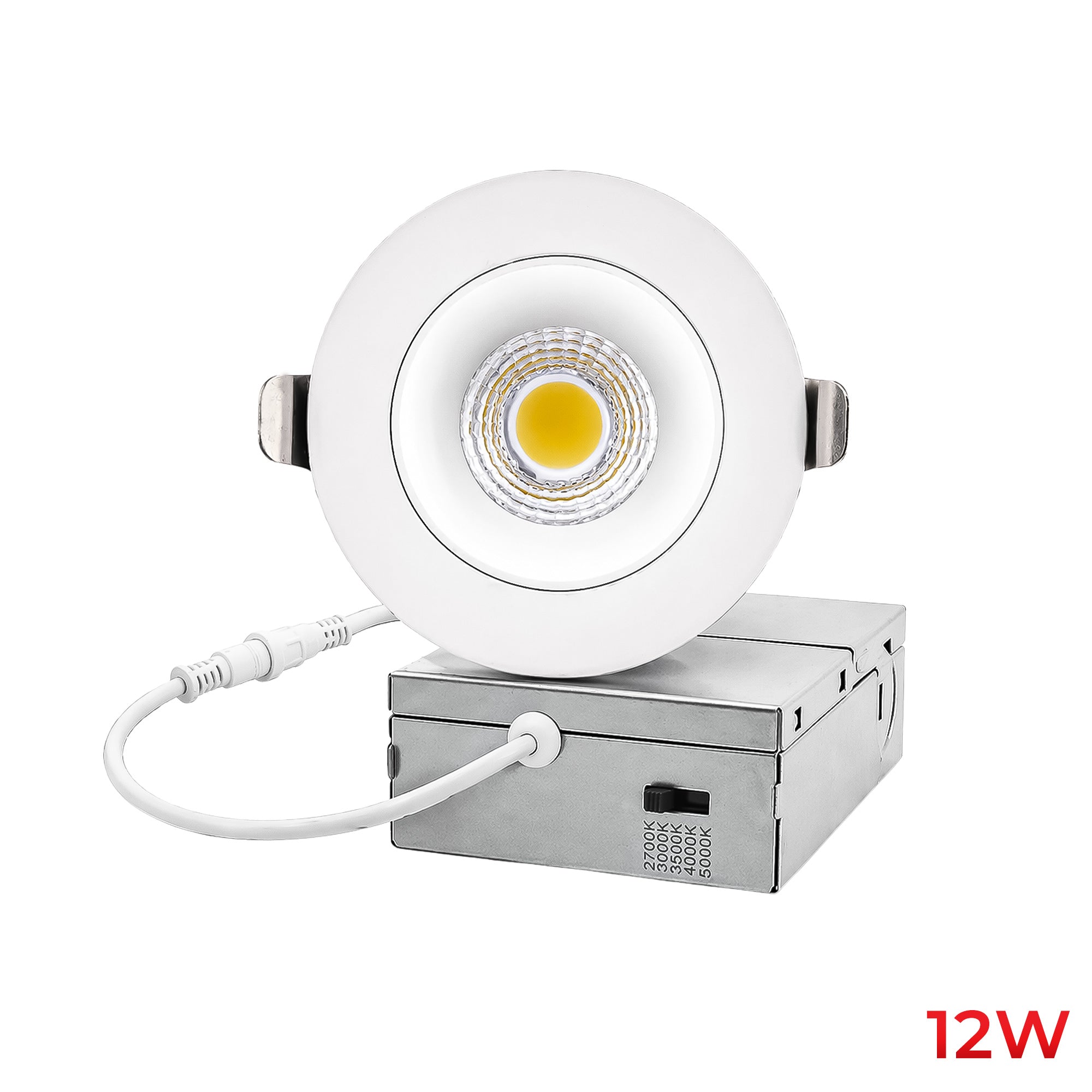

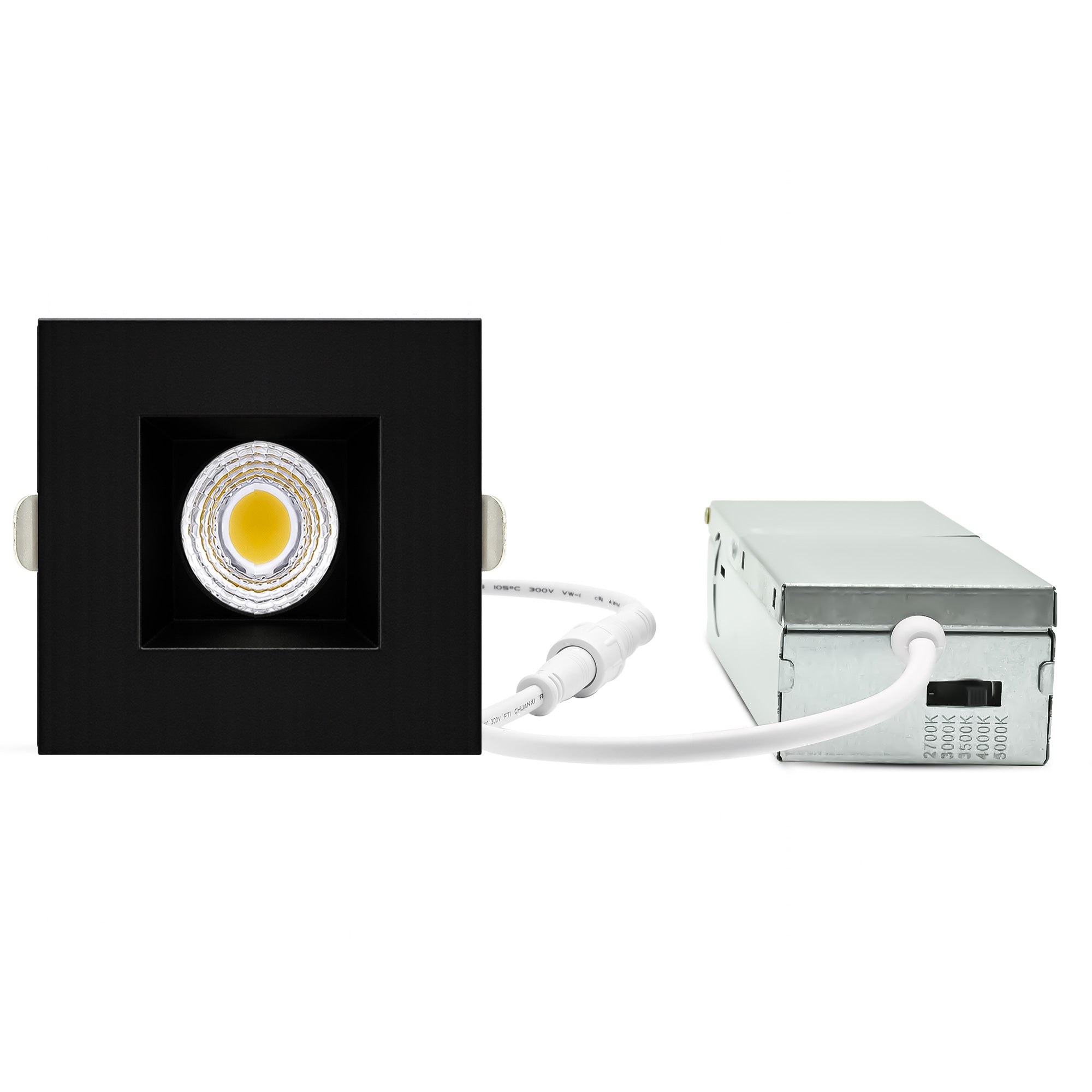

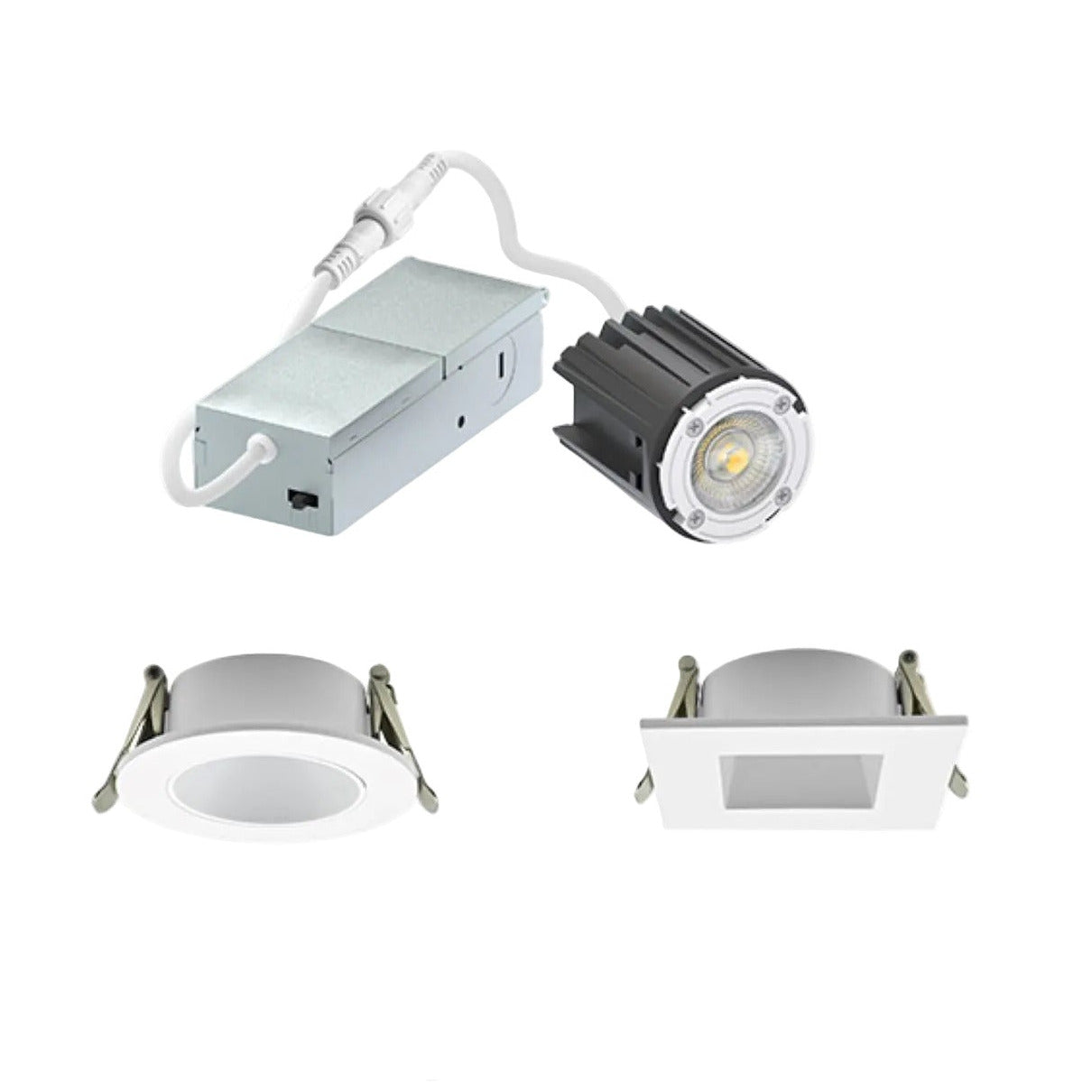

- A remote driver connects via a quick-connect cable, keeping the enclosure out of the ceiling cavity for easier access and heat separation from the light engine.
- The fixture is rated for wet locations, extending its use to covered outdoor areas and moisture-prone interior spaces.
- The fixture is ETL Listed and carries a 5-year limited warranty.
Applications +
- Retail display and merchandising lighting
- Restaurant and hospitality ambience lighting
- Residential living rooms, hallways, and kitchens
- Office and commercial workspace lighting
- Accent lighting for architectural or artistic features
- Covered outdoor and moisture-prone areas (wet location rated)
