Description
Description
Specifications
Description
Feature

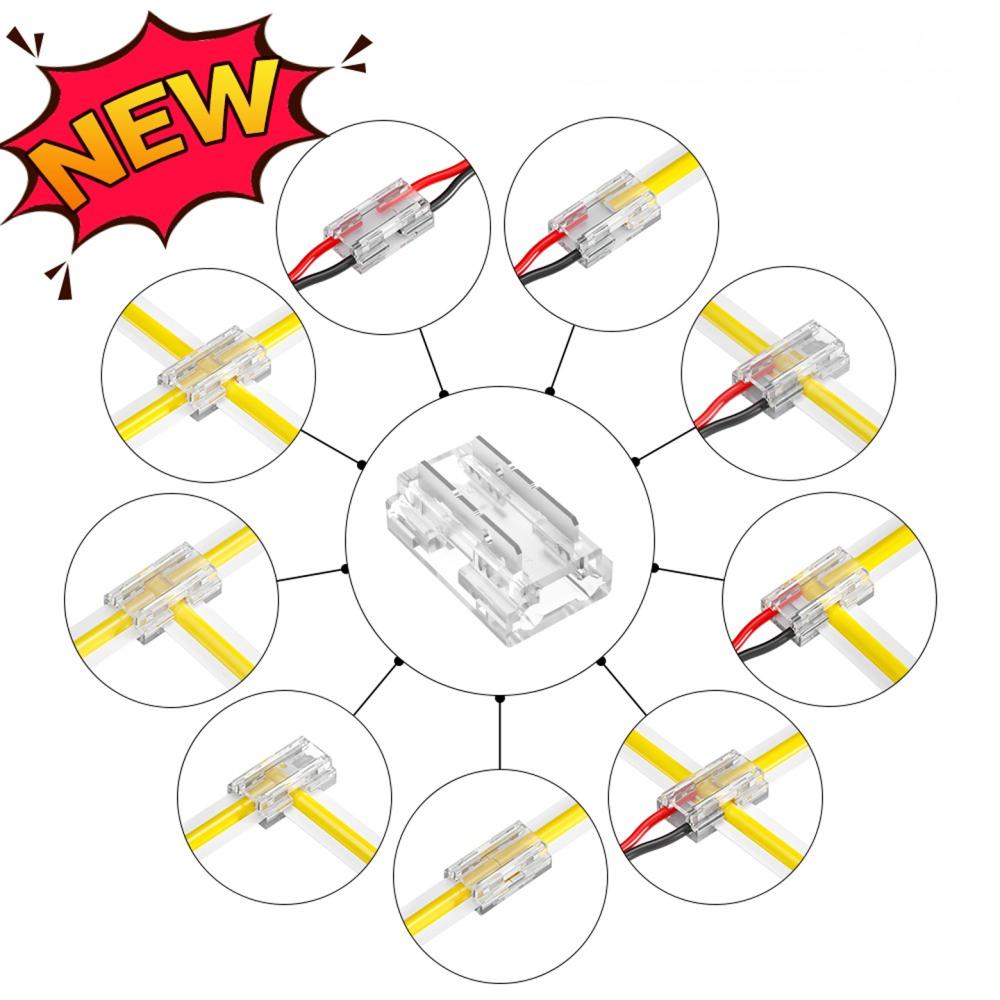

Versatile 9-in-1 Connections: Offers nine different connection methods, enabling strip-to-strip, strip-to-wire, and flexible LED layouts with maximum installation convenience.
Reliable Pin Piercing Design: Each pin pierces and firmly secures the LED strip’s FPC, ensuring solid contact and long-lasting electrical stability under load.
Transparent Housing for Better Lighting: Clear polycarbonate construction maintains the natural glow of COB and SMD strips, achieving a smooth, uniform light diffusion effect.
Space-Saving Installation: Ultra-compact design makes it suitable for narrow applications like aluminum channels, furniture grooves, or tight gaps without compromising durability.
High Current & Wide Compatibility: Supports DC3–24V and up to 5A current; works with COB or HD SMD strips across 8mm and 10mm widths.
Specifications
Product Name

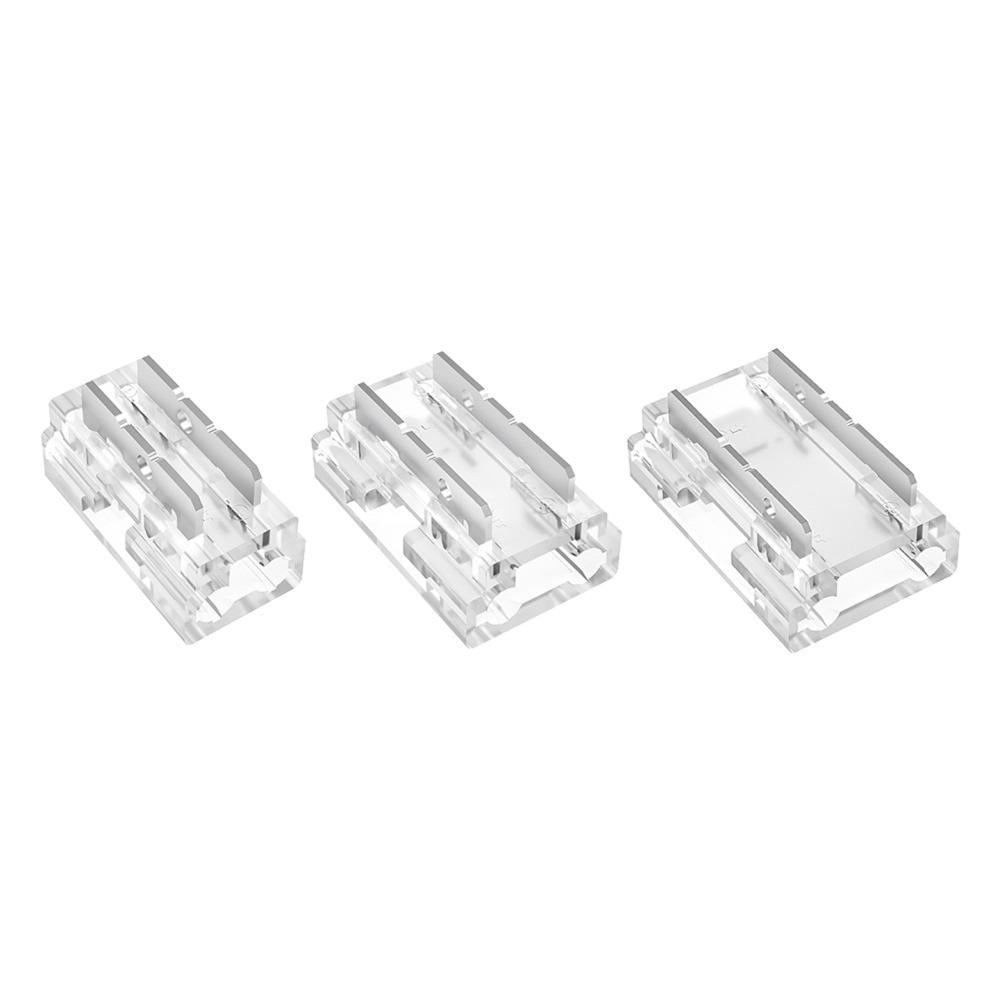

9-in-1 LED Strip Connector
Model
BCX-8-2 / BCX-10-2
Connector Type
2-Pin
Compatible Strip Width
8mm / 10mm
Compatible LED Type
COB / HD SMD
Pin Quantity
2
Material
Polycarbonate (PC), Phosphor Bronze
Housing Color
Transparent
Working Voltage
DC 3–24V
Max Current
5A (@30℃, PCB=3OZ, 20AWG)
Wire Gauge
20–22 AWG (OD ≤ 1.8mm)
LED Strip Thickness
0.25–0.35 mm
IP Rating
IP20
LED Density
No limit for COB, depends on SMD size
Applications
Aluminum Channel, Furniture Groove, Narrow Gaps
Package
Bag
