Description

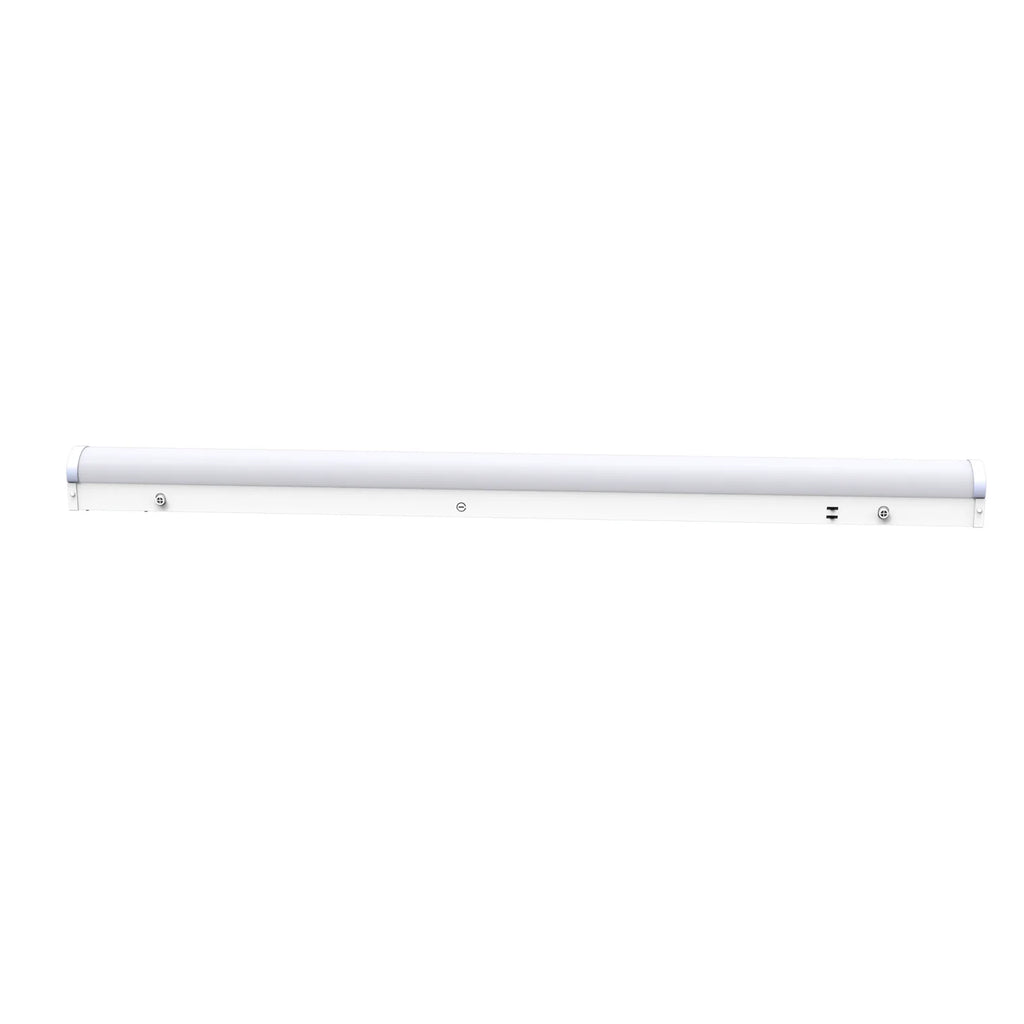

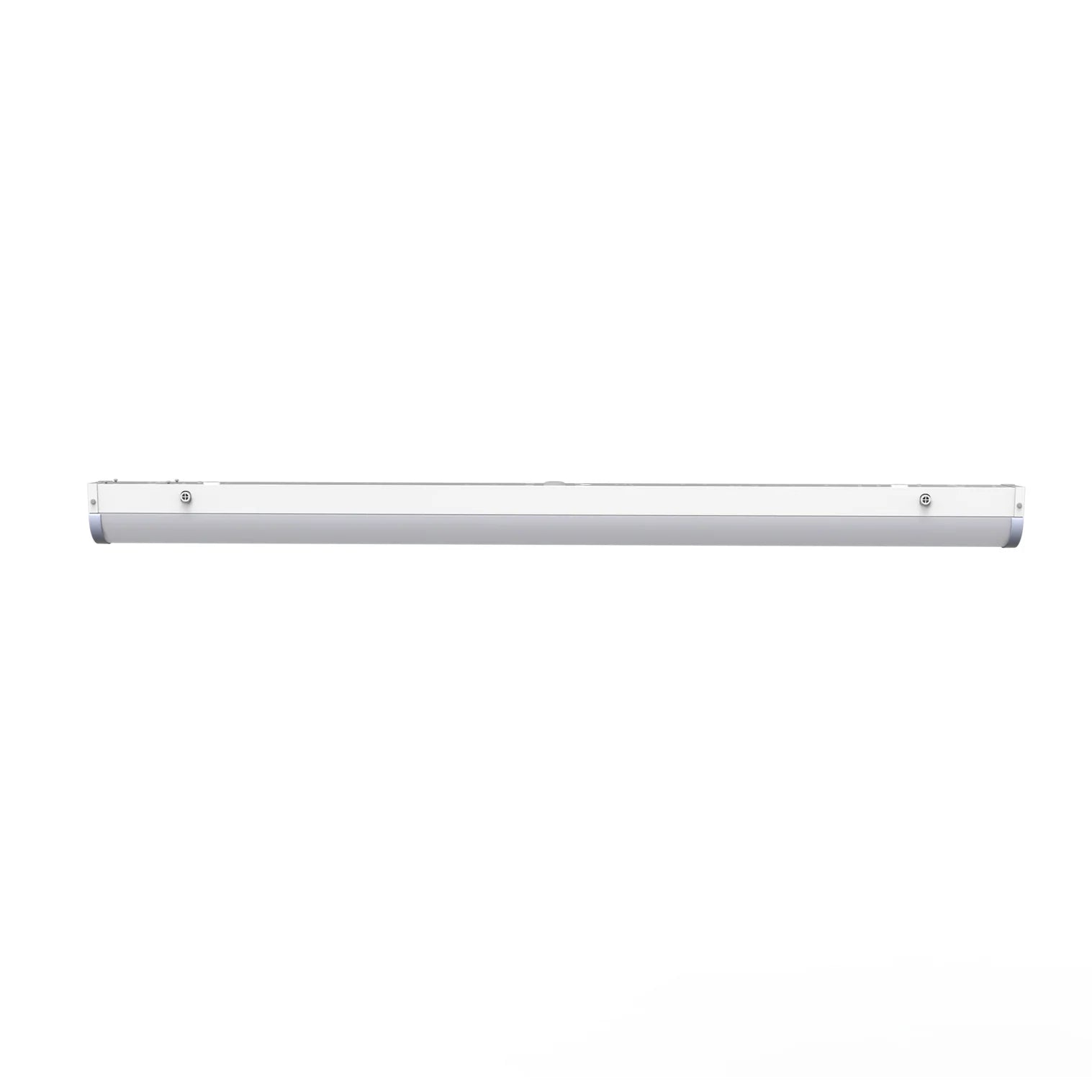

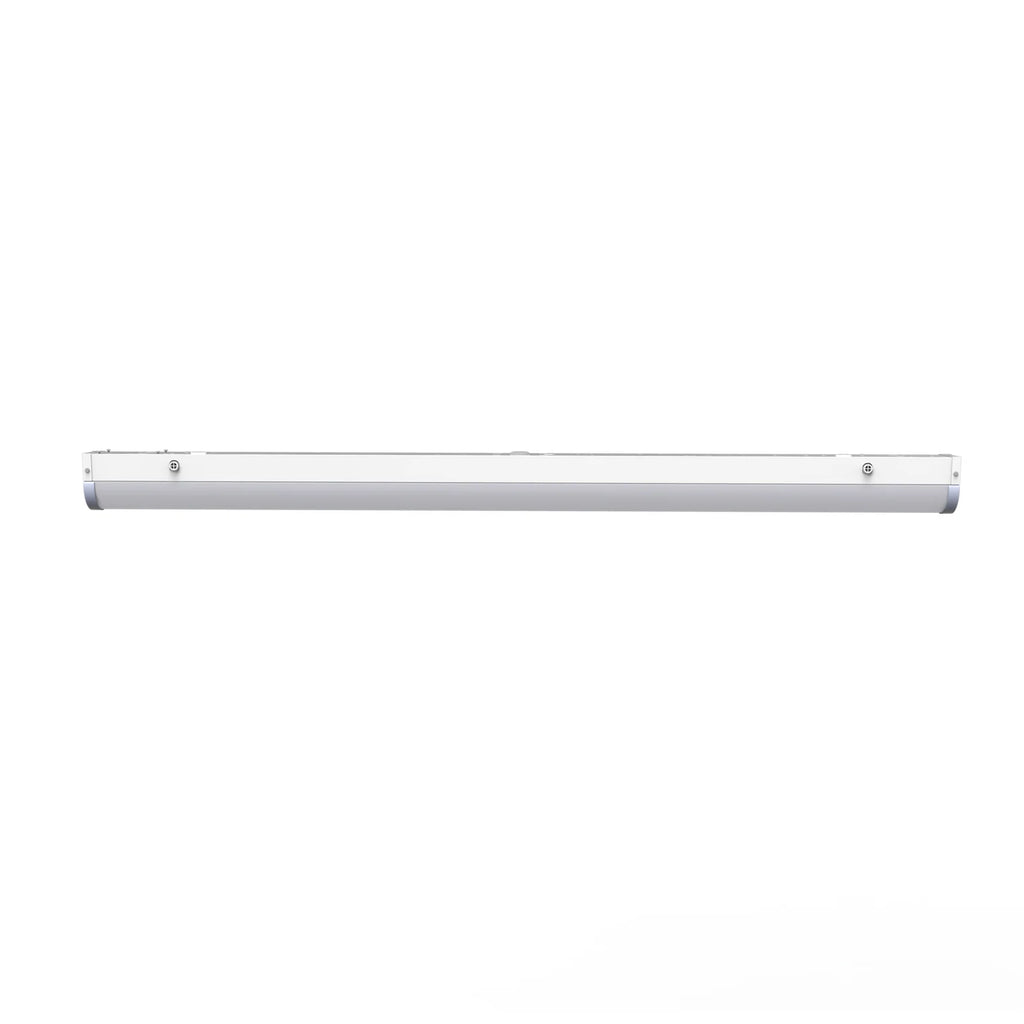

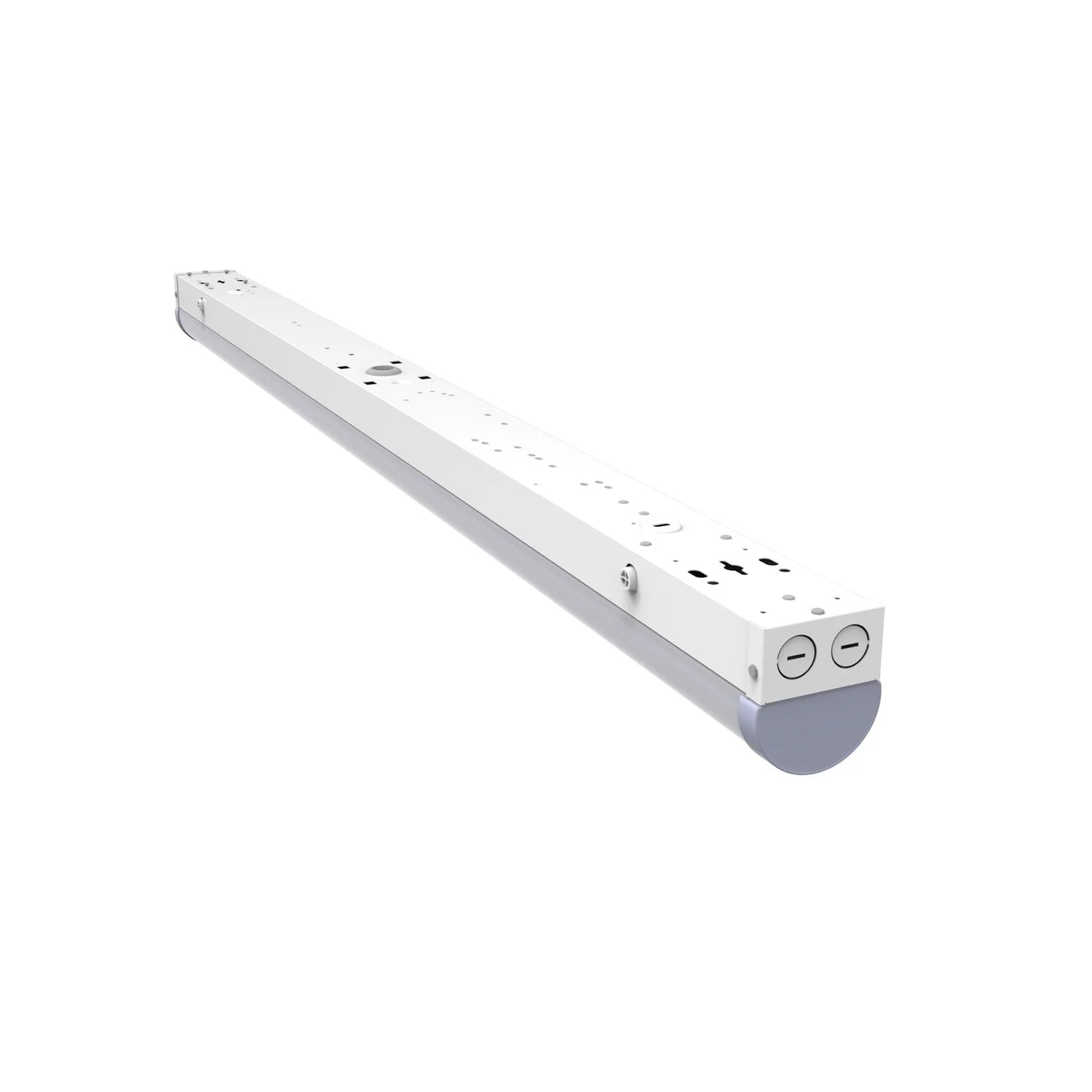

The Super Tech Lights 8ft LED Linear Strip Light is a linkable fixture built for continuous-row commercial and industrial lighting, sold in packs of four. Each fixture ships with field-selectable 64W, 75W, or 90W output and a 3500K/4000K/5000K CCT switch, so one SKU covers multiple wattage and color-temperature needs. The die-cast steel housing pairs a 0-10V dimmable driver with a 130° opal prismatic lens for even light distribution across the full run, and surface, hanging, or seamless end-to-end mounting options simplify installation. The fixture is ETL/cETL listed and DLC Premium qualified for use in commercial and industrial retrofit projects.
64/75/90W
Selectable Wattage
3500/4000/5000K
Selectable CCT
0-10V
Dimmable
ETL/cETL &
DLC Premium
Specifications +
| General | |
|---|---|
| Model Number | LS-ST8FTYYW-P-XXK |
| Fixture Length | 8ft (96") |
| Pack Quantity | 4 fixtures per pack |
| Selectable Wattage | 64W / 75W / 90W |
| Selectable CCT | 3500K / 4000K / 5000K |
| HID Equivalent | 120–220W Metal Halide/HPS |
| Rated Life | 50,000 hours |
| Warranty | 5-Year Limited |
| Electrical | |
| Input Voltage | 120-277V AC |
| Driver | 0-10V Dimmable, ETL Listed |
| Lumen Output | 8,320 / 9,750 / 11,700 lm |
| Efficacy | 130 lm/W |
| Operating Temperature | -25°C to 45°C (-13°F to 113°F) |
| Junction Temperature | <75°C (<167°F) |
| LED Efficiency | ≥90% |
| Optical | |
| CRI | >80 |
| Beam Angle | 130° (Type 130D distribution) |
| Lens | Extruded opal prismatic, UV-protected |
| Physical | |
| Dimensions (L x W x H) | 96" x 2.9" x 3.27" |
| Housing | Die-cast 0.6mm cold-rolled steel, white powder-coat finish |
| End Caps | White aluminum |
| Mounting | Surface or hanging mount; linkable end-to-end |
| Certifications | ETL, cETL, DLC Premium*, FCC |
Features +
- Wattage is field-selectable between 64W, 75W, and 90W via the onboard selector, letting one fixture serve multiple output requirements.
- Color temperature is field-selectable between 3500K, 4000K, and 5000K via a CCT switch, eliminating the need for separate CCT-specific SKUs.
- The driver supports 0-10V dimming for compatibility with standard low-voltage lighting controls.
- A 130° beam angle paired with an extruded opal prismatic lens delivers even, glare-reduced light distribution across the full length of the run.
- CRI is rated above 80 for accurate color rendering in commercial and industrial environments.
- The housing is die-cast from 0.6mm cold-rolled steel and finished with a high-gloss white powder coat for corrosion resistance.
- White aluminum end caps complete the fixture and support both surface and hanging mount configurations.
- Fixtures link end-to-end using linkable plates and integrated wire terminal joints, allowing multiple 8ft sections to form one continuous run.
- A push-open access panel allows tool-free access to wiring for installation and maintenance.
- Optional motion sensor and emergency battery backup modules are available for occupancy control and code-required egress lighting.
- The fixture is rated for 50,000 hours of operation and backed by a 5-year limited warranty.
Applications +
- Warehouse and distribution center aisle lighting
- Manufacturing and factory floor lighting
- Retail store and shopping mall general lighting
- Parking garage and back-of-house corridor lighting
- Office and commercial building ceiling lighting
- Basement, mechanical, and utility room lighting
Connection Guidelines +
Installation and wiring must be performed by a licensed electrician. Disconnect power before installation or maintenance, and do not cover the fixture with thermal insulating material.
Fixtures connect end-to-end using linkable plates (sold separately) and integrated wire terminal joints; AC and dimming leads pass from one fixture into the next through the terminal block, allowing multiple 8ft sections to form a single continuous, powered run. For surface mounting, buckles are fixed to the mounting surface approximately 27 inches apart, and each fixture snaps into place before wiring is connected through the terminal caps. For hanging installation, fixtures are suspended using hooks and chain or pendant cord, leveled, and then wired through the shielded AC and dimming leads before splicing multiple sections together.
