Description

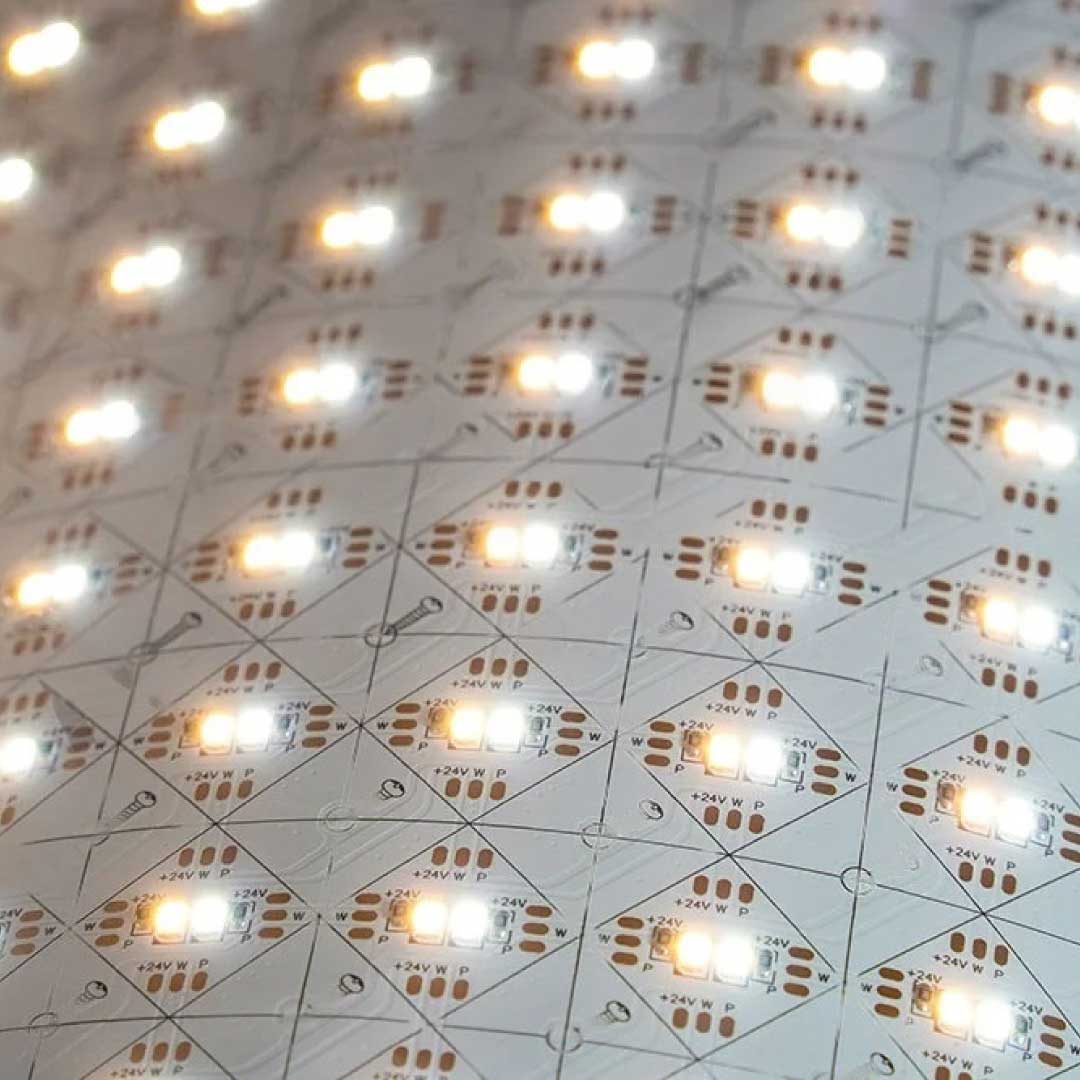

A 24"×12" flexible LED light sheet for backlighting, signage, custom architectural lighting, and any application where a standard rigid fixture won't fit the surface. Tune the color temperature continuously from 2700K warm white to 6500K cool daylight, cut to virtually any shape along the printed grid lines, and fold or curve the sheet around slopes and contoured surfaces. Onboard connectors and 3M adhesive backing mean installation is straightforward from the start.
Key Features +
2700K–6500K
Tunable
6,600 Lumens
60W
DC 24V
Cuttable
Every 1"×1"
Flexible
& Foldable
Link in Series
(max 180W)
Specifications +
| General | |
|---|---|
| Model | NS-2835-400-24 |
| LED Type | SMD2835 |
| LED Count | 576 LEDs per Sheet |
| Sheet Size | 24" × 12" (610 × 305mm) |
| Electrical | |
| Input Voltage | DC 24V |
| Power per Sheet | 60W |
| Lumen Output | 6,600 lm per Sheet |
| Color Temperature | 2700K – 6500K (Continuously Tunable) |
| CRI | ≥80 (CRI 90 available on request) |
| Beam Angle | 120° |
| Physical | |
| IP Rating | IP20 / IP54 |
| Cutting Interval | Every 2 LEDs (~1" × 1") |
| Installation | 3M Adhesive Tape / Screws |
| Max Series Load | 180W (3 sheets @ 60W each) |
| Weight | 0.1 KG |
| Certifications | UL / CE / RoHS |
| Warranty | 2 Years |
Features +
- Continuously tunable from 2700K warm white to 6500K cool daylight using any compatible CCT controller — dial in the exact color temperature the installation requires
- 576 SMD2835 LEDs across a 24"×12" sheet deliver 6,600 lumens of uniform, hot-spot-free output — the high-density array ensures consistent brightness edge to edge with no visible LED clustering

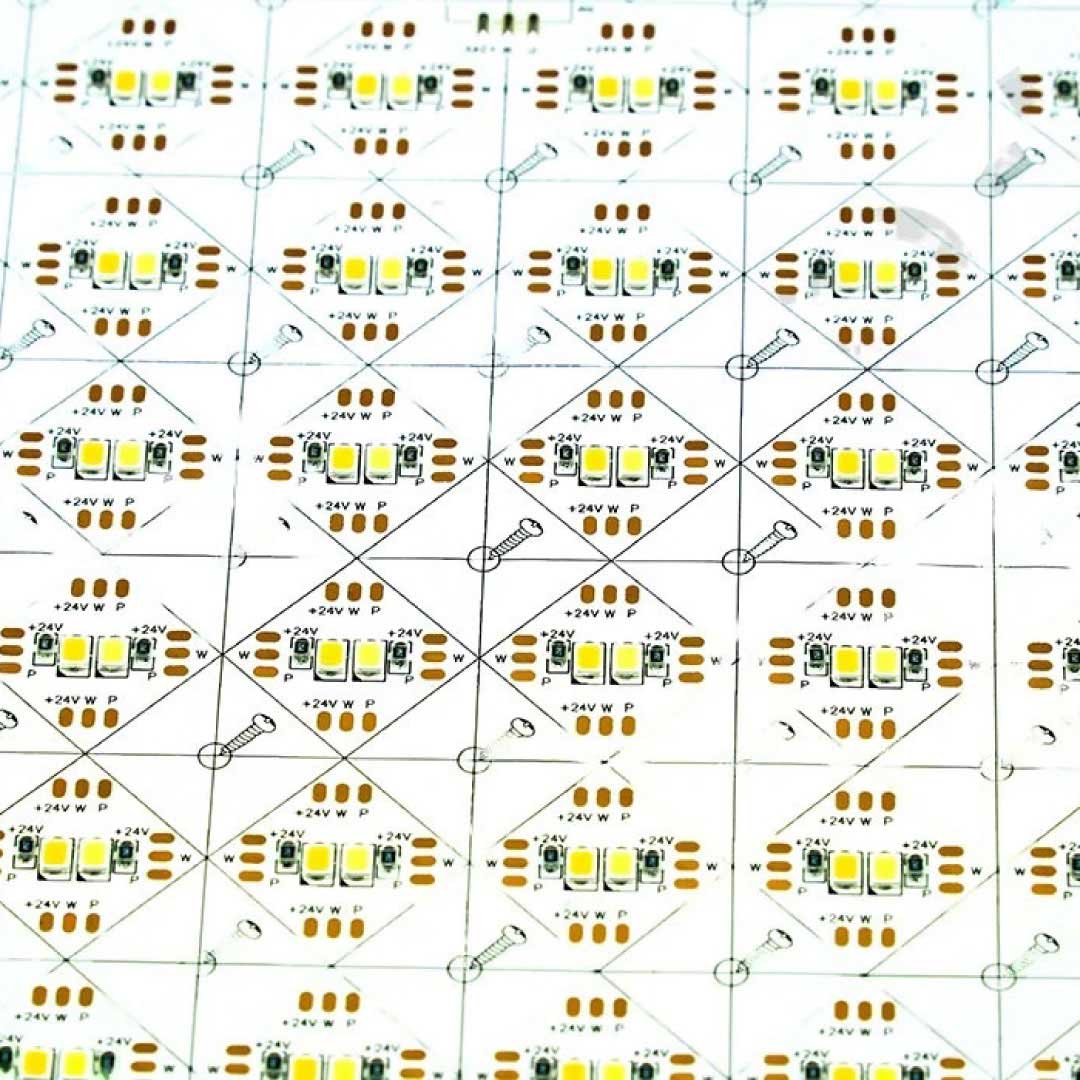

- Cuttable every ~1"×1" (every 2 LEDs) along printed cut lines in any direction — straight, L-shaped, S-shaped, cross, donut, or freeform shapes are all achievable from a single sheet

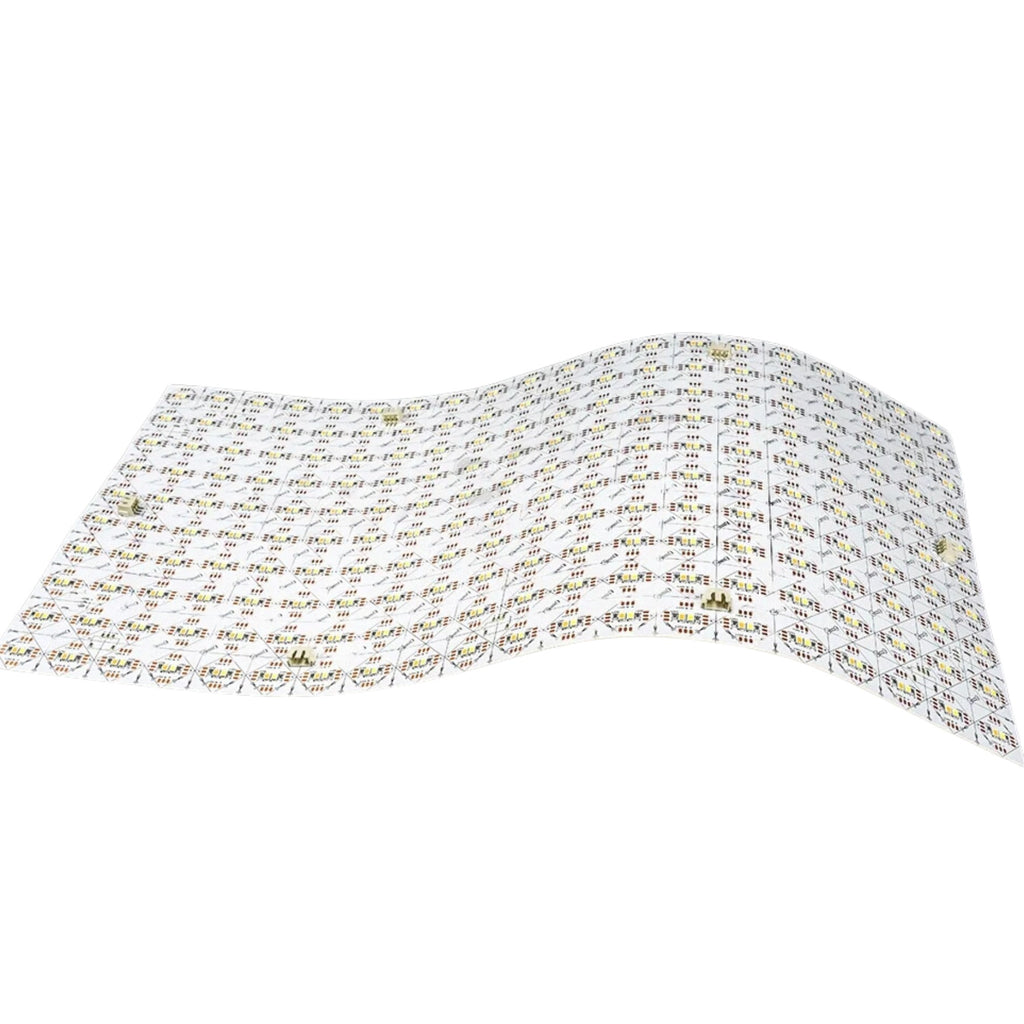

- Flexible PCB folds and curves around contoured surfaces, sloped ceilings, columns, and irregular mounting planes where rigid panels won't conform
- Plug-and-play onboard connectors — board-to-board and board-to-power pigtail connectors are included, reducing wiring time and eliminating the need for custom harnesses on most installations
- 3M adhesive backing and screw mounting points included — attach directly to flat or curved surfaces without additional hardware
- Series connection supported up to a maximum of 180W (3 sheets at 60W each) from a single power run — see connection guidelines below
- Dimmable — compatible with standard PWM CCT dimming controllers
- Available in IP20 (standard) and IP54 (splash-resistant) ratings
- UL listed, CE and RoHS certified
Connection Guidelines +
Maximum load per power run: 180W. Do not exceed this limit regardless of the connection method. Exceeding 180W per run may damage the sheets or power supply and will void the warranty.
Series connection (straight run): Connect up to 3 sheets end-to-end using the board-to-board connectors. Maximum combined load: 180W (3 × 60W). All sheets share one power feed from a single power supply.
Series + parallel connection: Sheets can be arranged in rows and connected in both series and parallel configurations for larger surface coverage — the maximum 180W per power run still applies. Use multiple power connections/feeds for installations exceeding 180W. If a controller/power supply combo supports multiple feeds, they can be drawn from a singular set. Eg, A 600W Power Supply powering a 30A HW5 controller can support a maximum of 8 sheets. 3 feeds can be drawn from the controller to power the installation. For larger installs, additional power supplies and controllers will be required.
Run configurations supported: Straight, L-shaped, S-shaped, cross, donut, and freeform — connect and cut sheets to match any surface layout using the included board-to-board connectors.
Power supply: Use a DC 24V constant-voltage power supply rated for the total wattage of all connected sheets, with at least 20% headroom. A CCT-compatible controller is required for color temperature tuning.
Applications +
- Backlit stone, onyx, stained glass, and translucent panels
- Light box and advertising signage backlighting
- Retail display and product showcase illumination
- Perforated metal and fabric panel backlighting
- Curved ceiling, column, and architectural feature lighting
- Trade show exhibit and exhibition display lighting
- Custom-shape decorative and mood lighting installations
- Artwork and photography backlit display panels
