Description

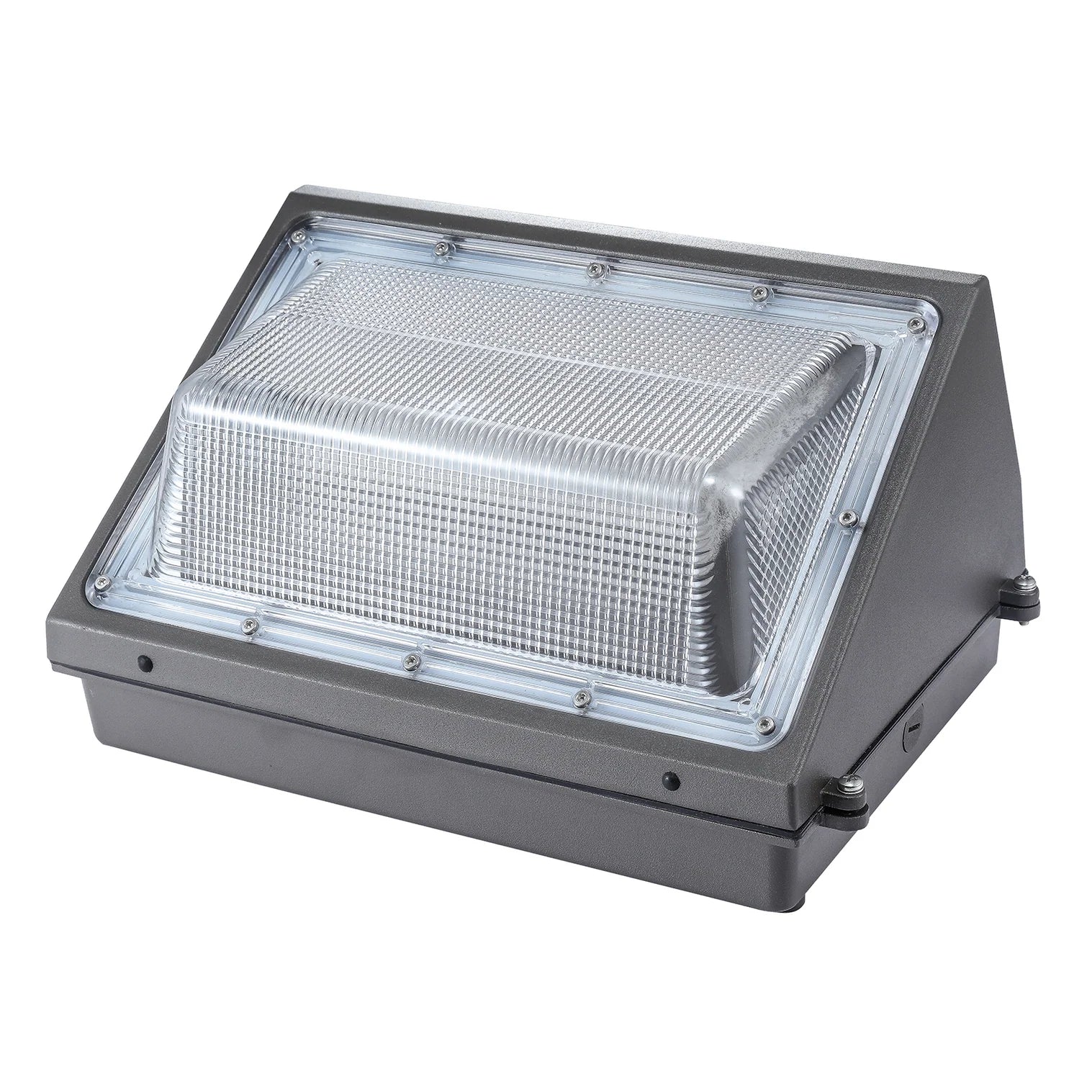

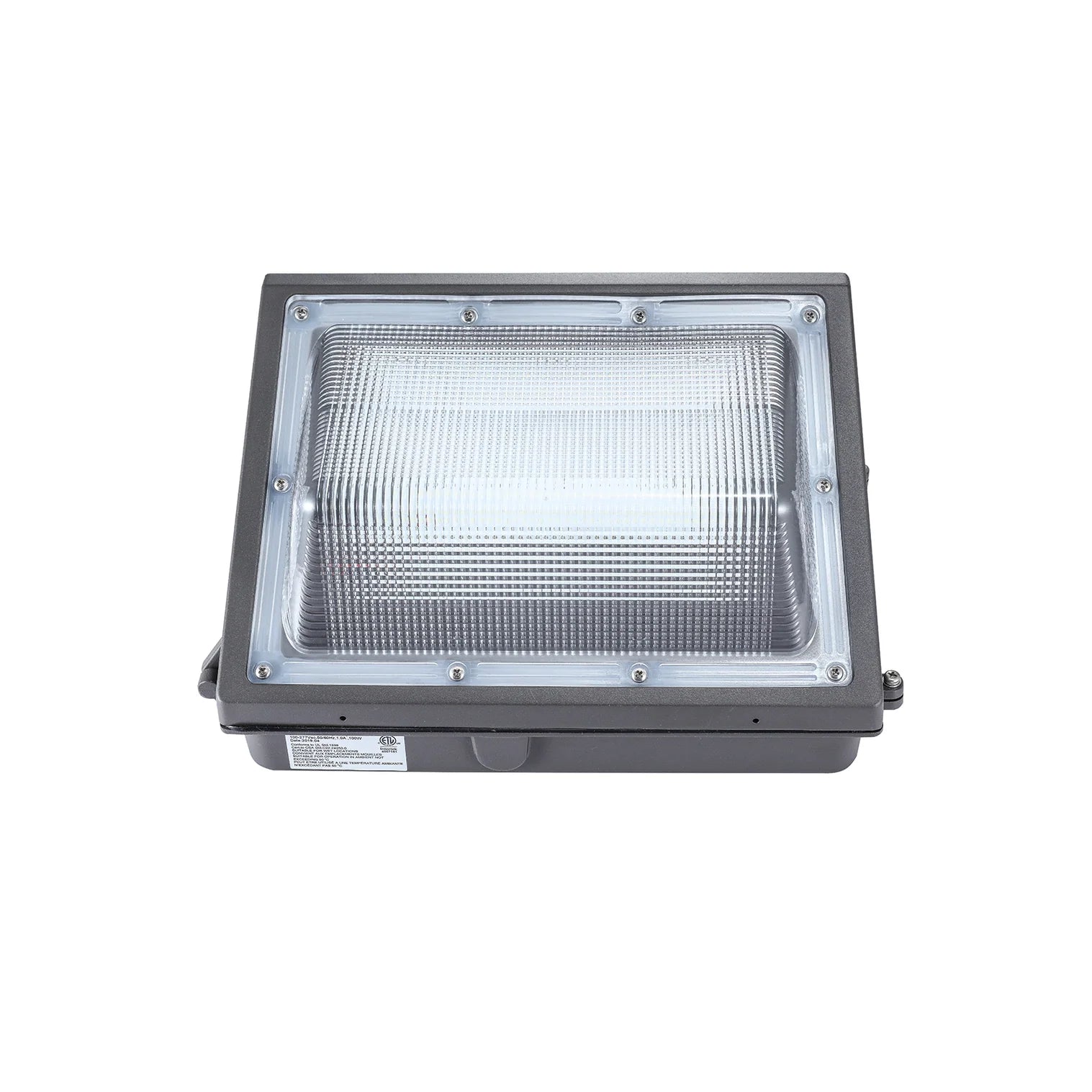

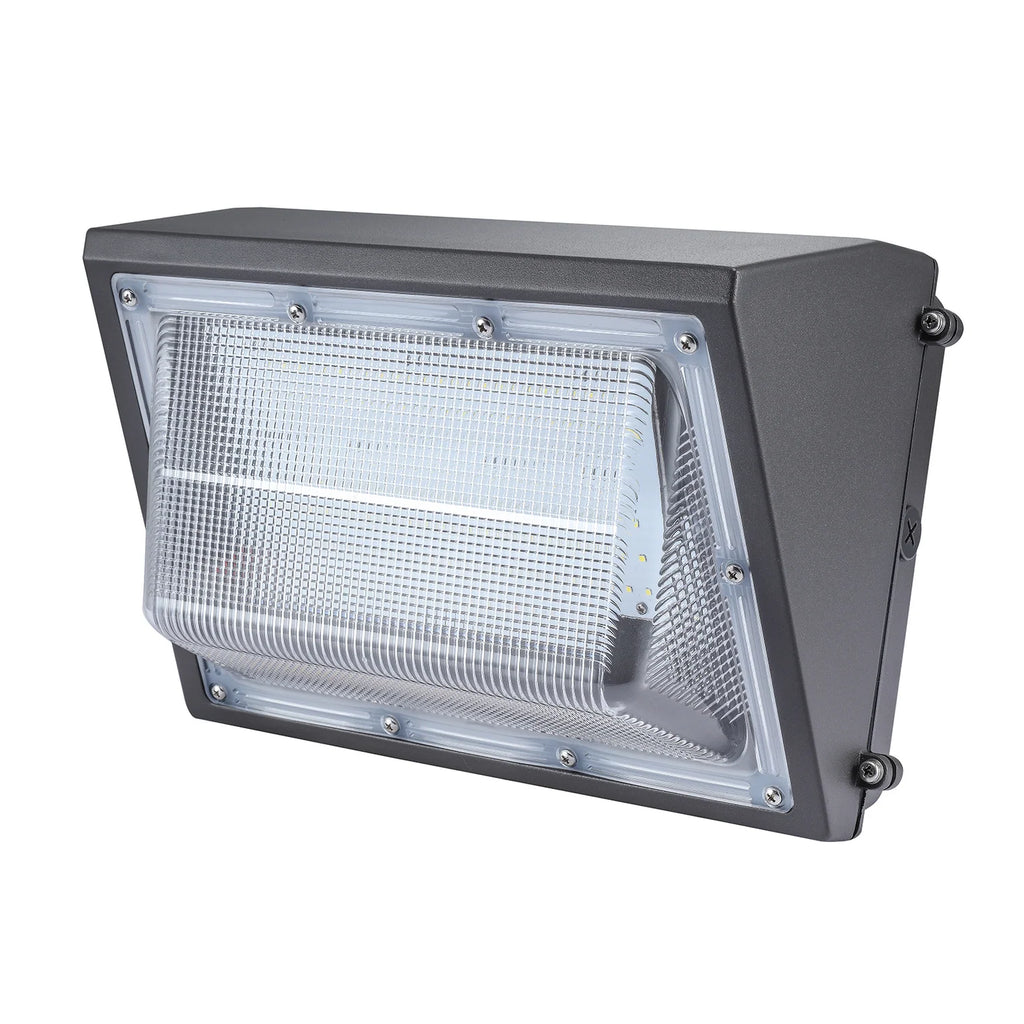

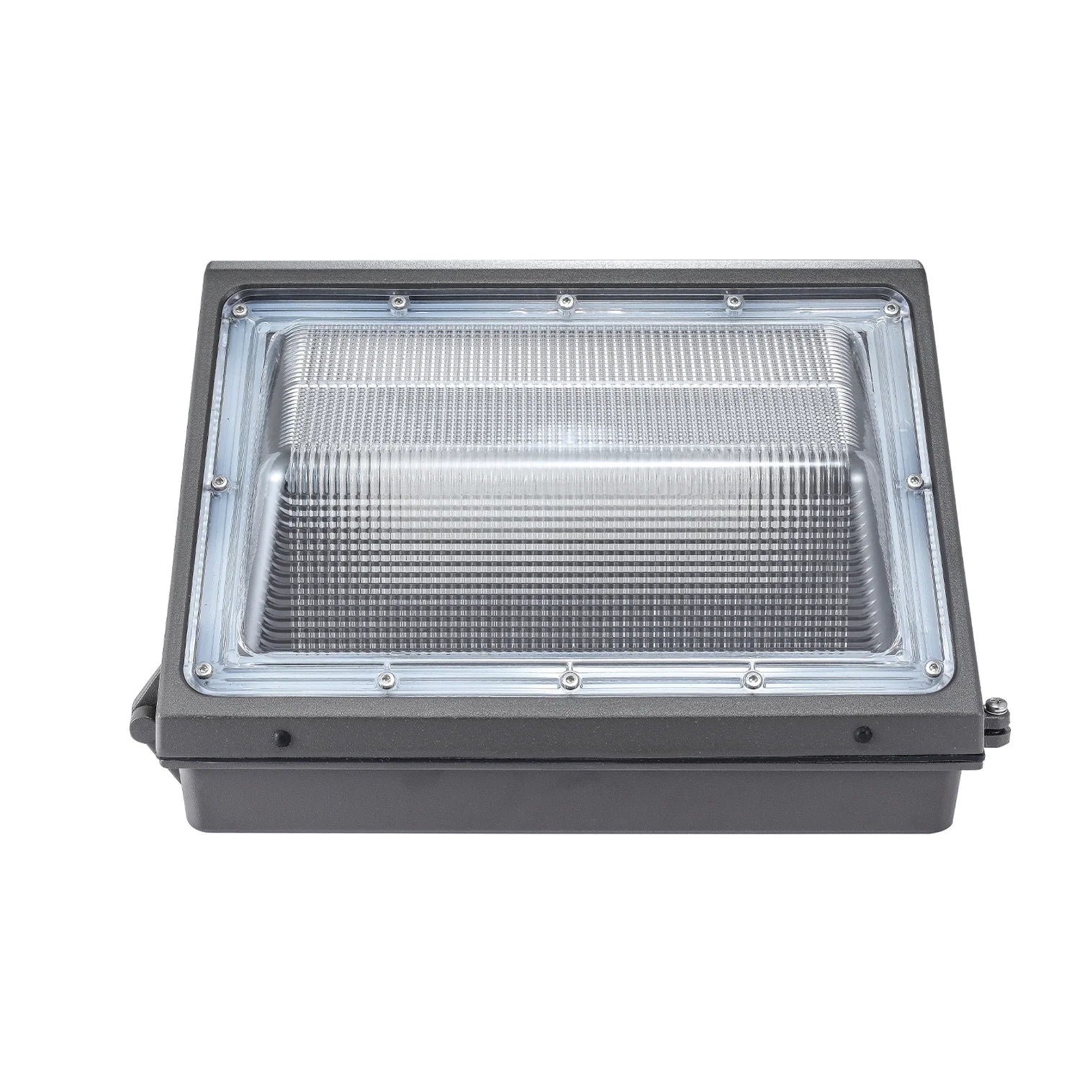

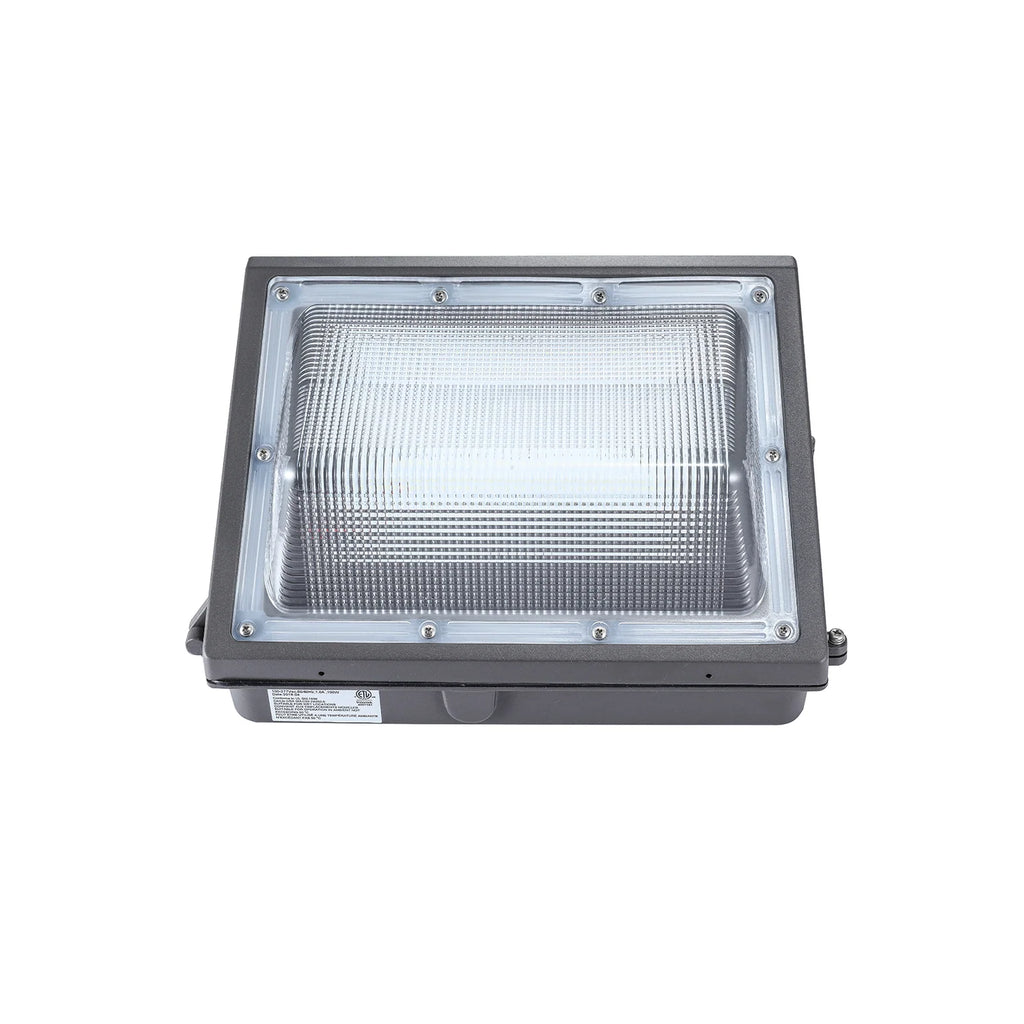

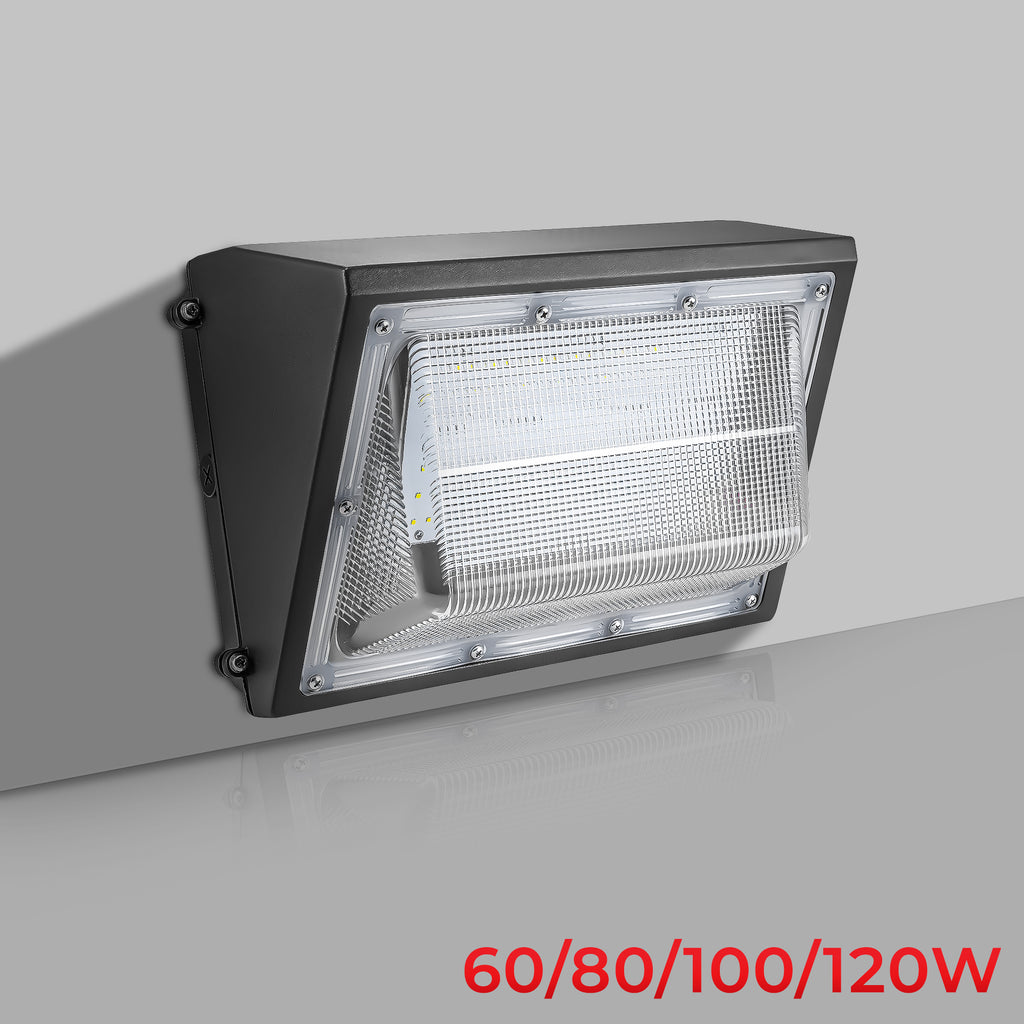

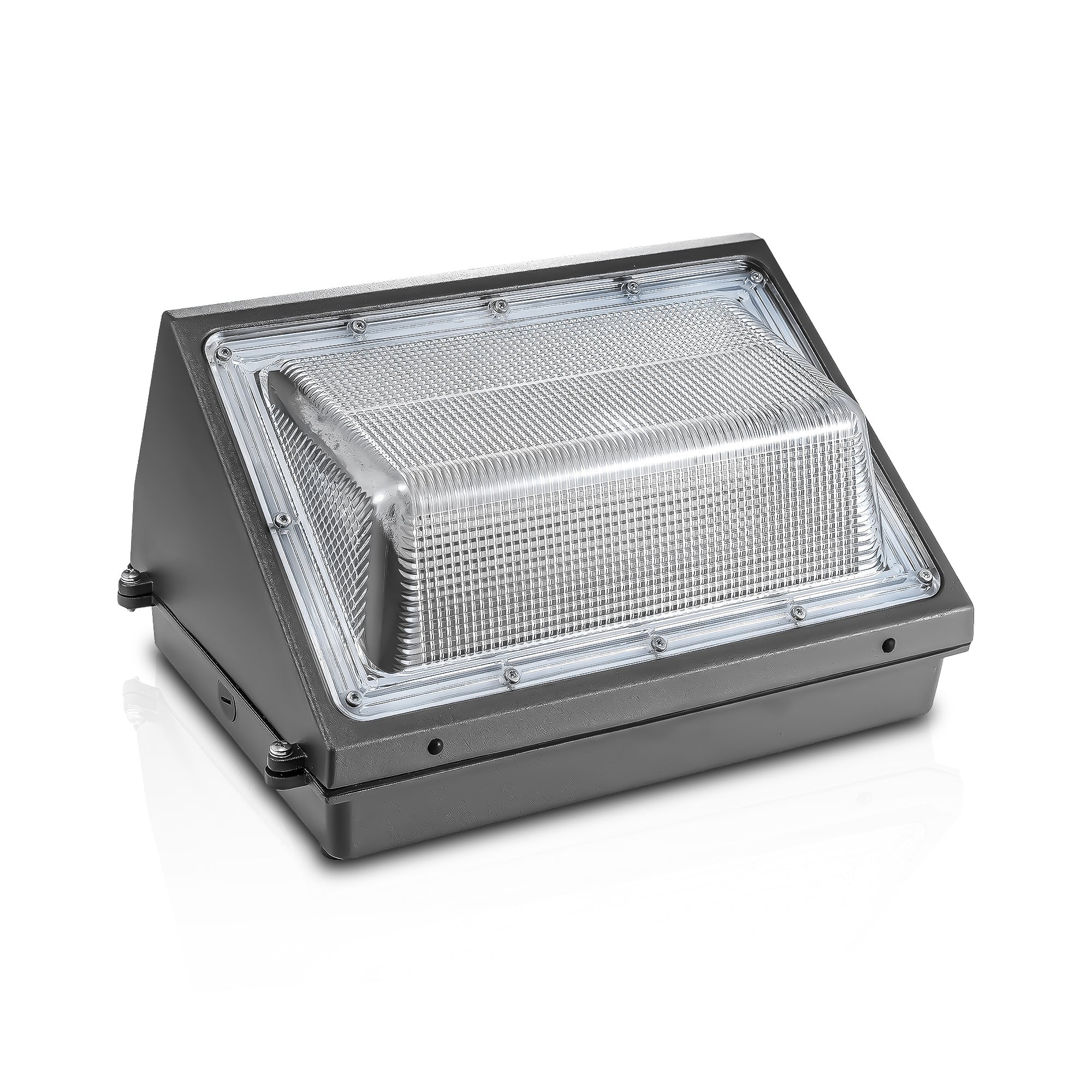

This traditional LED wall pack features both wattage and color temperature tuning via internal DIP switches, selectable at 60W, 80W, 100W, or 120W and 3000K, 4000K, or 5000K to match site requirements without stocking multiple SKUs. A built-in universal photocell provides automatic dusk-to-dawn operation, and the heavy die-cast aluminum housing with bronze powder-coated finish is built for years of outdoor service. Delivering up to 15,600 lumens at 130 lm/W on 120–277VAC input, the fixture replaces up to 250W metal halide or HPS and carries ETL, DLC Premium, and FCC certifications with a 5-year warranty.
Key Features +−
60/80/100/120W
Tunable
3CCT
30/40/50K
Built-In
Photocell
ETL & DLC
Premium
Specifications +−
| General | |
|---|---|
| Model | STL-WP60/80/100/120W-XXK |
| Finish | Bronze Powder-Coated |
| Housing | Heavy Die-Cast Aluminum Alloy |
| Lens | High-Transmittance Plastic |
| Installation | Wall Mount (3 quick-mount clips) |
| Warranty | 5 Years |
| Electrical | |
| Wattage | 60W / 80W / 100W / 120W (DIP switch selectable) |
| Input Voltage | 120–277 VAC |
| Power Factor | >0.9 |
| Controls | Built-In Universal Photocell (Dusk-to-Dawn) |
| Optical | |
| LED Type | SMD 2835 |
| Luminous Flux | 7,800 / 10,400 / 13,000 / 15,600 lm |
| Luminous Efficacy | 130 lm/W |
| Color Temperature | 3000K / 4000K / 5000K (DIP switch selectable) |
| CRI | >72 |
| Beam Angle | 120° |
| Lamp Efficiency | ≥90% |
| HID Equivalent | 100–250W Metal Halide / HPS |
| Physical | |

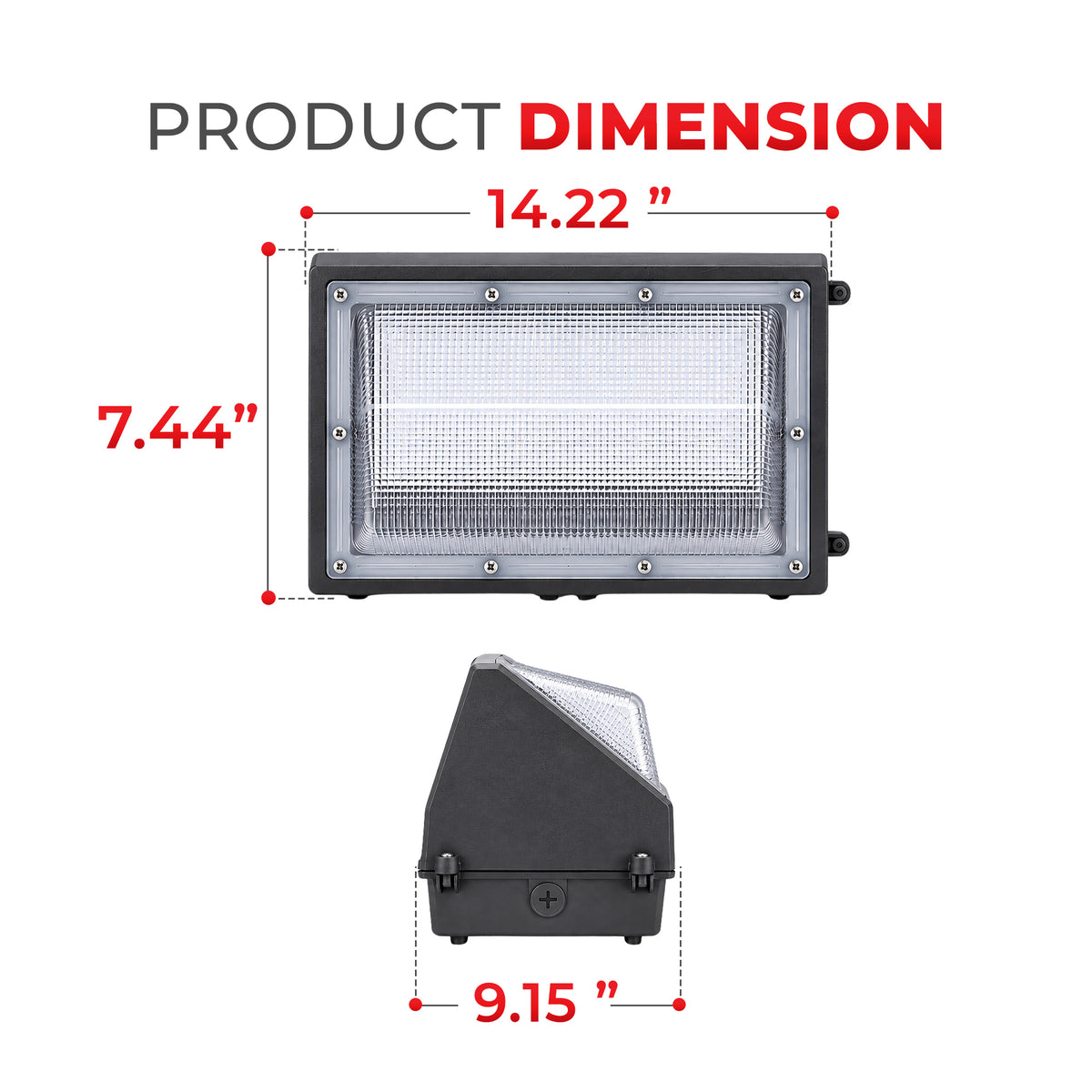

| Dimensions | 14.23 in. (L) × 7.44 in. (H) × 9.15 in. (D) |
| Operating Temperature | -33°F to 140°F (-36°C to 60°C) |
| Junction Temperature | <75°C |
| Rated Lifespan | 50,000 hours |
| Certifications | |
| Safety | ETL / cETL Listed (US & Canada) |
| Energy | DLC Premium |
| EMI | FCC Compliant |
Features +−
- Four selectable wattage levels (60W, 80W, 100W, 120W) are configured via an internal DIP switch, delivering 7,800 to 15,600 lumens from a single fixture to match the specific output required at each mounting location.
- Three selectable color temperatures (3000K, 4000K, 5000K) are also set via DIP switch, allowing warm, neutral, or cool white output to be configured during installation.
- A built-in universal photocell provides automatic dusk-to-dawn operation without an external sensor, turning the fixture on at nightfall and off at daylight.
- At 130 lumens per watt, the fixture replaces 100W to 250W metal halide or high-pressure sodium wall packs while reducing energy consumption by more than half.
- The heavy die-cast aluminum alloy housing with a bronze powder-coated finish resists corrosion and withstands long-term outdoor exposure.
- A high-transmittance plastic lens distributes light across a wide 120-degree beam angle for broad, even wall-wash coverage on building facades and surrounding areas.
- Three quick-mount clips on the backside of the fixture allow fast installation and simplified future maintenance access.
- Operates on 120–277VAC input for direct compatibility with standard commercial electrical systems.
- The wide operating temperature range of -33°F to 140°F supports year-round outdoor use in extreme climates.

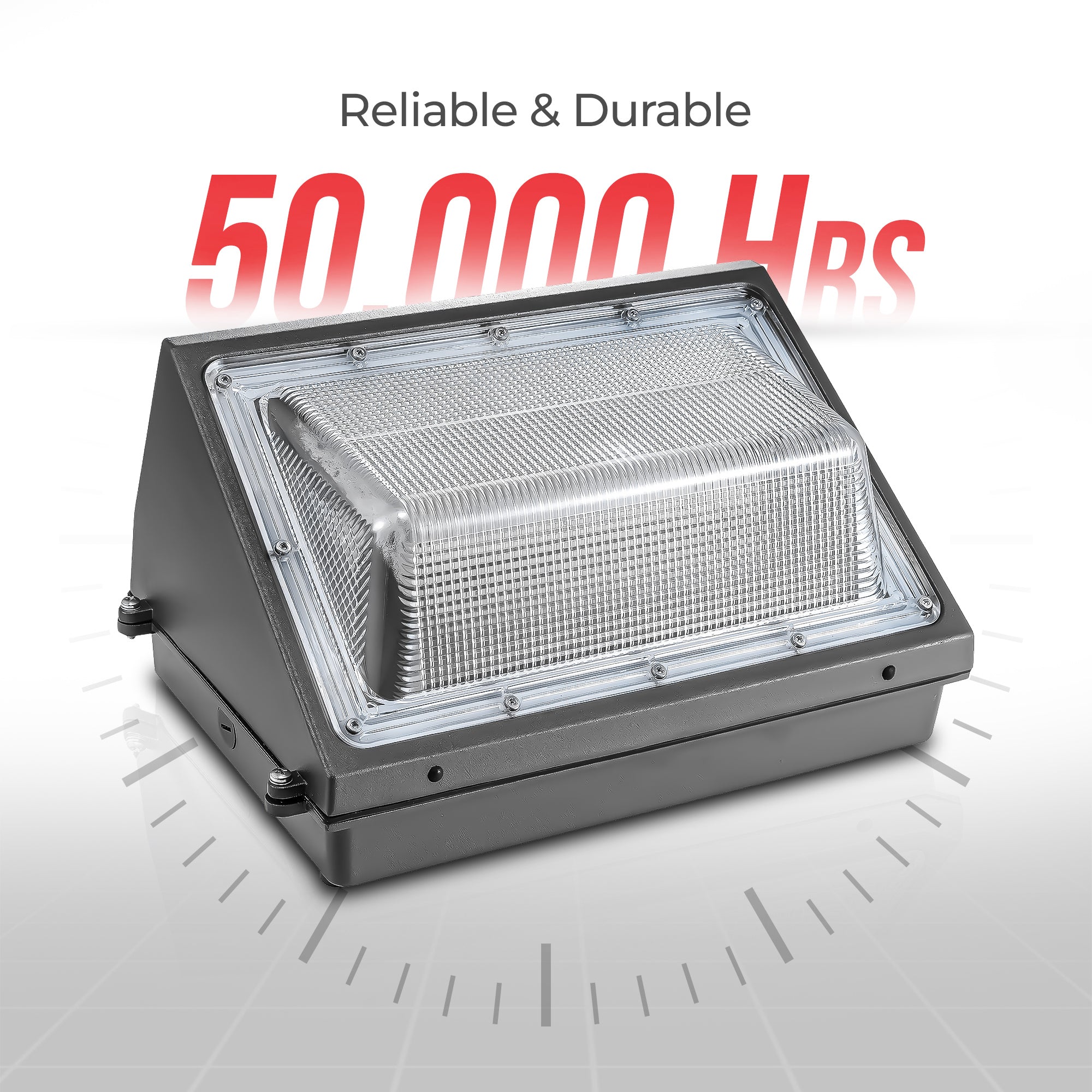

- Rated for 50,000 hours of operation, significantly reducing lamp replacement cycles compared to traditional HID fixtures.
- DLC Premium qualified, enabling eligibility for utility rebate programs that can offset the upfront cost of the fixture.
- ETL and cETL Listed for the US and Canada, with FCC compliance for electromagnetic interference.
Applications +−
- Warehouse and distribution center exterior walls and loading dock areas
- Commercial building facades, entrances, and stairwell exits
- Parking lot perimeters, garage structures, and surface lot fencing
- Retail strip malls, storefronts, and shopping center walkways
- Auto dealership lots, service bays, and showroom exteriors
- Industrial facility perimeters, factory yards, and security lighting zones
- School, church, and municipal building exterior security lighting
- Supermarket, logistics center, and cold storage exterior walls
