Description

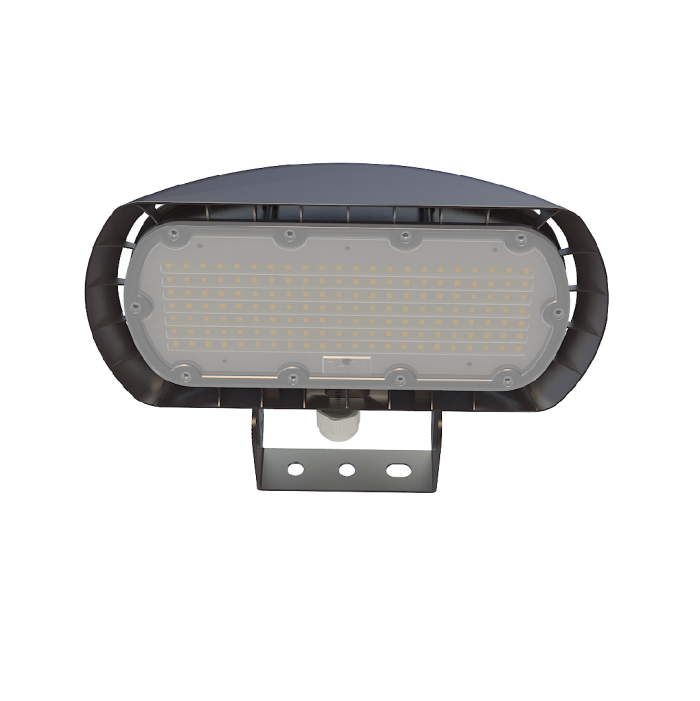

This 50W/40W/30W LED flood light features field-selectable wattage and 3 CCT color temperature options (3000K/4000K/5000K), delivering up to 6,000 lumens at 120 lumens per watt. Built with an ADC12 die-cast aluminum housing in a dark bronze finish, the fixture is rated IP65 for wet locations and includes a built-in photocell for automatic dusk-to-dawn operation. Available with interchangeable trunnion or knuckle mount brackets, it is ETL and DLC listed and backed by a 5-year warranty.
Key Features
50W/40W/30W
Selectable
3CCT
30K/40K/50K
Built-In
Photocell
IP65
Waterproof
Specifications
| General | |
|---|---|
| Selectable Wattage | 50W / 40W / 30W |
| CCT (Color Temperature) | 3000K / 4000K / 5000K (Selectable) |
| Mounting Options | Trunnion or Knuckle (Interchangeable) |
| Finish | Dark Bronze |
| Certifications | ETL / DLC Listed |
| Warranty | 5 Years |
| Electrical | |
| Input Voltage | AC 120–277V |
| Power Factor | >0.9 |
| Dimming | 0–10V (Purple / Pink Wires) |
| Photocell | Built-In (Dusk-to-Dawn) |
| Optical | |
| Luminous Efficacy | 120 LM/W |
| Lumen Output | 6,000 / 4,800 / 3,600 Lumens |
| CRI | >80 |
| Beam Angle (NEMA) | 7H × 7V (130°+ Wide Flood) |
| LED Chip | SMD 2835 |
| Physical | |
| Housing Material | ADC12 Die-Cast Aluminum |
| IP Rating | IP65 |
| Operating Temperature | -40°F to +113°F |
| Lifespan | >50,000 Hours |
| Dimensions (Knuckle) | 10.14" × 2.59" × 8.8" |
| Dimensions (Trunnion) | 10.14" × 2.59" × 8.11" |
| Weight | 2.86 lbs |
Features
- Field-selectable wattage allows the installer to choose between 50W, 40W, or 30W output by adjusting the internal DIP switch, reducing the need to stock multiple SKUs for different applications.
- Three selectable color temperatures 3000K (warm white), 4000K (neutral white), and 5000K (daylight) are set via the same internal switch, giving full control over light appearance before installation.
- Automatic Dusk-to-Dawn Operation: The built-in photocell automatically turns the light on at sunset and off at sunrise, providing convenient operation without the need for external timers or controls.
- 0–10V Dimming Support: Dedicated purple and pink wiring leads allow smooth 0–10V dimming and easy connection to compatible dimmers or building lighting control systems.
- The ADC12 die-cast aluminum housing provides effective heat dissipation, keeping the LED junction temperature below 65°C and contributing to less than 3% light depreciation over the first 1,000 hours of operation.
- Structural waterproofing achieves an IP65 rating, making the fixture suitable for exposed outdoor installations in rain, snow, and dust conditions.
- The trunnion and knuckle mount brackets are interchangeable, allowing the same fixture to be wall-mounted, pole-mounted, or surface-mounted depending on the project requirements.
- Easy and Consistent Aiming: Clear angle markings on both bracket styles make it easy to position each fixture accurately and maintain consistent aiming across multi-light installations.
- Wide Voltage Compatibility: The universal 120–277V input works with a range of residential and commercial electrical systems without requiring an external transformer.
- ETL listed for safety and DLC listed for utility rebate eligibility, with a 5-year manufacturer warranty.
- Building facade and architectural accent lighting for commercial properties, hotels, and event venues.
Applications
- Ideal for highlighting building facades and architectural details at commercial properties, hotels, and event venues.
- Provides reliable perimeter and security lighting for parking lots when mounted on walls, poles, or bollards.
- Suitable for exterior lighting around churches, schools, municipal buildings, and other public facilities.
- Works well for illuminating retail storefronts, signs, and exterior display areas.
- Helps improve visibility around loading docks, service entrances, warehouses, and other work areas.
- A practical choice for landscape and hardscape lighting, including pathways, trees, gardens, and outdoor features.
- Can be used for sports courts and recreational areas in residential and community spaces.
- Suitable for accent and safety lighting on bridges, overpasses, and other public infrastructure.
