Description

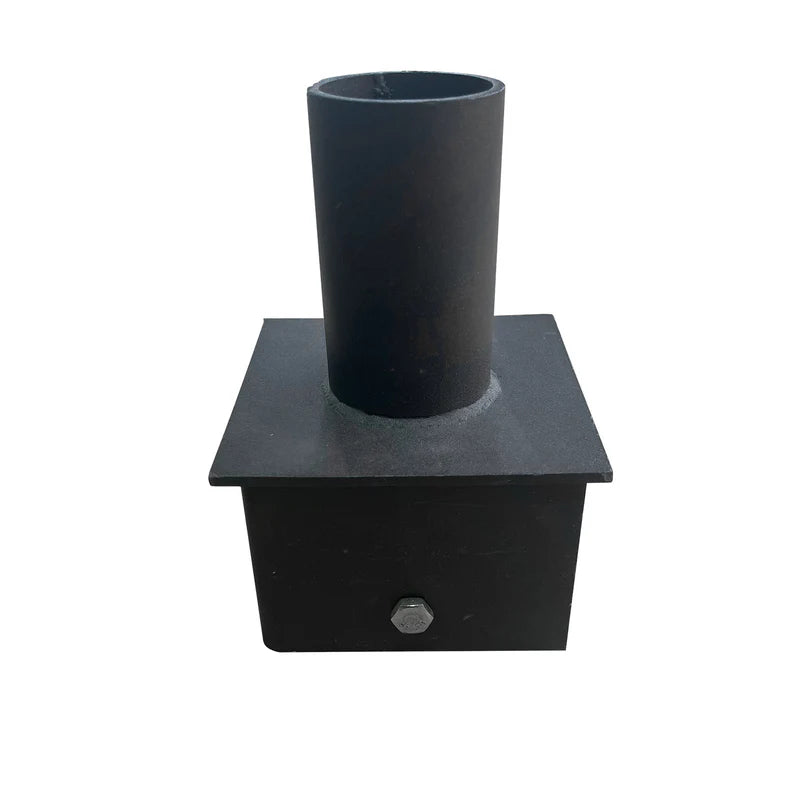

This heavy-duty tenon adaptor converts a 5-inch square pole top into a standard 2-3/8-inch outside diameter round tenon, allowing slip-fitter-equipped LED shoebox lights, street lights, and area lights to mount directly onto square poles. Finished in dark bronze and built for square, non-tapered steel and aluminum poles, the adaptor includes four 5/16-inch hex head stainless-steel bolts and supports both vertical and horizontal fixture adjustment.
Specifications +
| General | |
|---|---|
| Type | Square Pole Tenon Adaptor |
| Finish | Dark Bronze |
| Pole Compatibility | 5" Square, Non-Tapered Steel or Aluminum |
| Hardware Included | Yes — 4× 5/16" Hex Head Stainless-Steel Bolts |

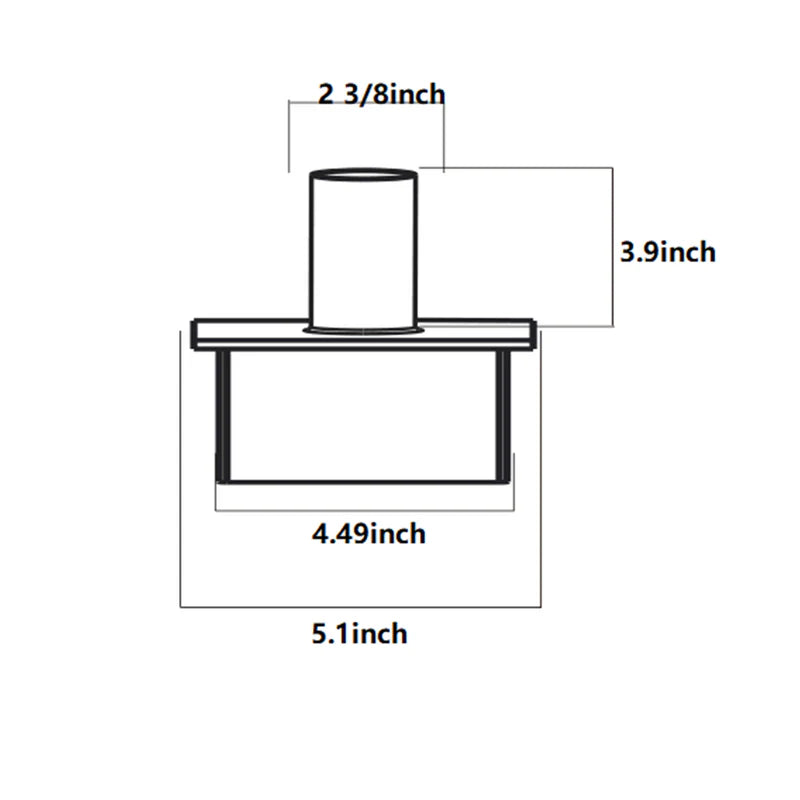

| Physical | |
| Tenon Outside Diameter | 2-3/8" |
| Overall Tenon Height | 3.9" |
| Base Opening (Square) | 5.1" |
| Inner Base Width | 4.49" |
Features +
- Converts a 5-inch square pole top to a standard 2-3/8-inch O.D. round tenon, enabling direct installation of any slip-fitter-equipped LED fixture.
- Designed for square, non-tapered steel and aluminum poles commonly used in parking lots, roadways, and commercial properties.
- Fixtures mounted to the adaptor can be adjusted both vertically and horizontally to fine-tune aiming and coverage angles.
- Furnished with four 5/16-inch hex head stainless-steel bolts for secure, corrosion-resistant attachment to the pole top.
- The dark bronze powder-coat finish provides weather and UV resistance while matching common outdoor pole and fixture color schemes.
Applications +
- Retrofitting existing 5-inch square poles with new slip-fitter LED shoebox or street light fixtures
- Parking lot and commercial property pole upgrades from HID to LED without replacing the pole
- Municipal roadway and street lighting conversions on square pole infrastructure
- Church, school, and HOA parking area lighting upgrades
