Description

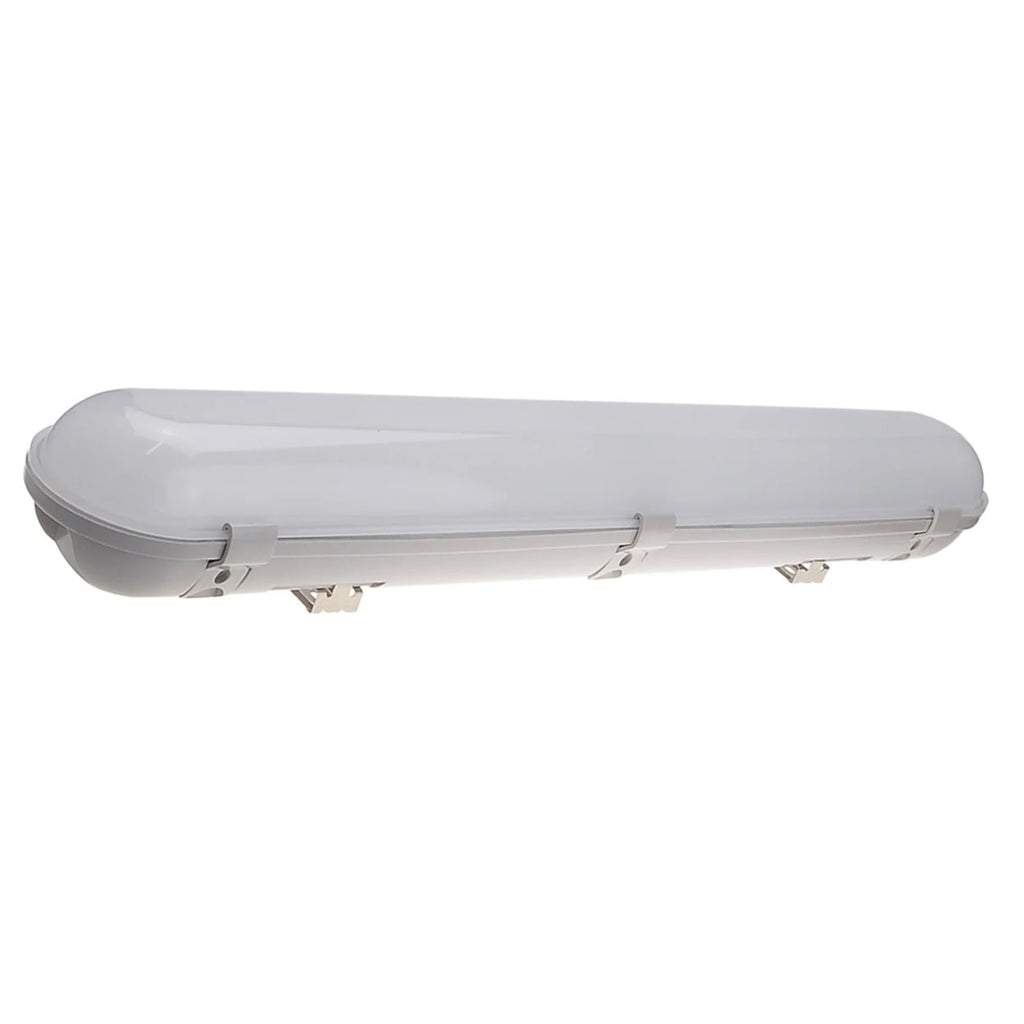

This 4FT LED vapor tight light is built for wet, dusty, and corrosive environments where standard fixtures fail. Wattage is field-selectable between 40W, 50W, and 60W, and color temperature is switchable among 3000K, 4000K, and 5000K, letting one fixture cover multiple project specs. An extruded, UV-stabilized opal prismatic lens with white PC end caps diffuses output evenly and resists yellowing, while fast-connect wiring links up to six fixtures in a continuous row. The fixture is ETL listed and DLC Premium qualified, and is available in 1-, 3-, and 6-packs.
Selectable
40/50/60W
Tunable CCT
3000/4000/5000K
Moisture &
Corrosion Resistant
ETL & DLC
Premium Listed
Specifications +
| General | |
|---|---|
| Fixture Length | 4FT |
| Pack Options | 1-Pack / 3-Pack / 6-Pack |
| Certifications | ETL, DLC Premium, FCC |
| Warranty | 5-Year Limited |
| Electrical | |
| Input Voltage | 100–277V AC |
| Selectable Wattage | 40W / 50W / 60W |
| Operating Temperature | -22°F to 104°F |
| Storage Temperature | -22°F to 140°F |
| Optical | |
| Selectable CCT | 3000K / 4000K / 5000K |
| CRI | >80 |
| Lumen Output | 5,400 / 6,750 / 8,100 LM |
| Luminous Efficacy | 135 LM/W |
| Beam Angle | 110° |
| HID Equivalent | 110–200W MH/HPS |
| Physical | |
| Dimensions (L x W x H) | 47.2" x 4.33" x 3.46" |
| Housing / Lens | Extruded opal prismatic material with UV protection |
| End Caps | White PC material |
| Mounting | Ceiling mount with quick mount plate |
Features +
- Field-selectable output lets installers choose between 40W, 50W, and 60W on a single fixture without stocking separate wattage models.
- CCT selector switches color temperature among 3000K, 4000K, and 5000K to match project lighting requirements at install time.
- Extruded opal prismatic lens with UV-stabilized material diffuses light evenly and resists yellowing from sun exposure.
- White PC end caps and a sealed housing resist moisture, corrosion, and rust for reliable performance in wet or industrial environments.
- Fast-connect wiring links up to six fixtures in series for continuous rows without additional junction boxes.
- Ceiling-mounted quick mount plate simplifies installation and reduces labor time.
- Operates on a 100–277V input, suiting both commercial and industrial electrical services.
- ETL listed and DLC Premium qualified for utility rebate eligibility.
- Backed by a 5-year limited warranty.
- Available in 1-, 3-, and 6-fixture packs to match project scale.
- Compatible with an optional emergency battery backup accessory for code-required egress lighting.
Applications +
- Airports, train stations, and subway platforms
- Factories, workshops, and production lines
- Warehouses and distribution centers
- Tunnels and parking garages
- Basements, storage rooms, and mechanical spaces
- Outdoor roadways and covered walkways
Connection Guidelines +
Turn off power at the breaker before wiring or servicing this fixture. Installation and maintenance must be performed by a licensed electrician.
Fixtures can be linked end-to-end using the fast-connect wiring built into each unit, allowing up to six fixtures to be joined on a single run. Before linking multiple units, confirm that the combined electrical load of the run does not exceed the rated capacity of the circuit and breaker supplying it. Feed the supply wire through the water-tight fitting, make line, neutral, and ground connections inside the fixture, and tighten the external nut on the fitting to maintain the seal. Set the wattage and CCT selector to the desired output before final installation, as these settings are not adjustable once the fixture is closed and mounted. Keep thermal insulation material away from the fixture body, and keep the unit dry and away from corrosive substances during and after installation.
