Description

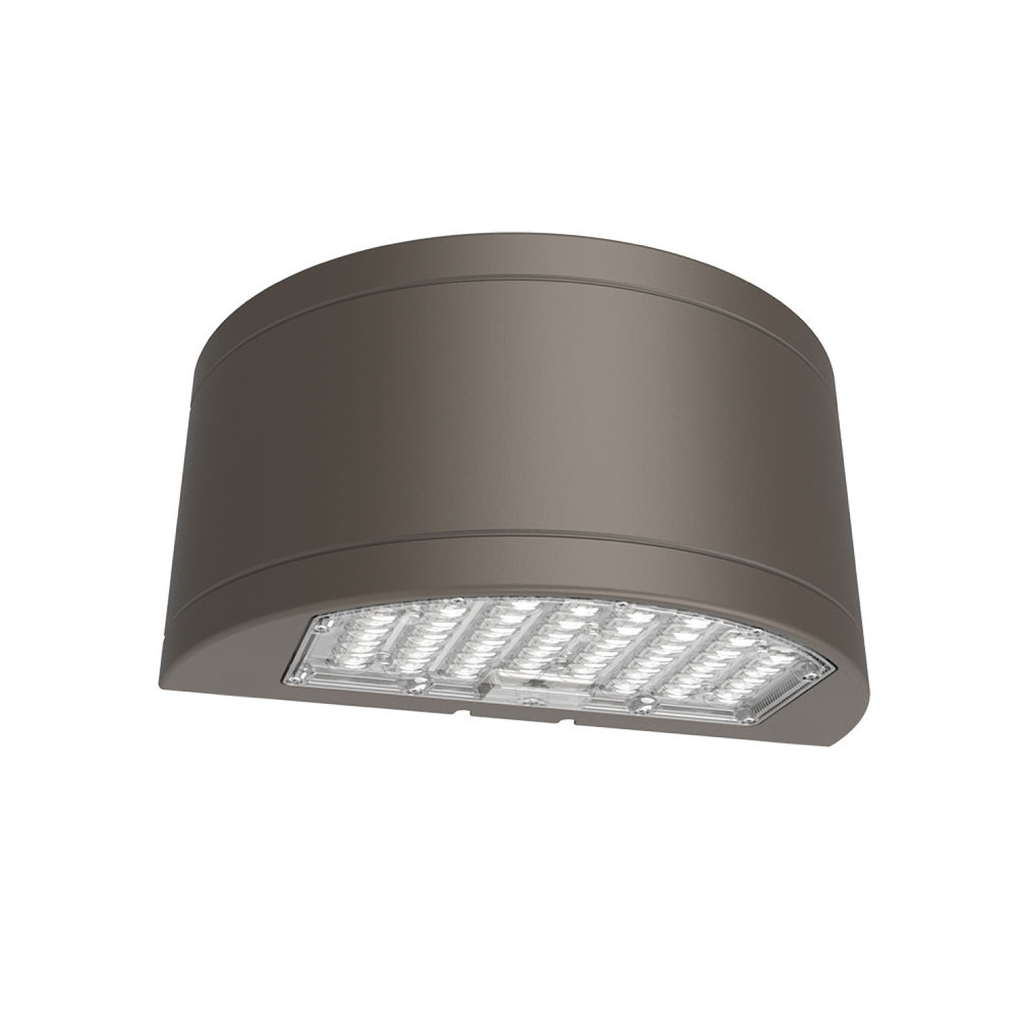

This half-moon LED wall pack features selectable up-and-down or downlight-only distribution via an internal DIP switch, casting a full architectural glow on both sides of the fixture or directing all output downward for focused task and security lighting. Wattage is tunable at 48W, 64W, or 80W with three selectable color temperatures (3000K, 4000K, 5000K), delivering up to 11,600 lumens at 145 lm/W from a compact bronze-finished housing. A built-in DC photocell, 0-10V dimming, IP65 wet-location rating, and a Zhaga 18 sensor receptacle for optional smart controls round out a feature set backed by UL listing, FCC compliance, and a 5-year warranty.
Key Features +−
Up & Down
Selectable
48/64/80W
Tunable
3CCT
30/40/50K
IP65
Wet Location
Specifications +−
| General | |
|---|---|
| Model | BWWP6-80 |
| Finish | Bronze |
| Housing | Die-Cast Aluminum |
| Lens | Glass (waterproof rubber seal); self-replaceable T3/T4/T5 optics |

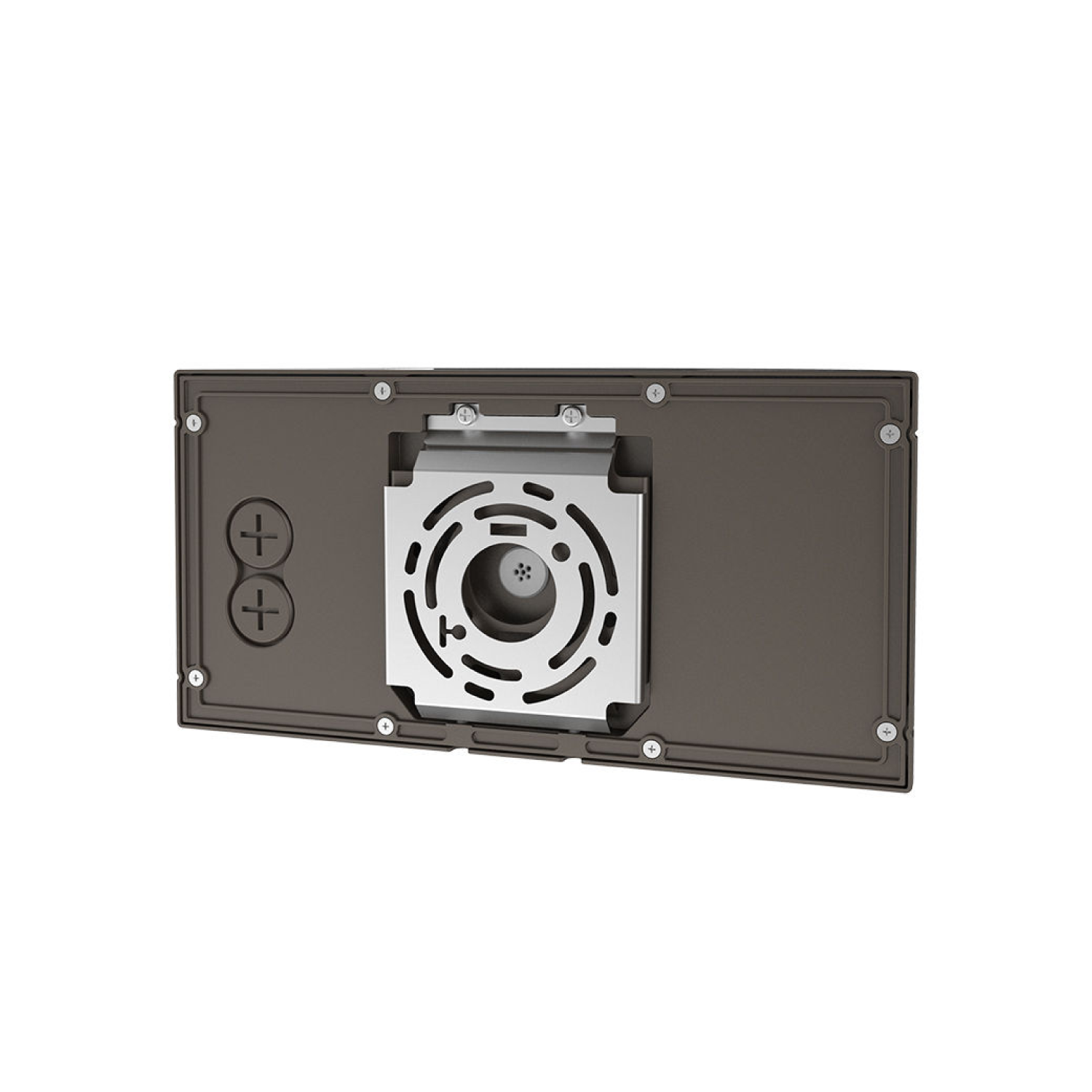

| Installation | Wall Mount (bracket) |
| Warranty | 5 Years |
| Electrical | |
| Wattage | 48W / 64W / 80W (DIP switch selectable) |
| Input Voltage | 120–277 VAC |
| Dimming | 0-10V |
| Controls | Built-In DC Photocell (Dusk-to-Dawn, on/off via DIP switch) |
| Optical | |
| Luminous Flux | 6,960 / 9,280 / 11,600 lm (±5%) |
| Luminous Efficacy | 145 lm/W |
| Color Temperature | 3000K / 4000K / 5000K (DIP switch selectable) |
| CRI | >80 |

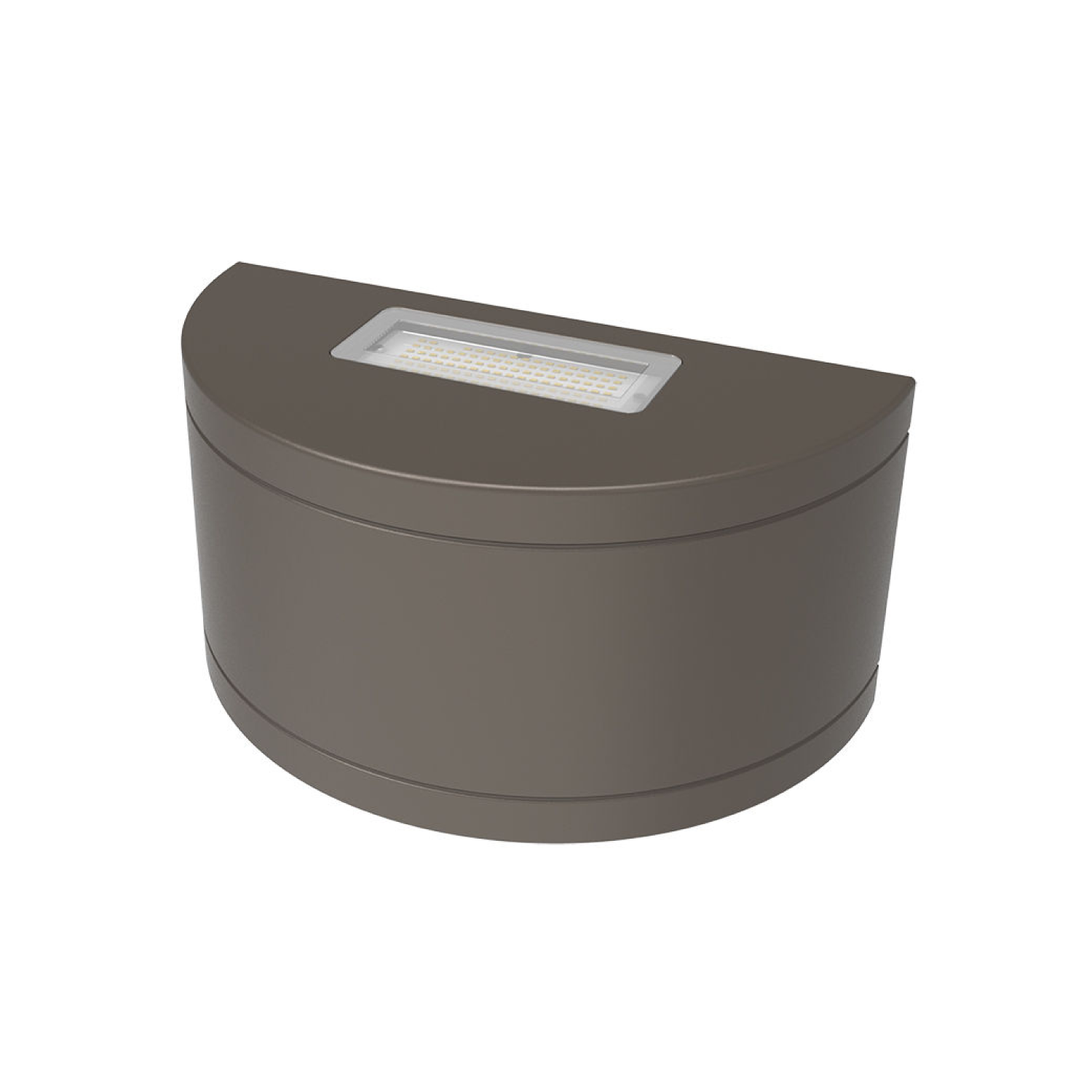

| Light Distribution | Full (Up 10% / Down 90%) or Down Only (DIP switch selectable) |
| Physical | |
| Dimensions | 12.99 in. (W) × 6.49 in. (H) × 1.1 in. (D at mount) |
| IP Rating | IP65 (Wet Location) |
| Operating Temperature | -40°F to +113°F |
| Sensor Receptacle | Zhaga 18 (optional sensors sold separately) |
| Certifications | |
| Safety | UL Listed (US & Canada) |
| EMI | FCC Compliant |
Features +−
- A DIP switch selects between full up-and-down distribution (10% up / 90% down) and downlight-only mode, letting installers match the light pattern to each mounting location without changing the fixture.
- Three selectable wattage levels (48W, 64W, 80W) are configured via DIP switch, delivering 6,960 to 11,600 lumens from a single SKU to accommodate different site output requirements.
- Three selectable color temperatures (3000K, 4000K, 5000K) are also set via DIP switch, allowing warm, neutral, or cool white output to be chosen during installation.
- A built-in DC photocell provides automatic dusk-to-dawn operation and can be enabled or disabled via DIP switch for manual-override installations.
- 0-10V dimming compatibility allows integration with building management systems, timers, and external dimmers for scheduled or adaptive brightness control.
- At 145 lumens per watt, the fixture delivers high-efficiency output that reduces energy costs and qualifies for utility incentive programs.
- IP65-rated construction with a waterproof rubber seal and glass lens provides reliable performance in wet locations and exposed outdoor environments.
- Self-replaceable T3, T4, and T5 lens options allow the light distribution pattern to be changed in the field without replacing the entire fixture.
- A Zhaga 18 sensor receptacle on top of the fixture accepts optional photosensors, microwave sensors, PIR sensors, and Bluetooth-enabled smart controls (sold separately).
- The die-cast aluminum housing with a bronze finish resists corrosion and blends with brick, stone, and earth-toned building exteriors.
- Accepts 120–277 VAC for compatibility with standard- and high-voltage commercial electrical systems.
- Operating temperature range of -40°F to +113°F supports year-round outdoor use in extreme cold and hot climates.
- UL Listed for the US and Canada with FCC compliance, backed by a 5-year warranty.
Applications +−
- Commercial building entrances, lobbies, and exterior facades
- Hotel, resort, and hospitality exterior corridors and walkways
- Residential porch, patio, deck, and garage entries
- Parking garage stairwells, ramps, and pedestrian pathways
- Retail storefront, restaurant, and café exterior accent walls
- Dock, boathouse, and marina perimeter lighting
- Church, school, and municipal building exterior entrances
- Cabin, sauna room, basement, storeroom, and attic utility lighting
