Description

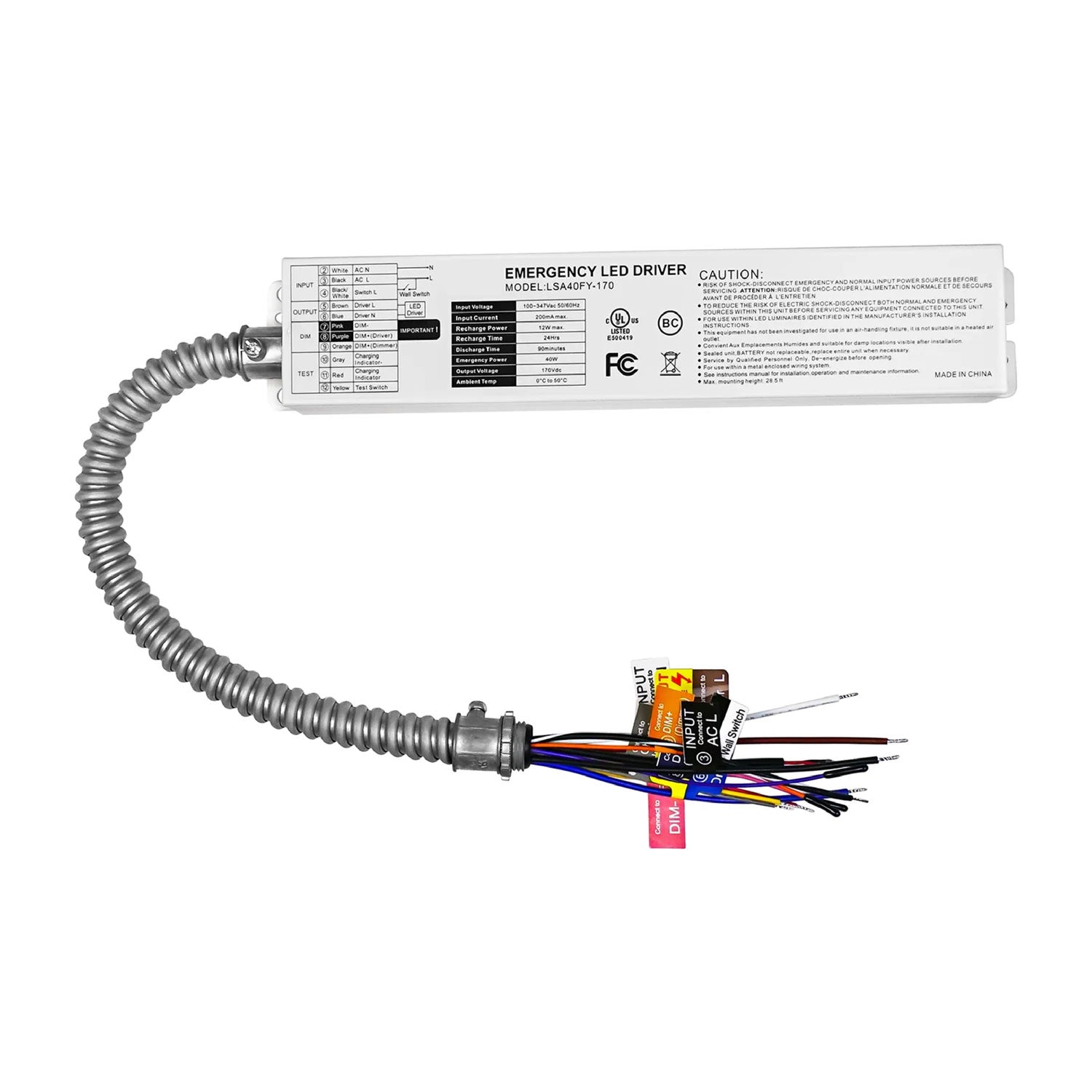

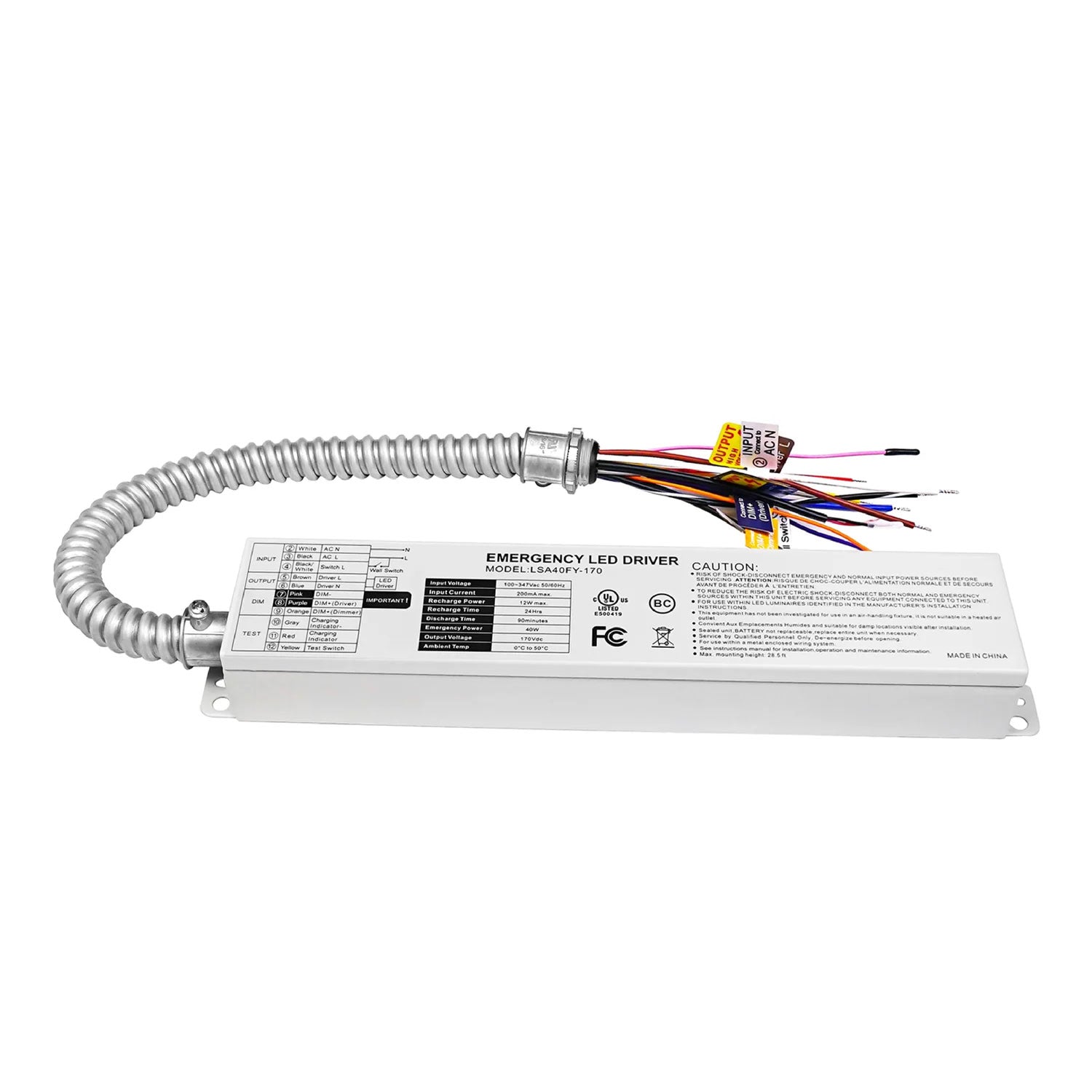

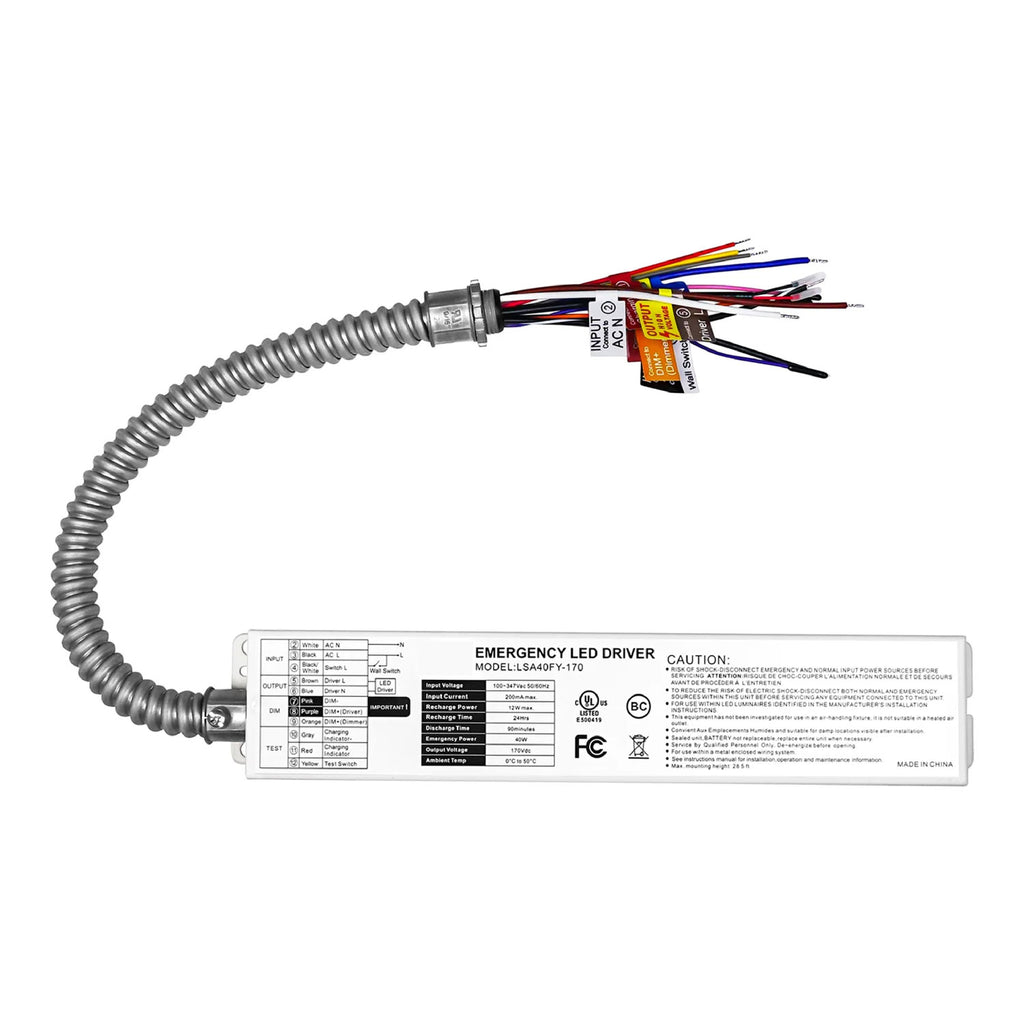

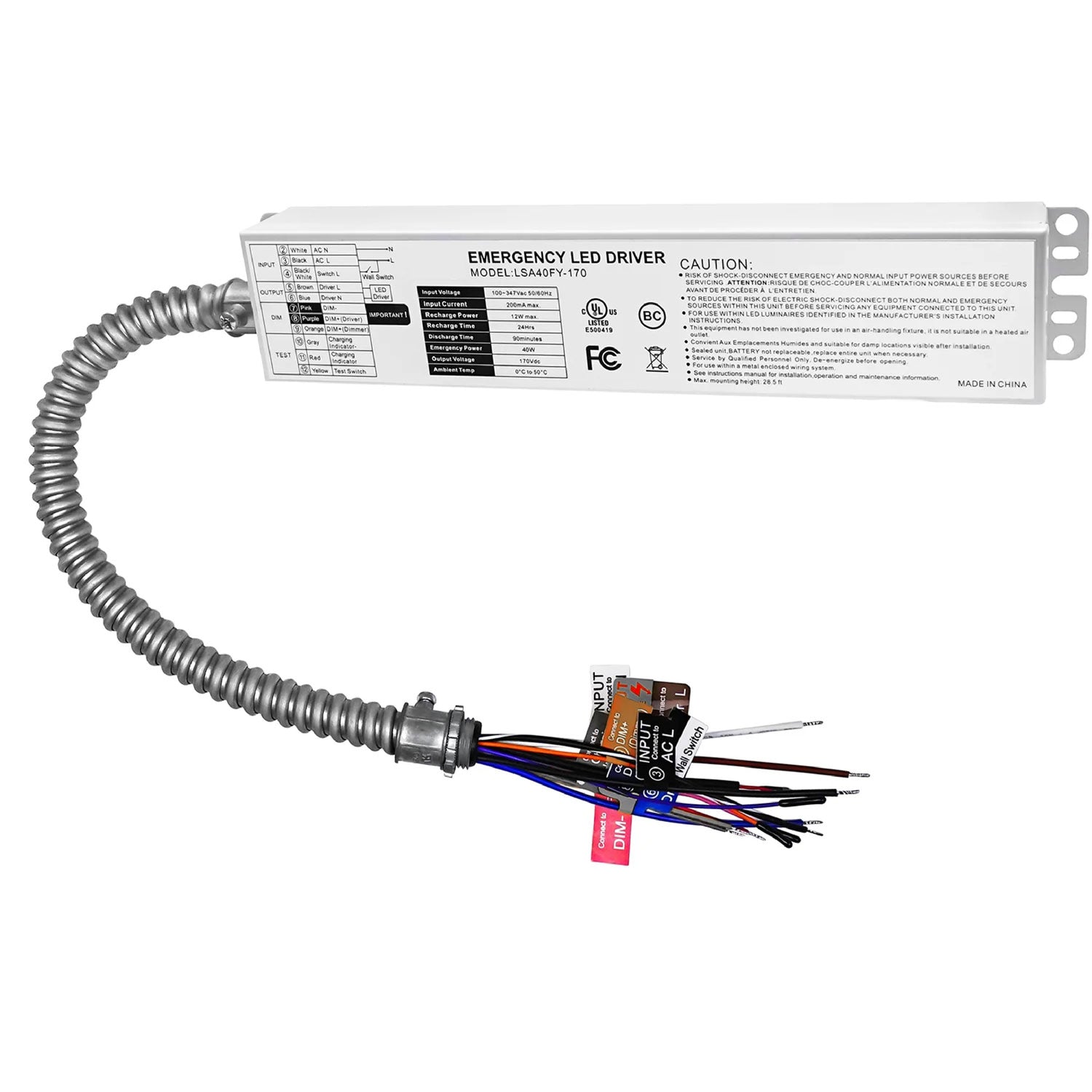

This 40W emergency LED driver installs alongside the fixture's existing driver and automatically activates when AC power fails, outputting 170VDC to maintain emergency illumination for a minimum of 90 minutes. It accepts a wide 100–347VAC input range and powers 0-10V dimmable fixtures up to 300W, making it ideal for troffers, dimmable light panels, and high bays across commercial environments. Integrated self-diagnostic circuitry automatically performs monthly 30-second and annual 90-minute discharge tests per NFPA 101, while the IP65-rated, slim-profile body with flexible conduit wiring fits cleanly inside fixture housings. UL 924 Listed for the US and Canada and CEC Title 20 compliant, the unit includes a test switch and charge indicator kit and is backed by a 5-year warranty.
Key Features +−
40W
Emergency Output
100–347 VAC
Input Range
90-Minute
Emergency Runtime
Self-Testing
NFPA 101
UL 924
Listed
IP65
Waterproof
Specifications +−
| General | |
|---|---|
| Product Type | Emergency LED Driver with Battery Backup |
| Emergency Output Wattage | 40W (Constant) |
| Emergency Runtime | 90 Minutes (Minimum) |
| Recharge Time | 24 Hours |
| Self-Testing | Automatic — Monthly 30-Second & Annual 90-Minute (NFPA 101) |
| Installation | Field or Factory |
| Warranty | 5 Years |
| Electrical | |
| Input Voltage | 100–347 VAC, 50/60 Hz |
| Input Current | 200mA Max |
| Recharge Power | 12W Max |
| Output Voltage (Emergency) | 170 VDC |
| Max Fixture Wattage (0-10V Dimming) | Up to 300W |
| Output Design | Constant Power |
| Dimming Compatibility | 0-10V (Dimming Driver Required) |
| Surge Protection | 3kV |
| Battery Protection | Over-Temperature, Over-Charge, Over-Discharge |
| Battery Type | Lithium-Ion |
| Physical | |
| Dimensions (Driver Body) | 12.33" × 2.33" × 1.66" |
| Conduit Length | 13" (Output Wire Exposed: 3.94") |
| Connector Thread | ½"-14 NPSM |
| Ingress Protection | IP65 |
| Operating Temperature | 32°F – 122°F (0°C – 50°C) |
| Maximum Mounting Height | 28.5 ft |
| Wiring | Flexible Conduit (External Wires) |
| Form Factor | Slim Profile for In-Fixture Mounting |
| Location Rating | Damp Locations & Plenum Spaces (Indoor Only) |
| Test Switch / Indicator | Included Kit (Metal or Plastic Indicator Options) |
| Certifications | |
| Safety Listing | UL Listed (US & Canada) |
| Standards | UL 924 / CSA C22.2 No. 141 |
| Energy Compliance | CEC Title 20 (California) |
| Code Compliance | NEC, IBC, NFPA 101 Life Safety Code |
Features +−
- Provides 40W of constant emergency output power, automatically activating when AC power is interrupted and delivering 170VDC in line with the connected LED driver.
- Powers 0-10V dimmable fixtures up to 300W; a 0-10V dimming driver is required for proper emergency operation on fixtures above the emergency driver's rated wattage.
- Accepts a wide 100–347VAC input voltage range at 50/60Hz, accommodating standard 120V branch circuits as well as 277V and 347V commercial electrical systems.
- Integrated self-diagnostic circuitry automatically conducts a 30-second discharge test every 30 days and a full 90-minute discharge test every 365 days per NFPA 101 Life Safety Code, then restores to normal charging without manual intervention.
- Provides a minimum of 90 minutes of constant emergency illumination in compliance with life-safety code requirements for commercial egress lighting.
- Three-way battery protection covers over-temperature, over-charge, and over-discharge conditions to safeguard battery health and extend service life.
- IP65 waterproof rating protects internal electronics against dust ingress and low-pressure water jets in damp or wet-adjacent locations.
- Built-in 3kV surge protection guards the driver and connected fixture against transient voltage spikes in commercial electrical environments.
- Lithium-ion battery pack with low 12W recharge power draws minimal standby current, with a full recharge time of 24 hours after complete discharge.
- Slim profile body measures 12.33" × 2.33" × 1.66" with flexible conduit wiring and ½"-14 NPSM connector for clean in-fixture installation inside troffers, panels, and high bay housings.
- Included test switch and charge indicator kit is available in metal one-piece or plastic integrated styles to suit different fixture and ceiling configurations.
- Rated for damp locations and plenum spaces with a maximum mounting height of 28.5 feet, suitable for standard and mid-height commercial ceiling installations.
- Constant power output design maintains consistent 40W delivery even as the lithium-ion battery voltage decreases during the discharge cycle.
- UL Listed for the United States and Canada, tested to UL 924 and CSA C22.2 No. 141, and compliant with CEC Title 20 and NFPA 101 Life Safety Code requirements.
- Suitable for both field retrofit of existing fixtures and factory installation in new construction projects.
- Backed by a 5-year warranty covering defects in materials and workmanship.
Applications +−
- 2×2 and 2×4 recessed troffers in commercial office buildings, courthouses, and government facilities requiring code-compliant egress lighting
- Dimmable LED flat panel fixtures in conference rooms, open-plan offices, and corporate lobbies
- High bay fixtures in warehouses, distribution centers, and retail big-box stores with ceilings up to 28.5 feet
- Linear strip and channel fixtures in stairwells, hallways, and designated emergency egress paths
- K–12 schools, university buildings, and campus facilities subject to NEC and IBC emergency lighting mandates
- Healthcare facilities including hospital corridors, outpatient clinics, and assisted living common areas
- Hotel lobbies, banquet halls, and convention center meeting rooms with dimmable lighting systems
- Religious facilities, community centers, and assembly halls with life-safety occupancy requirements
- Multi-tenant commercial buildings and mixed-use properties requiring per-floor emergency backup compliance
- Plenum-rated ceiling spaces in commercial properties where above-ceiling driver placement is required
