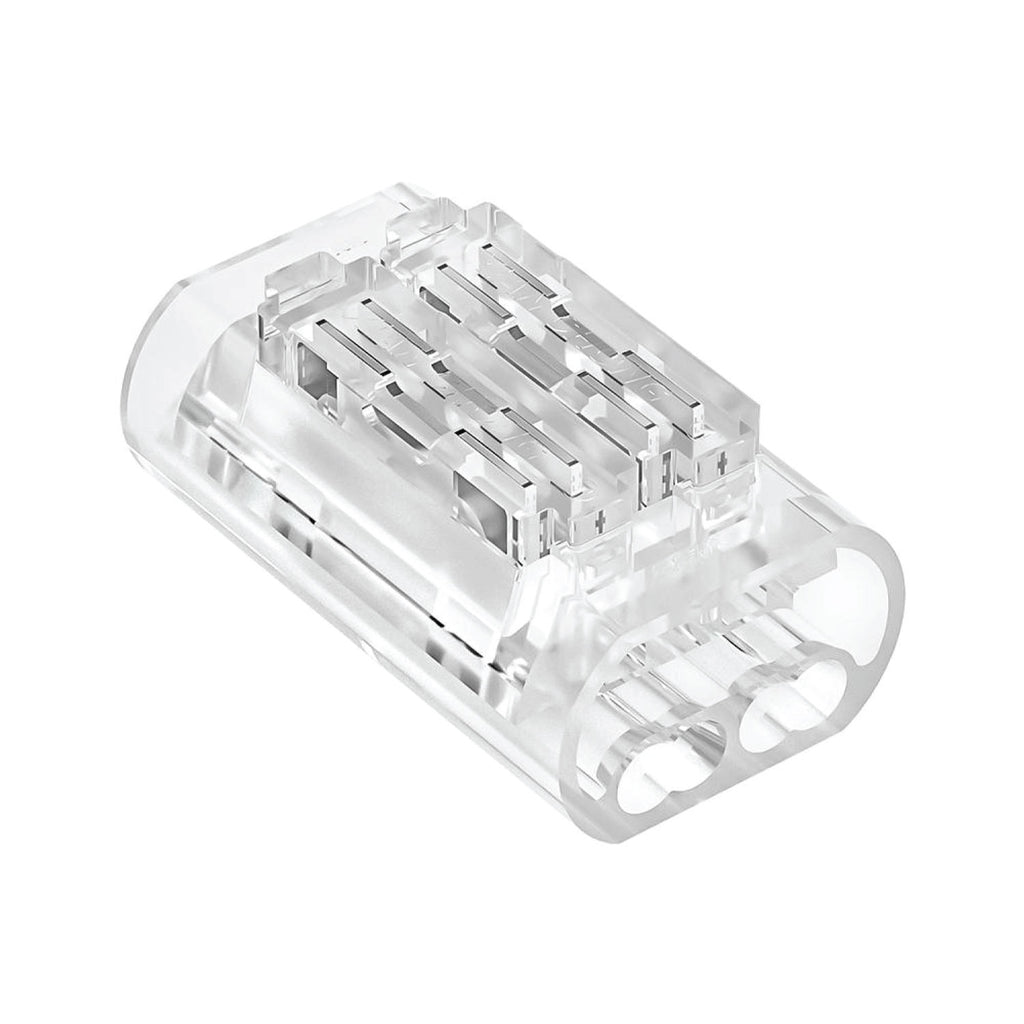

WJX-CC4 4-Conductor Wire Connector No-Strip, No-Solder RGB LED Splice
Tired of stripping wires, hunting for tape, or wrestling with terminal blocks mid-install? The WJX-CC4 takes all of that off the table.
This inline 4-conductor connector joins two wire runs end-to-end using IDC (Insulation Displacement Contact) technology, meaning the copper pins pierce the insulation as soon as you crimp it closed. No prep, no tools beyond a pair of standard pliers.
-
Works with both 20 AWG and 18 AWG: stranded or solid conductors, the go-to gauges for most low-voltage LED strip power cables and driver output leads
-
Two-step install: slide the conductors into the four terminal slots, squeeze shut with pliers, lock, done
-
Flat I-shape (inline) body: sits flush along the wire run, slipping cleanly inside aluminum extrusion channels, wiring tracks, and tight behind-panel spaces with zero added bulk.
-
Rated 300V / 8A per pin: fully compatible with 12V, 24V, and 48V DC RGB LED systems
-
IP40-rated polycarbonate housing: with copper contacts built for clean, reliable indoor use
- CE, RoHS, and REACH certified
Whether you're extending an RGB LED strip, wiring driver leads, or finishing off cabinet or furniture lighting, the WJX-CC4 keeps things neat, fast, and professional without leaving a trail of wire nuts.
