5-in-1 Universal Dimming Compatibility: A single driver supports all five major dimming methods — Triac/Phase-Cut, 0–10V, 1–10V, 10V PWM, and Potentiometer — eliminating the need to specify a dimming protocol at the time of purchase and ensuring compatibility with virtually any commercial or residential dimming system.
-
Full Dimming Range — 0.1% to 100%: Achieves a true 0.1–100% dimming range with smooth, flicker-free performance across the entire range — supporting deep-dim applications, scene control, and energy management strategies that demand precise output control at low levels.
-
384W / 24V Constant Voltage Output: Delivers a stable 24Vdc output at up to 384W total (4 channels × 4A max) — providing ample power for large LED strip runs, architectural lighting systems, signage, and multi-zone commercial installations from a single driver.
-
4-Channel Multichannel Output: Features 4 independent output channels at 4A each — allowing a single driver to simultaneously power multiple LED zones or strips with a shared dimming signal, reducing hardware count in multi-run installations.
-
Universal Commercial Input Voltage: Accepts 120–277VAC, 50–60Hz — compatible with standard US residential circuits, commercial 208V/240V/277V single-phase branch circuits, and international voltage ranges without modification.
-
Built-in Active PFC: Integrated active Power Factor Correction delivers PF up to 0.98 at 120V and up to 0.81 at 277V — meeting commercial energy codes and reducing reactive power draw on building electrical systems.
-
Flicker-Free Output: Engineered for flicker-free performance — critical for office, retail, and hospitality environments where occupant comfort and video/photography compatibility are required.
-
Fine Output Voltage Tuning: On-board fine voltage adjustment allows the output voltage to be trimmed to precisely match LED load requirements — compensating for cable voltage drop in long runs.
-
Class 2, UL/cUL Listed — Type HL Rated: Certified UL/cUL Class 2, Type HL for safe low-voltage output in commercial and residential applications — meeting NEC Class 2 wiring requirements and eliminating the need for conduit on the output side in most jurisdictions.
-
IP65 Rated — Dry, Damp & Wet Location Approved: Full IP65 ingress protection rated for dry, damp, and wet location use — suitable for outdoor signage, covered exterior applications, and humid interior environments including food service and natatoriums.
-
Comprehensive Protection Suite: Built-in short-circuit protection (Hiccup Mode, auto-recovery), over-voltage protection (auto-recovery), and over-temperature protection (auto-shutdown and recovery) — ensuring long-term reliability in demanding operating conditions.
-
Full Protection Aluminum Enclosure: Heavy-duty full aluminum housing provides structural protection, EMI shielding, and efficient thermal dissipation — rated for continuous operation from -40°C to +60°C ambient.
-
Flexible Mounting: Supports both flat and vertical mounting orientations — adaptable to junction box, panel, or surface-mount installation configurations.

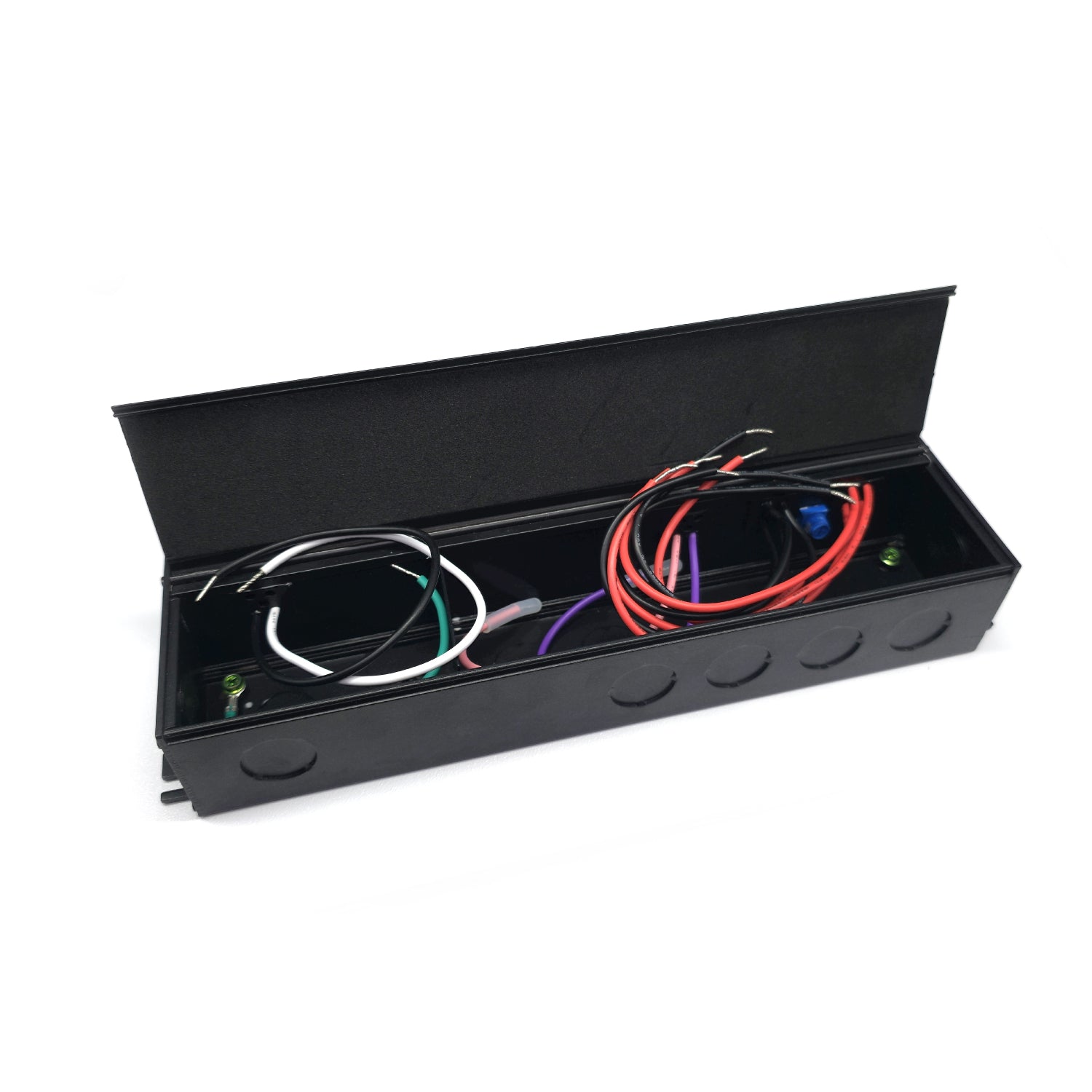

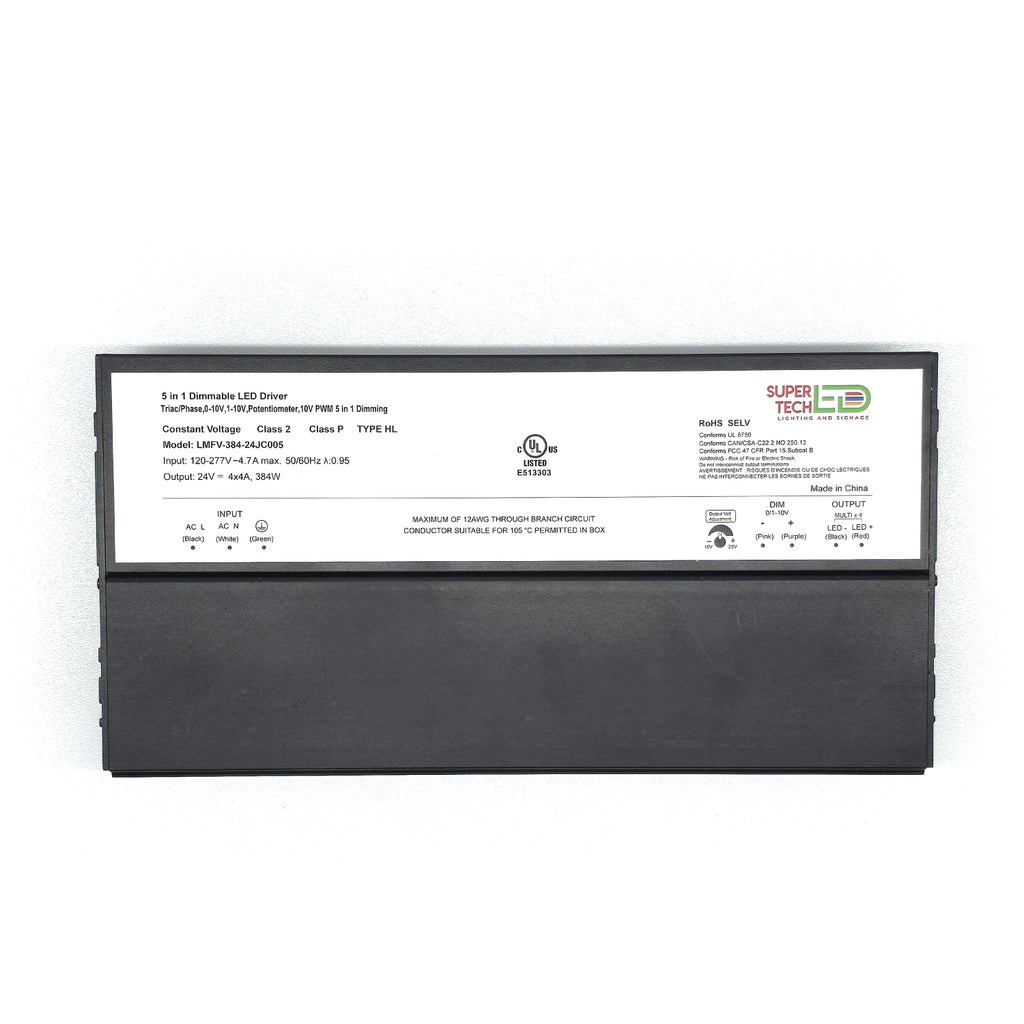

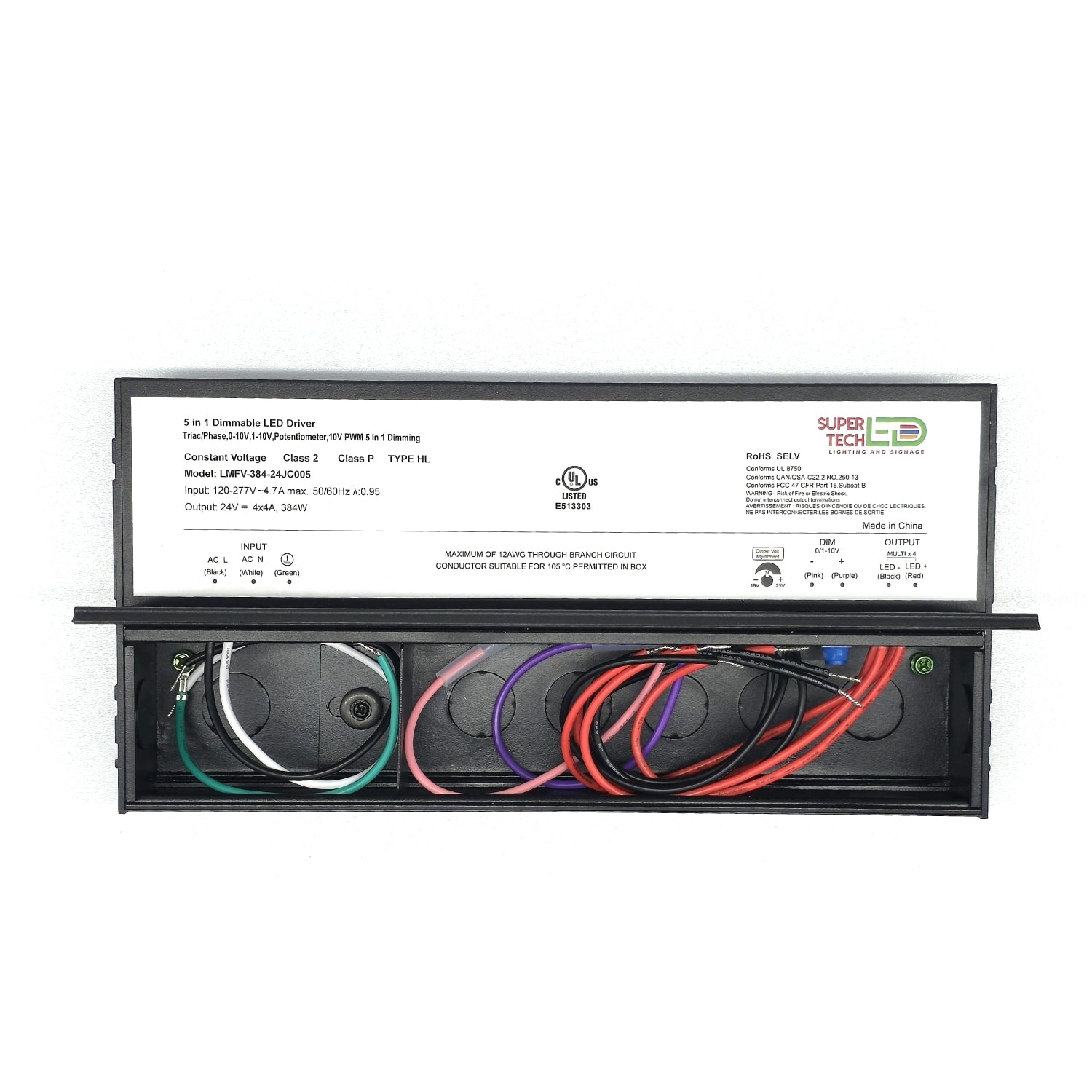

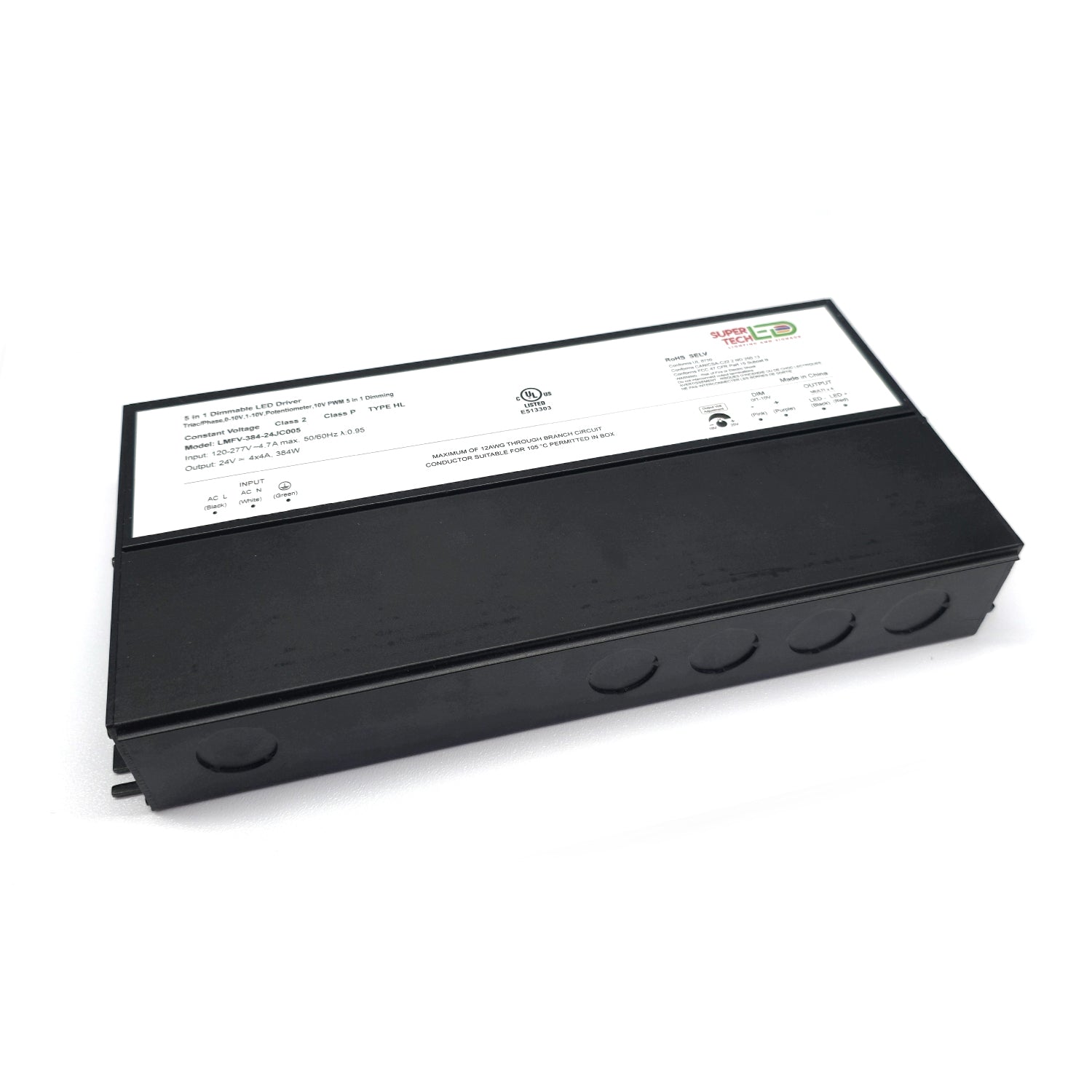

The LMFV-384-24JC005 is a professional-grade, 384W constant voltage LED driver built for commercial LED lighting installations that demand maximum dimming flexibility. With support for all five major dimming protocols, a 4-channel 4×4A output, universal 120–277V input, Class 2 UL/cUL certification, IP65 weatherproofing, and active PFC — it is engineered to perform across the full spectrum of commercial, architectural, and outdoor signage applications. Backed by a 5-year warranty.
