Description

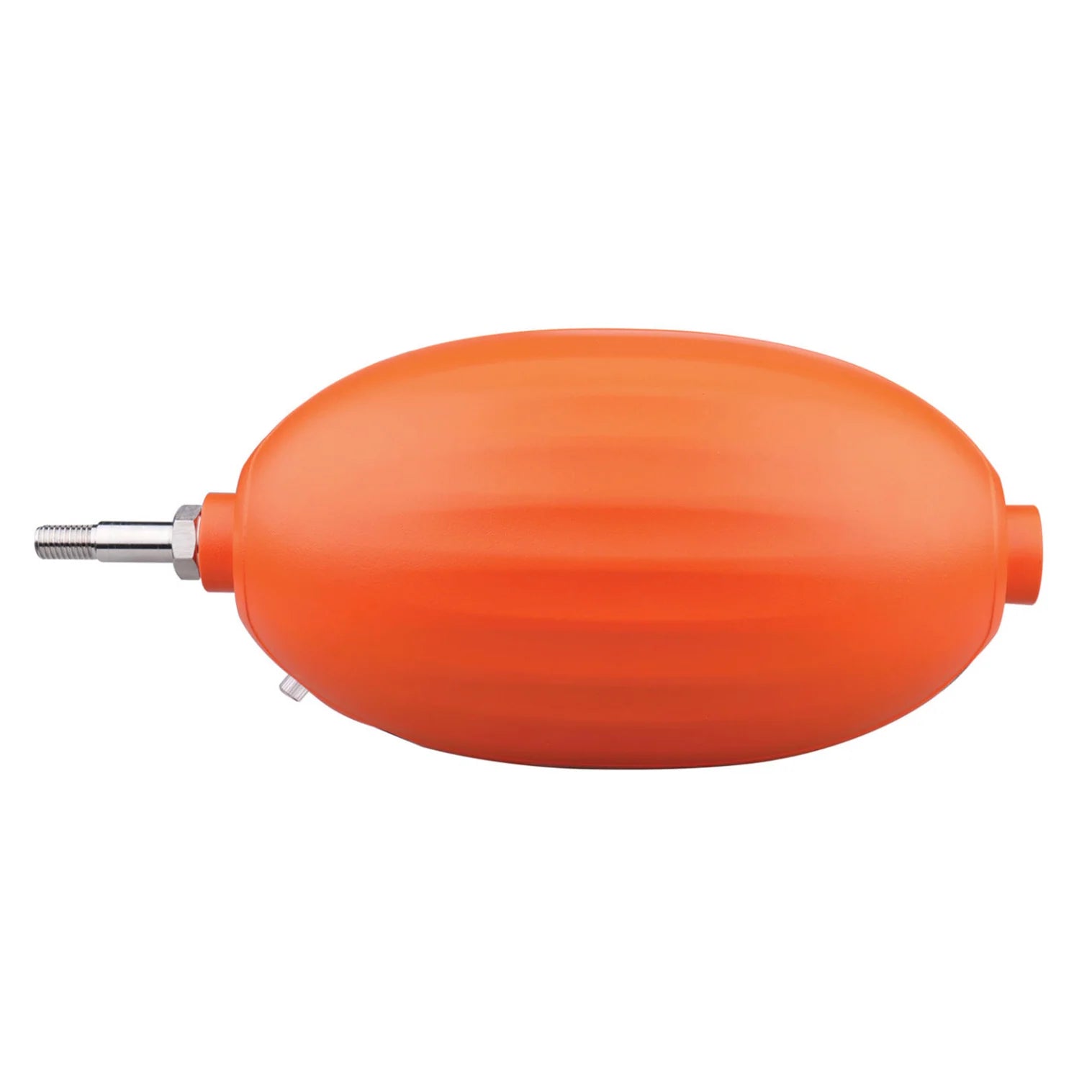

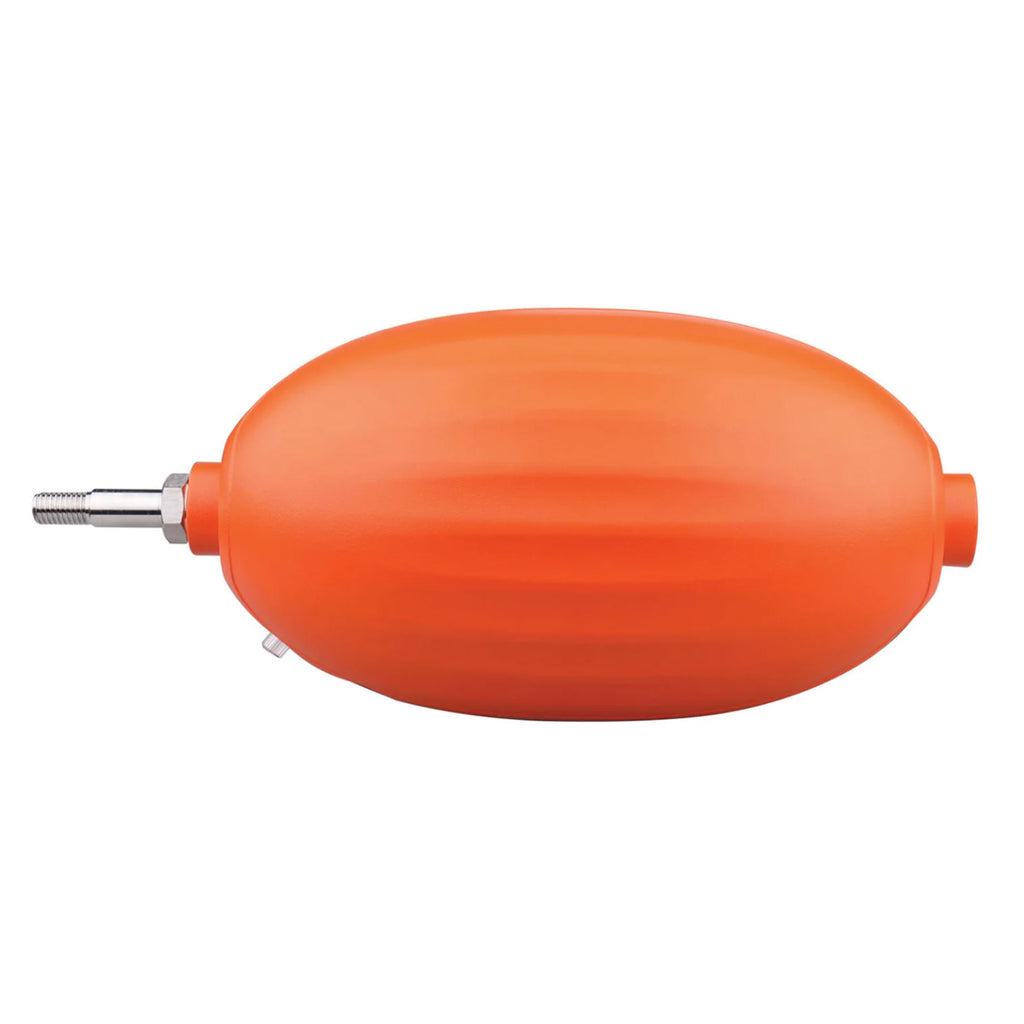

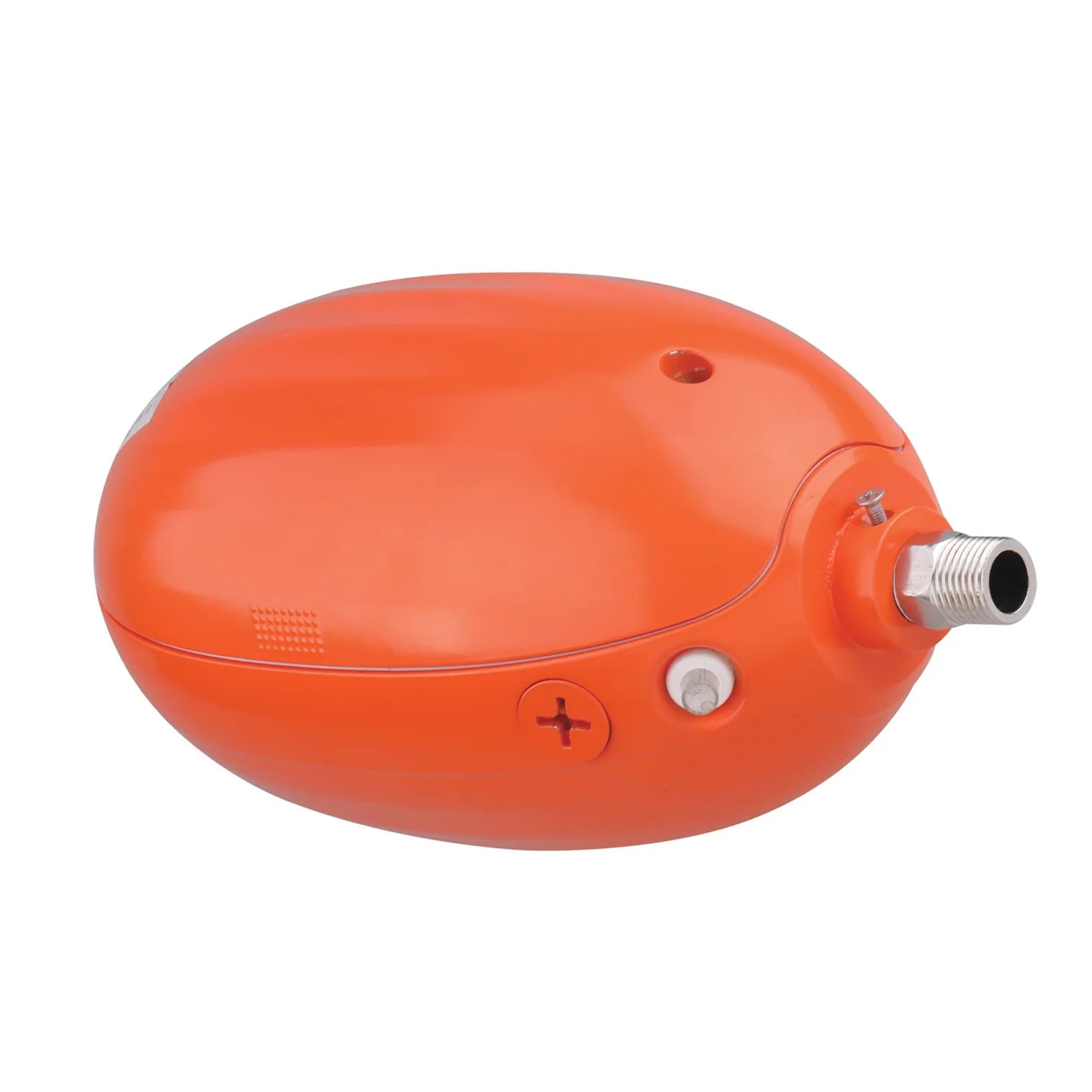

This 30W emergency battery backup is engineered specifically for UFO high bay LED fixtures, automatically switching to battery power when AC supply fails and delivering 90 minutes of constant emergency illumination. It accepts a 100–347VAC input range and outputs 170VDC to power 0-10V dimmable high bay fixtures rated up to 200W, with built-in over-voltage, short-circuit, overload, and open-circuit protection. The integrated junction box and multiple mounting options — including pole mount and ring mount — simplify installation at heights up to 48.65 feet. UL 924 Listed for the US and Canada and CEC Title 20 compliant, the unit features a built-in test switch with green LED charge indicator for convenient status monitoring and code-required testing.
Key Features +−
30W
Emergency Output
100–347 VAC
Input Range
90-Minute
Emergency Runtime
UL 924
Listed
Lithium-Ion
Battery
0-10V Dimming
Compatible
Specifications +−
| General | |
|---|---|
| Product Type | Emergency Battery Backup for UFO High Bay Lights |
| Emergency Output Wattage | 30W |
| Emergency Runtime | 90 Minutes (Minimum) |
| Recharge Time | 24 Hours |
| Installation | Field or Factory |
| Warranty | 5 Years |
| Electrical | |
| Input Voltage | 100–347 VAC, 50/60 Hz |
| Input Power (Charging) | 15W |
| Input Current | 200mA Max |
| Output Voltage (Emergency) | 170 VDC |
| Maximum Fixture Wattage | Up to 200W |
| Output Design | Constant Power |
| Dimming Compatibility | 0-10V (Dimming Driver Required) |
| Protection | Over-Voltage, Short-Circuit, Overload, Open-Circuit |
| Battery Type | Lithium-Ion |
| Physical | |
| Dimensions (Body) | 5.75" Diameter × 5.12" H × 0.98" D |
| Overall Length | 10.75" |
| Operating Temperature | 41°F – 122°F (5°C – 50°C) |
| Maximum Mounting Height | 48.65 ft |
| Junction Box | Built-In Integrated |
| Mounting Options | Pole Mount (G-Hook, Ring Bolt, M10/M12 Rod) or Ring Mount |
| Test Switch / Indicator | Built-In Test Switch with Green LED Charge Indicator |
| Location Rating | Dry, Damp, or Wet (Indoor Fixtures Only) |
| Certifications | |
| Safety Listing | UL Listed (US & Canada) |
| Standards | UL 924 / CSA C22.2 No. 141 |
| Energy Compliance | CEC Title 20 (California) |
Features +−
- Provides 30W of constant emergency output power optimized for UFO high bay LED fixtures in commercial and industrial environments.
- Automatically activates when AC power is interrupted, delivering 170VDC output in line with the connected LED driver to maintain emergency illumination.
- Accepts a 100–347VAC input voltage range at 50/60Hz, accommodating standard 120V branch circuits as well as 277V and 347V commercial electrical systems.
- Constant power output design maintains consistent 30W delivery even as the lithium-ion battery voltage decreases during the discharge cycle.
- Provides a minimum of 90 minutes of constant emergency illumination in compliance with life-safety code requirements.
- Compatible with 0-10V dimmable UFO high bay fixtures rated up to 200W; emergency output wattage should be at least 20% of the fixture's total output power.
- Built-in four-way protection covers over-voltage, short-circuit, overload, and open-circuit conditions to safeguard the unit and connected fixture.
- Lithium-ion battery pack delivers high energy density with a full recharge time of 24 hours; initial charge of 24+ hours is recommended to activate all battery cells.
- Integrated junction box with waterproof connectors simplifies wiring — AC output connects directly to the LED driver's AC input.

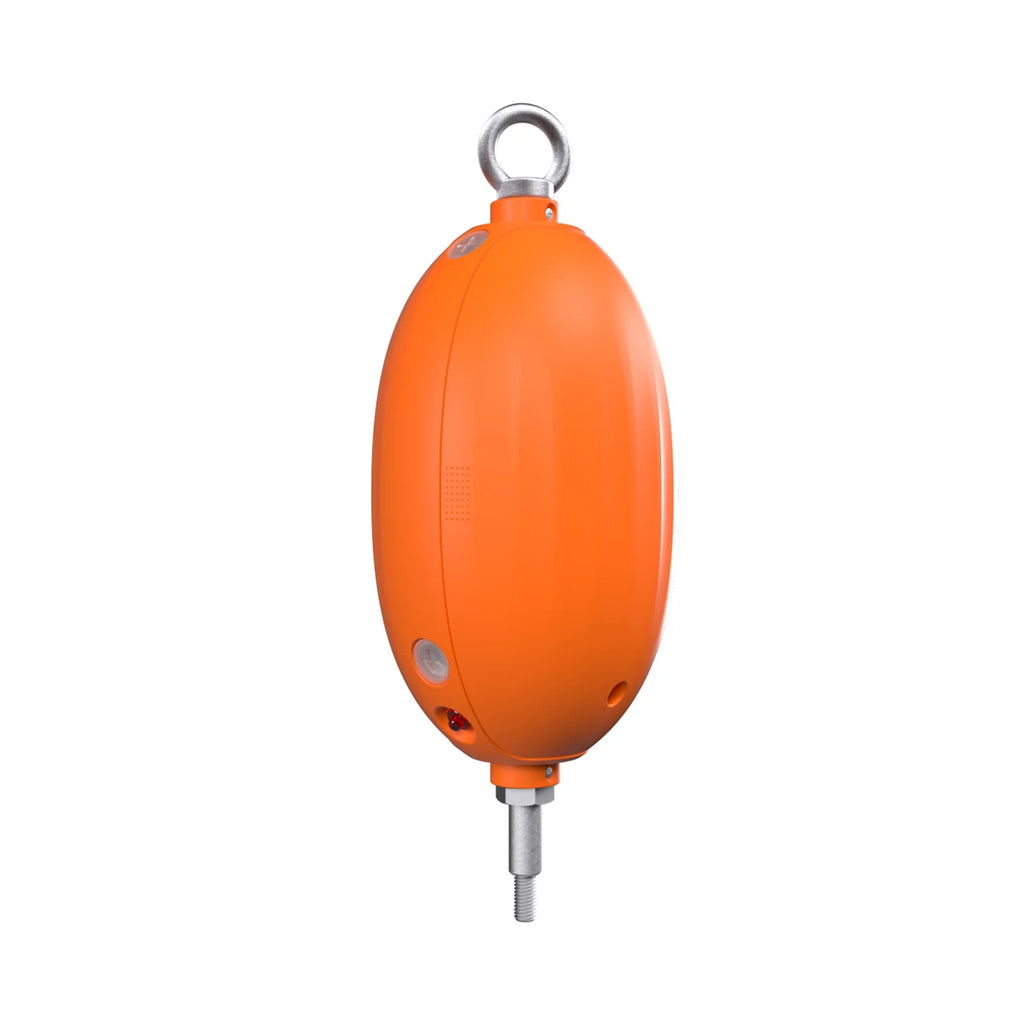

- Multiple mounting configurations including pole mount (G-hook, ring bolt, M10 rod, M12 rod) and ring mount for flexible installation at heights up to 48.65 feet.
- Built-in test switch with green LED charge indicator provides at-a-glance battery status — green on indicates charging mode, green off indicates discharge mode.
- Operating temperature range of 41°F to 122°F (5°C to 50°C) supports use in warehouses, manufacturing floors, and climate-controlled commercial spaces.
- UL Listed for the United States and Canada, tested to UL 924 and CSA C22.2 No. 141, and compliant with California Energy Commission (CEC) Title 20.
- Compact body dimensions of 5.75" diameter × 5.12" height × 0.98" depth with 10.75" overall length, designed to mount between the ceiling and UFO fixture.
- Suitable for both field retrofit of existing UFO high bays and factory installation in new construction projects.
- Backed by a 5-year warranty covering defects in materials and workmanship.
Applications +−
- Warehouse and distribution center UFO high bays along emergency egress routes and loading dock areas
- Manufacturing and industrial facility high bay fixtures requiring code-compliant emergency lighting
- Big-box retail stores and home improvement centers with high-ceiling sales floors
- Automotive service bays, tire shops, and vehicle maintenance facilities
- Indoor sports arenas, gymnasiums, and recreation centers with high-mount UFO fixtures
- Agricultural buildings, equipment barns, and cold storage facilities
- Airport hangars, transit maintenance depots, and fleet garages
- Commercial kitchen commissaries and food processing plants
- Parking structures and covered loading areas subject to UL 924 life-safety requirements
- School gymnasiums, university fieldhouses, and community recreation halls
