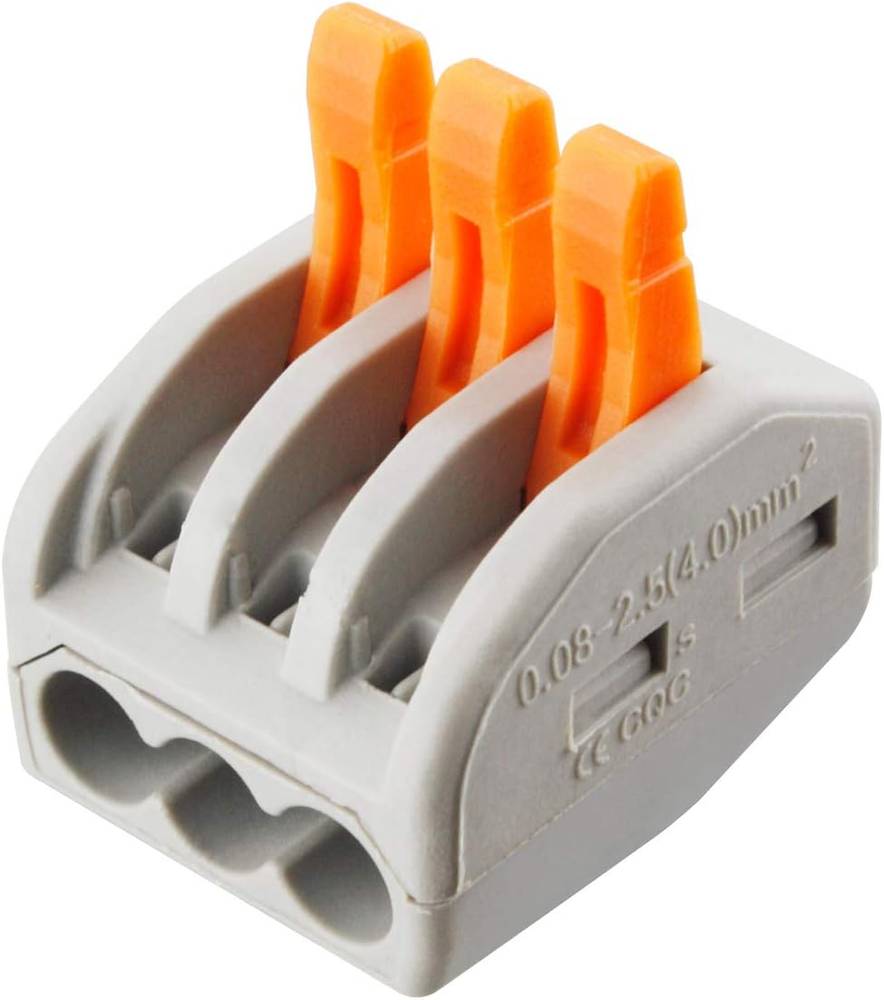

Note on housing color: This connector block is stocked in both transparent (clear) and grey housing. You may receive either color depending on current inventory — both versions are identical in specification, rating, and certification. The product image shows the grey variant.
- Lever spring-clamp terminal block for joining multiple wires without tools — lift the orange lever to release the internal spring clamp, slide the wire in until it seats fully, then press the lever back down to lock it under spring tension
- Available in 2, 3, 4, and 5 pole configurations — covers 2-wire DC power joins, 3-wire AC connections, and 4 or 5-conductor multi-circuit wiring from a single consistent connector style
- Accepts 28–12 AWG solid and stranded copper conductors — covers fine signal wire through heavy 12AWG power cable without needing a different connector type for different parts of the same installation
- Rated 450V / 32A — suitable for both low-voltage DC LED lighting circuits and standard AC branch circuit junction work
- Each pole operates independently with its own lever — seat and adjust one conductor at a time without disturbing wires already locked in adjacent poles
- Fully reusable — open and close the lever repeatedly without degrading the spring contact or damaging wire insulation, useful wherever a connection may need to be revisited or reconfigured
- Compact enough to fit inside standard junction boxes alongside other wiring — neater than a cluster of wire nuts, smaller than a terminal strip
- CE certified
Open, insert, close — a fast and reliable wire join for permanent junctions, junction box work, and any installation where clean connections and the occasional rework matter.
