Description

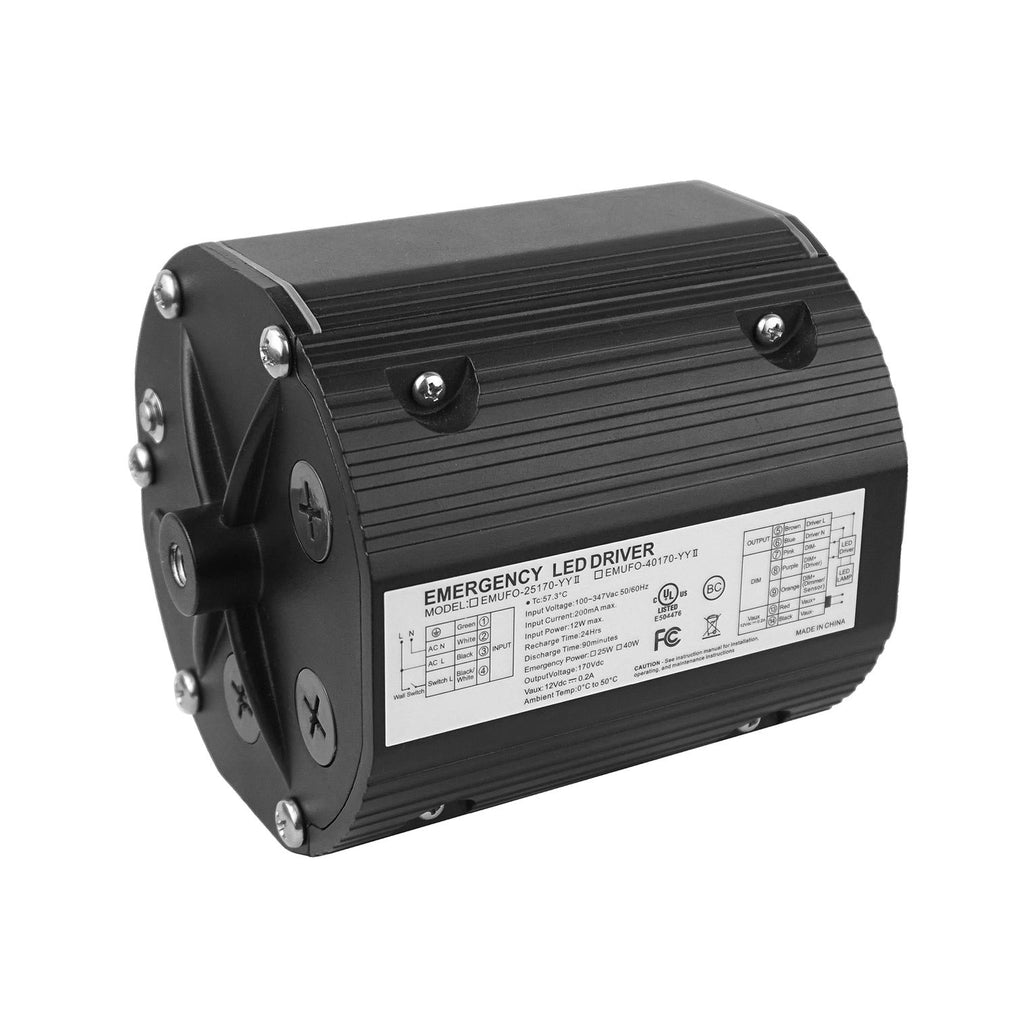

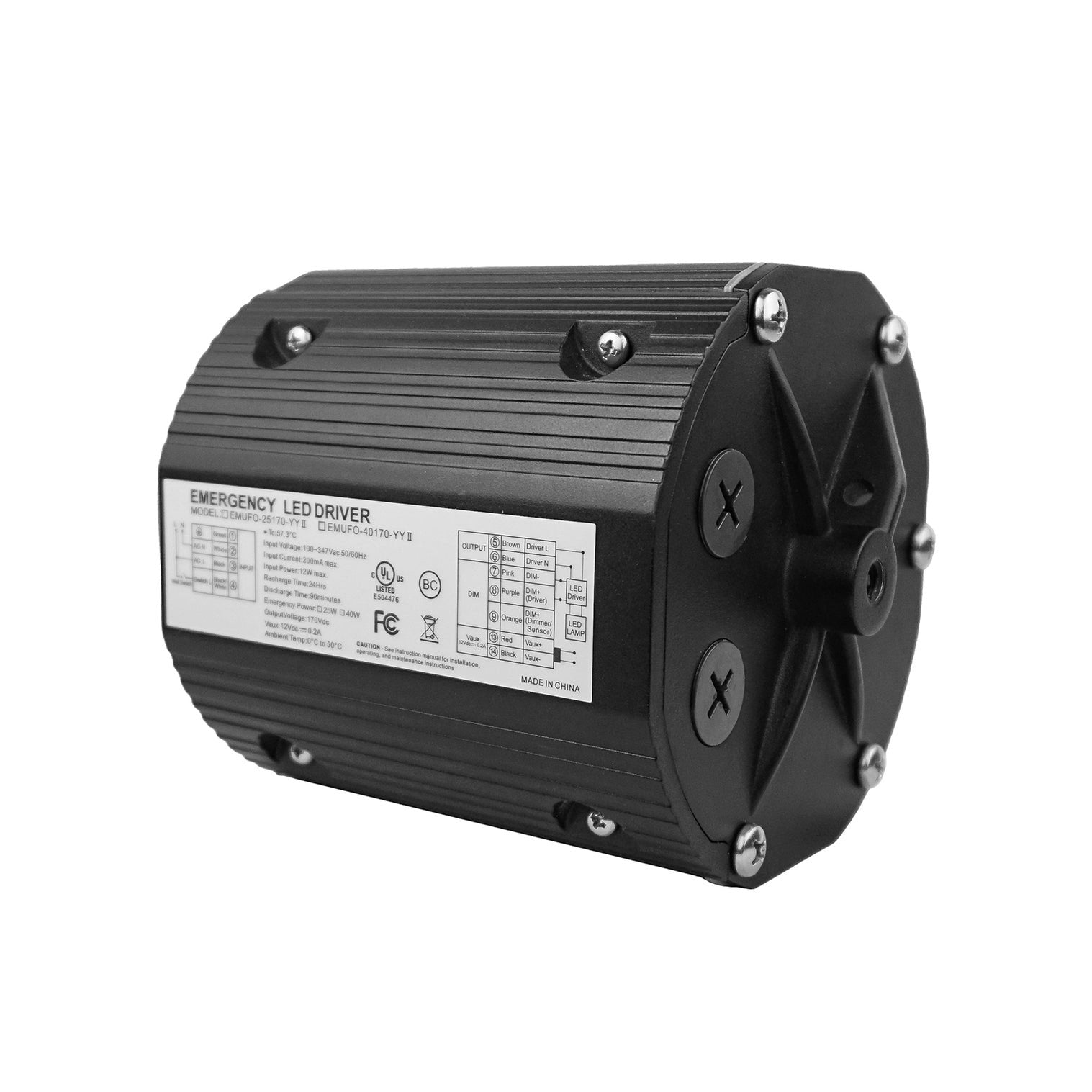

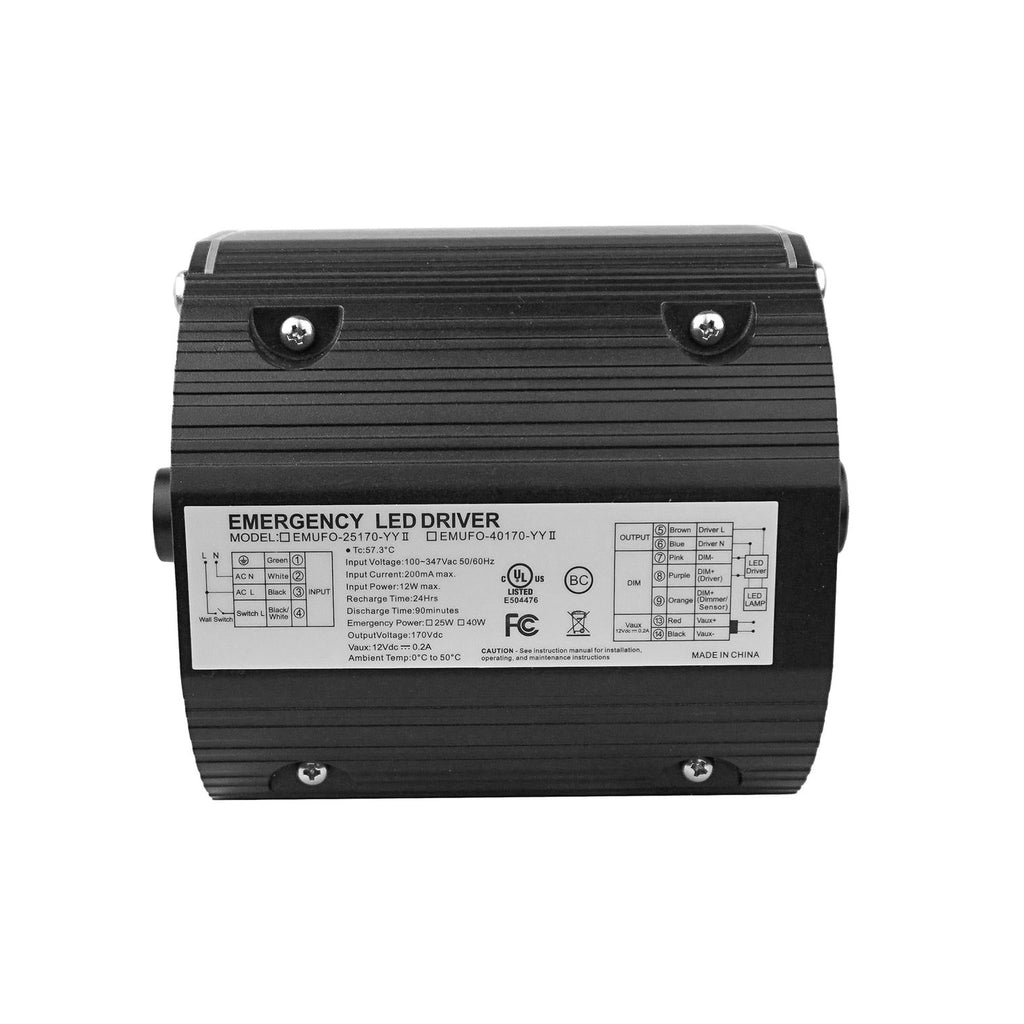

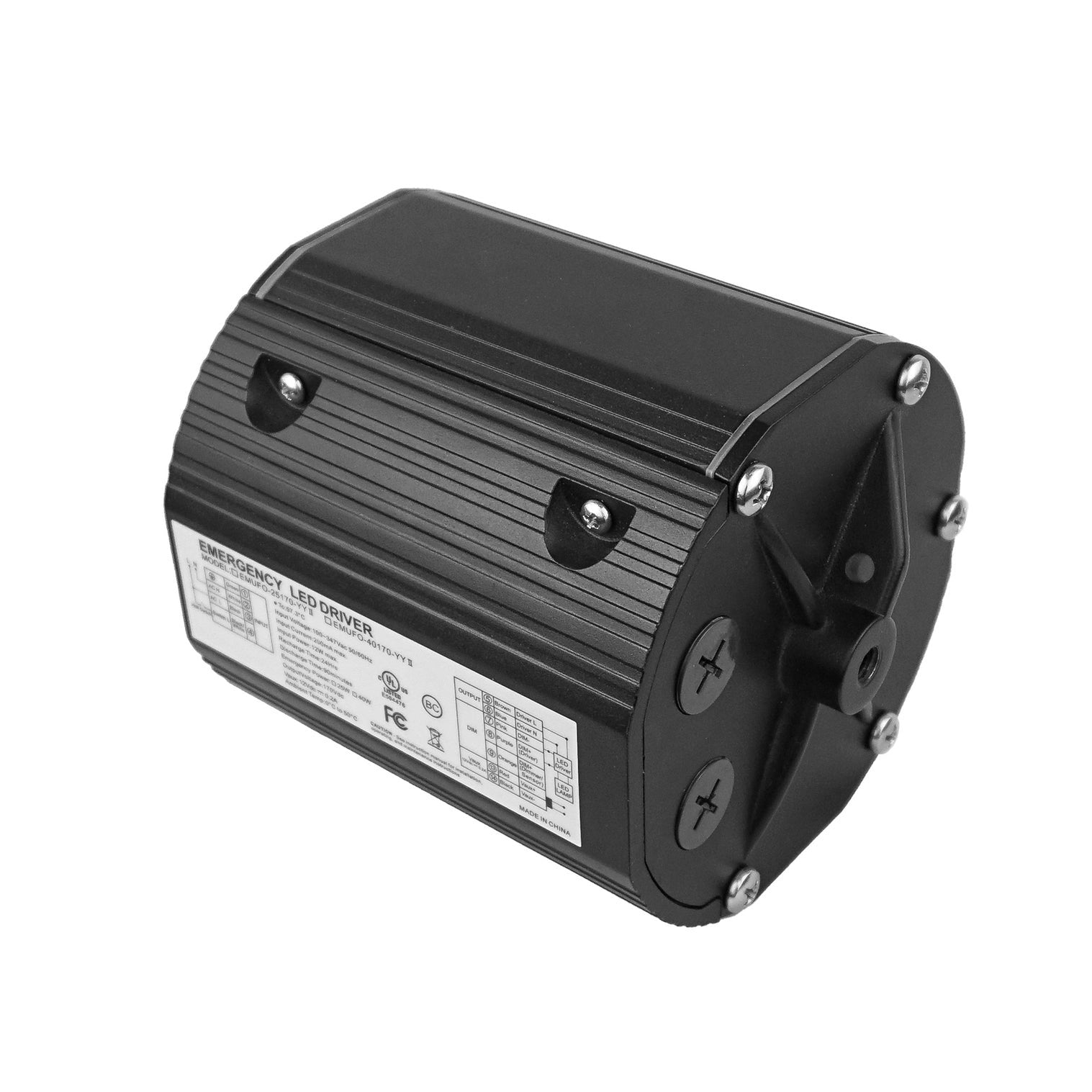

This 25W emergency battery backup is designed for UFO high bay LED fixtures, automatically switching to battery power when AC supply fails and delivering 90 minutes of constant emergency illumination. It accepts a wide 100–347VAC input range and outputs 170VDC to power 0-10V dimmable high bay fixtures rated up to 200W, with a constant current wattage design that maintains full output as the lithium-ion battery discharges. Rated IP65 and UL 924 Listed for the US and Canada, the unit features a slim profile for in-fixture mounting and includes a remote test switch and charge indicator module for single-gang box installation.
Key Features +−
25W
Emergency Output
100–347 VAC
Input Range
90-Minute
Emergency Runtime
IP65
Waterproof
UL 924
Listed
0-10V Dimming
Compatible
Specifications +−
| General | |
|---|---|
| Product Type | Emergency Battery Backup for UFO High Bay Lights |
| Emergency Output Wattage | 25W |
| Emergency Runtime | 90 Minutes (Minimum) |
| Recharge Time | 24 Hours |
| Installation | Field or Factory |
| Warranty | 5 Years |
| Electrical | |
| Input Voltage | 100–347 VAC |
| Output Voltage (Emergency) | 170 VDC |
| Maximum Fixture Wattage | Up to 200W |
| Output Design | Constant Current Wattage |
| Dimming Compatibility | 0-10V (Dimming Driver Required) |
| Surge Protection | 3kV |
| Battery Type | Lithium-Ion |
| Physical | |
| Ingress Protection | IP65 |
| Operating Temperature | 32°F – 122°F (0°C – 50°C) |
| Wiring | Flexible Conduit (External Wires) |
| Form Factor | Slim Profile for In-Fixture Mounting |
| Test Switch / Indicator | Remote Module (Single-Gang Box) |
| Certifications | |
| Safety Listing | UL Listed (US & Canada) |
| Standards | UL 924 / CSA C22.2 No. 141 |
Features +−
- Provides 25W of emergency output power designed for UFO high bay LED fixtures in commercial and industrial environments.
- Automatically activates when AC power is interrupted, delivering 170VDC output in line with the connected LED driver to maintain emergency illumination.
- Accepts a wide 100–347VAC input voltage range, accommodating standard 120V branch circuits as well as 277V and 347V commercial electrical systems.
- Constant current wattage design maintains consistent 25W output even as the lithium-ion battery voltage decreases during the discharge cycle.
- Provides a minimum of 90 minutes of constant emergency illumination in compliance with life-safety code requirements.
- Compatible with 0-10V dimmable UFO high bay fixtures rated up to 200W; a 0-10V dimming driver is required for proper operation.
- Built-in 3kV surge protection guards the battery backup and connected driver against transient voltage spikes common in industrial electrical environments.
- Lithium-ion battery pack delivers high energy density in a compact form factor, with a full recharge time of 24 hours after a complete discharge.
- IP65 waterproof rating protects internal electronics against dust ingress and low-pressure water jets, suitable for damp or wet high bay locations.

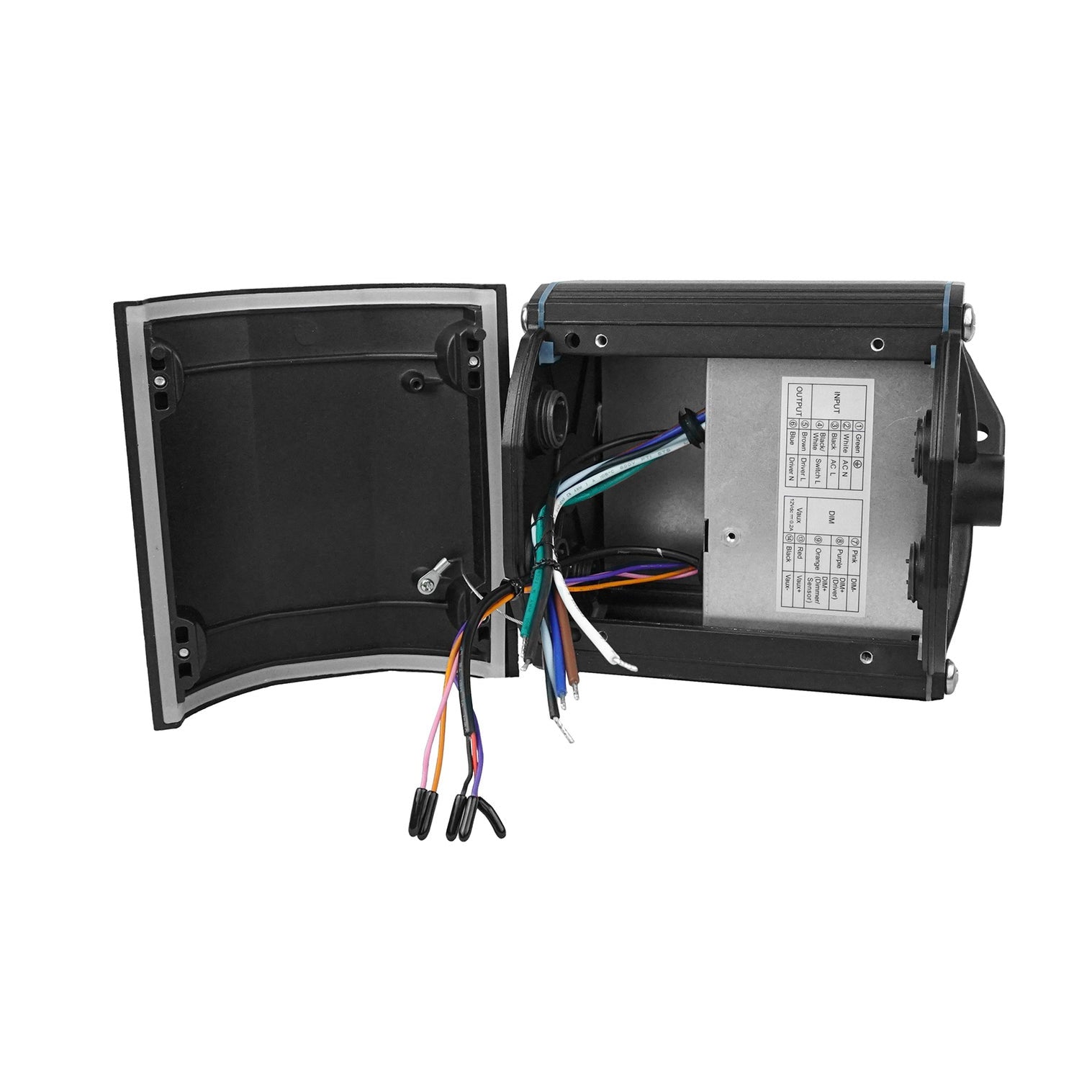

- Slim profile body with flexible conduit wiring is designed for direct mounting inside or alongside UFO high bay fixture housings.
- Included remote test switch and charge indicator module fits a standard single-gang electrical box for convenient wall-mounted access and code-required testing.
- Operating temperature range of 32°F to 122°F (0°C to 50°C) supports use in warehouses, manufacturing floors, and semi-exposed overhead locations.
- UL Listed for the United States and Canada and tested to UL 924 and CSA C22.2 No. 141 for compliance with commercial safety and fire codes.
- Suitable for both field retrofit of existing UFO high bays and factory installation in new construction projects.
- Backed by a 5-year warranty covering defects in materials and workmanship.
Applications +−
- Warehouse and distribution center UFO high bays along emergency egress routes and loading dock areas
- Manufacturing and industrial facility high bay fixtures requiring code-compliant emergency lighting
- Big-box retail stores and home improvement centers with high-ceiling sales floors
- Automotive service bays, tire shops, and vehicle maintenance facilities
- Indoor sports arenas, gymnasiums, and recreation centers with high-mount UFO fixtures
- Agricultural buildings, equipment barns, and cold storage facilities
- Airport hangars, transit maintenance depots, and fleet garages
- Commercial kitchen commissaries and food processing plants with IP65-rated environments
- Parking structures and covered loading areas subject to UL 924 life-safety requirements
- School gymnasiums, university fieldhouses, and community recreation halls
