Description

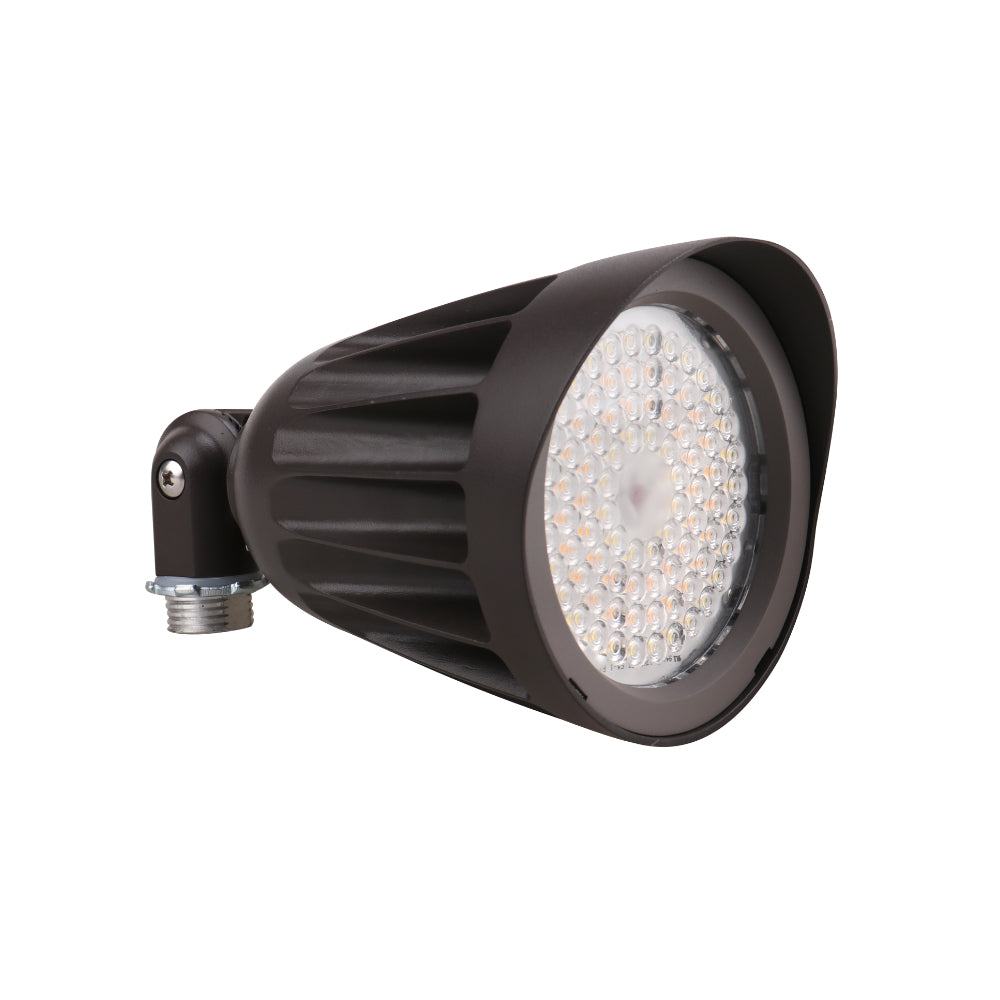

This 25W LED bullet flood light is purpose-built for landscape and outdoor area lighting. Selectable wattage 15W, 20W, or 25W and three field-switchable color temperatures let one fixture cover a wide range of installations without stocking multiple SKUs. The integrated dusk-to-dawn photocell handles on/off automatically, the angle-adjustable knuckle bracket aims precisely at any target, and the heavy die-cast aluminum housing with bronze powder-coat finish holds up through rain, heat, and cold. UL, CUL, and DLC Listed with a 5-year warranty.
Key Features +
15W / 20W / 25W
Selectable
3000K / 4000K
/ 5000K CCT
Integrated
Photocell
Up to 3,200
Lumens
Angle-Adjustable
Knuckle Mount
UL / CUL
/ DLC Listed
Specifications +
| General | |
|---|---|
| Model No. | AST-FL17-25WBH5DA1 |
| LED Chip | Lumileds 2835 |
| LED Driver | UL Listed BHE Brand |
| Equivalent Replacement | 50–100W MH / HPS |
| Electrical | |
| Wattage (Selectable) | 15W / 20W / 25W |
| Lumen Output (at 25W) | 3,200 lm |
| Efficacy | 128 lm/W |
| Color Temperature (Selectable) | 3000K / 4000K / 5000K |
| CRI | >80 |
| Input Voltage | 120–277VAC |
| Dimming | 0–10V |
| Power Factor | 0.9 |
| Optical | |
| Beam Angle | 38° |
| Light Distribution | 120D |
| Lens | High-Quality Tempered PC |
| Physical | |
| Housing | Heavy Die-Cast Aluminum, Bronze Powder-Coat Finish |
| Mounting | Angle-Adjustable Knuckle Bracket |
| Operating Temperature | -40°C to +45°C |
| Photocell | Integrated Dusk-to-Dawn |
| Certifications | UL, CUL, DLC |
| Warranty | 5 Years |
Features +
- Switchable Wattage: Can be switched safely and without replacing the fixture between 15W, 20W and 25W settings in the field. Adaptable fixture models can be used for multiple applications such as pathway lighting, tree uplighting, architectural accents and area floodlighting with different beam distances.
- Three field-switchable color temperatures 3000K warm white, 4000K neutral, and 5000K daylight selectable at installation to match the landscape palette or site requirement.
- Integrated dusk-to-dawn photocell eliminates manual switching and timers the fixture turns on automatically at dusk and off at dawn with no additional controls or wiring required.
- 3,200 lumens at 25W with 128 lm/W efficacy from premium Lumileds 2835 chips soft, uniform output with no flicker and no humming from instant-start operation.
- 0–10V dimming compatible for installations requiring additional control beyond the photocell
- 38° beam angle concentrates output precisely, making this fixture effective for uplighting trees, flagpoles, signage, and architectural features without excessive spill.
- Angle-adjustable knuckle bracket allows precise aiming across a wide range reposition at any time without tools to redirect the beam as landscaping matures.
- Heavy Duty Die-Cast Aluminium Housing + Bronze Powder Coated: Extreme temperature resistance (-40℃ to +45℃), high corrosion resistance for long-term use in the outdoor environment.
- Impact-Resistant Lens Protection: High quality tempered PC lens provides efficient light transmission and will offer protection from dust, debris, moisture and outdoor environmental conditions for the LED components.
- Replaces 50–100W metal halide and HPS fixtures at a fraction of the energy draw mercury-free and fully RoHS compliant.
- UL and CUL Listed with a UL-listed BHE brand driver; DLC Listed for utility rebate eligibility.
Applications +
- Uplighting of trees and shrubs for residential gardens, commercial landscaping, and outdoor spaces.
- Flag poles, monuments and signage accent lighting for increased visibility and aesthetic appeal.
- Washing of building façades, architectural structures, and exterior elements for accent lighting.
- Lighting of pathways, walkways, borders of the garden, and outdoor pedestrian zones.
- Outdoor sports facilities such as basketball courts, tennis courts and other recreational fields.
- Outdoors parking lot perimeter lights and access points.
- School playgrounds, stadiums, community centers and other public spaces.
- Outdoors warehouses, industries, factory grounds and commercial work places.
- Outdoor highway toll booths, events venues and other outdoor meeting/exhibition spaces.
