Description
This 20W emergency LED driver installs alongside the fixture's existing driver and automatically activates when AC power fails, delivering 90 minutes of constant emergency illumination at 170VDC. It accepts a 100–347VAC input range and powers 0-10V dimmable fixtures up to 150W or non-dimming LED luminaires up to 20W, with built-in self-testing that monitors emergency readiness without manual intervention. The IP65-rated, slim-profile unit features flexible conduit wiring for clean in-fixture installation and includes a 2-in-1 test switch and multi-color charge indicator. UL 924 Listed for the US and Canada and CEC Title 20 certified, it is backed by a 5-year warranty.
Key Features +−
20W
Emergency Output
100–347 VAC
Input Range
90-Minute
Emergency Runtime
Self-Testing
Built-In
UL 924
Listed
IP65
Waterproof
Specifications +−
| General | |
|---|---|
| Product Type | Emergency LED Driver with Battery Backup |
| Emergency Output Wattage | 20W (Constant) |
| Emergency Runtime | 90 Minutes (Minimum) |
| Recharge Time | 24 Hours |
| Self-Testing | Yes — Constant Output Power Self-Testing |
| Installation | Field or Factory |
| Warranty | 5 Years |
| Electrical | |
| Input Voltage | 100–347 VAC, 50/60 Hz |
| Input Current | 100mA Max |
| Recharge Power | 12W Max |
| Output Voltage (Emergency) | 170 VDC |
| Max Fixture Wattage (0-10V Dimming) | Up to 150W |
| Max Fixture Wattage (Non-Dimming) | Up to 20W |
| Output Design | Constant Power |
| Dimming Compatibility | 0-10V (Dimming Driver Required) |
| Max Driver Output Current | 4A |
| Surge Protection | 3kV |
| Battery Type | Lithium-Ion (High Temperature, Recyclable) |
| Physical | |
| Dimensions (Driver Body) | 12.99" × 1.97" × 0.93" |
| Ingress Protection | IP65 |
| Operating Temperature | 32°F – 122°F (0°C – 50°C) |
| Maximum Mounting Height | 15.5 ft |
| Wiring | Flexible Conduit (External Wires) |
| Form Factor | Slim Profile for In-Fixture Mounting |
| Location Rating | Dry and Damp Locations (Indoor Only) |
| Test Switch / Indicator | 2-in-1 Test Switch & Multi-Color Charge Indicator |
| Certifications | |
| Safety Listing | UL Listed (US & Canada) |
| Standards | UL 924 / CSA C22.2 No. 141 |
| Energy Compliance | CEC Title 20 (California) |
Features +−
- Provides 20W of constant emergency output power, automatically activating when AC power is interrupted and delivering 170VDC in line with the connected LED driver.
- Compatible with 0-10V dimmable fixtures rated up to 150W or non-dimming LED luminaires up to 20W; a 0-10V dimming driver is required for fixtures above 20W.
- Accepts a wide 100–347VAC input voltage range at 50/60Hz, accommodating standard 120V branch circuits as well as 277V and 347V commercial electrical systems.
- Built-in self-testing circuitry with constant output power monitoring verifies emergency readiness and reports status through the multi-color indicator without manual intervention.
- Multi-color charge indicator provides at-a-glance status — green flashing indicates charging, green solid indicates fully charged, red solid indicates emergency mode, red flashing indicates low battery, and yellow indicates a fault condition.
- Provides a minimum of 90 minutes of constant emergency illumination in compliance with life-safety code requirements.
- IP65 waterproof rating protects internal electronics against dust ingress and low-pressure water jets in damp or wet-adjacent locations.
- Built-in 3kV surge protection guards the driver and connected fixture against transient voltage spikes in commercial electrical environments.
- Long-life, high-temperature recyclable lithium-ion battery pack with a full recharge time of 24 hours and low 12W standby recharge draw.

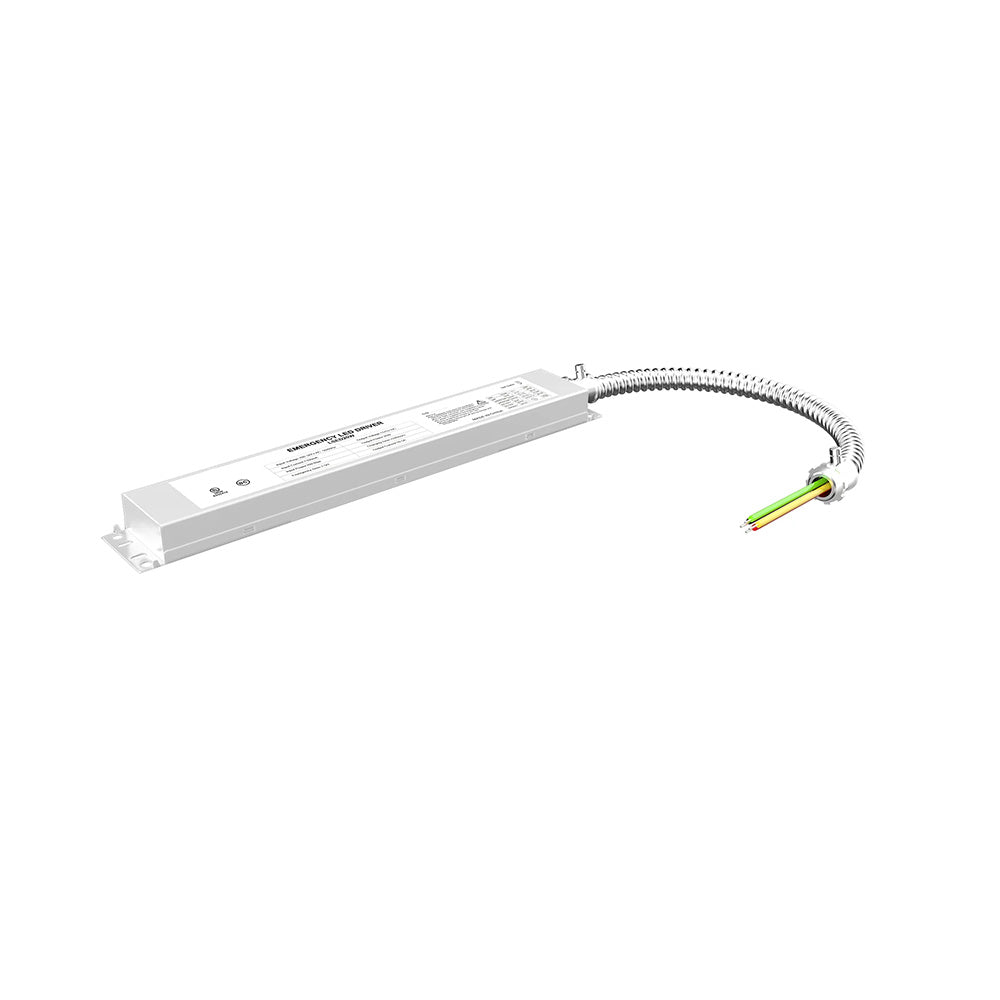

- Slim profile body measures 12.99" × 1.97" × 0.93" with flexible conduit wiring for clean in-fixture installation inside troffers, panels, and enclosed luminaires.

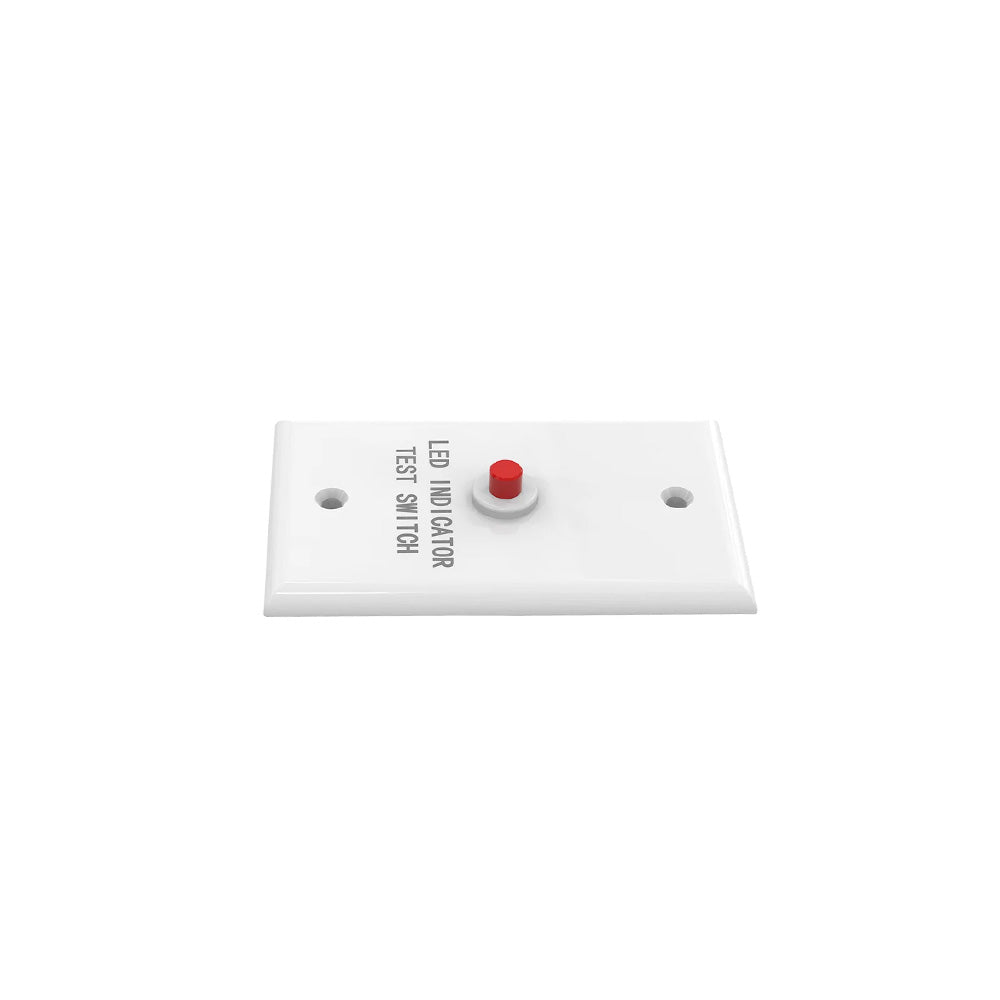

- Included 2-in-1 test switch and charge indicator light mounts to the fixture or ceiling for accessible status monitoring and manual testing.
- Maximum AC LED driver output current of 4A ensures compatibility with a wide range of commercial LED drivers on the market.
- Operating temperature range of 32°F to 122°F (0°C to 50°C) with a maximum mounting height of 15.5 feet, suitable for standard-height commercial ceilings.
- Rated for dry and damp indoor locations; not for use in air-handling fixtures, outdoors, or near gas or electric heaters.
- UL Listed for the United States and Canada, tested to UL 924 and CSA C22.2 No. 141, and certified to CEC Title 20 for California energy compliance.
- Suitable for both field retrofit of existing fixtures and factory installation in new construction projects.
- Backed by a 5-year warranty covering defects in materials and workmanship.
Applications +−
- Recessed troffers and flat panel fixtures in office buildings, courthouses, and government facilities requiring code-compliant egress lighting
- Commercial downlights in hotel corridors, retail storefronts, medical offices, and reception areas
- Linear strip and channel fixtures in stairwells, hallways, and designated emergency egress paths
- Dimmable LED panel lights in conference rooms, classrooms, and open-plan office environments
- K–12 schools, universities, and campus buildings subject to NEC and IBC emergency lighting mandates
- Healthcare facilities including hospital corridors, outpatient clinics, and assisted living common areas
- Religious facilities, community centers, and assembly halls with life-safety occupancy requirements
- Multi-tenant commercial buildings and mixed-use properties requiring per-floor emergency backup
- Retail fitting rooms, stockrooms, and back-of-house corridors with standard-height ceilings
- Library reading rooms, museum galleries, and archival spaces requiring low-profile emergency drivers
