200W Passive Infrared Sensor – 120° Detection – 10M Range – IP65 Waterproof – CE Certified

SKU: STL-SZ-MS200W-PIR

Price:
Sale price$19.97

Description

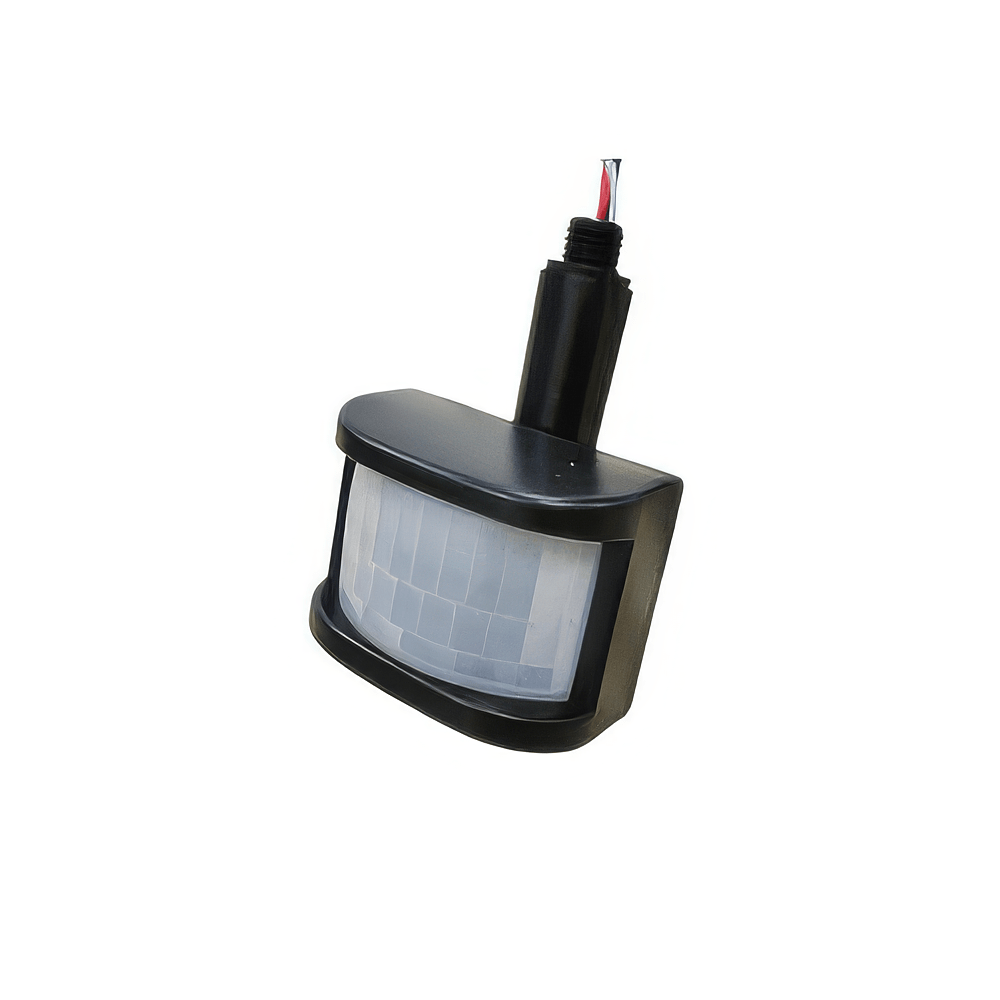

Boost your security with the SZ-MS200W-PIR Passive Infrared Motion Sensor. It is designed for residential and commercial use and offers powerful performance with innovative features.

  • Wide Detection Coverage: With a 120° sensing angle at a 2-meter height, this PIR sensor is ideal for monitoring large areas indoors and outdoors.
  • Extended Sensing Range: Motion can be detected from a distance of 10 meters, which improves reaction speed and accuracy and maximizes safety and energy efficiency.
  • Customizable Settings: Configure your setup by adjusting the lux sensitivity (3-1000 LUX) and set a time delay between 8 seconds and 12 minutes for various applications
  • Energy Saving & High Load Support: Consumes less than 0.5W in standby mode and can handle up to 200W of LED lighting with a power factor greater than 0.9, helping reduce energy waste.
  • Withstanding severe weather features: Its IP65 waterproof rating ensures it reliably withstands severe wear and extreme weather conditions. From −10 °C to +40 °C, and up to 85% humidity makes it perfect for the outdoors.
Product Attributes
Model SZ-MS200W-PIR Detection Principle Passive Infrared
Voltage 120-277V AC, 50/60Hz PIR Power Consumption ≤0.5W
Detection Range 120° @ 2M height Detection Distance MAX 10M
Power 200W LED Lux Adjustment 3–1000 LUX (SVR)
Time Adjustment 8s±5s – 12min±2min Installation Height 1.5–2.5M
Operating Temp -10°C to 40°C Storage Temp -20°C to 60°C
Humidity Up to 85% RH Waterproof Rating IP65
Class Rating Class II Certification CE EN61347-1/2
Application Indoor/Outdoor Lighting Dimensions 77×60×34 mm
