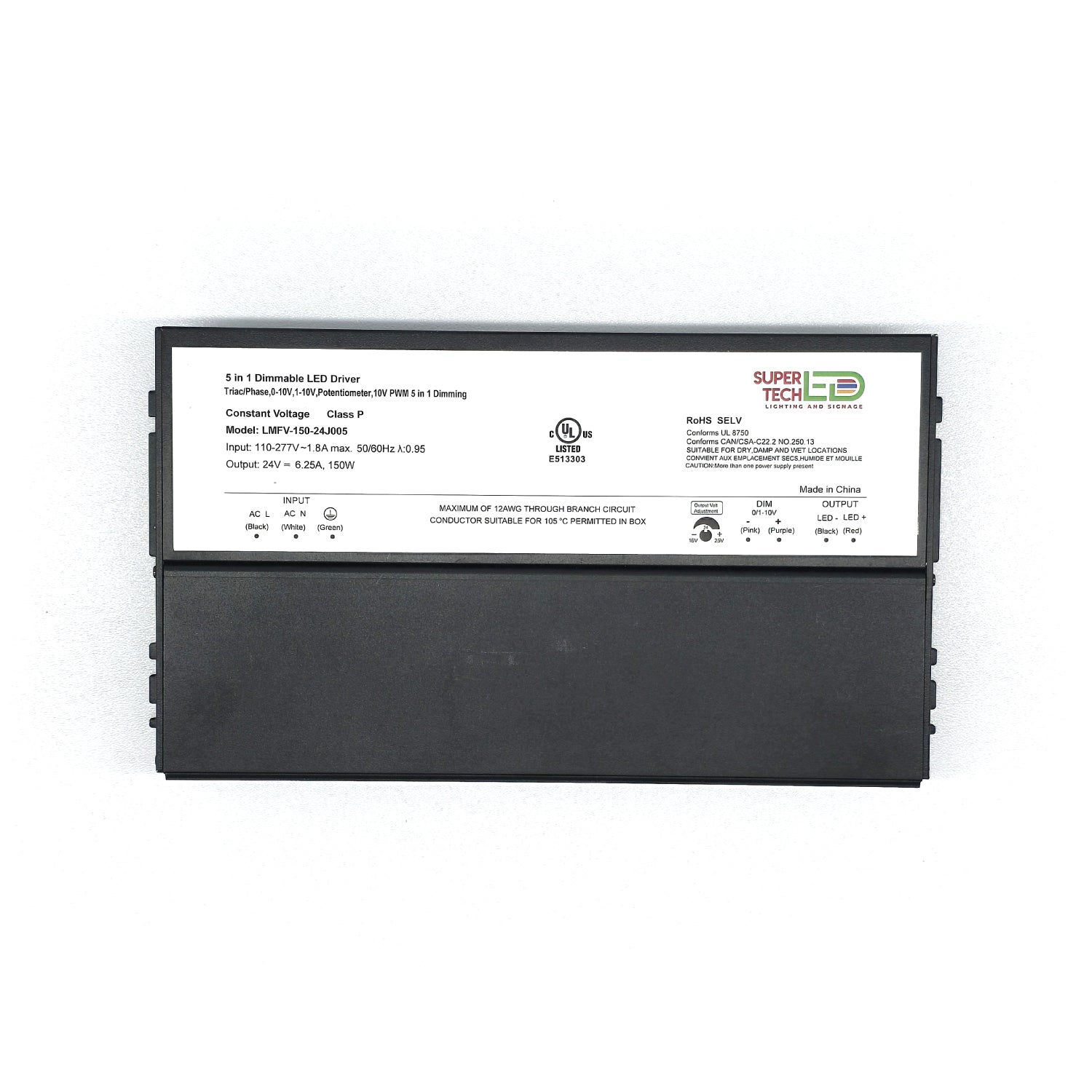

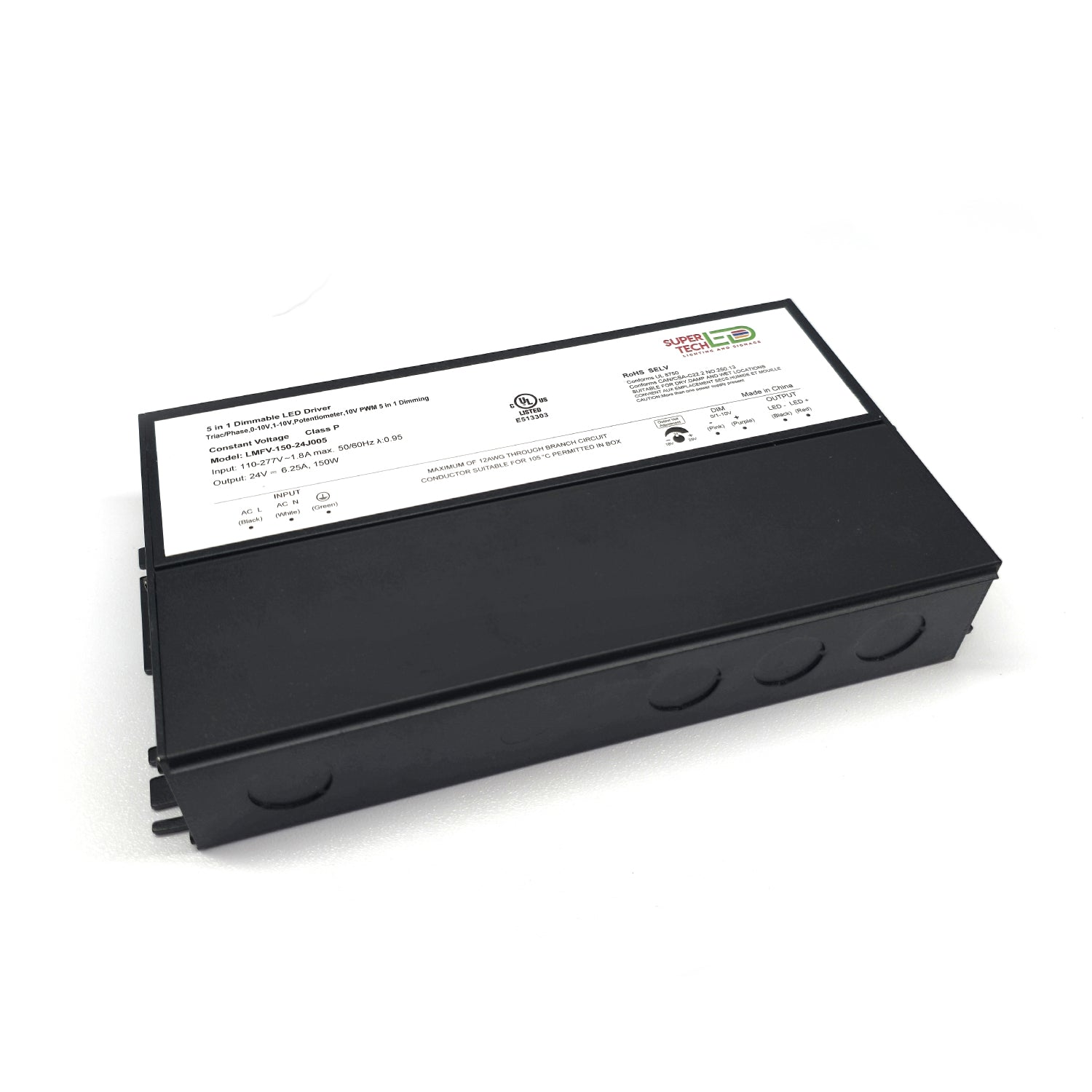

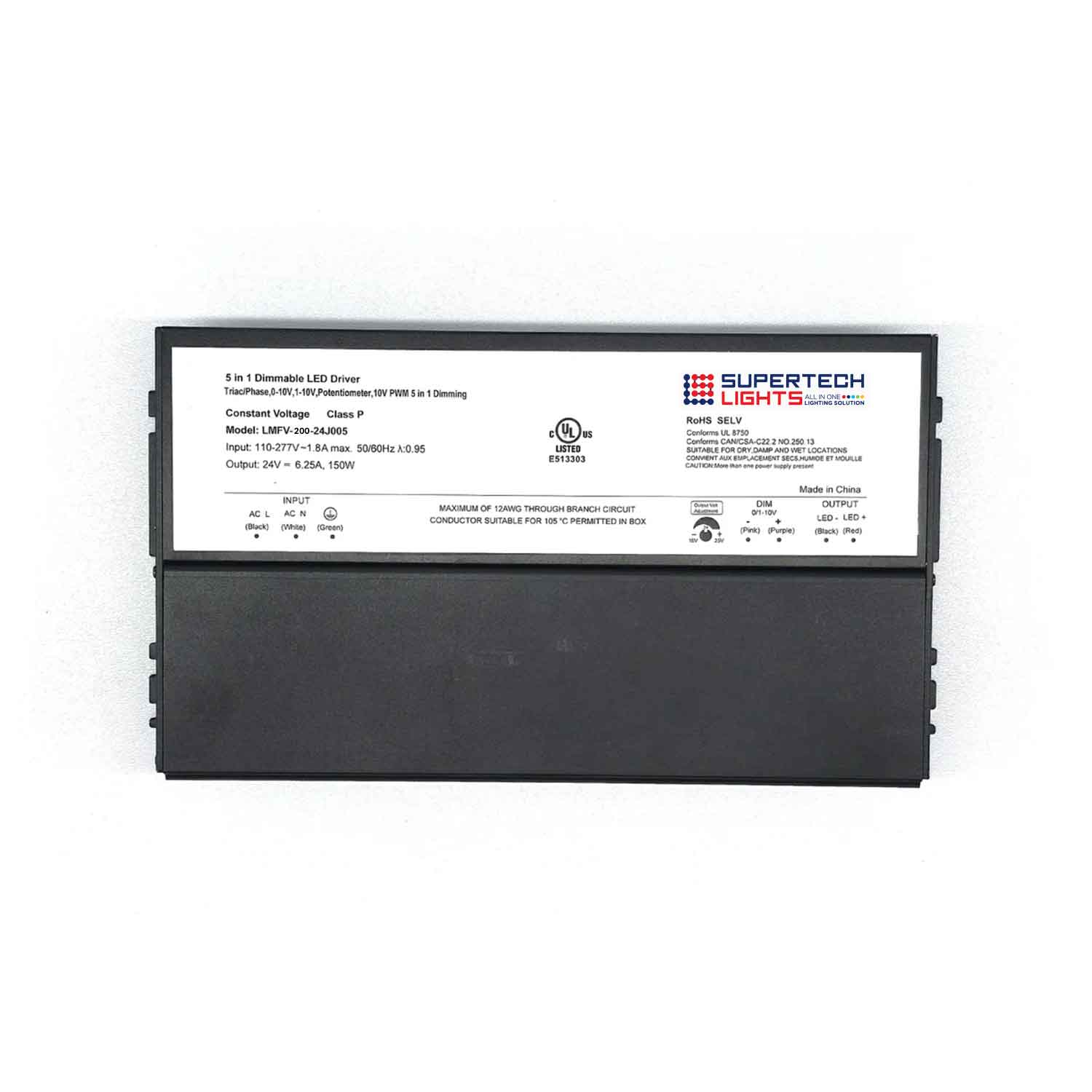

200W 5-in-1 Junction Box Dimmable LED Driver | 12V or 24V DC | Triac / 0-10V / 1-10V / PWM / Potentiometer | 110–277V | UL Listed

• Supports five dimming methods in one unit — Triac, 0-10V, 1-10V, PWM, and potentiometer — eliminating the need for method-specific drivers across different control system configurations.
• Available in 12V DC (16.6A max) and 24V DC (8.3A max) output variants, both rated at 200W continuous output power.
• Fine-tuning of output voltage is available onboard to optimize performance for the connected LED load.
• Built-in active PFC delivers a power factor of 0.98 at 110VAC, meeting commercial power quality requirements.
• Flicker-free output protects against visible flicker artifacts in sensitive applications such as video production environments and occupied commercial spaces.
• Dimming range of 0.1–100% with a minimum load requirement of 5% (DVCL-153P recommended for low-load Triac dimming).
• Wide input voltage range of 110–277V AC (50–60Hz) is compatible with standard North American and international supply voltages without modification.
• Full protection suite includes short-circuit protection with automatic hiccup recovery, over-voltage shutdown with auto-recovery, and over-temperature shutdown.
• Approved for dry, damp, and wet location installation; UL/cUL Listed Type HL, Class P under UL8750 safety standard.
• Supports flat and vertical mounting orientations for flexible enclosure and conduit integration.
• Rated for 50,000 hours operating lifetime at Tc ≤ 80°C case temperature, with a derate curve provided for higher ambient installations.
• Compatible with a wide range of Triac dimmers from Lutron, Leviton, and Legrand — refer to the full dimmer compatibility list before specifying.

• Dimmable LED strip and tape light installations in commercial and hospitality settings
• Neon flex and LED linear profile lighting in retail and architectural environments
• Under-cabinet, cove, and toe-kick lighting in kitchens, bars, and millwork
• Display case and cabinet lighting in retail and museum environments
• Signage and channel letter lighting requiring wet-location rated drivers
• Stage, studio, and broadcast lighting rigs requiring flicker-free output

This driver must be installed by a qualified electrician. Ensure all AC input connections are properly grounded and that the ground wire does not contact the neutral wire. Do not overload the driver by connecting multiple power supplies to the same circuit.

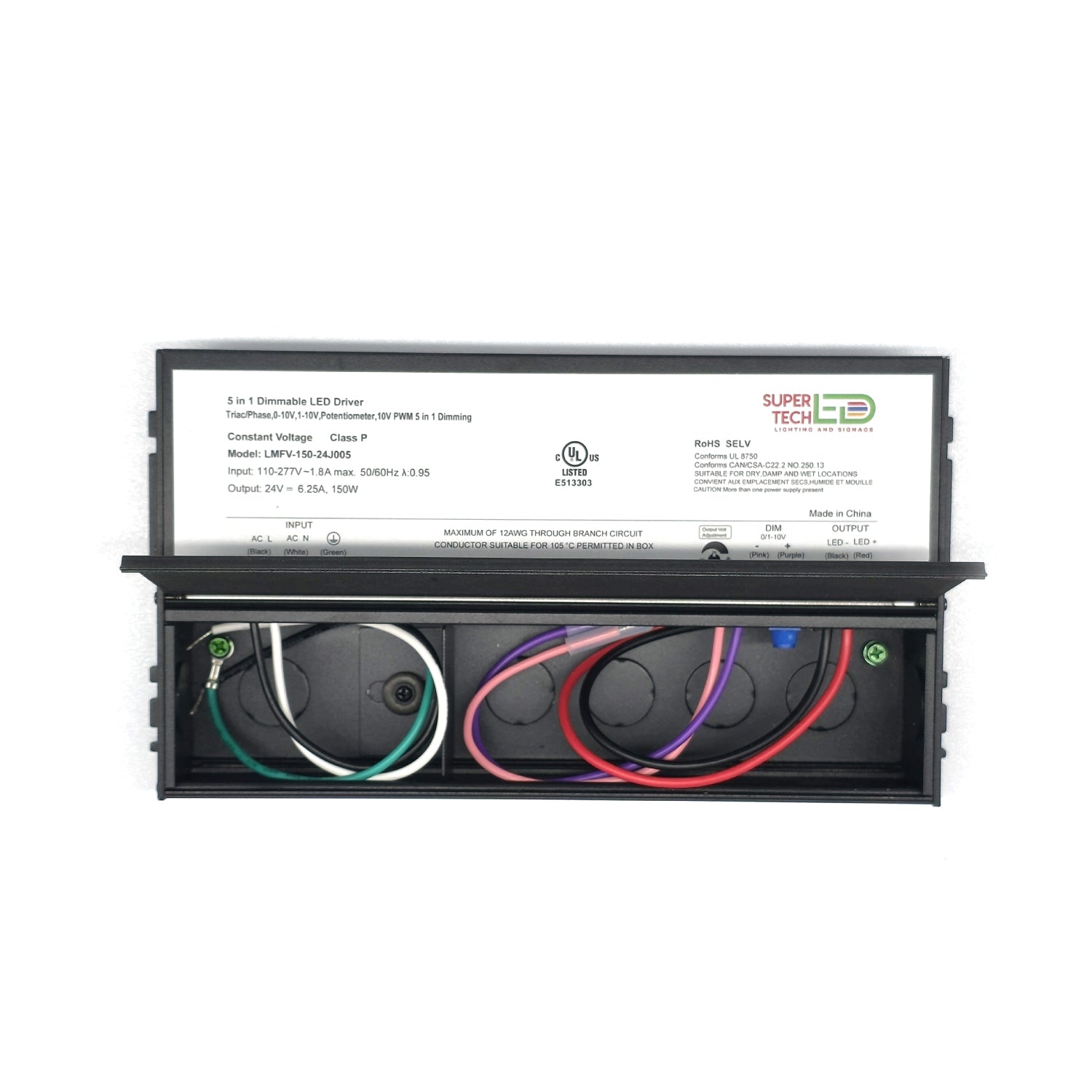

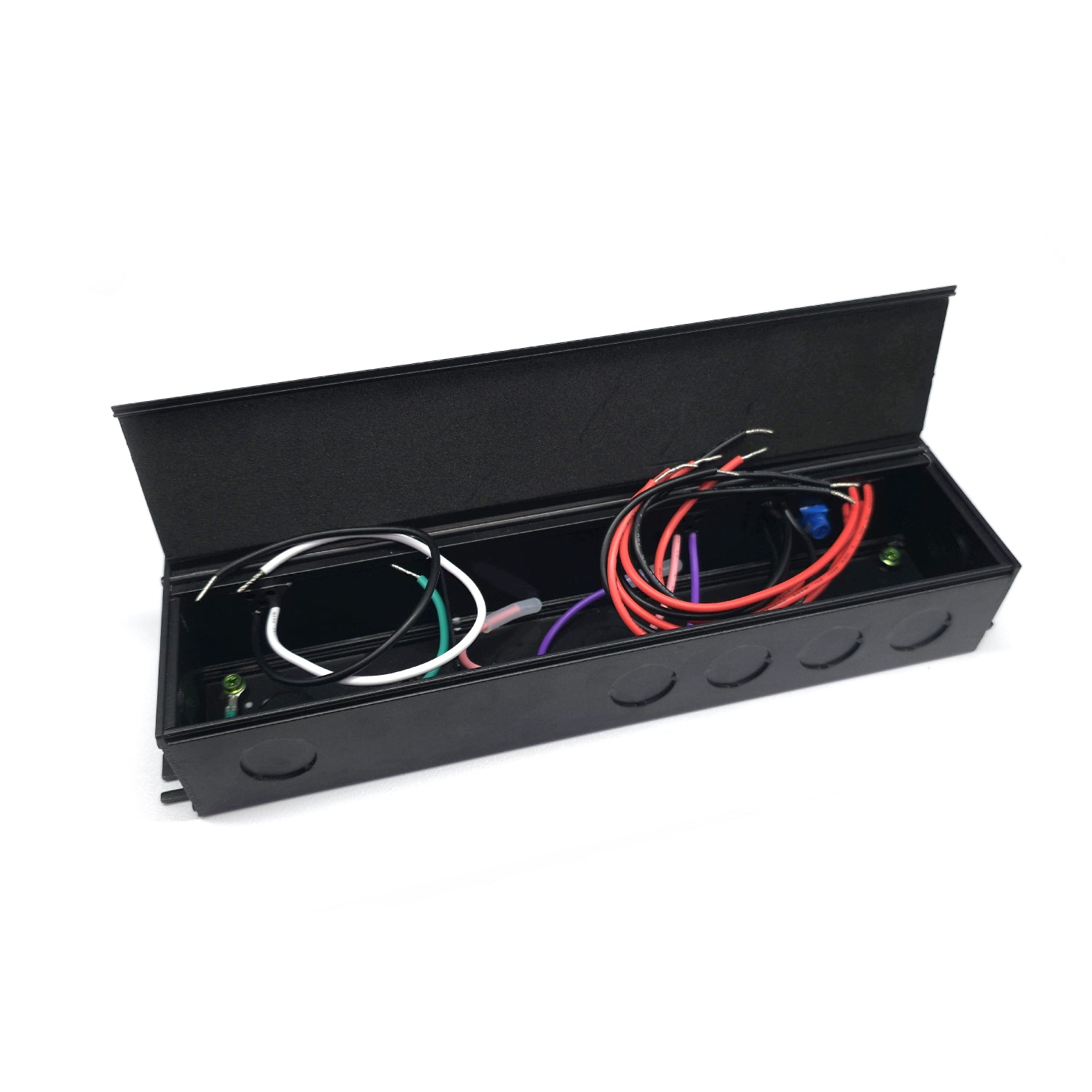

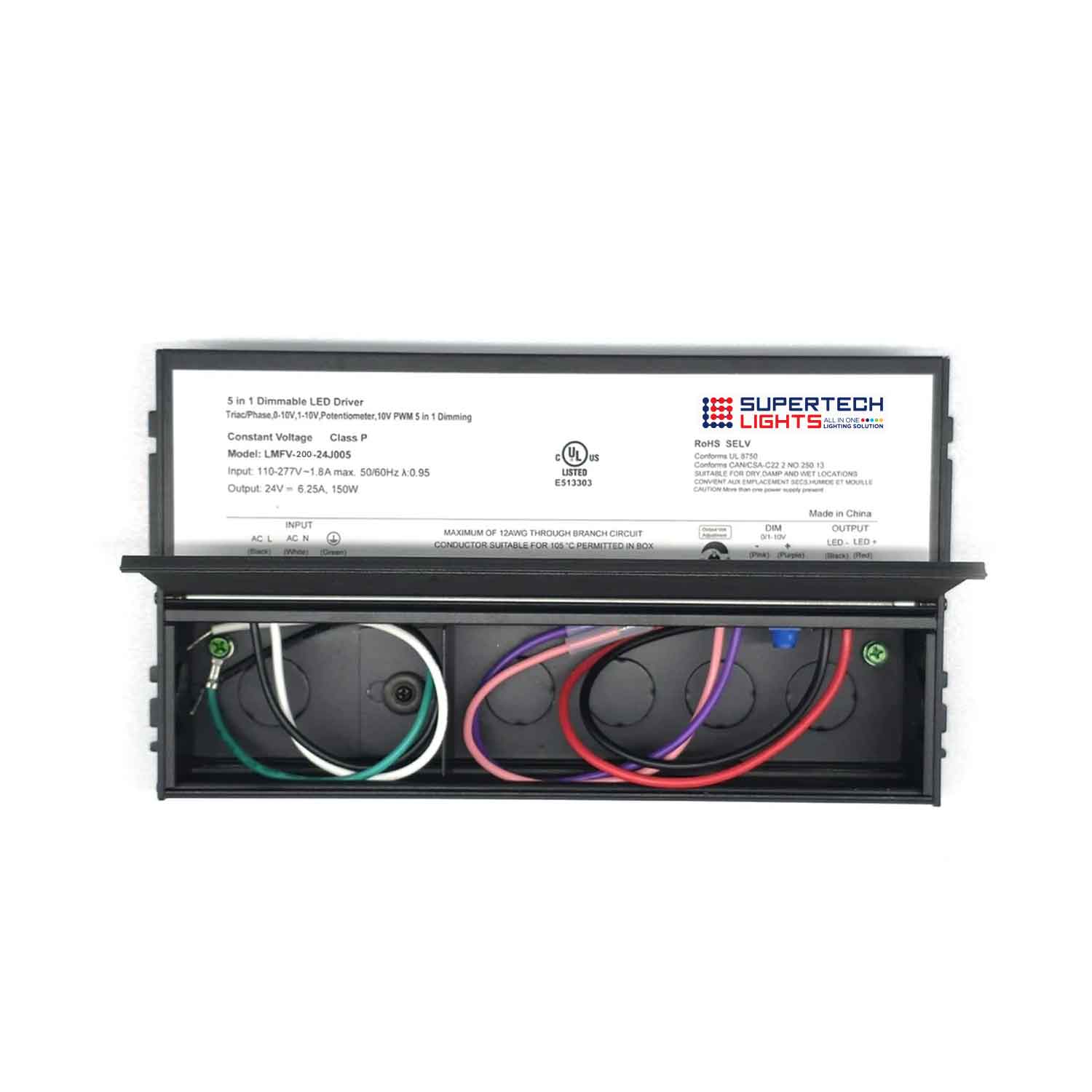

AC input wiring uses a 3-wire cable (Black = Line, Green = Ground, White = Neutral). DC output is connected via 2-wire cable (Red = +V, Black = −V). Dimmer signal wires are Purple (Dim+) and Pink (Dim−). Install the driver in a well-ventilated location — do not enclose in an unvented space. Observe the derating curve when ambient temperatures exceed 40°C; the driver derate begins at 40°C and reaches minimum load at 60°C. Do not touch the metal housing during operation to avoid contact with hot surfaces.
