Description

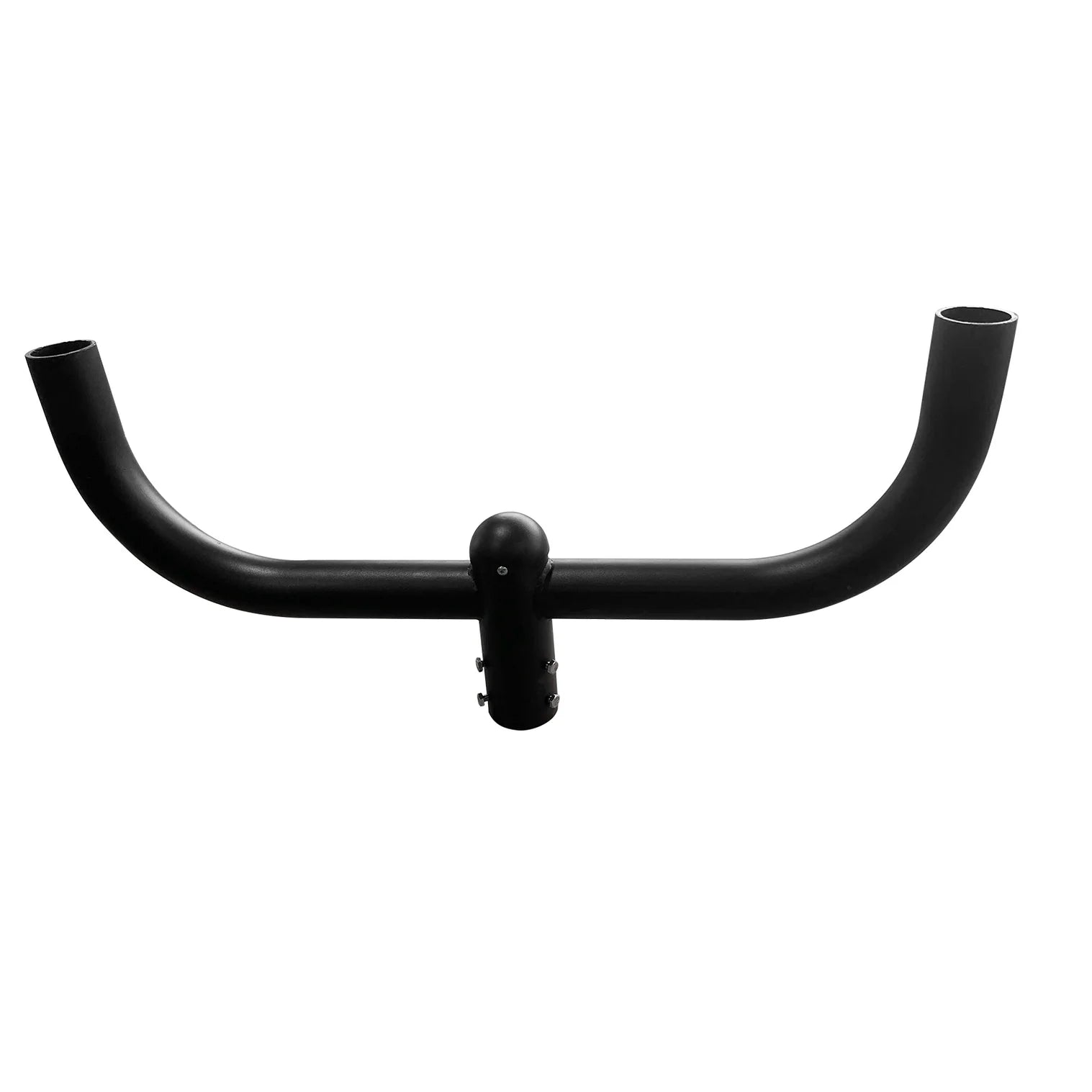

The BHT180D is a 180-degree round double bullhorn tenon designed to mount two LED shoebox, street light, or parking lot fixtures on a single pole. Constructed from heavy-duty steel in a dark bronze finish, this tenon features a 2-3/8-inch inside diameter slip fitter that accepts standard round poles and provides a 30-inch arm span between fixture positions. All mounting hardware is included for a complete, ready-to-install solution.
Specifications +
| General | |
|---|---|
| Model | BHT180D |
| Type | 180° Round Double Bullhorn Tenon |
| Fixture Capacity | 2 Fixtures |
| Finish | Dark Bronze |
| Hardware Included | Yes |
| Physical | |

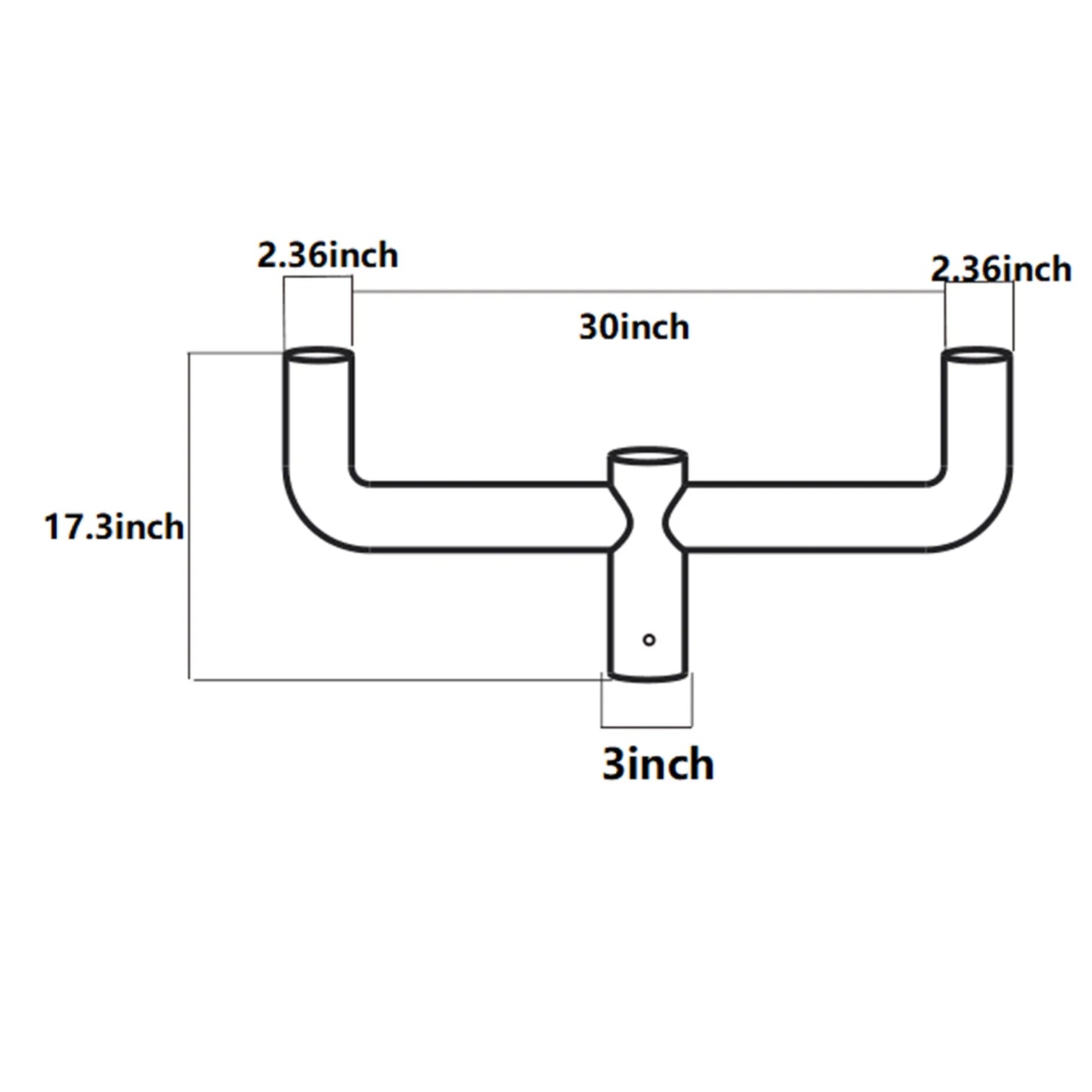

| Arm Span (Center to Center) | 30" |
| Overall Height / Drop | 17.3" |
| Tenon Outside Diameter | 2.36" |
| Pole Adapter Inside Diameter | 3" |
| Slip Fitter Size | 2-3/8" I.D. |
| Weight | 19.8 lbs |
| Packaging | |
| Package Size | 35.43" × 17.72" × 3.54" |
| Quantity per Package | 1 Pc |
Features +
- The 180-degree bullhorn configuration positions two fixtures in opposite directions from a single pole, providing wide, symmetrical light coverage for roadways, parking areas, and pathways.
- Each tenon arm terminates with a 2.36-inch outside diameter fitting that accepts standard slip-fitter-equipped LED shoebox lights, street lights, and area lights.
- The 3-inch inside diameter pole adapter slides over standard round poles and secures with the included set-screw hardware for a firm, adjustable connection.
- A 30-inch center-to-center arm span provides adequate fixture separation to minimize overlap while maintaining uniform ground-level illumination.
- The 17.3-inch overall drop positions fixtures below the pole top for proper clearance and unobstructed light distribution.
- The dark bronze powder-coat finish resists corrosion, UV fading, and weathering for long-term outdoor durability.
- All necessary mounting hardware ships in the box, eliminating the need for separate bolt or clamp purchases.
Applications +
- Parking lot poles requiring dual-fixture coverage along drive aisles and parking rows
- Roadway and street lighting poles where opposing fixture directions illuminate both sides of the road
- Commercial property perimeters, loading docks, and service entrances
- Multi-use pathway and pedestrian walkway lighting in parks, campuses, and HOA communities
- Shopping center and retail plaza parking areas
- Church, school, and municipal building parking lot upgrades
