5-in-1 Dimming Compatibility: Supports Triac / Phase-Cut, 0–10V, 1–10V, 10V PWM, and Potentiometer dimming methods — works with virtually any dimming control system, including Lutron, Clipsal, and Dynalite.
-
Universal Input Voltage: Accepts 100–277VAC input for broad compatibility across residential and commercial electrical systems.
-
High Efficiency: Up to 92% efficiency with a power factor of >0.9 for energy-conscious installations.
-
Flicker-Free Operation: IP20 rated design with flicker-free output for comfortable, high-quality lighting environments.
-
Comprehensive Protection: Built-in protection against short circuit, over-current, over-loading, and over-temperature — recovers automatically after fault conditions are cleared.
-
Passive Cooling: Cooled by free air convection — no fan required, ensuring silent and maintenance-free operation.
-
Dry & Damp Location Rated: Suitable for dry or damp location indoor installations.
-
Wide Operating Temperature: Performs reliably from -40°C to +60°C with a working humidity range of 20–90% RH (non-condensing).
-
ETL Listed & Multi-Certified: Carries ETL, CE, RoHS, SAA, SELV, FCC, and C-tick certifications for global compliance and commercial eligibility.
-
5-Year Warranty: Backed by a 5-year limited warranty for long-term confidence.

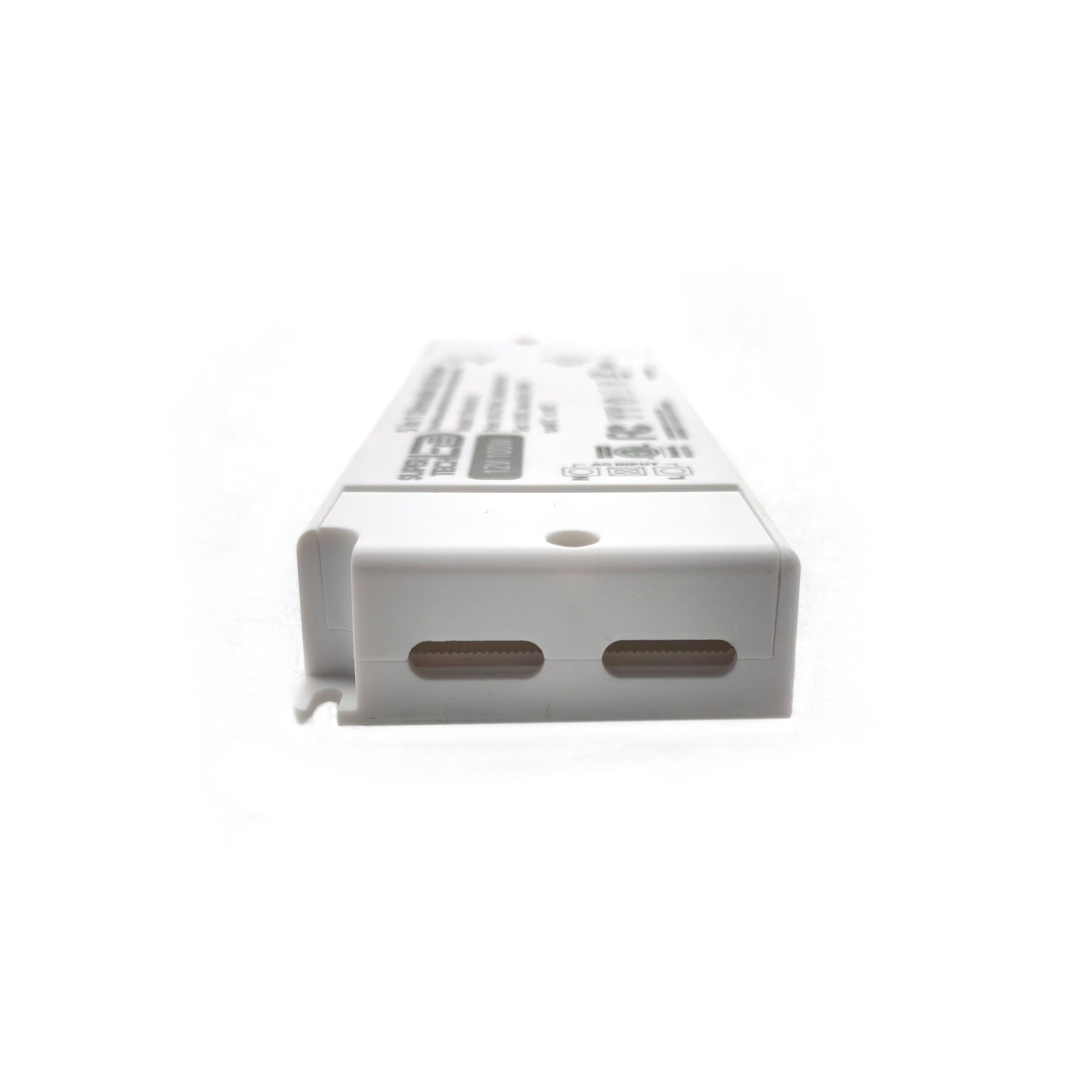

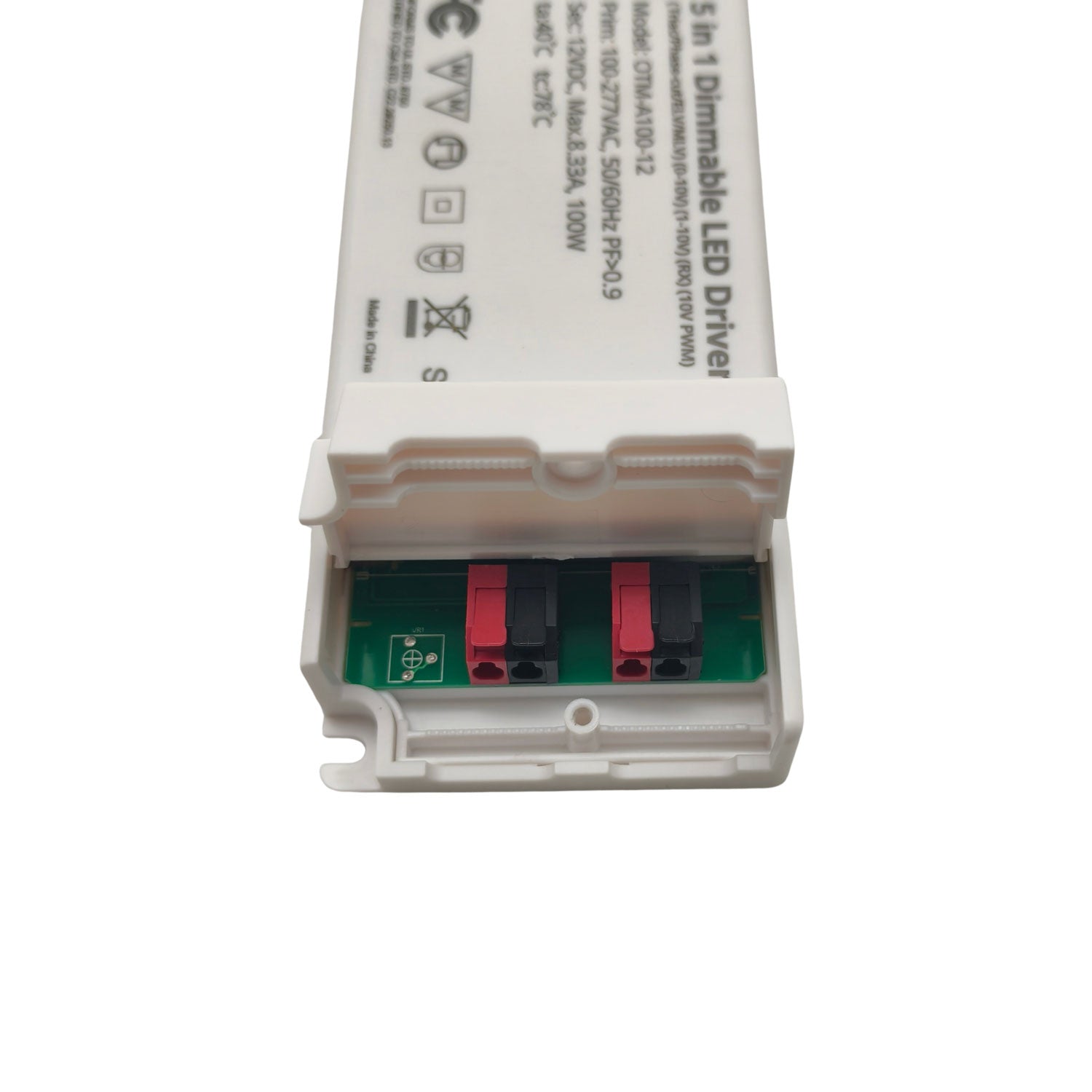

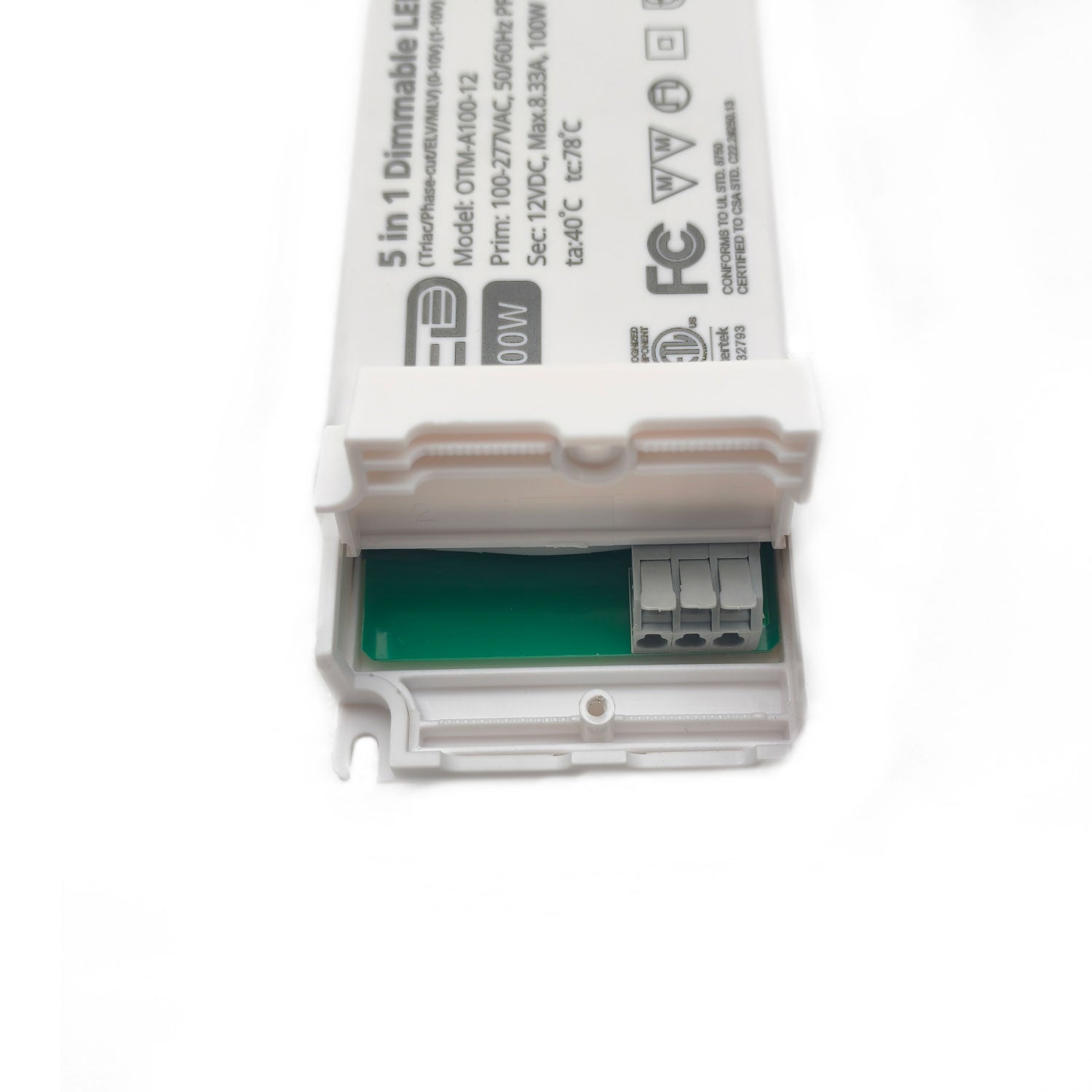

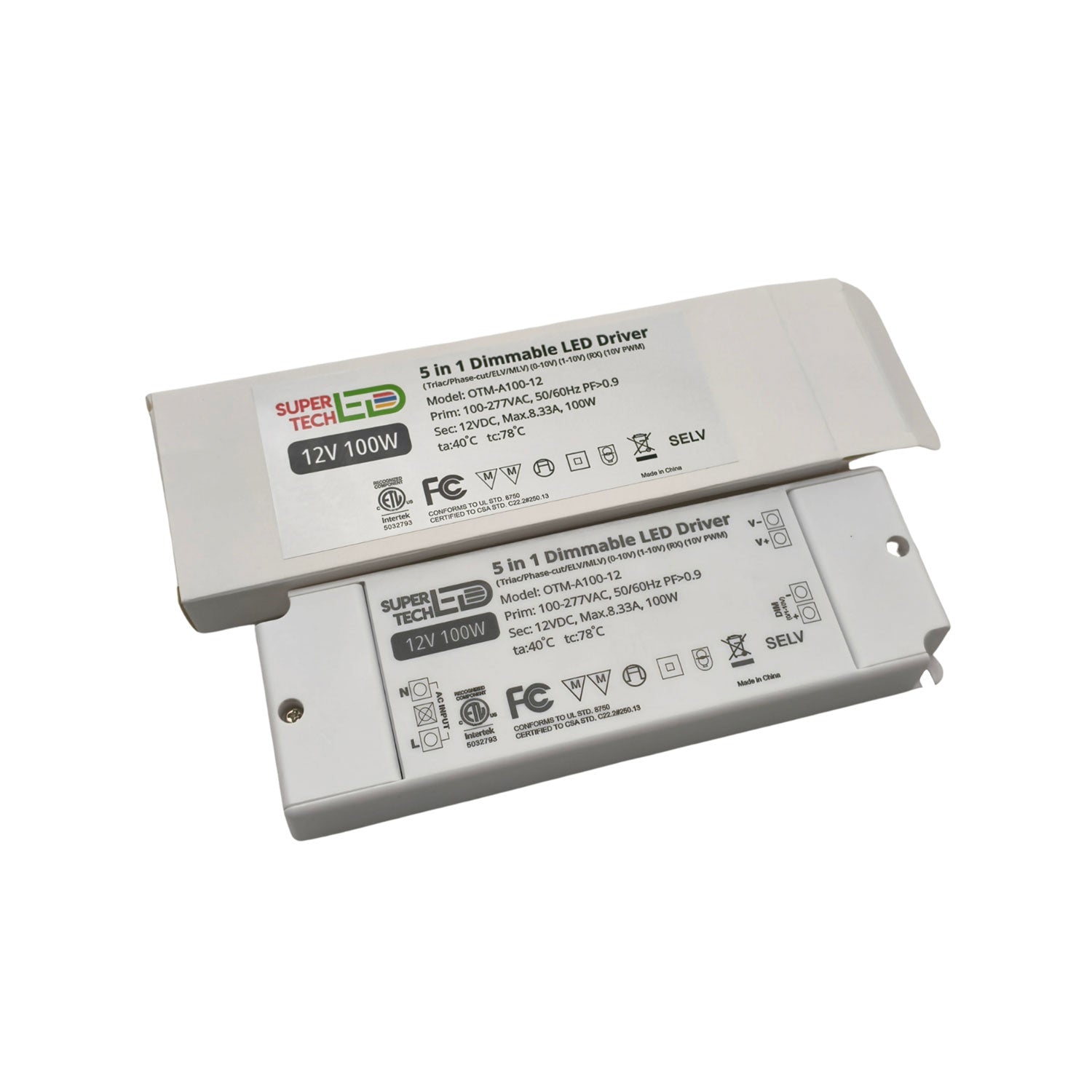

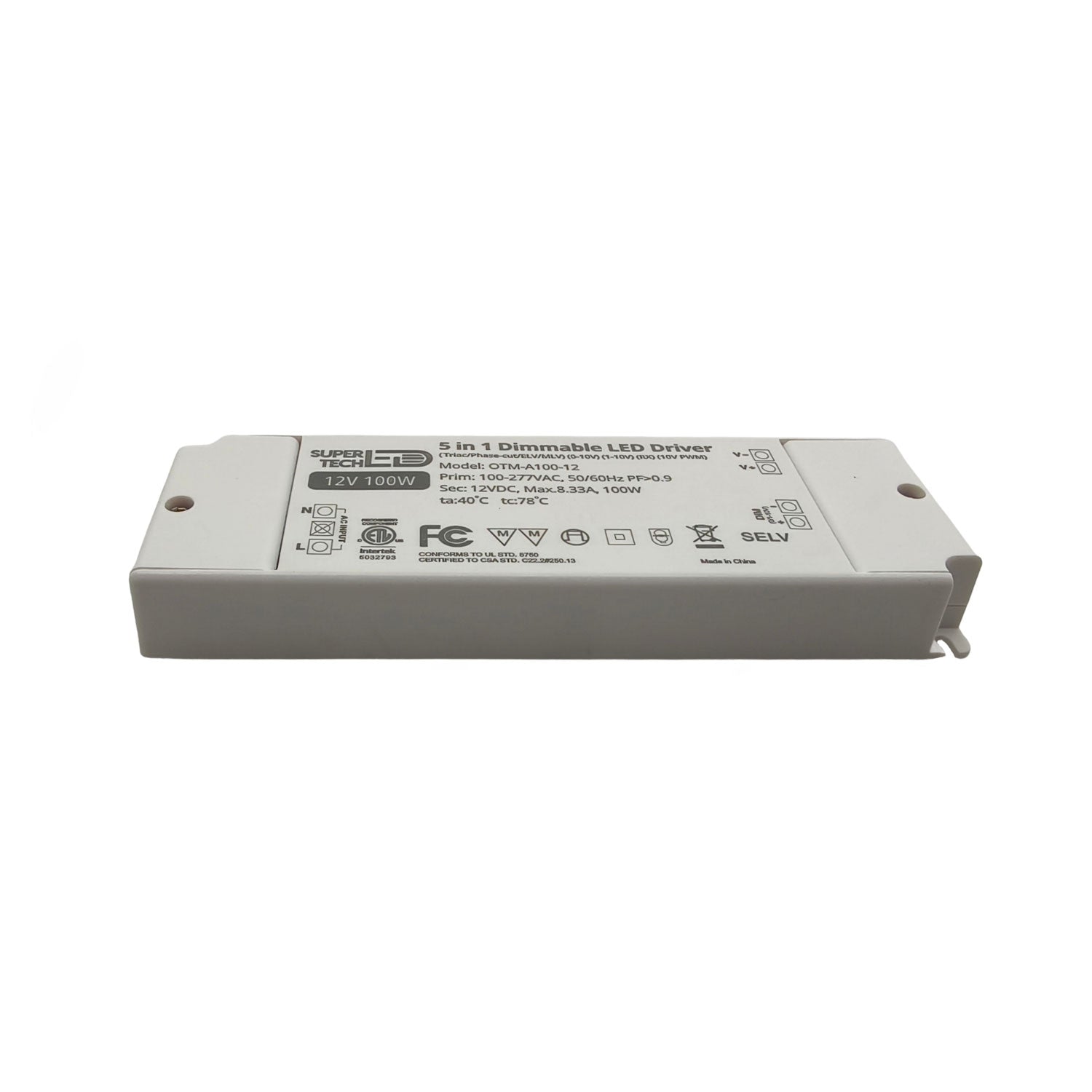

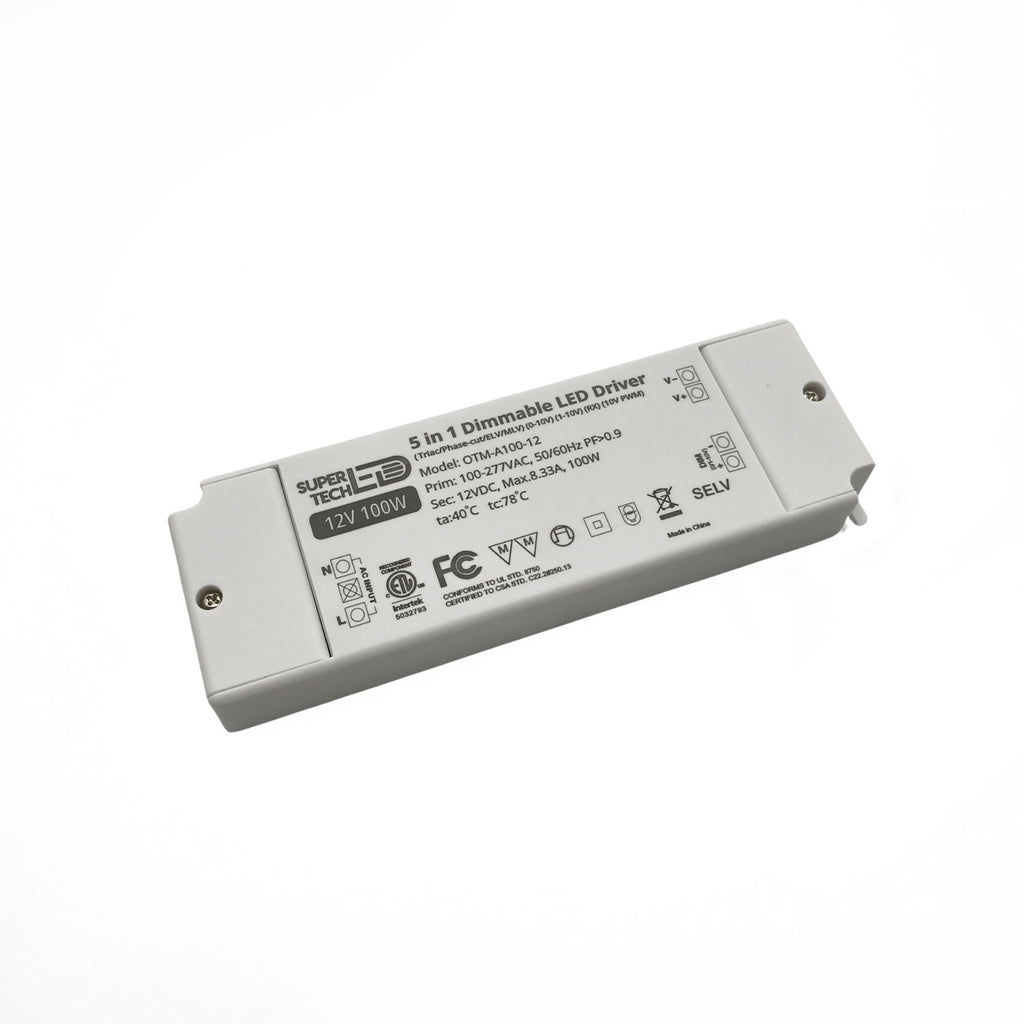

The OTM-A100-12 5-in-1 Dimming IP20 LED Driver is engineered for professional indoor LED lighting installations requiring maximum dimming flexibility. With support for five dimming protocols in a single compact unit, it seamlessly integrates with leading control systems for offices, retail spaces, hospitality, and architectural lighting applications.
